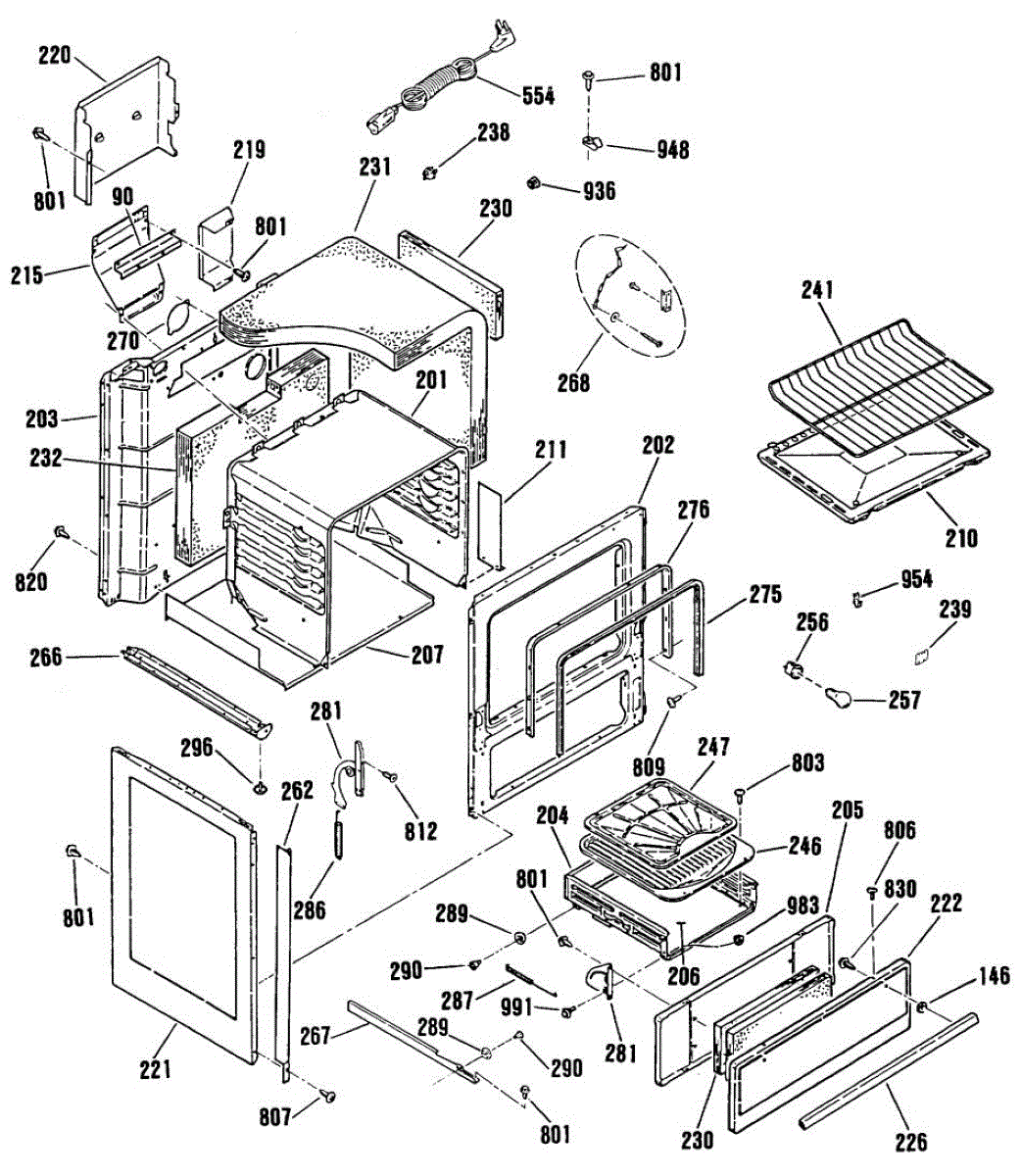

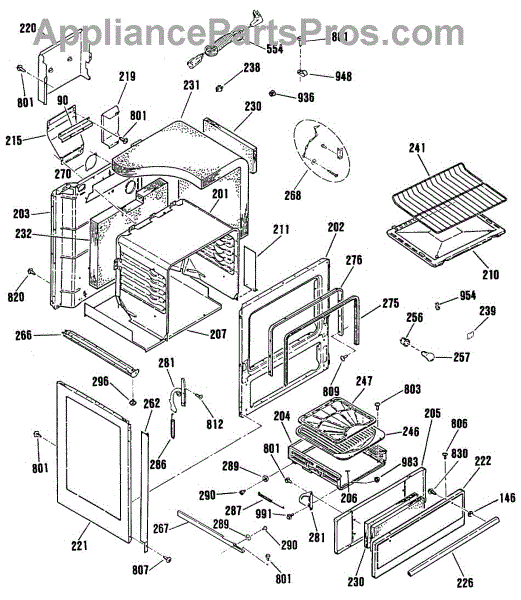

Parts for Ge JGSC12GER1BG: 02 - Section2 Parts

This flue deflector assembly redirects hot gases away from the oven cavity, helping maintain proper venting and consistent bake/roast performance. It replaces a worn or damaged deflector to restore correct exhaust flow. What it does:

• Guides exhaust gases from the oven cavity toward the flue/chimney opening
• Helps maintain even cooking by preventing hot spots caused by misdirected airflow
• Commonly replaced when warped, cracked, or detached after heavy use
• Works as part of the oven venting system to support safe heat management

• Turn off power to the appliance and shut off the gas supply before starting work.
• Use basic hand tools; keep fasteners and brackets separate to avoid misplacement.

Range won't power on or burners not heating? The terminal block connects power to your range. Common repair for electrical connection issues.

Heat-resistant socket that secures and powers your oven's interior light bulb. Replace if light fails or socket shows burn marks or bare wires. Verify fit.

Drawer glide assembly for oven storage or warming drawers. Replaces broken, worn, or damaged slide tracks that cause drawers to stick or fall off rails.

Drawer slide guide assembly for ovens and ranges. Replaces broken or worn drawer glides that cause drawers to stick, sag, or fall off track.

Chain from floor to range design

Left side oven door hinge provides smooth opening and closing operation. Replace if cracked, seized, worn, or binding. Mounts to oven cavity interior.

Replaces a cracked, worn, or broken oven door hinge. Installs on the right side, allowing the door to open and close smoothly and securely.

Replacement tension spring for oven doors, latches, and assemblies. Restores proper tension when the original spring has stretched, broken, or worn out.

Replacement screw for securing components inside your range or oven. Needed when original fasteners are stripped, lost, or damaged during repairs.

ST10-16 X 7/16"

Mounting screw for ranges and ovens. Secures panels, brackets, or internal components. Replace if stripped, missing, or damaged during repair work.

This replacement screw fastens panels, brackets, or trim inside your appliance. Swapping in a new screw restores a tight, secure fit and helps stop rattles, looseness, or misalignment caused by missing or damaged hardware.

• Secures panels, brackets, or trim to the appliance chassis
• Helps maintain proper alignment and spacing of components
• Replaces missing, rusted, or stripped hardware
• Helps resolve loose panels/handles, vibration, or rattling noises

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location; start threads by hand to avoid cross-threading
• Use the appropriate driver and tighten snugly without overtightening
• Inspect the mounting hole or clip for damage and address as needed before reassembly

Replacement screw for securing panels, brackets, and internal components in ranges, ovens, and cooktops. Replace missing, stripped, or damaged screws.

Flat-head 10-32 zinc screw secures panels and components on cooktops, ranges, and ovens. Replace stripped, missing, or corroded screws for proper fit.

Package of 12

Replacement screw for securing panels, brackets, and internal components. Needed when original hardware is stripped, missing, or damaged during repairs.

Replacement mounting bolt for ovens and ranges. Used to secure internal components or panels. Order a new bolt if yours is stripped, missing, or damaged.
