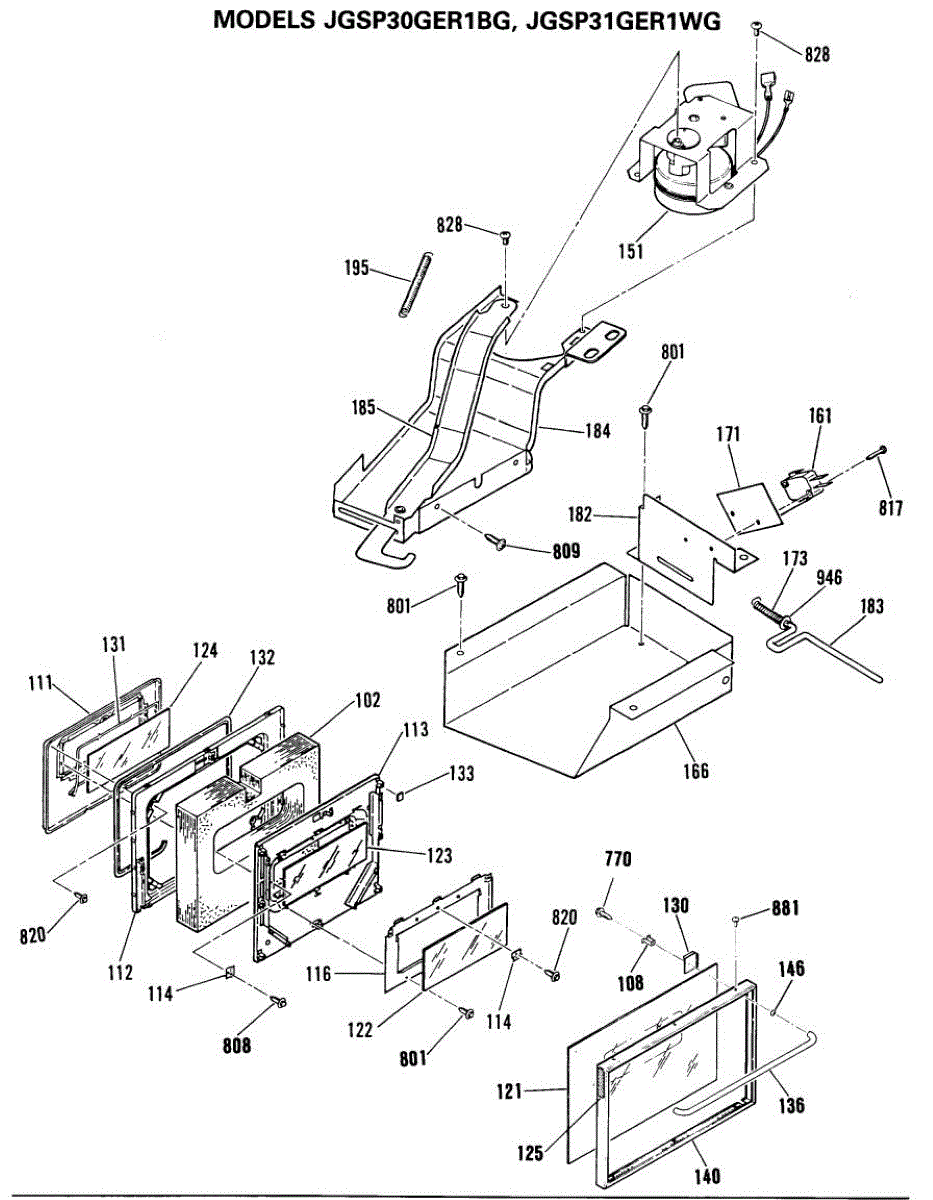

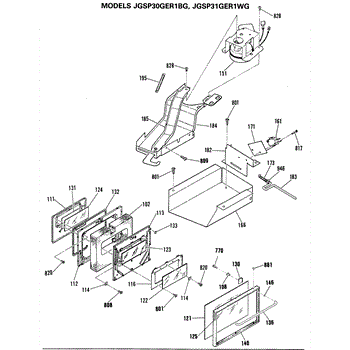

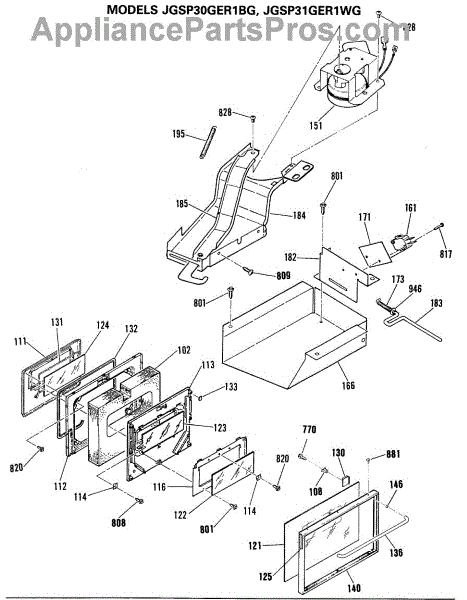

Parts for Ge JGSP30GER1BG: 05 - Section5 Parts

This inner oven door glass seal cushions and seals the inner glass pane inside the door, helping contain heat and keep the glass stable and quiet. Replace a cracked or flattened seal to maintain safe, consistent oven performance.

• Seats and cushions the inner door glass panel
• Seals the perimeter of the pane to limit heat and air leaks
• Helps prevent debris and moisture between glass layers
• Can reduce rattling or shifting of the inner glass
• When worn, contribute to longer preheat times or temperature inconsistency

• Disconnect power; for gas ranges, also shut off the gas supply. Allow the oven to cool completely.
• Remove the door and separate the inner panel per your service instructions.
• Note the seal's routing and orientation; install the new seal without stretching or twisting.
• Wear cut-resistant gloves and handle glass carefully during reassembly.

This replacement oven door gasket forms the heat-resistant perimeter seal around the door opening. Restores a tight seal to retain heat, support accurate temperatures, and reduce warm-air leakage for better baking performance.

• Creates the compressible seal between the oven cavity and door to keep heat in
• Helps the oven preheat efficiently and maintain even temperatures
• Reduces warm air and odors escaping around the door edge
• Common failure signs include fraying, flattening, gaps, longer preheat, or uneven baking

• Disconnect power and allow the oven to cool completely; wear gloves
• Open the door and remove the old gasket from its retainers/channels, noting clip locations and orientation
• Clean the groove/retainer; starting at the top center, press the new gasket in evenly without stretching and seat corners fully
• Close the door and check for uniform contact around the perimeter

This oven door latch assembly secures the door during the self-clean cycle and reports lock status to the control. Replace a worn or failed latch to restore safe locking and reliable self-clean operation.

• Locks the oven door during self-clean to prevent opening at high temperatures
• Signals the control when the door is locked or unlocked
• Helps the oven start and complete a self-clean cycle safely
• Typical symptoms: self-clean won't start or finish, door won't lock/unlock, lock motor runs continuously or is noisy, lock indicator stays on

• Disconnect power at the breaker and allow the oven to cool completely before servicing
• Access is typically from the top or behind the control panel; remove panels as required and note linkage/switch orientation
• Transfer any linkages or mounting hardware from the original latch in the same orientation
• Manually cycle the latch to verify smooth operation before restoring power and testing self-clean

This is a replacement screw used to secure appliance components and restore proper fit and function. Installing the correct screw prevents loose panels and noisy operation and keeps parts aligned for safe use. What it does:

• Secures panels, brackets, or small assemblies to prevent movement and vibration
• Helps stop rattling or vibration caused by missing or stripped fasteners
• Restores secure fit where a screw has been lost or damaged
• Matches the OEM fit so adjoining parts align correctly

• One replacement screw as pictured

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Thread by hand first, then snug; do not overtighten to avoid cracking plastic or stripping threads
• Replace only with the same type and size screw to ensure proper fit

ST10-16 X 7/16"

Replacement fastener used to secure appliance components. If a screw is missing or damaged, panels and brackets can loosen or rattle. Installing a new screw restores a tight fit and helps keep parts properly aligned.

• Fastens panels, brackets, or internal components as designed for the model
• Replaces missing, stripped, or corroded hardware
• Helps reduce vibration/rattling and restores proper fit
• Maintains alignment and a secure assembly after service

• Disconnect power; shut off gas if applicable before servicing
• Support components while removing/installing fasteners
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace all required screws in a location for even clamping and proper fit

Package of 12

This 8-32 thread screw fastens panels and components in compatible appliances, restoring secure mounting and stopping rattles or loose parts. Use it to replace stripped or missing fasteners and maintain proper alignment of covers and assemblies. What it does

• Secures panels, control boards, brackets, and accessory parts to the appliance chassis
• Restores proper fastening when original screws are missing, damaged, or stripped
• Helps eliminate vibration noise and loose-fit symptoms
• Matches common 8-32 appliance thread standards for a direct replacement

• One 8-32 thread screw

• Disconnect power to the appliance before beginning work to avoid shock or injury
• Use the correct-size Phillips or hex driver to prevent cam-out and head damage
• Install by hand first to engage threads, then tighten snugly—do not overtighten to avoid stripping
