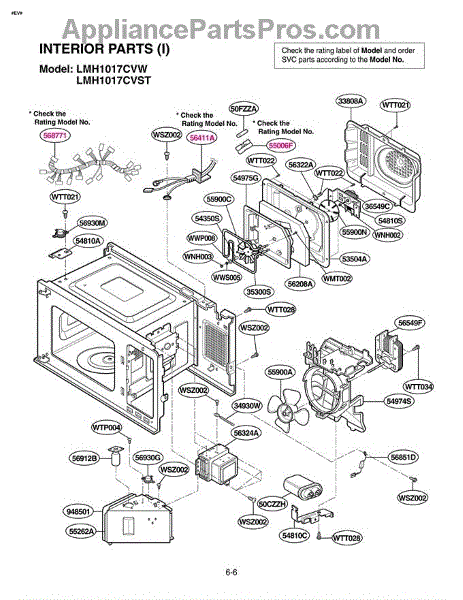

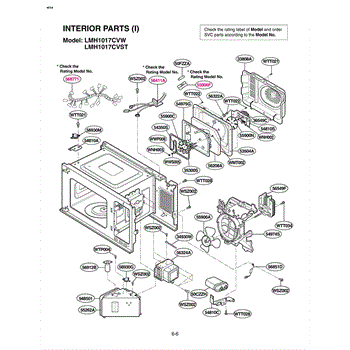

Parts for Lg LMH1017CVST / AS1ELGA: Section 5 Parts

A small replacement fastening nut used to secure components on LG appliances. Replacing a worn or missing nut restores a secure fit and helps eliminate looseness or rattling for reliable operation. What it does

• Fastens and secures mating parts or hardware on appliance assemblies
• Stops movement that can cause rattling, vibration, or misalignment
• Useful when a nut is stripped, lost during service, or damaged
• Helps maintain safe, stable operation of the repaired area

What's included One nut as shown Install notes

• Disconnect power and water before servicing the appliance
• Verify the nut matches the original by thread, size, and profile before installation
• Hand-thread first to avoid cross-threading, then tighten with the correct tool; avoid overtightening
• Keep small parts away from children and pets during repair

A Tap-Tite binding-head screw used to fasten appliance panels and components where a self-tapping metal thread is required. Replaces missing or damaged fasteners to restore secure assembly and reduce vibration or rattling. What it does:

• Creates its own mating thread in thin sheet metal for a secure hold without a nut.
• Holds panels, brackets, and trim in place to prevent looseness or movement.
• Commonly used where stripped, missing, or broken screws cause rattling, misalignment, or parts that won't stay attached.
• Compatible with standard screwdrivers or nut drivers sized to the binding-head.

• Disconnect power and unplug the appliance before working on it.
• Use the correct driver bit to avoid cam-out or head damage.
• Start straight and apply steady pressure; avoid overtightening to prevent stripping the formed threads.
• If the original hole is badly damaged, assess for repair or use of a larger fastener as needed.

A flat washer used with the appliance's fastening hardware to distribute load and reduce wear. Helps maintain secure connections and prevents damage to mating surfaces for reliable operation. What it does:

• Provides an even bearing surface for bolts or screws to prevent pull-through
• Reduces friction and wear between fasteners and housing parts
• Helps keep fasteners tight and resists loosening from vibration
• Commonly used where a smooth, protective spacer is needed

• Verify correct location and orientation before reassembly
• Use manufacturer-recommended fasteners and torque specifications
• Power off and unplug the appliance before accessing internal components

This truss head tapping screw secures panels, brackets, and covers in your appliance. Replacing a missing or damaged fastener restores a snug fit, reduces vibration, and helps keep components properly aligned for reliable performance.

• Provides low-profile holding power; wide truss head helps secure thin panels and trim
• Replaces lost, stripped, or corroded screws at the original mounting points
• Helps eliminate rattling, vibration, or loose handles/covers
• Addresses situations where a screw will not tighten or backs out during use

• Disconnect power; shut off water/gas if applicable before servicing
• Align parts and hand-start threads to avoid cross-threading
• Tighten until snug; do not overtighten to prevent stripping
• If the receiving hole is damaged, for repair before installing the new screw

A high-voltage capacitor for the appliance's high-voltage circuit that stores and releases electrical energy to support proper heating operation. Replacing a failing capacitor can restore consistent heating and prevent related electrical faults. What it does:

• Stores and delivers high-voltage energy used by the magnetron/ high-voltage assembly to generate heat.
• Failure may cause no-heat or weak-heat conditions in the oven.
• Faulty capacitors can contribute to arcing, loud humming, or blown high-voltage fuses.
• Works as part of the HV circuit; not a user-serviceable low-voltage control.

• High-voltage components can hold a dangerous charge—disconnect power and discharge the capacitor before servicing.
• Use insulated tools and avoid touching terminals; verify proper operation with appropriate test equipment.

A high-voltage capacitor for the appliance's high-voltage circuit that stores and releases electrical energy to support proper heating operation. Replacing a failing capacitor can restore consistent heating and prevent related electrical faults. What it does:

• Stores and delivers high-voltage energy used by the magnetron/ high-voltage assembly to generate heat.
• Failure may cause no-heat or weak-heat conditions in the oven.
• Faulty capacitors can contribute to arcing, loud humming, or blown high-voltage fuses.
• Works as part of the HV circuit; not a user-serviceable low-voltage control.

• High-voltage components can hold a dangerous charge—disconnect power and discharge the capacitor before servicing.
• Use insulated tools and avoid touching terminals; verify proper operation with appropriate test equipment.

The drawing capacitor is an OEM component for LG countertop microwaves. It is an integrated electric part that stores and releases power allowing the main control board to communicate smoothly with high-load cooking components like the magnetron tube and turntable motor.

Symptoms of a bad drawing capacitor include:

• Microwave failing to power on or start cooking presets
• Components like the turntable or magnetron not engaging
• Unusual crackling or burning smells from internal circuits
• Control panel displaying error codes for capacitive malfunctions

Causes can be normal component fatigue or manufacturing defects after extended use.

This OEM LG part can also be used on Kenmore/Sears appliances.

A circular lug designed to join a stripped wire to a threaded terminal for a secure electrical connection. Helps restore reliable contact at terminals and reduces the chance of intermittent power or arcing at connection points. What it does:

• Provides a strong mechanical and electrical connection between a wire and a screw or bolt terminal.
• Helps prevent loose connections that can cause intermittent operation, sparking, or overheating.
• Commonly used where a ring-style termination is required for safe, stable wiring.
• Works with properly sized wire and fasteners to maintain consistent conductivity.

• Always disconnect power to the appliance before inspecting or replacing electrical parts.
• Use the correct lug size and gauge for the wire and terminal; crimp or solder per manufacturer recommendations.
• Tighten terminal hardware to the appliance manufacturer's specified torque; avoid over-tightening which can damage the lug or terminal.
• If wiring insulation or the terminal is damaged or corroded, replace the affected components rather than reusing them.

This air duct channels exhaust air inside the appliance to help proper airflow and moisture removal. Replacing a cracked or clogged duct restores efficient venting and prevents leaks or airflow loss. What it does

• Directs air between the blower and vent housing to maintain proper airflow
• Helps remove moisture and lint from the appliance exhaust path
• Prevents exhaust air from escaping into the cabinet when intact
• Damaged ducts can cause reduced drying performance, unusual noises, or heat buildup

• One air duct

• Disconnect power (and gas if applicable) before beginning service
• Use basic hand tools to remove panels and fasteners; keep track of hardware
• Inspect adjacent seals, clamps, and the blower housing for wear and lint buildup
• Test operation after installation and check for proper venting and any leaks

This Fan Blade is an OEM part for LG microwaves. It is a critical component designed to circulate air within the microwave, aiding in heat dissipation and ensuring even cooking.

Fan blades in microwaves can suffer from wear, imbalance, or damage due to regular use or accumulation of debris. A malfunctioning fan blade can lead to inadequate ventilation, affecting the microwave's cooking efficiency and potentially causing overheating.

Symptoms of a bad fan blade include:

• Unusual noises during operation, such as rattling or buzzing, indicate a loose or damaged blade.
• The microwave overheating or shutting off prematurely.
• Inconsistent cooking or hot spots in food suggest poor air circulation.
• The fan not starting, or stopping unexpectedly during use.
• Visible signs of damage or wear on the blade.

This OEM LG part is also compatible with some Sears/Kenmore models.


Thermistor is a temperature-sensing replacement that monitors refrigerator and freezer temperatures so the control board can regulate cooling. Replacing a faulty thermistor restores accurate temperature readings and helps stabilize cooling performance. What it does:

• Senses interior/evaporator temperature and sends a signal to the control board for temperature regulation.
• Helps prevent erratic cooling, long run-times, or inconsistent compartment temperatures when operating correctly.
• Faulty thermistors can contribute to excessive frost, failed defrost cycles, or compressor cycling issues.
• Use when the existing sensor fails to report correct temperatures or the part number matches.

• Always disconnect power to the appliance before servicing to avoid shock or damage.
• The sensor is typically mounted on or near the evaporator or inside a cabinet wall; access may require removing panels or covers.
• Handle the sensor and wiring harness gently; avoid pulling on wires or bending the sensor element.

The Magnetron is an OEM part for LG microwaves. It is responsible for generating the microwaves that cook or heat the food inside the appliance. The magnetron converts electrical energy into microwave radiation, ensuring efficient and even heating.

Causes of a bad magnetron can include prolonged use, electrical surges, or overheating. Over time, these factors can lead to the magnetron wearing out or failing completely.

Symptoms of a bad Magnetron include:

• The microwave not heating food
• Strange noises during operation
• Burning smell or smoke
• The microwave shutting off unexpectedly

This OEM LG part is also compatible with Sears/Kenmore models.

The Diode is an OEM replacement part for LG countertop microwave models. Located internally on circuit boards regulating magnetron function, it precisely controls the electric current flow.

Causes of a bad diode involve thermal fatigue over time putting repetitive stress on sensitive semiconductor junctions. Microwave demands may accelerate failures.

Symptoms include:

• Intermittent cooking or complete failure to energize the tube
• Error codes appearing on the control panel display
• Buzzing or humming noises emitting from internal circuitry

This OEM LG part is also compatible with Sears/Kenmore microwaves.

The Diode is an OEM replacement part for LG countertop microwave models. Located internally on circuit boards regulating magnetron function, it precisely controls the electric current flow.

Causes of a bad diode involve thermal fatigue over time putting repetitive stress on sensitive semiconductor junctions. Microwave demands may accelerate failures.

Symptoms include:

• Intermittent cooking or complete failure to energize the tube
• Error codes appearing on the control panel display
• Buzzing or humming noises emitting from internal circuitry

This OEM LG part is also compatible with Sears/Kenmore microwaves.
