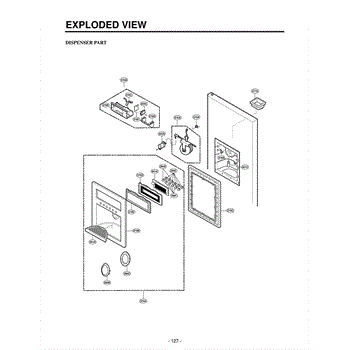

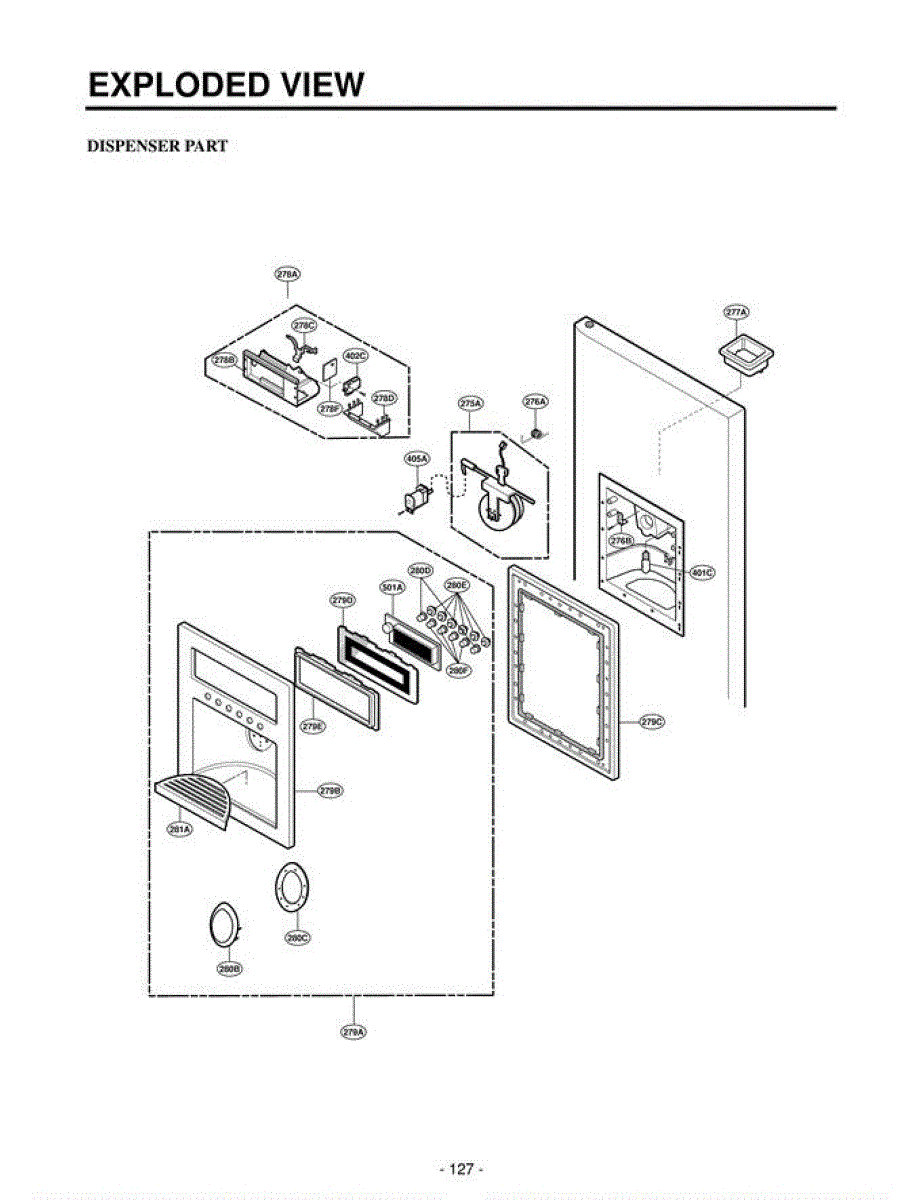

Parts for Lg LRSC21934TT / ATICLGA: Section 6 Parts

The LG Refrigerator Water Filter is an OEM Replacement Part. It is designed to improve the quality of water and protect refrigerators and ice machines from sediment deposits. This NSF-Certified filter effectively reduces iron and particulates. It also preserves beneficial minerals like fluoride. The filter measures 5.6 inches high and 3.3 inches in diameter.

It is installed by removing the top shelf and pulling the old filter downward. Then turn it counter-clockwise, and replace it with the new filter aligned in a horizontal position. To ensure the best performance and the removal of trapped air and contaminants, it's recommended to flush the dispenser with 2.5 gallons of water in alternating cycles. If your model includes a water filter indicator, press and hold the Filter or Reset button for 5 seconds after installation. With a lifespan of 6 months and a 500-gallon capacity, this filter provides both quality and longevity.

This dispenser lever replaces a worn or broken push-style lever on the refrigerator dispenser assembly, restoring reliable dispensing of water or ice without needing a full dispenser housing replacement. What it does

• Replaces a damaged or cracked dispenser lever to allow normal push-to-dispense operation.
• Stops lever wobble or slipping that can prevent water or ice from being dispensed.
• Helps restore correct user feel and alignment with the dispenser actuator.
• Useful when lever is loose, broken, or does not return properly after use.

• One dispenser lever.

• Disconnect power to the appliance before starting any work to avoid electrical shock.
• Handle the door panel and trim carefully; some models require removing the dispenser bezel or inner door panel to access the lever.
• Use basic hand tools; retain all fasteners and gaskets removed during service.
• Test dispenser operation with power restored and no obstruction before finishing reassembly.

This replacement funnel assembly directs dispensed contents safely and cleanly from the appliance outlet into a cup or container, helping restore proper flow and prevent spills. It's a direct-fit component used in the dispenser area. What it does:

• Channels dispensed water/ice/solution from the dispenser outlet to the cup or container
• Prevents drips and misdirected flow that can cause pooling or messes
• Helps reduce ice jams or blockages in the dispenser path
• Restores correct alignment and sealing of the dispenser outlet

• Disconnect power (and water line if applicable) before beginning any work.
• Replace only with the exact part number; align tabs and snaps carefully to avoid damage.
• Typical tools: screwdriver or nut driver may be needed to remove fasteners; avoid overtightening.

This replacement funnel assembly directs dispensed contents safely and cleanly from the appliance outlet into a cup or container, helping restore proper flow and prevent spills. It's a direct-fit component used in the dispenser area. What it does:

• Channels dispensed water/ice/solution from the dispenser outlet to the cup or container
• Prevents drips and misdirected flow that can cause pooling or messes
• Helps reduce ice jams or blockages in the dispenser path
• Restores correct alignment and sealing of the dispenser outlet

• Disconnect power (and water line if applicable) before beginning any work.
• Replace only with the exact part number; align tabs and snaps carefully to avoid damage.
• Typical tools: screwdriver or nut driver may be needed to remove fasteners; avoid overtightening.

This replacement funnel assembly directs dispensed contents safely and cleanly from the appliance outlet into a cup or container, helping restore proper flow and prevent spills. It's a direct-fit component used in the dispenser area. What it does:

• Channels dispensed water/ice/solution from the dispenser outlet to the cup or container
• Prevents drips and misdirected flow that can cause pooling or messes
• Helps reduce ice jams or blockages in the dispenser path
• Restores correct alignment and sealing of the dispenser outlet

• Disconnect power (and water line if applicable) before beginning any work.
• Replace only with the exact part number; align tabs and snaps carefully to avoid damage.
• Typical tools: screwdriver or nut driver may be needed to remove fasteners; avoid overtightening.

The Ice Funnel is an OEM replacement part for LG refrigerators. It is a component located within the ice maker assembly that guides freshly made ice cubes from the mold out into the storage bin. The precisely formed ice funnel ensures ice cubes are directed efficiently into the bin, preventing jams or blockages.

Causes of a bad ice funnel can include cracks or breaks that disrupt proper ice flow. Damage may occur over multiple ice harvests due to repeated pressure.

Symptoms include:

• Ice cubes getting stuck within the funnel rather than dispensing into the bin
• An accumulation of ice fragments inside the funnel
• Reduced ice production or incomplete cubes

Due to manufacturer changes, this part will not fit older models, you must also order the funnel frame part number 3210JA0006S.

This replacement is also compatible with models by Sears/Kenmore.

Color: silver. Measures about 9-1/2 inches wide by 5 inches deep.

The Dispenser Micro Switch is an OEM part for LG refrigerators. It is a component of the ice and water dispensing system, responsible for activating the dispenser when the lever is pressed.

Causes of a bad Dispenser Micro Switch can include mechanical wear from frequent use, failure due to moisture or debris affecting the switch’s contacts, or electrical faults that prevent proper signaling.

Symptoms of a bad Dispenser Micro Switch include:

• The dispenser not releasing ice or water when the lever is pressed.
• Continuous dispensing or dripping after the lever is released.
• Intermittent or no response from the dispenser controls.

This OEM LG part is also compatible with Sears/Kenmore.

The Ice Door Solenoid Assembly is an OEM replacement part for LG refrigerators. This assembly controls the opening and closing of the ice door, which allows ice to be dispensed from the freezer to the exterior of the appliance. When you request ice, the solenoid activates, opening the ice door and permitting ice to pass through.

Symptoms of a bad Ice Door Solenoid Assembly include:

• Ice door not opening or closing properly
• Failure to dispense ice
• Ice accumulating or jamming at the dispenser

Causes for a malfunctioning Ice Door Solenoid Assembly can include electrical issues such as faulty wiring, wear and tear from frequent use, or mechanical problems affecting the solenoid's ability to move the ice door.

This OEM LG part is also compatible with Sears/Kenmore models.
