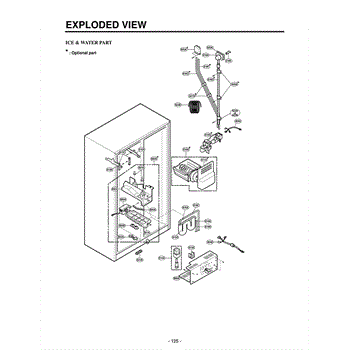

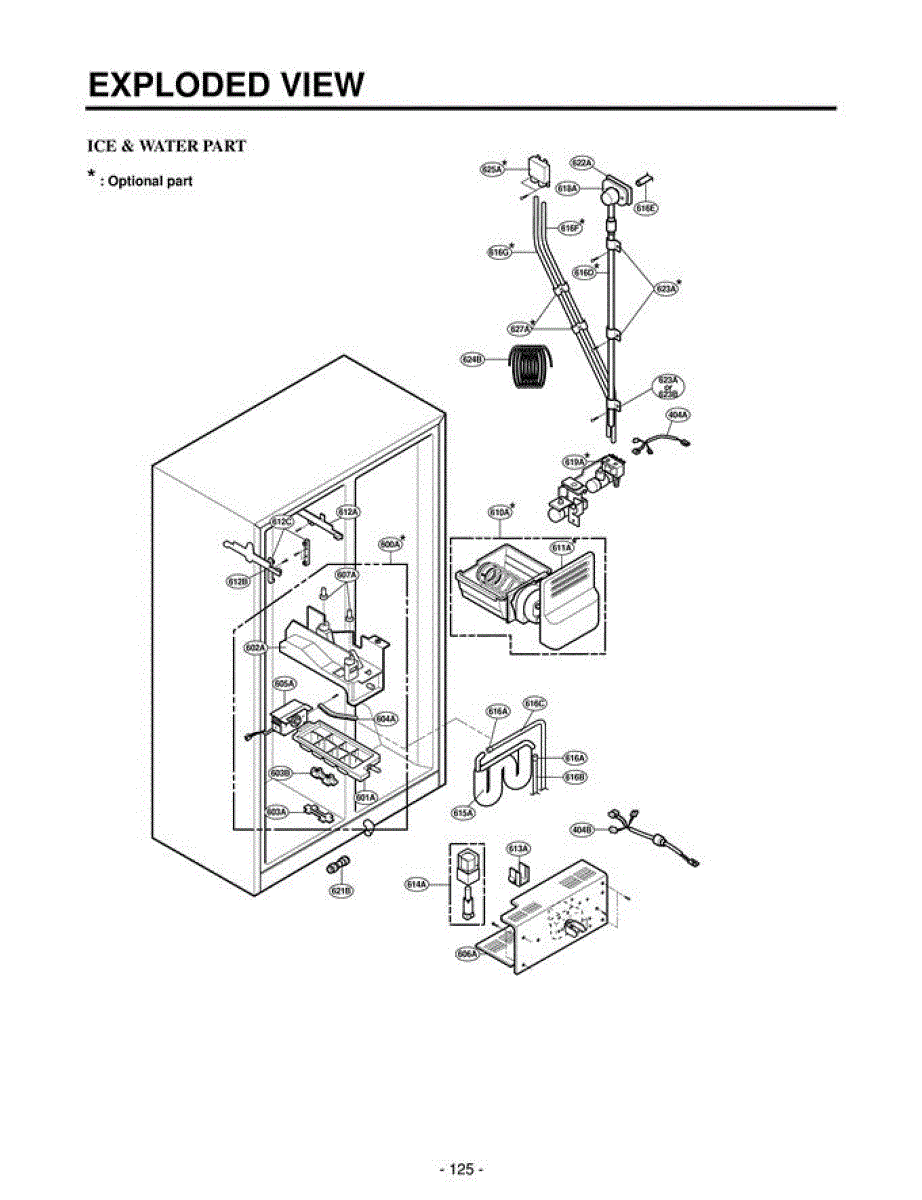

Parts for Lg LRSC21934TT / ATICLGA: Section 4 Parts

The LG Refrigerator Water Filter is an OEM Replacement Part. It is designed to improve the quality of water and protect refrigerators and ice machines from sediment deposits. This NSF-Certified filter effectively reduces iron and particulates. It also preserves beneficial minerals like fluoride. The filter measures 5.6 inches high and 3.3 inches in diameter.

It is installed by removing the top shelf and pulling the old filter downward. Then turn it counter-clockwise, and replace it with the new filter aligned in a horizontal position. To ensure the best performance and the removal of trapped air and contaminants, it's recommended to flush the dispenser with 2.5 gallons of water in alternating cycles. If your model includes a water filter indicator, press and hold the Filter or Reset button for 5 seconds after installation. With a lifespan of 6 months and a 500-gallon capacity, this filter provides both quality and longevity.

This harness joint is a wiring connector that links two sections of an appliance wiring harness, restoring electrical continuity and reliable signal/power transfer. Use it to replace a damaged, loose, or corroded harness connection. What it does:

• Joins wiring harnesses so power and control signals pass between components
• Restores intermittent or lost electrical connections caused by broken or corroded terminals
• Helps eliminate symptoms like no power to a module, intermittent operation, or communication failures
• Maintains proper routing and strain relief where harness sections meet

• Disconnect power (unplug or shut off breaker) before inspecting or replacing wiring
• Match connector shape and terminal arrangement before installation; secure firmly until it clicks or seats
• Avoid forcing pins; inspect adjacent wires and insulation for damage and replace if needed

The Ice Maker Assembly Kit is an OEM part for LG refrigerators. This kit includes the components necessary to produce and store ice, ensuring a steady supply of ice for your household needs.

Common causes of a bad ice maker include wear and tear from regular use, clogging or blockage in the water supply line, or failure of the mechanical or electronic components that control the ice-making process.

Symptoms of a bad Ice Maker Assembly Kit include:

• No ice production
• Smaller than usual ice cubes
• Leaks around the ice maker
• Unusual noises during the ice-making cycle

This OEM LG part is also compatible with Sears/Kenmore.

The Ice Cube Tray is an OEM part for LG refrigerators. It is located in the freezer section of the refrigerator and provides a designated space for freezing water into ice cubes. It is designed with individual compartments to form ice cubes in a specific shape and size.

Causes of a faulty ice cube tray can include regular wear and tear, physical damage, or improper handling. These factors can result in issues such as the tray cracking or breaking, difficulty in removing ice cubes, or improper freezing of the cubes.

Symptoms of a bad ice cube tray may include:

• Cracked or broken tray
• Difficulty in removing ice cubes from the tray
• Irregularly shaped or improperly frozen ice cubes

This OEM LG part can also be used on Kenmore/Sears appliances.

The Ice Maker Assembly Kit is an OEM part for LG refrigerators. This kit includes the components necessary to produce and store ice, ensuring a steady supply of ice for your household needs.

Common causes of a bad ice maker include wear and tear from regular use, clogging or blockage in the water supply line, or failure of the mechanical or electronic components that control the ice-making process.

Symptoms of a bad Ice Maker Assembly Kit include:

• No ice production
• Smaller than usual ice cubes
• Leaks around the ice maker
• Unusual noises during the ice-making cycle

This OEM LG part is also compatible with Sears/Kenmore.

This sensor cover protects and secures the appliance sensor assembly to help maintain accurate sensor positioning and guard the sensor from damage, dust, and moisture that can interfere with normal operation. What it does:

• Shields the sensor housing from physical damage, dust and moisture.
• Keeps the sensor properly positioned so it can read conditions reliably.
• Can prevent intermittent sensor faults and related error codes when damaged.
• Helps avoid false readings that can cause incorrect cycles or behavior.

• Disconnect power to the appliance before starting any work to avoid shock or injury.
• Handle nearby wiring and sensor components carefully; avoid touching circuit contacts.
• Verify the cover seats flush and secures to the sensor housing; do not force or deform plastic tabs.
• If any sensor or wiring was disturbed during installation, recheck connections and test operation before regular use.

This guide is the replacement drawer slide guide that supports and aligns a refrigerator drawer for smooth, stable opening and closing. Restore proper drawer travel and help prevent binding, sagging, or uneven movement. What it does:

• Supports the drawer on its track and keeps it aligned.
• Guides the drawer during opening and closing for smooth travel.
• Prevents the drawer from binding, sagging, or coming off the track.
• Reduces noise and wobble caused by worn or broken guides.

• Always unplug the appliance or turn off power at the breaker before starting repairs.
• Remove the drawer to access the guide.
• Inspect the mating track and adjacent guides; replace any damaged parts to ensure proper fit.
• Tighten fasteners securely but avoid over-tightening to prevent damage.

Changes between cubed or crushed ice.

The Tube is an OEM replacement part for LG refrigerators. It is a 1/4" plastic tubing that transports water from the main supply line to the refrigerator's water dispenser and ice maker.

Over time, causes of a faulty water line can include mineral buildup restricting water flow, microscopic cracks developing from regular use and pressure fluctuations, or kinks interfering with the flow.

Symptoms of a problematic water line include:

• Slow or intermittent water flow from the dispenser
• Incomplete fills of ice trays
• strange noises when water is dispensed
• Water leaks underneath or behind the fridge

This LG part is also compatible with Sears/Kenmore refrigerators.

The Water Inlet Valve Assembly is an OEM part for LG refrigerators. This valve controls the flow of water into the refrigerator for the ice maker and water dispenser. It ensures a steady supply of water, allowing these features to function efficiently.

You should replace the water inlet valve assembly if it becomes defective. Causes of a bad water inlet valve can include sediment build-up, electrical faults, or mechanical wear. These issues can compromise the valve's ability to open and close correctly, affecting water flow.

Symptoms of a bad water inlet valve assembly include:

• No water or ice production
• Leaks or water pooling around the refrigerator
• Low water pressure from the dispenser
• Strange noises during water filling

This OEM LG part is also compatible with Sears/Kenmore models.

The Water Tube Connector is an OEM part for LG refrigerators. It is specifically designed to securely connect the water supply tubes in the refrigerator. The connector ensures a proper seal, preventing leaks and ensuring a consistent water supply to your refrigerator.

Causes of a bad water tube connector can include wear and tear over time, exposure to water pressure, or damage due to accidental impact or mishandling. These factors can result in leaks, water flow disruptions, or a loose connection, leading to issues with water dispensing or ice making.

Symptoms of a bad water tube connector may include:

• Water leaks at the connection point
• Reduced or intermittent water flow
• Complete water flow blockage

This OEM LG part can also be used on Kenmore/Sears appliances.

This mechanical mounting band secures a bracket assembly inside the appliance to keep components aligned and reduce vibration. It restores proper bracket positioning so moving parts run quietly and reliably. What it does:

• Holds a bracket or component assembly in place to maintain proper alignment
• Dampens movement and reduces vibration-related noise or rattling
• Prevents excess wear by keeping parts from shifting during operation
• Helps maintain correct clearances to avoid interference or rubbing

• Disconnect power before inspecting or replacing internal parts
• Remove only the fasteners necessary to access the bracket; keep track of hardware
• Secure all fasteners to the manufacturer's torque or snug specification
• Replace the band if bent, cracked, or missing to restore proper fit and function

This holder is a small mounting bracket that secures a mating component in place inside the appliance. Replacing a cracked or missing holder restores a firm, rattle-free fit and proper alignment.

• Provides a stable mount for the designated part
• Prevents shifting and vibration that can cause noise or premature wear
• Common signs of failure: broken tabs, stress cracks, or the attached part sagging or falling out
• When damaged, the connected component may be loose, noisy, or misaligned

• Disconnect power; if working near water tubing, also shut off the water supply
• Note the original orientation and mounting points; take a photo before removal
• Reuse existing fasteners and avoid overtightening to prevent cracking the plastic
• Ensure the attached component is secure and clears any moving parts before restoring power
