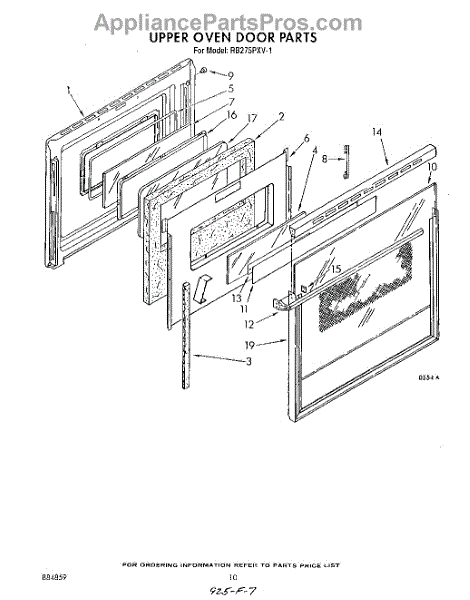

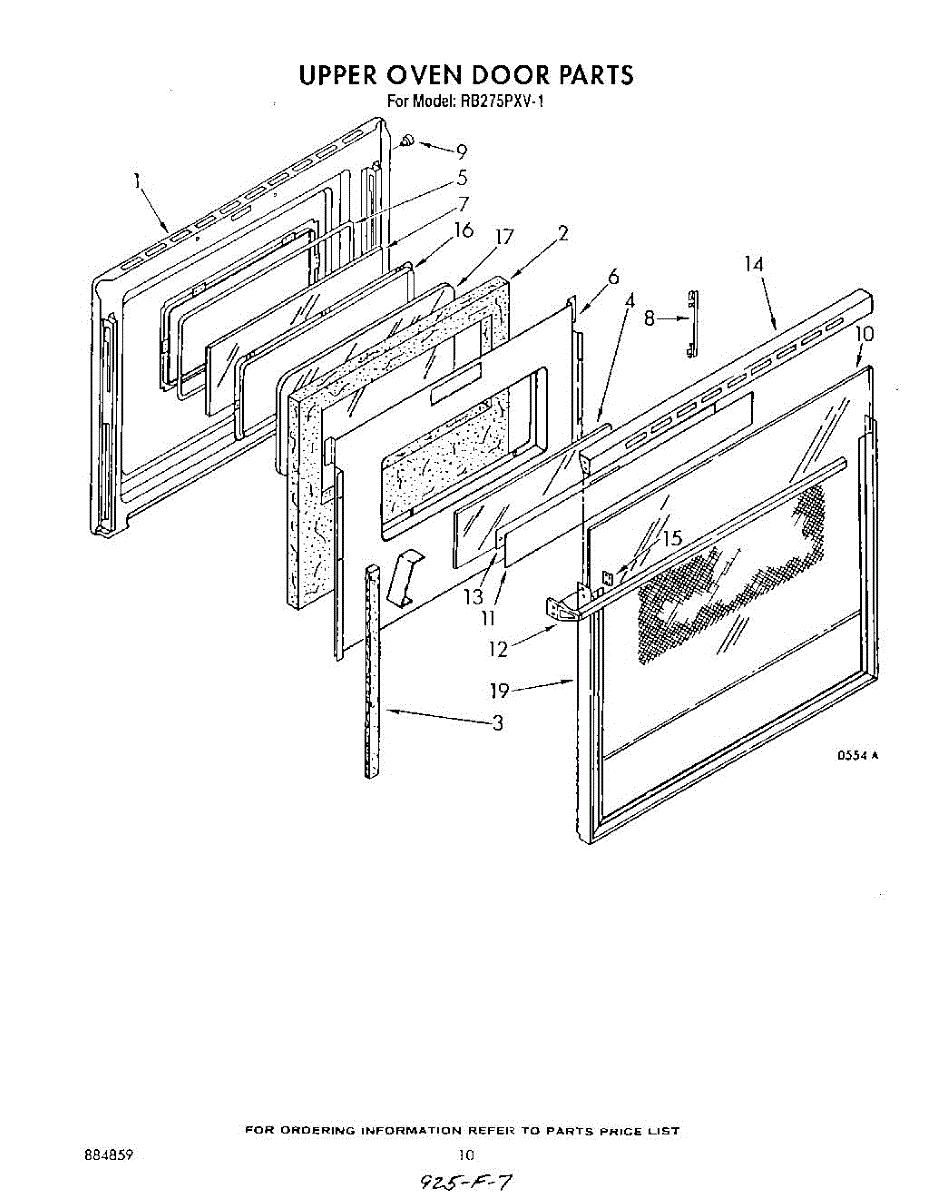

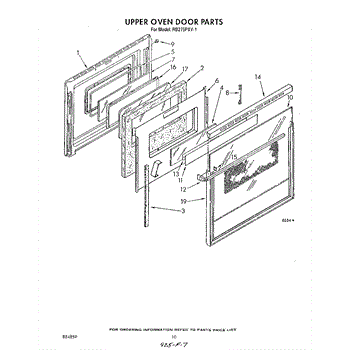

Parts for Whirlpool RB275PXV1: 06 - Section Parts

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This replacement oven door glass restores a clear viewing window and proper heat retention. Replace this pane when the glass is cracked, shattered, or permanently stained to keep your oven safe, efficient, and easy to monitor.

• Forms the inner or outer window of the oven door, sealing heat while letting you watch cooking progress
• Helps maintain temperature stability and preheat performance
• Common failure signs: visible cracks or chips, shattered glass, fogging or residue between panes, or difficulty maintaining temperature
• Restores safety by eliminating sharp edges and reducing risk of further breakage

• Disconnect power and allow the oven to cool completely; shut off gas supply if applicable
• Wear cut-resistant gloves and eye protection; handle glass carefully
• Remove the door and glass retainers; note screw and trim orientation
• Transfer any clips/trim from the original pane as needed; reassemble without overtightening and confirm door alignment and seal

Self-locking, phillips screw.

This part has been discontinued and is no longer available.

A small replacement mounting clip that secures the appliance handle to the door or control panel for a firm fit and reliable operation. Replaces a worn or broken clip to restore handle stability and reduce movement. What it does:

• Holds the handle tight to the door or panel so the handle doesn't wobble or come loose
• Prevents the handle from detaching during normal use
• Helps stop rattling or shifting that can occur with a broken clip
• Fits into the handle mounting location to align and lock the handle in place

• One mounting handle clip

• Disconnect power (and water if applicable) before beginning any repair
• Access may require removing the door trim or interior panel—keep track of fasteners
• Use appropriate hand tools and avoid forcing plastic clips to prevent breakage

This part has been discontinued and is no longer available.

This replacement oven door glass restores a clear viewing window and proper heat retention. Replace this pane when the glass is cracked, shattered, or permanently stained to keep your oven safe, efficient, and easy to monitor.

• Forms the inner or outer window of the oven door, sealing heat while letting you watch cooking progress
• Helps maintain temperature stability and preheat performance
• Common failure signs: visible cracks or chips, shattered glass, fogging or residue between panes, or difficulty maintaining temperature
• Restores safety by eliminating sharp edges and reducing risk of further breakage

• Disconnect power and allow the oven to cool completely; shut off gas supply if applicable
• Wear cut-resistant gloves and eye protection; handle glass carefully
• Remove the door and glass retainers; note screw and trim orientation
• Transfer any clips/trim from the original pane as needed; reassemble without overtightening and confirm door alignment and seal

This part has been discontinued by the manufacturer and is no longer available.
