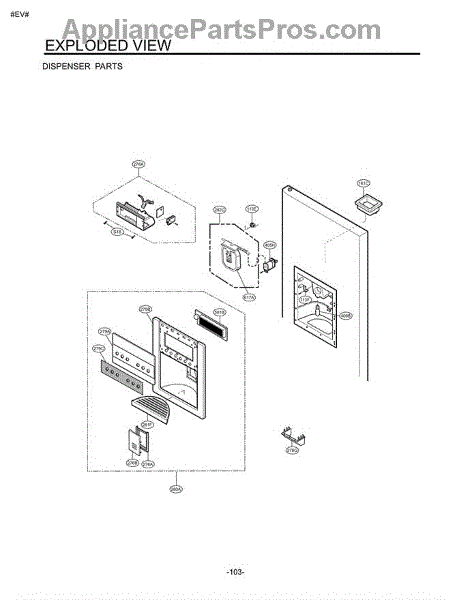

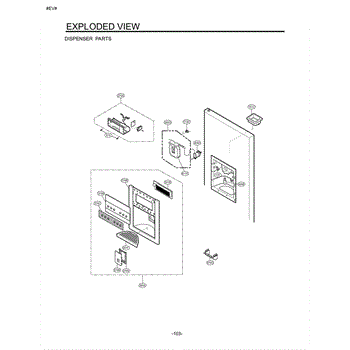

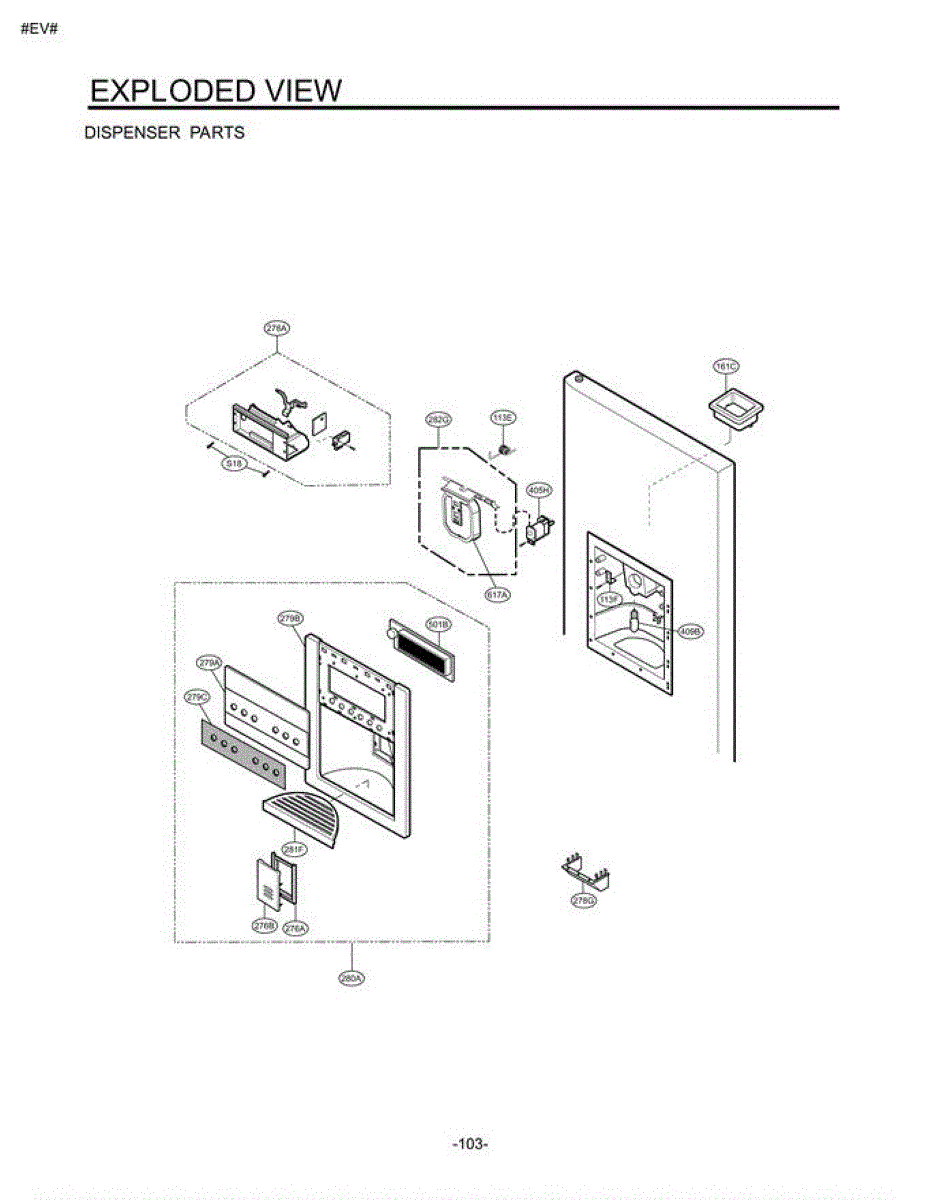

Parts for Lg LSC26905TT / ANTCLGA: Section 7 Parts

The LG Refrigerator Water Filter is an OEM Replacement Part. It is designed to improve the quality of water and protect refrigerators and ice machines from sediment deposits. This NSF-Certified filter effectively reduces iron and particulates. It also preserves beneficial minerals like fluoride. The filter measures 5.6 inches high and 3.3 inches in diameter.

It is installed by removing the top shelf and pulling the old filter downward. Then turn it counter-clockwise, and replace it with the new filter aligned in a horizontal position. To ensure the best performance and the removal of trapped air and contaminants, it's recommended to flush the dispenser with 2.5 gallons of water in alternating cycles. If your model includes a water filter indicator, press and hold the Filter or Reset button for 5 seconds after installation. With a lifespan of 6 months and a 500-gallon capacity, this filter provides both quality and longevity.

This dispenser lever holder is the mounting bracket behind the refrigerator's dispenser paddle. It supports and aligns the lever and switch so water or ice dispenses reliably when the paddle is pressed.

• Holds and guides the dispenser lever and actuator switch inside the dispenser housing
• Provides a secure pivot point for smooth paddle movement
• Helps ensure consistent activation of water and ice dispensing
• Damage can cause a loose or stuck paddle, intermittent dispensing, or no dispense

• Disconnect power and shut off the water supply before servicing
• Remove the dispenser panel/escutcheon to access the lever assembly; note part orientation
• Transfer the lever, switch, and return spring to the new holder and secure with the original fasteners
• Restore power/water and test dispensing before reinstalling trim

This small torsion spring restores tension to the dispenser ice door lever so the chute door snaps closed after dispensing. It helps keep warm air and moisture out, reducing frost, condensation, and stray ice from the dispenser.

• Provides return tension for the dispenser ice chute door/lever
• Helps the chute door seal properly to limit warm air infiltration
• Worn or broken springs may cause the ice door to stay open or close slowly
• Symptoms can include frost/ice buildup in the chute, moisture at the dispenser, or cubes dropping/clumping

• Unplug the refrigerator or switch off the circuit breaker before servicing
• Remove the dispenser trim/panel to access the ice door mechanism; note spring orientation with a photo
• Use needle-nose pliers and eye protection—small springs are under tension and can snap
• After installation, cycle the dispenser to confirm the door opens/closes freely and seals

Assembly includes: Lever, switch and bracket.

The Ice Funnel is an OEM replacement part for LG refrigerators. It is a component located within the ice maker assembly that guides freshly made ice cubes from the mold out into the storage bin. The precisely formed ice funnel ensures ice cubes are directed efficiently into the bin, preventing jams or blockages.

Causes of a bad ice funnel can include cracks or breaks that disrupt proper ice flow. Damage may occur over multiple ice harvests due to repeated pressure.

Symptoms include:

• Ice cubes getting stuck within the funnel rather than dispensing into the bin
• An accumulation of ice fragments inside the funnel
• Reduced ice production or incomplete cubes

Due to manufacturer changes, this part will not fit older models, you must also order the funnel frame part number 3210JA0006S.

This replacement is also compatible with models by Sears/Kenmore.

Dispenser cover only. Electronic Board and Touch Panel not included.

Color: silver. Measures about 9-1/2 inches wide by 5 inches deep.

The Ice Door Solenoid Assembly is an OEM replacement part for LG refrigerators. This assembly controls the opening and closing of the ice door, which allows ice to be dispensed from the freezer to the exterior of the appliance. When you request ice, the solenoid activates, opening the ice door and permitting ice to pass through.

Symptoms of a bad Ice Door Solenoid Assembly include:

• Ice door not opening or closing properly
• Failure to dispense ice
• Ice accumulating or jamming at the dispenser

Causes for a malfunctioning Ice Door Solenoid Assembly can include electrical issues such as faulty wiring, wear and tear from frequent use, or mechanical problems affecting the solenoid's ability to move the ice door.

This OEM LG part is also compatible with Sears/Kenmore models.

This replacement duct cap assembly covers and seals a designated duct opening inside the appliance. It helps direct flow through the intended path and keeps out debris so the system can operate as designed.

• Covers and seals a duct opening to maintain correct internal flow paths
• Helps prevent air/moisture leaks and blocks dust or debris entry
• Replaces a cracked, warped, loose, or missing cap assembly
• Symptoms can include visible damage, a cap that won't stay seated, leak noises, or rattling from the duct area

• Disconnect power; turn off water supply if applicable before servicing
• Access the duct location, remove the damaged cap, and retain any screws/clips
• Clean mating surfaces; transfer any reusable seals or hardware to the new assembly
• Seat and secure the new cap without overtightening; restore power and check for a snug, leak-free fit
