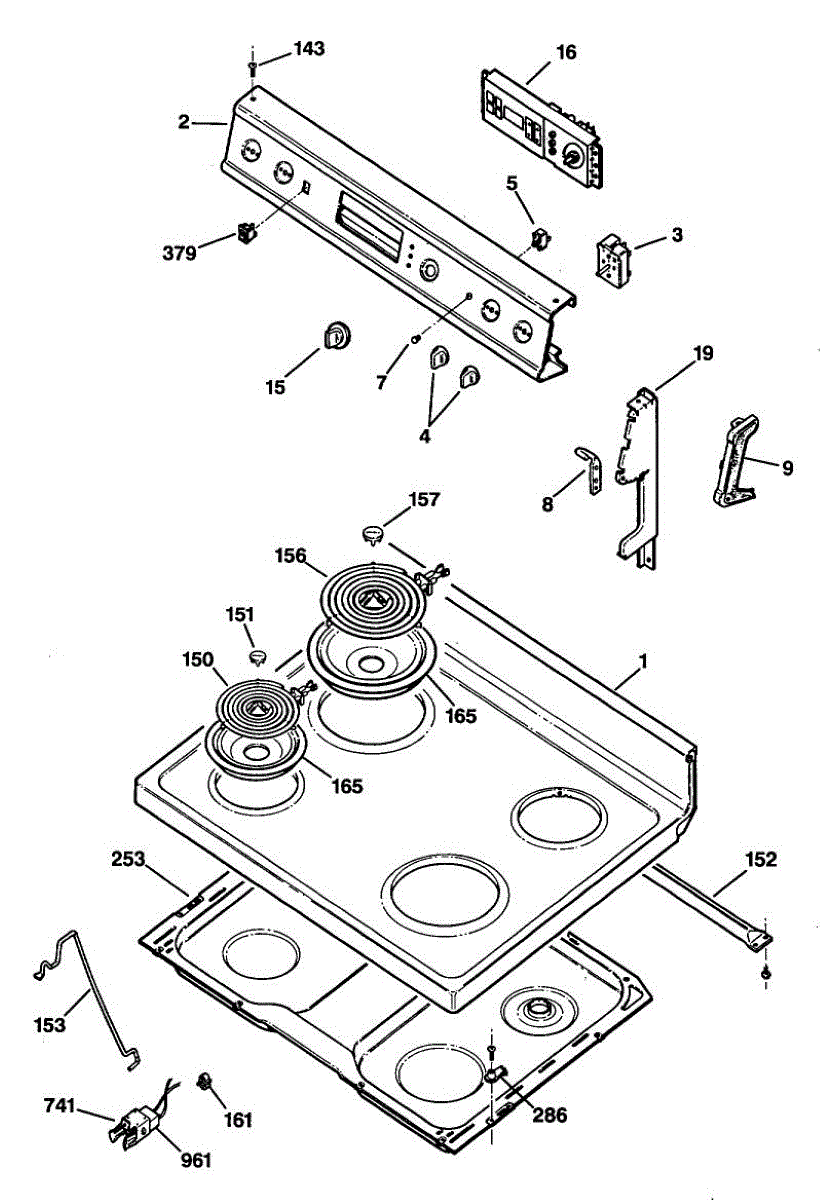

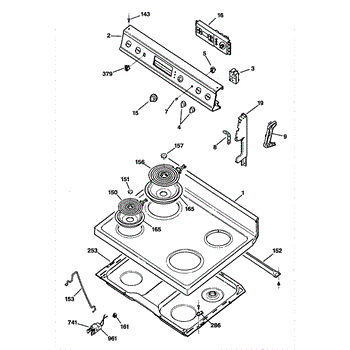

Parts for Ge JBP45GS1: 01 - Section1 Parts

Color: White

Color: Almond

The Infinite Heat Switch Kit is an OEM part for GE ranges and cooktops. This kit is essential for controlling the temperature of the burners on your range or cooktop, allowing you to adjust the heat level from low to high.

Causes of damage to the infinite heat switch can include normal wear and tear from frequent use, electrical issues such as short circuits or power surges, and physical damage from cleaning or impact.

Symptoms of a bad Infinite Heat Switch include:

• Burners not heating to the desired temperature, either staying too hot or not getting hot enough.
• The burner not turning on at all, indicating a possible failure in the switch's electrical contacts or circuit.
• Inconsistent cooking temperatures, where the burner cycles on and off too frequently or not often enough, affecting cooking performance.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The 6-Inch Small Surface Element is an OEM part for GE cooktops and ranges. It is designed to provide consistent and reliable heat for cooking on the stovetop. This heating element fits into the designated slot on the cooktop and is used for preparing smaller dishes or for simmering.

You should replace the surface element if it becomes faulty. Causes of a bad surface element can include wear and tear from regular use, electrical issues, or damage from overheating. A malfunctioning surface element can lead to uneven cooking, insufficient heat, or the element not heating up at all.

Symptoms of a bad 6-inch small surface element include:

• The element not heating up or only heating intermittently
• Visible damage such as burn marks or deformation
• Uneven heating or hotspots on cookware
• The element not fitting securely into its slot

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Matching 8-inch surface element - WB30M2; terminal block - WB17X5113

The 8 Inch Large Surface Element is an OEM part for GE ranges and cooktops. This heating element is used on the cooktop to provide a consistent heat source for cooking. It fits into the designated spot on the stove and connects to the electrical system, allowing users to control the temperature for various cooking needs.

Causes of a bad surface element can include wear and tear from frequent use, electrical malfunctions, or damage from spills and food debris. Overheating or accidental impacts can also impair its functionality.

Symptoms of a bad 8 Inch Large Surface Element include:

• The element not heating up
• Uneven heating or hot spots on the element
• Sparks or electrical noises when the element is in use
• Visible damage or burns on the element

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This center trim is the molded bezel that fits the front center of the cooktop/oven control area, restoring a finished look and protecting the control panel edges from heat and grime. What it does:

• Covers and protects the exposed edge of the control panel for a clean appearance
• Hides gaps, chips or discolored trim that make the console look worn
• Helps prevent dirt and grease from getting behind the control assembly
• Restores proper alignment and fit where the original trim is cracked or broken

• Disconnect power to the appliance before starting any repair.
• Typically secures with clips or screws—retain hardware and note orientation when removing old trim.
• Handle edges carefully; replacement may require gentle prying with a trim tool.
• If mounting hardware or support brackets are damaged, replace them separately.

This wire clip secures a wiring harness to the appliance cabinet to prevent rubbing, pinching, or loose connections. Replacing a worn or broken clip helps restore proper wire routing and reduces the risk of electrical contact issues. What it does:

• Holds wiring harnesses in place to prevent chafing and stress on connections
• Keeps wires routed away from sharp edges, moving parts, and heat sources
• Helps stop intermittent electrical problems caused by loose or strained wires
• Reduces risk of arcing or shorting from wires rubbing on metal components

• One wire clip

• Always disconnect power (unplug or switch off circuit breaker) before servicing electrical components
• Remove any panels or obstructions to access the damaged clip, then release the harness and snap the replacement clip into the original mounting location
• Verify wires are seated properly in the clip and routed clear of moving or hot parts before restoring power
• If wiring or connectors are damaged, replace or repair those components rather than relying on the clip alone

The 6 Inch Burner Bowl is an OEM part for GE electric ranges and stovetops. Designed to fit beneath the 6-inch electric coil elements, this burner bowl serves as a catchment for spills, drips, and crumbs that occur during cooking. Not only does it help keep the cooktop area clean, but it also reflects heat back to the cookware, improving cooking efficiency.

Causes for replacement often include accumulated spills and high heat exposure over time, leading to aesthetic wear and tear or functional degradation.

Symptoms of a bad 6 Inch Burner Bowl include:

• Rusting or corrosion that can affect the reflectivity and heat distribution
• Deep scratches or dents that may harbor bacteria and debris
• Discoloration or stubborn stains that can't be removed, affecting the appearance of your cooktop

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The 8 Inch Burner Bowl is an OEM part for GE ranges and cooktops. Designed to fit beneath the burner element, this part reflects heat back onto the cookware for efficient cooking and catches spills and drips to keep the cooktop clean. Made from durable materials, the burner bowl is easy to remove and clean.

Causes of a bad burner bowl include excessive heat exposure leading to discoloration or warping, accumulation of spills and debris that can corrode or damage the bowl, and physical damage such as dents or cracks.

Symptoms of a bad 8 Inch Burner Bowl include:

• Noticeable discoloration or warping from heat exposure.
• Rust or corrosion caused by accumulated moisture and debris.
• Difficulty fitting the bowl properly due to physical damage.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Porcelain. Color: black. It measures about 10 inches in diameter at its widest point at the top.

The Terminal Block is an OEM part for GE electric ranges. It serves as a critical junction point where the range's wiring connects to the heating elements, ensuring proper electrical flow and operation of the oven and cooktop. This component is essential for the safe and efficient functioning of your appliance.

Causes of a bad terminal block can include overheating due to electrical surges, corrosion from prolonged exposure to heat and moisture, or physical damage from improper installation or handling.

Symptoms of a bad terminal block include:

• The oven or burners not heating properly
• Visible signs of burn marks or corrosion on the block
• Electrical arcing or sparking
• Intermittent or no power to the heating elements

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Ceramic

10 - 16 pl pnp 2.5s

This replacement screw is a simple fastener used to secure panels, trim, and internal components on GE appliances, restoring proper fit and preventing loose parts. It's a direct-replacement hardware piece for common mounting and assembly points. What it does

• Secures panels, brackets, and trim to prevent rattling or gaps
• Replaces missing, stripped, or corroded fasteners that compromise fit
• Helps maintain proper alignment of controls and components
• Keeps internal parts fixed for safe, reliable operation

• Screw as shown

• Unplug or disconnect power to the appliance before starting repairs
• Use the correct screwdriver or bit to avoid stripping the head
• Install with moderate torque; do not overtighten to prevent thread or component damage
• If threads are damaged or the mating hole is stripped, replace the mating hardware or repair the thread before reuse

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges

This replacement screw is used in refrigerators to fasten specific components. Replace a lost or damaged fastener to restore a secure, factory hold so brackets, panels, or covers stay properly mounted and rattle-free.

• Secures the designated component per your model's parts diagram
• Replaces missing, stripped, or corroded hardware
• Helps eliminate looseness, vibration, or rattling from unsecured parts
• Supports proper alignment and fit after service

• Disconnect power to the refrigerator before servicing
• Match this screw to the original location using your model's parts diagram
• Hand-start threads to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver for the screw head style

The Element Receptacle and Wire Kit is an OEM part for GE ranges and ovens. It serves as a crucial component in connecting the heating element to the power source, ensuring that electricity can flow to the element for heating.

This kit typically includes a receptacle, wires, and possibly other connectors or hardware needed for installation. Proper connection via this kit is essential for the heating element to function correctly and efficiently.

Symptoms of a bad Element Receptacle and Wire Kit include:

• Heating element not heating properly or at all
• Burn marks or corrosion on the receptacle
• Visible damage or wear on the wires
• Intermittent heating, indicating a loose connection

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This receptacle assembly connects the appliance's main wiring to the power supply, restoring a secure electrical connection and reliable power transfer. It helps prevent loose cord connections and arcing at the terminal connection. What it does:

• Provides the mating terminal for the appliance power cord or internal wiring harness
• Restores a secure electrical connection when the original receptacle is damaged or corroded
• Stops intermittent power, sparking, or overheating at the cord/terminal area
• Ensures consistent contact between the cord and the appliance's internal wiring

• Always disconnect power at the breaker or unplug the appliance before beginning work
• Verify correct wire placement and tightness of terminal screws; replace damaged wires or connectors
• Use appropriate tools and follow the appliance's wiring diagram; do not force terminals

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

Includes: Anti-tip bracket, screws and instruction sheet.
