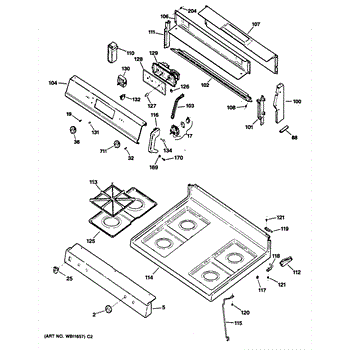

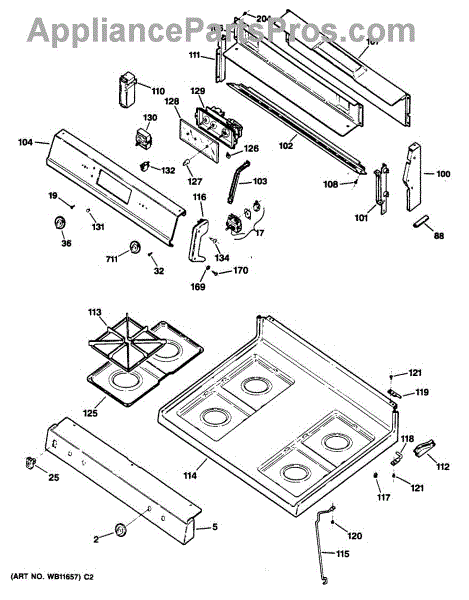

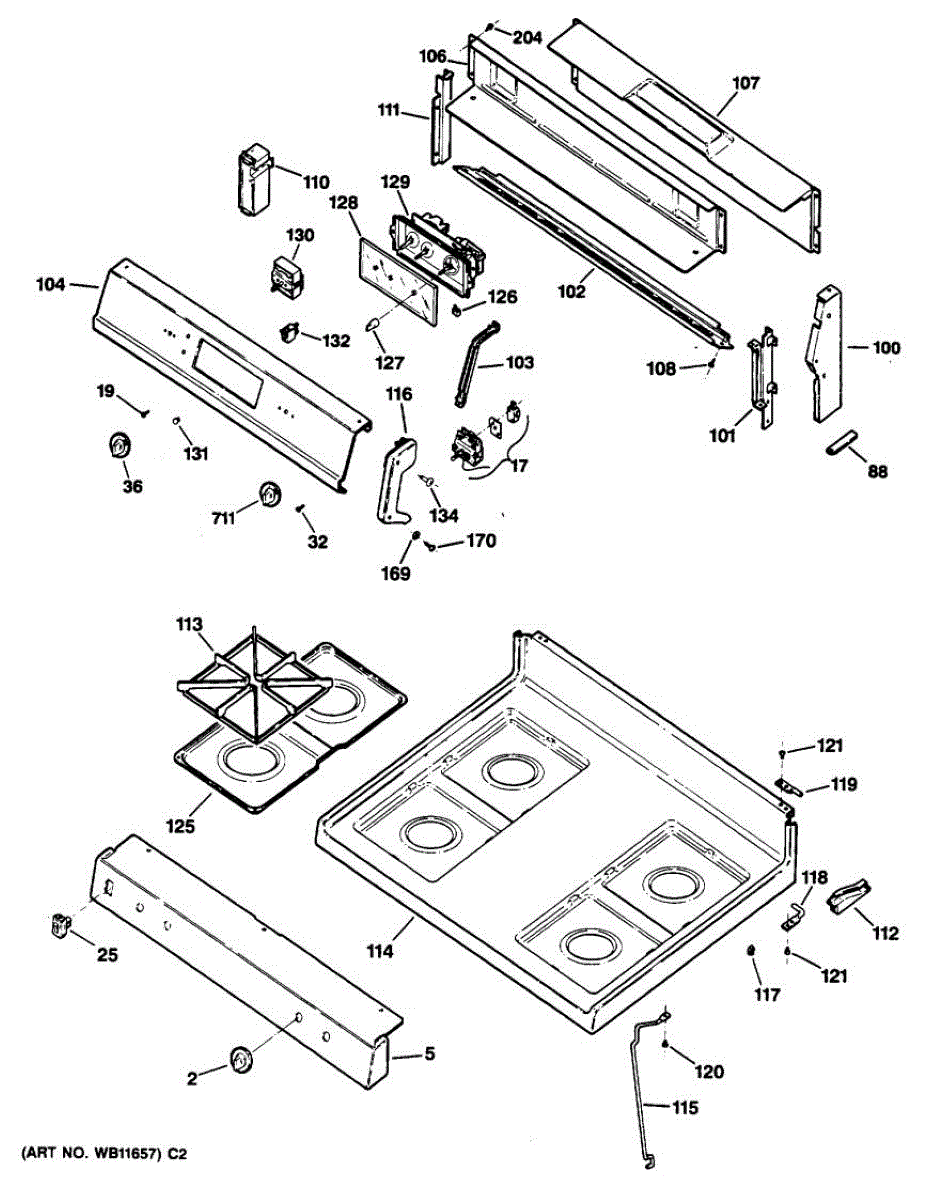

Parts for Ge JGBP24GEV2AD: 01 - Section1 Parts

Color: Black

Replacement mounting screw that secures the thermostat assembly to your range cabinet. Replace if stripped, missing, or damaged during repair work.

Color: Black

Replacement mounting screw for ranges. Secures panels, brackets, and internal components. Install if original screw is stripped, missing, or damaged.

Replace worn felt pad gasket to prevent heat loss and reduce noise in your range. Cushions components and ensures proper sealing. Confirm fit with model number.

Replace your range's control panel end cap if the original is cracked, broken, or missing. This trim piece installs on the right side of the panel.

Left end cap cover for ranges. Replaces worn, cracked, or missing outer trim piece. Restores finished appearance and protects internal components.

Replace the right side endcap on your range. This exterior trim piece covers the end of the appliance. Order a new endcap if yours is cracked or missing.

Left side end plate for ranges. Replaces cracked, broken, or missing endcap trim. Installs on the left exterior side panel to complete appearance.

Secures components to your appliance chassis for a rattle-free fit. Replace missing, stripped, or corroded screws to keep panels and brackets aligned.

If your gas range burners won't ignite or click constantly, this spark module generates the high-voltage pulses needed to light the burners reliably.

Protective wire cover for range burner igniter wires. Replaces cracked, broken, or missing covers. Shields wiring from damage inside the range cabinet.

This is the right side guide holder. For left side use WB14K2.

Left side oven rack guide holder for gas ranges. Replaces broken, cracked, or missing guide holders that secure oven rack slides in position.

Black.

Right side guide slide for gas range oven racks. Replace if cracked, bent, or causing racks to stick. Ensures smooth oven rack sliding operation.

Left side guide slide for gas ranges. Replaces cracked, broken, or worn slides. Essential structural component for proper range operation.

Pivot pin that connects the oven door hinge to its mounting bracket. Replace if worn, broken, or missing to restore smooth door operation and alignment.

Factory screw secures brackets, panels, trim, or burner components on ranges, cooktops, and wall ovens. Replaces missing, stripped, or corroded fasteners.

The Clock Knob Kit is an OEM replacement part for GE ranges. It contains the necessary knobs to control clock and timer functions from the control panel. This 3 pack of range clock knobs is all you need to cover one timer control. Color: Black. Each knob measures about 1/2 an inch in diameter, and 1 inch deep

Symptoms of faulty knobs include:

• Knobs no longer stay securely attached to shafts
• Issues selecting timer options or adjusting clock settings
• Incorrect rotation feel or knobs difficult to turn
• Display issues arising from loose or faulty internal connections

This GE replacement kit is also compatible with Hotpoint, RCA and some Kenmore ranges for convenient cooking.

NOTE: For chrome order WB3X459.

Covers the control panel lamp opening to diffuse light and protect from debris. Replace if broken, cracked, or missing to restore clear indicator visibility.

Strain relief cable retainer for ranges. Secures and protects electrical wiring at connection points. Replace if cracked, broken, or missing.

Clear washer for range assembly and mounting applications. Replaces worn, cracked, or missing washers in your range. Essential hardware component.

Package of 12

Replacement mounting screw secures panels, brackets, and trim on ranges and cooktops. Install to replace missing, stripped, or rusted fasteners.

Secures the thermostat sensing bulb to the oven cavity wall for accurate temperature control. Replace if missing or damaged to prevent sagging bulb.

Anti-tip bracket kit installs to the floor behind your range or wall oven to prevent tipping. Replace if missing, damaged, or moving to a new home.
