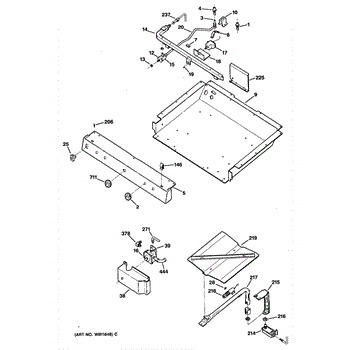

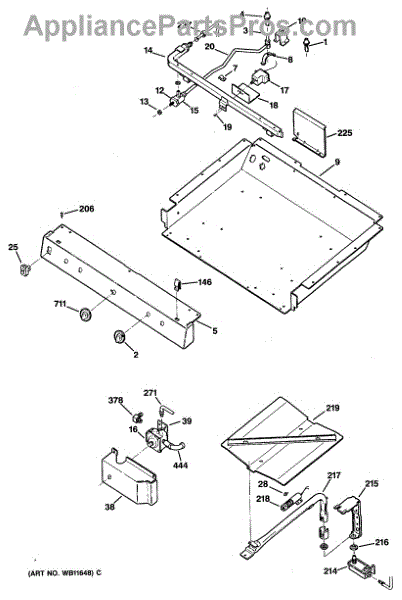

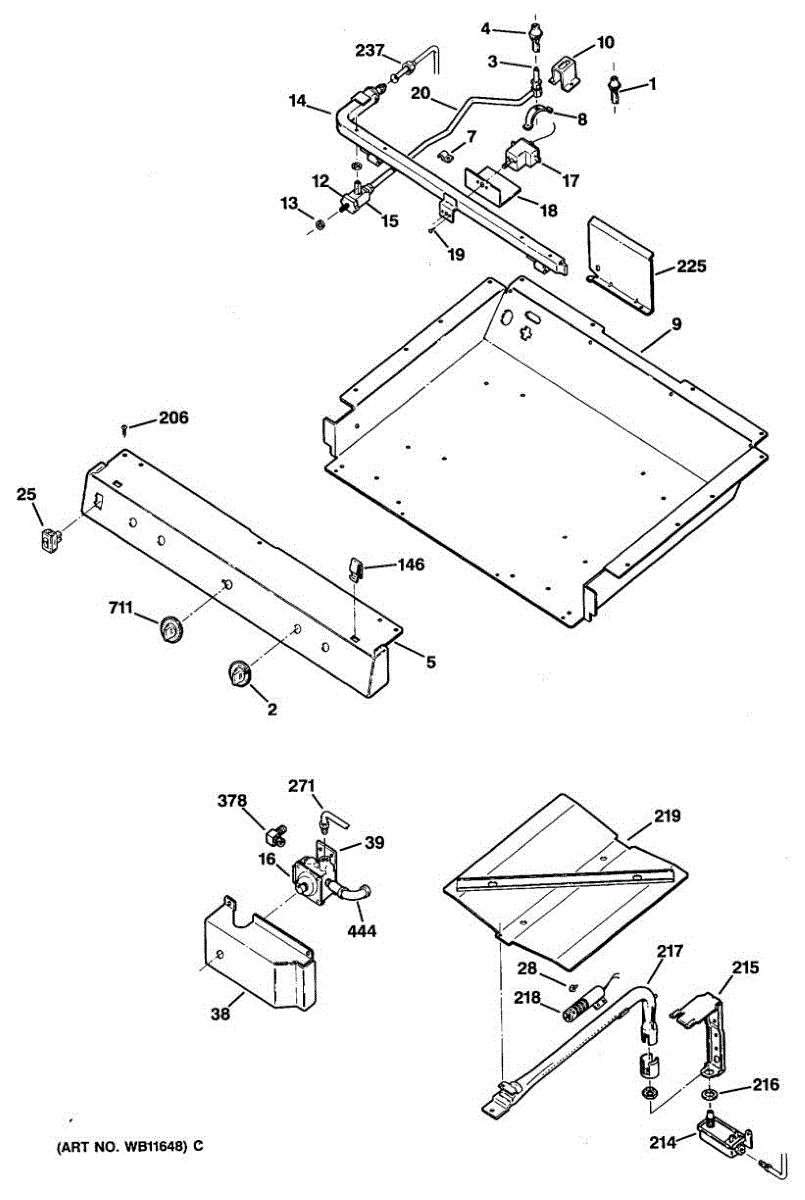

Parts for Ge JGBS22GEV2AD: 01 - Section1 Parts

Anti-tip kit.

Color: Black

Liquid propane. Small burner.

A replacement burner valve cover that protects and conceals the gas valve assembly on compatible ranges, helping keep valve components clear of spills and debris for more reliable burner operation. What it does:

• Covers and protects the gas valve area from food, moisture and spills.
• Helps prevent debris from interfering with valve knobs and internal valve parts.
• Can reduce intermittent ignition or burner performance issues caused by contamination.
• Restores the finished appearance around the valve for safer, cleaner operation.

• Always shut off the gas supply and unplug the appliance before servicing.
• Use basic hand tools; handle the valve area gently to avoid disturbing fittings or tubing.
• After installation, check for gas leaks with a soapy-water solution or a proper leak detector—do not use an open flame.

Restore smooth, controllable flame on a gas cooktop burner. This surface burner valve regulates gas flow to an individual top burner, allowing precise adjustment from low simmer to full boil and helping stop leaks when turned off.

• Controls gas flow to one surface burner
• Common failure signs: burner won't light or is very weak, knob turns hard or feels loose, gas odor at the valve, flame will not adjust smoothly
• Helps ensure reliable ignition and steady flame once replaced

• Disconnect gas and power before servicing; ventilate the area if gas odor is present
• Label and transfer the knob shaft orientation and any mounting hardware from the original
• Check and reuse the correct orifice and inlet fittings from the old valve if required by your model
• After installation, perform a leak check on all connections with approved leak-detection solution

The Oven Thermostat is an OEM part for GE ovens. This thermostat is a component in regulating the oven's heat, turning the heat on and off to maintain the desired temperature setting. With its precise calibration and durable construction, the oven thermostat is essential for achieving consistent cooking outcomes and preventing overheating, which could lead to burnt or undercooked food.

Causes of a bad oven thermostat include prolonged use, which can affect its sensitivity, and exposure to extreme temperatures, which may impact its accuracy.

Symptoms of a bad Oven Thermostat include:

• The oven not reaching the set temperature
• Oven temperature fluctuating too widely from the desired setting
• Food not cooking evenly or within expected time frames

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a replacement mounting screw for the refrigerator/freezer thermostat assembly. It secures the thermostat to the cabinet so temperature sensing and control remain stable and reliable. What it does:

• Secures the thermostat housing or bracket to the appliance cabinet
• Keeps the thermostat properly positioned for accurate temperature sensing
• Common fix when a loose, missing, or stripped thermostat fastener causes rattling or poor contact
• Small hardware part used during thermostat replacement or reassembly

• One thermostat mounting screw

• Turn off power to the appliance before starting any repair
• Use appropriate screwdriver and do not overtighten to avoid stripping the housing or threads
• If original hole or threads are damaged, inspect bracket or cabinet and replace as needed

This orifice holder tube positions the gas orifice for the right-front burner so the burner receives a steady, directed gas flow for proper ignition and flame. It helps maintain consistent burner performance and safe operation. What it does:

• Secures the burner orifice in the right-front gas burner assembly
• Directs gas from the manifold to the burner for reliable ignition
• Supports proper flame shape and heat output for the affected burner
• Symptoms of a failing or damaged tube: burner won't light, weak or uneven flame, or burner performance changes

• Turn off the appliance and gas supply before inspecting or replacing the part
• Inspect surrounding fittings, gaskets, and the orifice for damage or obstructions before installation
• Hand-start screws or fittings, then tighten to secure; avoid over-torquing

This is the screw that secures the burner valve to the appliance, keeping the valve and associated controls fastened for reliable operation. Replaces a worn or missing mounting fastener to restore proper valve alignment and support. What it does:

• Secures the burner valve assembly to the appliance frame or manifold
• Keeps valve position stable to help maintain reliable burner operation
• Helps prevent movement that can cause loose connections or intermittent function
• Used when original screw is stripped, missing, or corroded

• One burner valve mounting screw

• Turn off power and gas supply to the appliance before starting any repair
• Use the correct size driver and avoid over-tightening to prevent stripping the screw or damaging the valve
• Confirm valve and surrounding components are properly aligned before final tightening

Color: Black

The Igniter Mounting Screw is an OEM replacement part for GE ovens and ranges. This screw secures the igniter to the burner assembly, ensuring it remains firmly in place for consistent and reliable ignition. Its precise fit and durable design help maintain the stability and functionality of the igniter.

Over time, mounting screws can become corroded, stripped, or lost during repairs or maintenance. A missing or damaged screw may result in a loose igniter, affecting the appliance's ability to ignite properly.

Symptoms of a bad or missing igniter mounting screw include:

• The igniter becoming loose or misaligned

• Difficulty securing the igniter during installation or repair
• The burner fails to ignite reliably or consistently
• Increased noise or movement of the igniter during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Round Style Oven or Broiler Igniter is an OEM replacement part for GE gas ranges and cooktops. It has a round design and is responsible for reliably igniting the gas burners with each use.  Range: 2.5 to 3.0 amps.

Causes of a bad igniter can include wear and tear from repeated heating and cooling cycles, damage or defects in the electrical components, or issues arising from long-term exposure to high heat.

Symptoms of a bad igniter include:

• Difficulty starting or unreliable ignition of gas burners
• Burners failing to ignite with the press of the control knob
• Intermittent ignition problems
• Clicking sounds but no ignition

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Size: 10-32 GXTT FLP.595 S

This genuine OEM part is an oven safety valve for gas ovens. The oven safety valve is designed to prevent gas from flowing to the burner assembly if the igniter is not hot enough to ignite the gas, or if no electricity is present. Over time, an oven safety valve can become inoperable due to excessive wear and tear. If the oven is no longer heating properly, not turning on, or no longer working as powerfully as it once did, the oven safety valve will need to be replaced.To replace this part, start by unplugging the oven and shutting off the gas supply. After that, move the range away from the wall. Use a wrench to unthread the nut to remove the gas supply tube from the safety valve. Next, open the oven door to gain access to the interior of the oven. Release the hinge locks that secure the door and pull the door off the oven. Remove the oven racks and proceed to unthread the screws that secure the oven's bottom panel. Once removed, locate the safety valve. Next, unthread the screw that holds the mounting bracket into place. Remove the old safety valve and align the new valve with its mounting bracket. Attach the wires to the safety valve terminals and reinstall the bottom panel and oven door.This replacement part is sold individually and is sourced directly from the manufacturer. It is compatible with General Electric, Hotpoint, and RCA brand ovens.
