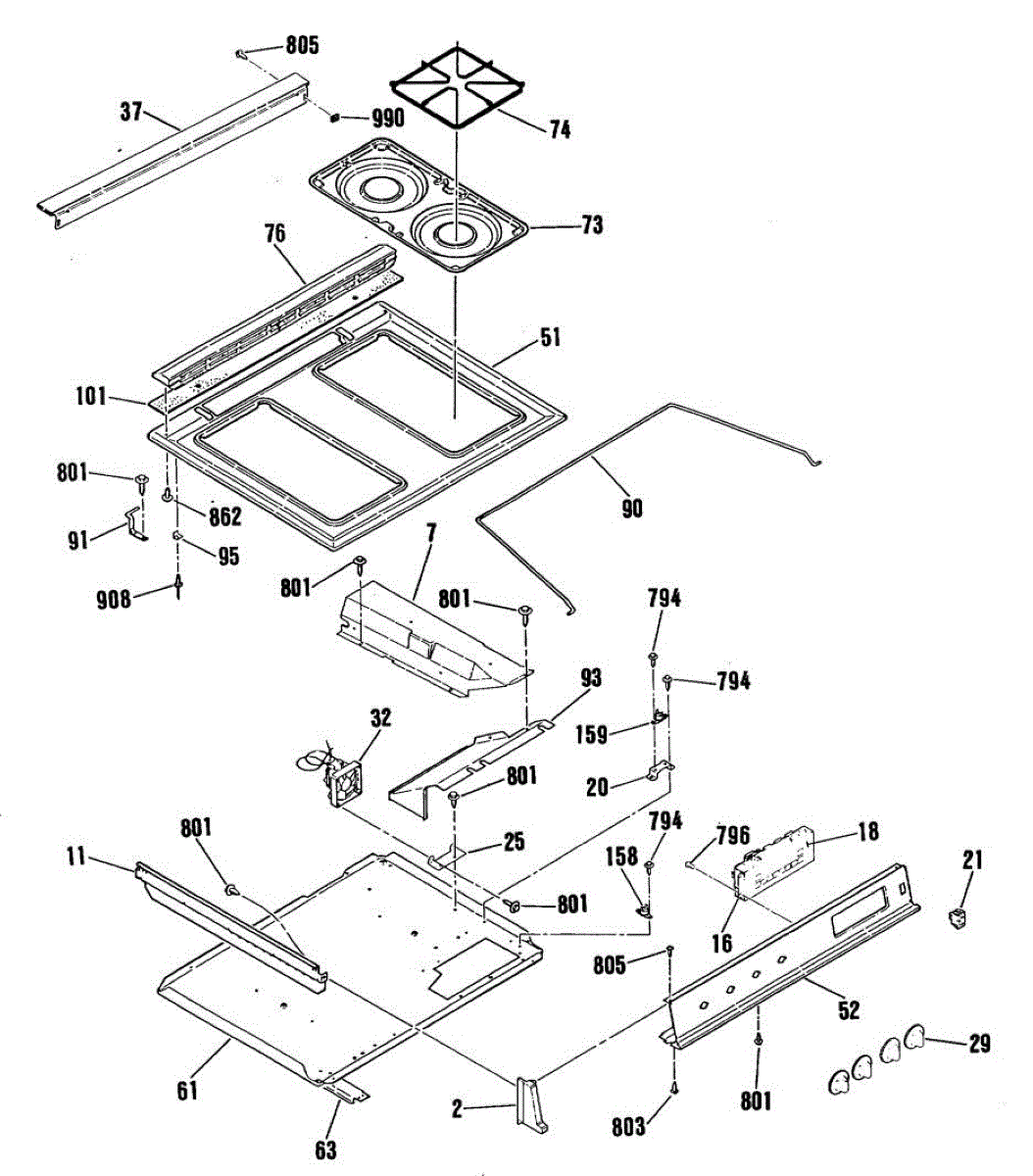

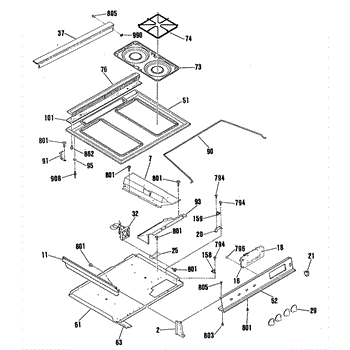

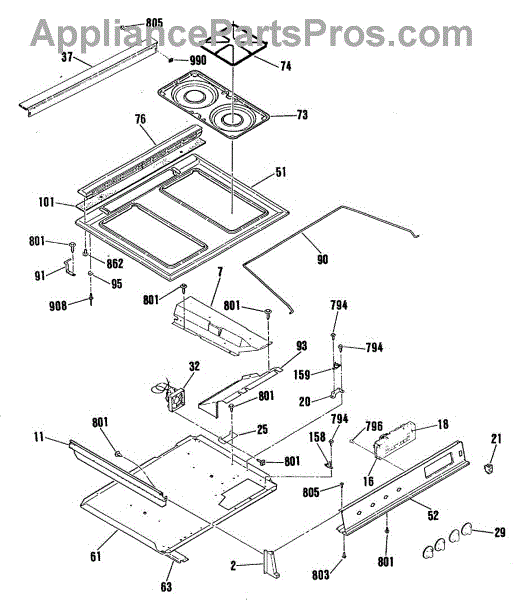

Parts for Ge JGSP20GER2BG: 01 - Section1 Parts

Color: Black

This fan bracket is the mounting support that secures a range/vent/evaporator blower assembly so the fan stays aligned and operates quietly. It restores proper fan placement to reduce wobble and intermittent contact. What it does

• Holds the fan or blower motor assembly in the correct position to maintain stable rotation.
• Prevents the fan from rubbing or vibrating against the housing, which can cause noise.
• Helps restore airflow path when a damaged bracket allows the fan to shift.
• Addresses symptoms such as noisy or rubbing fan operation, intermittent fan contact, or reduced airflow due to misalignment.

• One fan bracket as shown.

• Disconnect power to the appliance before starting any work.
• Access typically requires removing panels or the blower housing—keep fasteners organized.
• Inspect surrounding mounting points and replace any damaged screws or clips for a secure fit.

Decorative backsplash filler trim piece that installs between your range and wall. Replace if cracked, discolored, warped, or missing for a finished look.

This main top assembly replaces a damaged or worn cooktop top to restore a flat, secure surface for burners and controls. It helps maintain proper alignment and appearance for electric or gas ranges with a removable top. What it does:

• Provides the structural top surface that supports burners, grates, and control panels
• Restores a sealed, stable cooktop surface when the original top is cracked, dented, or warped
• Helps prevent heat or spills from reaching internal components when installed correctly
• Reduces rattling or misalignment caused by a bent or loose top

• One main top assembly

• Disconnect power (and gas supply for gas ranges) before beginning any work
• Handle edges carefully; surfaces can be sharp or heavy — get a helper if needed
• Installation typically requires removing burner assemblies, grates, and control panel fasteners
• Follow the manufacturer's instructions for proper alignment and sealing

This right-side burner-box stiffener reinforces the cooktop's burner box to help maintain alignment and structural stability. It restores proper support for burners and associated components for safe, reliable operation. What it does:

• Reinforces the right side of the range/oven burner box to reduce flexing or distortion
• Helps keep burners, igniters and gas line fittings properly aligned
• Commonly replaced when the burner box is bent, damaged or producing rubbing/vibration noises
• Supports long-term fit and seal of the cooktop assembly to help prevent gaps or misalignment

• One right-side burner-box stiffener

• Disconnect power and gas supply before beginning any service
• Requires removing the cooktop/burner box access panels; basic hand tools are typically needed
• Handle carefully to avoid bending the replacement part or damaging adjacent components

Color: chrome. Measures about 9 inches wide by 19 inches deep.

Right-side hinge for range oven doors. Installs on the door frame to support opening and closing. Replace if cracked, bent, or causing door misalignment.

Range hinge bracket that secures the oven door hinge assembly. Replace this mounting bracket if it's cracked, broken, or bent causing door misalignment.

If your oven won't heat but the igniter glows, the thermal limit switch may have tripped. This safety cutoff prevents overheating. DIY-friendly repair.

Fixes F1 or F2 error codes and prevents overheating in ovens. This safety switch monitors temperature limits to protect components. Direct fit part.

Replacement mounting screw for appliances. Secures components and reduces vibration. Needed when original screws are missing, stripped, or damaged.

Replacement mounting screw for securing panels, brackets, and trim on electric ranges and wall ovens. Needed when original fastener is stripped or missing.

Hex head mounting screw for ranges and ovens. Secures elements, panels, and internal components. Replace if stripped, missing, or damaged during repairs.

Mounting screw for ranges and ovens. Secures panels, brackets, or internal components. Replace if stripped, missing, or damaged during repair work.

Replacement mounting screw for cooktops, ovens, and ranges. Secures internal components and panels. Replace if screw is stripped, missing, or lost.

Speed nut for ovens and ranges. Secures internal components and panels. Replace if stripped, missing, or damaged during appliance maintenance or repair.
