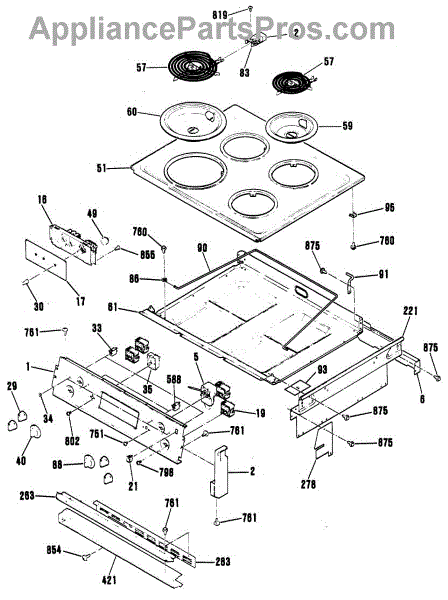

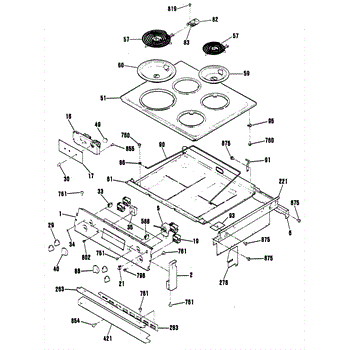

Parts for Ge JMS08GR1AD: 01 - Section1 Parts

This surface element infinite switch controls power to an electric cooktop/range burner. Replacing a worn switch restores smooth, adjustable heat and resolves issues like a burner stuck on high, not heating, or cycling erratically.

• Regulates power to the surface burner by cycling voltage to maintain the heat level set by the knob
• Common failure symptoms: burner won't heat, only heats on high, won't shut off, or heats unevenly/intermittently
• Mounts behind the control knob in the control panel; one switch controls one surface burner
• Helps restore precise temperature control across low-to-high settings

• Disconnect power at the breaker or unplug the appliance before servicing
• Pull off the knob, access the control panel, and note wire locations (take a photo)
• Transfer wires one at a time to matching terminals on the new switch; secure the switch to the panel
• Reassemble, restore power, and test burner operation through all settings

This is a black rocker switch used to control a function on compatible ranges/cooktops. Replacing a worn or inoperative switch restores positive on/off control and reliable operation of the connected feature.

• Controls an appliance function (such as a light or igniter circuit) with a single on/off action
• Common failure signs: switch won't stay on, no response when toggled, intermittent operation, or physical damage/discoloration
• Direct-fit replacement designed for the original switch location
• Helps restore safe, predictable control to the appliance

• Disconnect power and, if applicable, shut off gas before servicing
• Access is typically from the control panel; retain orientation of wires and note terminal positions
• Transfer wires one at a time to the new switch to avoid miswiring
• Inspect connectors for heat damage; replace damaged terminals before reassembly

This fan bracket is the mounting support that secures a range/vent/evaporator blower assembly so the fan stays aligned and operates quietly. It restores proper fan placement to reduce wobble and intermittent contact. What it does

• Holds the fan or blower motor assembly in the correct position to maintain stable rotation.
• Prevents the fan from rubbing or vibrating against the housing, which can cause noise.
• Helps restore airflow path when a damaged bracket allows the fan to shift.
• Addresses symptoms such as noisy or rubbing fan operation, intermittent fan contact, or reduced airflow due to misalignment.

• One fan bracket as shown.

• Disconnect power to the appliance before starting any work.
• Access typically requires removing panels or the blower housing—keep fasteners organized.
• Inspect surrounding mounting points and replace any damaged screws or clips for a secure fit.

This control knob replaces a worn or missing knob on your range or cooktop. It pushes onto the control shaft so you can adjust heat settings with a solid grip and reliable operation.

• Attaches to the control shaft to turn the valve or thermostat
• Restores smooth, accurate adjustment of burner or element settings
• Common symptoms: knob cracked, stripped, loose, falls off, or missing

• Ensure all surfaces are cool; disconnect power. For gas units, shut off gas if working near burner valves
• Pull the old knob straight off; avoid prying. Retain any clip/adapter if present
• Align the new knob with the shaft flat/key and press fully onto the stem
• Do not force; if the knob doesn't seat, inspect the shaft for damage

A light indicator is installed on ranges and wall ovens as a safety feature. The purpose of the light indicator is to tell the user when the appliance is in operation. When the unit is heating up or running, the light indicator will illuminate. A replacement part is necessary if the component is no longer functioning.A visual inspection will determine if the light indicator is working. Turn the oven on, and if the light doesn't glow, it's broken. Replacing the light indicator is a quick and easy process. Unplug the range from its power source before starting. An adjustable wrench or nut driver is required to make the replacement. The light indicator is located inside the cover plate of the appliance.This light indicator is an authentic OEM replacement part. It is sold as an individual unit. It comes sourced directly from the manufacturer. The light indicator is made of durable, high-quality materials. The component is compatible with several models of ranges. It fits into products produced by General Electric, RCA, and Hotpoint.

This part is the lens for a small appliance light on select GE cooking products. It covers and diffuses the lamp, protecting the opening and restoring a clean, finished appearance so status illumination is easy to see.

• Covers and diffuses a panel/indicator light so it's visible without glare
• Helps shield the lamp cavity from grease, moisture, and debris
• Restores proper appearance if the original lens is cracked, missing, or discolored
• Common symptoms: missing or broken lens, cloudy/yellowed lens, exposed indicator lamp

• Disconnect power to the appliance before servicing
• Access the lens from the rear of the panel or mounting area; release retaining tabs or hardware
• Seat the new lens fully and align any tabs before securing
• Restore power and verify the indicator light shines through clearly

The 6-Inch Small Surface Element is an OEM part for GE cooktops and ranges. It is designed to provide consistent and reliable heat for cooking on the stovetop. This heating element fits into the designated slot on the cooktop and is used for preparing smaller dishes or for simmering.

You should replace the surface element if it becomes faulty. Causes of a bad surface element can include wear and tear from regular use, electrical issues, or damage from overheating. A malfunctioning surface element can lead to uneven cooking, insufficient heat, or the element not heating up at all.

Symptoms of a bad 6-inch small surface element include:

• The element not heating up or only heating intermittently
• Visible damage such as burn marks or deformation
• Uneven heating or hotspots on cookware
• The element not fitting securely into its slot

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Matching 8-inch surface element - WB30M2; terminal block - WB17X5113

The 8 Inch Large Surface Element is an OEM part for GE ranges and cooktops. This heating element is used on the cooktop to provide a consistent heat source for cooking. It fits into the designated spot on the stove and connects to the electrical system, allowing users to control the temperature for various cooking needs.

Causes of a bad surface element can include wear and tear from frequent use, electrical malfunctions, or damage from spills and food debris. Overheating or accidental impacts can also impair its functionality.

Symptoms of a bad 8 Inch Large Surface Element include:

• The element not heating up
• Uneven heating or hot spots on the element
• Sparks or electrical noises when the element is in use
• Visible damage or burns on the element

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The 6" Burner Bowl is an OEM part for GE cooktops and ranges. It is designed to sit beneath the heating element, catching spills and drips that occur during cooking. This helps to keep the cooktop clean and ensures that the heating element functions properly by preventing food debris from interfering with its operation.

Over time, burner bowls can become discolored, warped, or corroded due to exposure to high heat and spills. Additionally, frequent cleaning or scraping can cause scratches and other damage, which may compromise their ability to effectively catch spills and support the heating element.

Symptoms of a bad burner bowl include:

• Discoloration or charring
• Warping or misalignment with the heating element
• Difficulty in fitting the bowl securely in place
• Residue buildup that is difficult to clean

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Notes:

• For the matching 8” drip pan, order WB31K10266.
• Surface elements:
• 6": WB30M1;  8"WB30M2.
• Element terminal block: WB17X5113.

The 8" Burner Bowl is an OEM replacement part for GE ranges and cooktops. It is responsible for safely collecting and containing grease and cooking liquids below the burner.

Causes can include damage or deformation from repeated high heat exposure over time.

Symptoms of a bad drip pan include:

• Grease or liquids leaking outside of the drip pan area
• Warping or bending that prevents proper placement below the burner
• Inability to fully trap and contain grease and cooking residue
• Accelerated buildup or residue that impacts burner performance

This genuine GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Bottom burn box replaces the lower gas burner housing in compatible gas ovens, securing the burner assembly and helping direct heat for steady cooking while protecting internal oven components from flame and debris. What it does

• Houses and positions the lower burner assembly to ensure proper flame direction and ignition.
• Channels heat across the oven floor for more even cooking.
• Shields internal components from direct flame, food spills and debris.
• Common symptoms it can address: burner won't stay lit, irregular or uneven heating, visible corrosion or physical damage to the burner area.

• Always shut off gas supply and electrical power before inspecting or replacing gas-oven components.
• Inspect surrounding gaskets, mounting hardware and the burner assembly; replace any damaged parts.
• Follow OEM service instructions and safety guidelines specific to your oven model.

The Range Terminal Block Kit is an OEM replacement part for GE electric ranges. It contains screw terminals that connect internal wiring throughout the range. The terminal block facilitates safe and reliable power transfer between critical components such as the control panel, heating elements, timers, and temperature sensors.

Causes of a faulty terminal block can include normal wear over time loosening wire connections, water exposure leading to corrosion, or physical damage from force or impact.

Symptoms of a bad terminal block include:

• Intermittent or complete failure of bake, broil, or surface heating elements
• Fault codes or error messages related to electrical malfunctions
• Loose, frayed, or broken wire connections inside the range
• Components like the control panel or timers not operating correctly

This OEM GE part also fits Hotpoint, RCA, and Kenmore electric ranges.

This mounting bracket secures the surface element terminal block to the cooktop. Replacing a bent or missing bracket helps keep the coil element connection aligned and stable so the burner plugs in firmly during use.

• Provides a fixed mount for the surface element receptacle beneath the burner opening
• Helps prevent the terminal block from shifting, sagging, or rotating when inserting/removing the element
• Common symptoms include a loose or wobbly receptacle, element not seating fully, or visible bracket damage/missing bracket
• Replace if the bracket is bent, broken, or cannot hold the receptacle in position

• Disconnect power at the breaker and allow the cooktop to cool completely
• Remove the surface element and lift/open the cooktop to access the terminal block area
• Transfer the receptacle/terminal block onto the new bracket and secure with existing hardware, ensuring correct alignment
• The element prongs insert smoothly before restoring power

This vent trim (black) is a replacement decorative cover that finishes the vent opening and restores the appliance's factory appearance. It protects internal components and helps direct exhaust airflow while providing a clean, finished look. What it does

• Covers and seals the vent opening to reduce visible gaps and protect internal parts
• Restores the appliance's exterior finish when the original trim is cracked, chipped, scratched, or missing
• Helps maintain proper airflow path and reduces light leaks around the vent area
• Prevents rattling or movement caused by damaged or loose trim pieces

• One vent trim (black) as pictured

• Turn off and unplug the appliance or disconnect power before beginning work
• Typically secures with screws or mounting clips; have a screwdriver set ready
• Handle gently to avoid scratching the new trim; align clips before fastening
• Follow OEM service instructions for fitment and torque; replace damaged clips or fasteners

This indicator light installs in the control panel of compatible ranges/cooktops and illuminates to show when a heating element or function is active. Replacing a failed lamp restores clear, at-a-glance status feedback during use.

• Provides visual confirmation when a surface element or function is turned on
• Common failure symptoms include no light, intermittent flicker, or very dim illumination
• May also be referred to as a pilot light or panel indicator
• Visual indicator only; does not control heating performance

• Disconnect power at the breaker or unplug the appliance before servicing
• Allow the appliance to cool completely
• Access the console/backguard area; note wire positions and move them to the new light one at a time
• Seat and secure the light, restore power, and test operation before reassembly

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

This factory screw secures components within your appliance, keeping panels, brackets, and other parts tight and aligned. Replacing a missing or stripped screw helps eliminate rattles and restores a solid, properly mounted assembly.

• Fastens appliance components to frames, brackets, or cooktop/oven structures
• Replaces missing, rusted, or stripped hardware
• Helps address loose or rattling panels and misaligned trim
• Restores a secure fit after service or cleaning

• Disconnect power; if gas, shut off the gas supply. Allow the appliance to cool completely
• Match the screw to its original location and length for proper fit
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening to prevent stripping metal or plastic

Nickel

This replacement screw secures panels and small components on your appliance to restore proper fit and help prevent rattling or loose parts. Use it wherever the original fastener has been lost or damaged. What it does:

• Secures trim, panels, or mounting brackets to keep components aligned
• Prevents vibration and rattling caused by loose fasteners
• Replaces missing or stripped screws that compromise panel fit
• Restores reliable fastening so doors and controls sit correctly

• Disconnect power before accessing internal panels or components
• Use the correct driver to avoid stripping the screw head
• Thread carefully and do not overtighten to prevent damage
• Keep small parts away from children and pets
