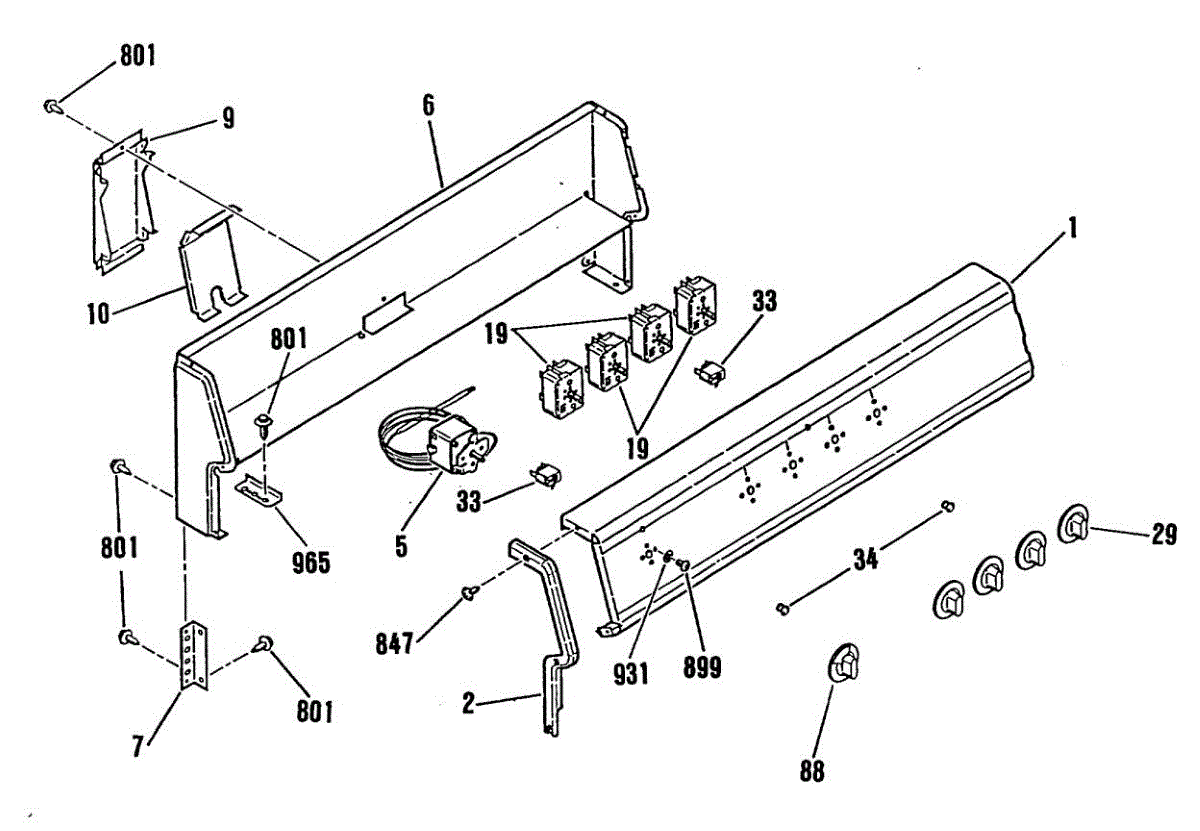

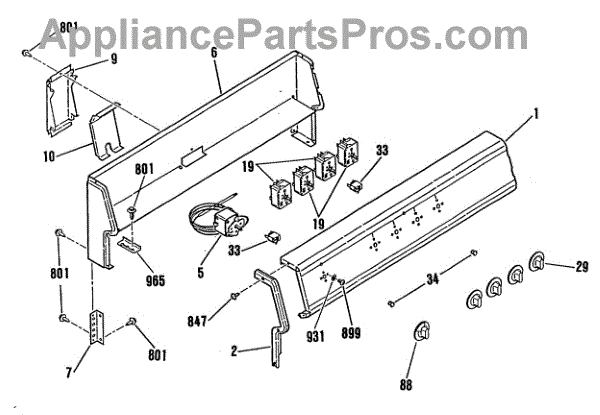

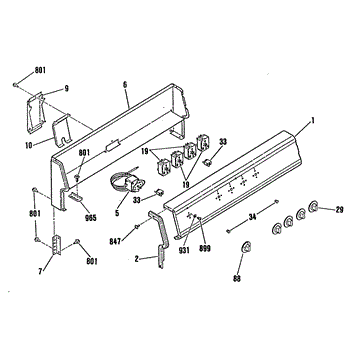

Parts for Ge L3B115GL1: 01 - Section1 Parts

This end cap secures the refrigerator light housing and helps keep the lens and bulb in place for reliable interior lighting. Replaces a worn or broken end cap to restore a snug fit and prevent rattling or light misalignment. What it does

• Secures the end of the refrigerator light housing and helps hold the lens and bulb assembly in position.
• Common symptom: cracked or broken end cap allowing the lens or bulb to shift, rattle, or fall.
• Restores a tight fit at the light housing end so the interior light operates and stays properly aligned.
• Fits into the existing light housing and works with the factory lens and bulb.

• One end cap for the light housing.

• High-level replacement: part typically snaps or screws into the light housing; keep power off to the appliance before starting.
• Disconnect power or unplug the appliance before attempting service to avoid electrical shock.
• Handle the lens and bulb carefully; avoid forcing the cap to prevent cracking surrounding plastic.
• Use manufacturer screws or clips removed from the old cap if the new cap does not include fasteners.

8" element switch

6" element switch

This indicator light installs in the control panel of compatible ranges/cooktops and illuminates to show when a heating element or function is active. Replacing a failed lamp restores clear, at-a-glance status feedback during use.

• Provides visual confirmation when a surface element or function is turned on
• Common failure symptoms include no light, intermittent flicker, or very dim illumination
• May also be referred to as a pilot light or panel indicator
• Visual indicator only; does not control heating performance

• Disconnect power at the breaker or unplug the appliance before servicing
• Allow the appliance to cool completely
• Access the console/backguard area; note wire positions and move them to the new light one at a time
• Seat and secure the light, restore power, and test operation before reassembly

A light indicator is installed on ranges and wall ovens as a safety feature. The purpose of the light indicator is to tell the user when the appliance is in operation. When the unit is heating up or running, the light indicator will illuminate. A replacement part is necessary if the component is no longer functioning.A visual inspection will determine if the light indicator is working. Turn the oven on, and if the light doesn't glow, it's broken. Replacing the light indicator is a quick and easy process. Unplug the range from its power source before starting. An adjustable wrench or nut driver is required to make the replacement. The light indicator is located inside the cover plate of the appliance.This light indicator is an authentic OEM replacement part. It is sold as an individual unit. It comes sourced directly from the manufacturer. The light indicator is made of durable, high-quality materials. The component is compatible with several models of ranges. It fits into products produced by General Electric, RCA, and Hotpoint.

ST10-16 X 7/16"

Nickel
