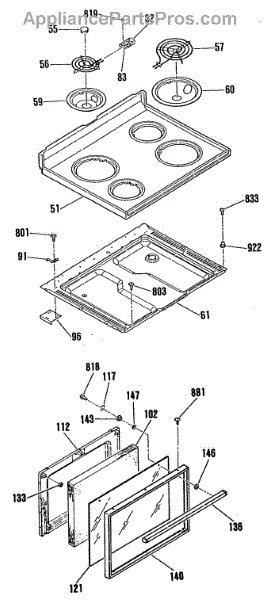

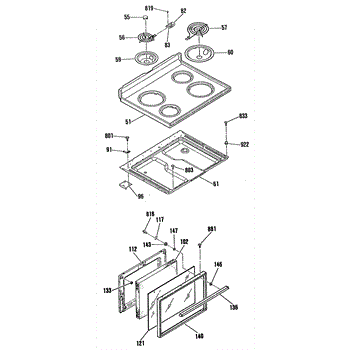

Parts for Ge L3B115GL1: 02 - Section2 Parts

Restore reliable heat on your range's small burner with this 6-inch surface coil element. Replacing a worn or burned-out coil brings back consistent temperature response and dependable everyday cooking performance.

• Supplies direct electric heat to a 6-inch cooktop burner
• Replaces a coil that is warped, cracked, or has an open/burned-out section
• Common symptoms include: burner won't heat, heats unevenly, or works intermittently
• Visible damage, hot spots, or arcing at the terminals can indicate failure

• Disconnect power by unplugging the range or switching off the circuit breaker
• Lift the old coil and pull straight out from the receptacle to remove
• Inspect the element receptacle/terminal block for discoloration or pitting; replace if damaged
• Align terminals and support, insert fully, and ensure the element sits level in the drip bowl

The 8" Surface Element is an OEM part for GE ranges. It is an 8-inch heating element that fits into the cooktop to provide heat for cooking.

Causes of a bad surface unit include wear and tear from regular use, damage due to heavy cookware, or electrical issues that prevent the element from heating correctly.

Symptoms of a bad surface unit include:

• The burner not heating up
• Uneven heating or hotspots
• Visible damage or burn marks on the element

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Drip Pan is an OEM part for GE ranges. This part is located under the burner to catch spills, drips, and crumbs during cooking. The drip pan helps maintain cleanliness by containing messes, making it easier to keep the cooktop clean and preventing spills from reaching the internal components of the appliance. Note: This is the drip pan used with the 6-inch element. For the drip pan used with 8-inch element, order WB31K5025.

Causes of a bad drip pan can include regular wear and tear, discoloration from repeated use, or damage from heavy pots and pans.

Symptoms of a bad drip pan include:

• Visible cracks or holes in the pan
• Rust or significant discoloration
• Difficulty in cleaning the pan
• The pan not fitting securely under the burner

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Drip Pan is an OEM part for GE ranges. It sits underneath the burners to catch spills, drips, and splatters during cooking, preventing these residues from reaching the internal components of the appliance. This helps in maintaining cleanliness and safety, while also making it easier to clean the stovetop.

Causes of a bad drip pan can include prolonged exposure to high heat, which can cause warping or discoloration, and the accumulation of food debris and grease, which can lead to corrosion or foul odors.

Symptoms of a bad Drip Pan include:

• Visible rust or corrosion
• Warping or misalignment with the burners
• Persistent stains or burnt-on food that cannot be cleaned
• Unpleasant odors emanating from the stove area

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Range Terminal Block Kit is an OEM replacement part for GE electric ranges. It contains screw terminals that connect internal wiring throughout the range. The terminal block facilitates safe and reliable power transfer between critical components such as the control panel, heating elements, timers, and temperature sensors.

Causes of a faulty terminal block can include normal wear over time loosening wire connections, water exposure leading to corrosion, or physical damage from force or impact.

Symptoms of a bad terminal block include:

• Intermittent or complete failure of bake, broil, or surface heating elements
• Fault codes or error messages related to electrical malfunctions
• Loose, frayed, or broken wire connections inside the range
• Components like the control panel or timers not operating correctly

This OEM GE part also fits Hotpoint, RCA, and Kenmore electric ranges.

This mounting bracket secures the surface element terminal block to the cooktop. Replacing a bent or missing bracket helps keep the coil element connection aligned and stable so the burner plugs in firmly during use.

• Provides a fixed mount for the surface element receptacle beneath the burner opening
• Helps prevent the terminal block from shifting, sagging, or rotating when inserting/removing the element
• Common symptoms include a loose or wobbly receptacle, element not seating fully, or visible bracket damage/missing bracket
• Replace if the bracket is bent, broken, or cannot hold the receptacle in position

• Disconnect power at the breaker and allow the cooktop to cool completely
• Remove the surface element and lift/open the cooktop to access the terminal block area
• Transfer the receptacle/terminal block onto the new bracket and secure with existing hardware, ensuring correct alignment
• The element prongs insert smoothly before restoring power
