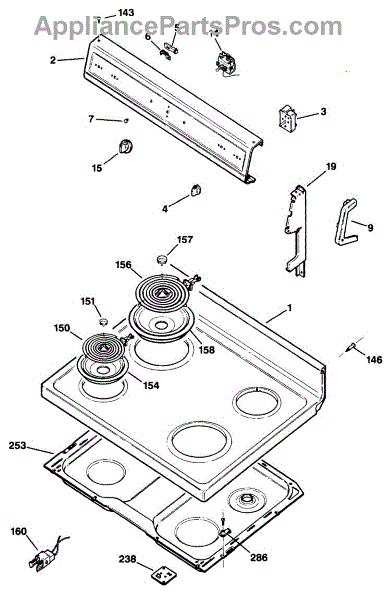

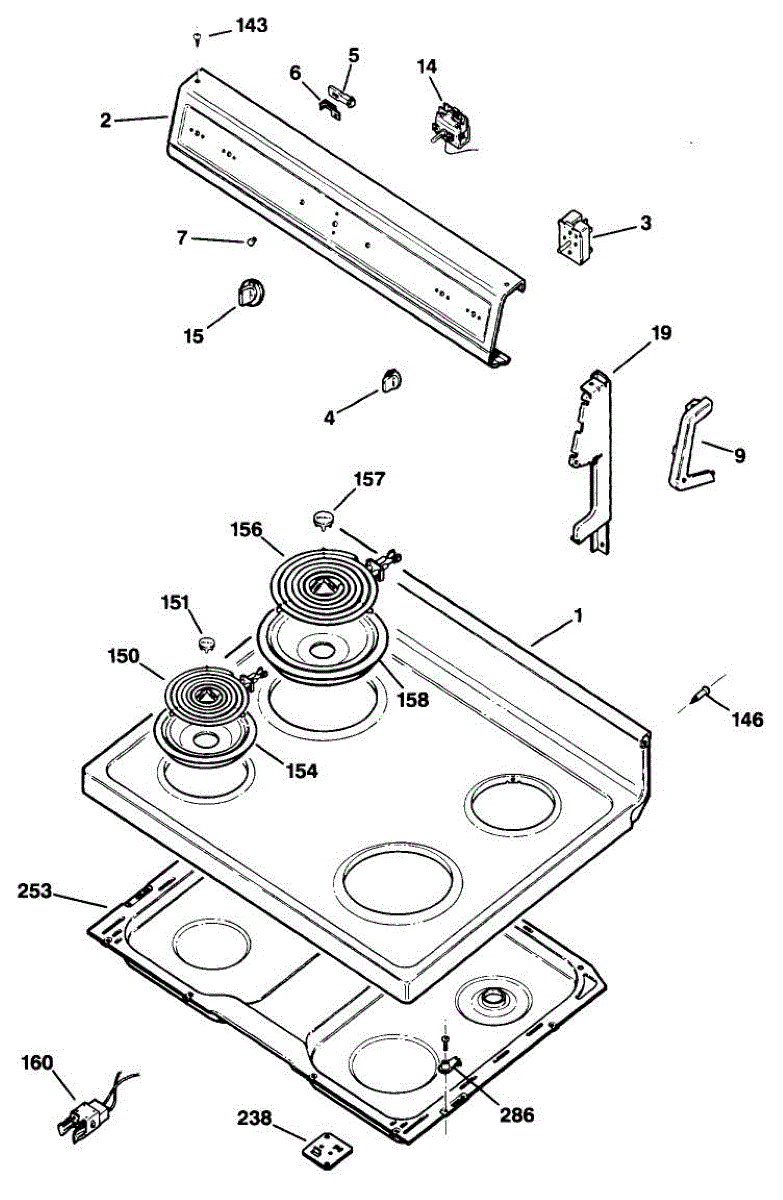

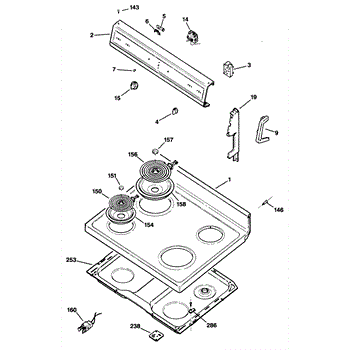

Parts for Ge RB524XR1: 01 - Section1 Parts

This part has been discontinued and is no longer available.

The Infinite Heat Switch Kit is an OEM part for GE ranges and cooktops. This kit is essential for controlling the temperature of the burners on your range or cooktop, allowing you to adjust the heat level from low to high.

Causes of damage to the infinite heat switch can include normal wear and tear from frequent use, electrical issues such as short circuits or power surges, and physical damage from cleaning or impact.

Symptoms of a bad Infinite Heat Switch include:

• Burners not heating to the desired temperature, either staying too hot or not getting hot enough.
• The burner not turning on at all, indicating a possible failure in the switch's electrical contacts or circuit.
• Inconsistent cooking temperatures, where the burner cycles on and off too frequently or not often enough, affecting cooking performance.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Decorative lens cover for range control panel indicator lights. Replace when cracked, faded, or missing to restore appearance. Verify fit by model.

Color: Black

Left side end cap for electric range control panels. Replaces cracked, broken, or missing trim pieces. Black finish secures panel edges for clean look.

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

Replace a non-heating or damaged 6-inch burner. Simple plug-in installation takes minutes—just unplug the old element and connect the new one.

Chrome drip bowl installs beneath 6-inch coil burners on electric ranges. Catches spills and drips during cooking. Replace when rusted, worn, or stained.

If your burner won't heat or only works on high, this 8 inch surface element restores proper cooking. Simple plug-in replacement takes seconds.

This center trim is the molded bezel that fits the front center of the cooktop/oven control area, restoring a finished look and protecting the control panel edges from heat and grime. What it does:

• Covers and protects the exposed edge of the control panel for a clean appearance
• Hides gaps, chips or discolored trim that make the console look worn
• Helps prevent dirt and grease from getting behind the control assembly
• Restores proper alignment and fit where the original trim is cracked or broken

• Disconnect power to the appliance before starting any repair.
• Typically secures with clips or screws—retain hardware and note orientation when removing old trim.
• Handle edges carefully; replacement may require gentle prying with a trim tool.
• If mounting hardware or support brackets are damaged, replace them separately.

This 8-inch drip bowl installs under your range burner to catch grease and spills. Replace if yours is rusted, cracked, warped, or heavily stained.

Burner not heating or working intermittently? This surface element receptacle connects your heating element to power. DIY-friendly repair in under 1 hour.

Cooktop chassis frame box that supports and encloses the burner assembly on your electric range. Replace if cracked, bent, rusted, or damaged.

These GE screws are a 12-pack of OEM replacement parts responsible for securing and fastening various components and panels in a GE range or oven. These screws are designed with a hexagonal head, which allows for the use of a compatible wrench or socket for tightening. They are commonly used to attach sheet metal panels, brackets, and other parts within the appliance, ensuring that these components remain securely in place during operation.

This part fixes the following symptoms:

• Loose or wobbly parts or panels within the appliance's interior or exterior
• Panels or components falling out of place, creating gaps or exposing internal parts
• Unusual noises or rattling sounds during the appliance's operation

The GE screws can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

A replacement wiring diagram sheet that shows the appliance's electrical schematic and component connections to help diagnose wiring and control issues. Clear, OEM-style schematic layout for accurate reference during troubleshooting. What it does:

• Shows the electrical schematic and connector locations so you can trace circuits and wiring paths
• Helps identify which components and terminals are tied to specific circuits during tests
• Useful for diagnosing intermittent or no-power symptoms tied to wiring or control failures
• Aids correct reconnection after servicing controls, switches, or harnesses

• Always disconnect power to the appliance before accessing electrical components
• Use the diagram as a reference—verify wiring and terminal labels against the appliance before making connections
• Handle the sheet carefully to avoid tears or marks that could obscure wiring details

Wall-mounted safety bracket that prevents range tip-over. Includes bracket, screws, and instructions. Replace missing or broken brackets required by code.
