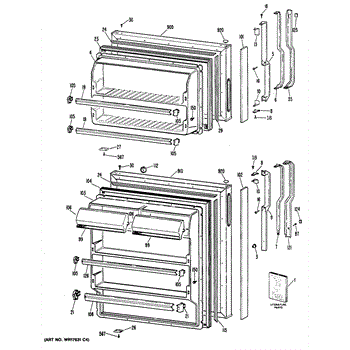

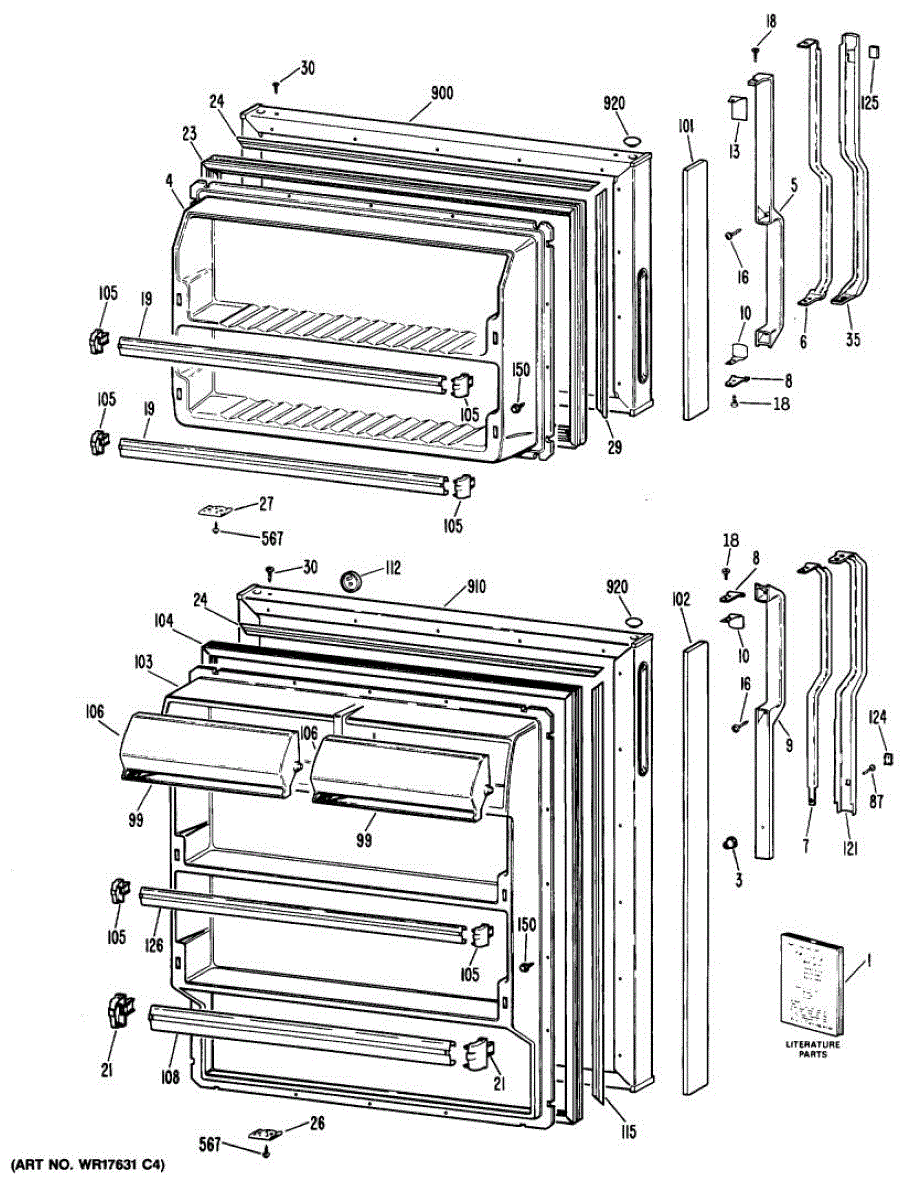

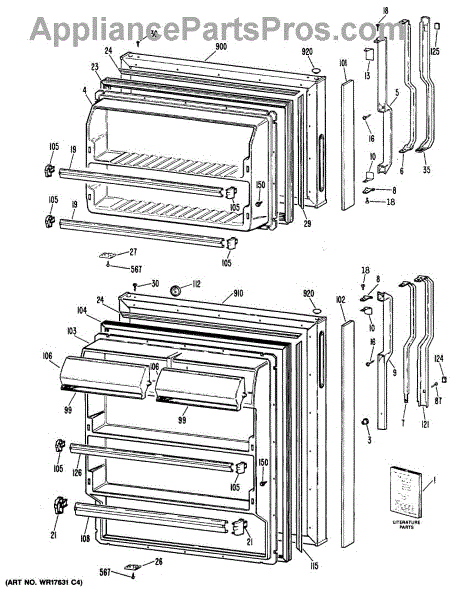

Parts for Ge TBX16SPDLWH: 01 - Section1 Parts

The Screw Package is an OEM replacement part for GE refrigerators. It contains a pack of 12 identical screws for miscellaneous securing and assembly needs.

These screws play a supporting role, helping attach shelf tracks, cover panels, door hinges, and other interior parts. By maintaining components securely in place, they help ensure smooth operation and prevent rattling or other noises.

Symptoms of insufficiently secured parts include:

• Noises heard from loose shelves or door components
• Detaching handles, hinges, or panels
• Shelves shifting positions or becoming misaligned

Causes of needing replacement screws can include loss, stripping, or wear over time from repeated securement and removal of parts during cleaning or repairs.

This multipack of GE screws is perfect for minor refrigerator maintenance or to stock up on extras. They are also compatible with replacement hardware from Hotpoint, RCA, and certain Kenmore models.

The Door Shelf Bar is an OEM replacement part for GE refrigerators. It provides storage organization on the refrigerator door. This convenient accessory bar creates compartments for smaller items like condiments, sauces, and produce.

Causes of a bad shelf bar may include slipping out of position due to weak retention clips or plastic warping over multiple years of use. Normal wear and cleaning chemicals can also degrade shelf gripping performance.

Symptoms of a bad Door Shelf Bar include:

• Difficulty adjusting or unstable shelving configurations
• Items falling through weak bar retention clips
• Cracked or warped plastic compromising strength and flexibility

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The GE End Cap is an OEM replacement part designed for compatibility with various GE refrigerator models. This end cap supports your door shelf bars allowing your items to stay firmly in place. It is white in color and 2.5 inches high and 3 inches deep. This end cap is used for both left and right sides for both freezer and fridge doors.

Symptoms that may indicate the need to replace the end cap include:

• Cracks, chips, or visible damage to the existing end cap
• The end cap becoming loose or detached from the refrigerator cabinet

Causes of needing a new end cap can include physical impact or mishandling during moving or cleaning, exposure to extreme temperatures, or general wear and tear over an extended period of use.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

The Freezer Door Gasket is an OEM part for GE freezers. This gasket plays a crucial role in ensuring an airtight seal around the freezer door, preventing warm air from entering and cold air from escaping.

Over time, freezer door gaskets can wear out or become damaged due to frequent use, accidental damage, or exposure to extreme temperatures. It is essential to replace the gasket if you notice any of the symptoms mentioned above to ensure your freezer operates efficiently and to avoid unnecessary energy consumption.

Symptoms of a bad Freezer Door Gasket include:

• Visible tears, warps, or gaps in the gasket
• Condensation or frost buildup around the door edges
• Difficulty in maintaining consistent freezer temperatures
• An increase in energy consumption as the freezer works harder to maintain its internal temperature

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Includes 12 screws. Size: 8-18 ab.

The Fresh Food Door Gasket is an OEM replacement part for GE refrigerators. The gasket is responsible for creating an airtight seal between the refrigerator door and cabinet. This seal ensures that cold air remains inside and warm air stays out, maintaining the set temperature. The gasket measures  44" in length and 27" in width

This part fixes the following symptoms-

• Difficulty closing the door
• Visible gaps between the door and the appliance
• Condensation or frost buildup inside the appliance
• Rising temperatures in the refrigerator or freezer
• Increased energy consumption due to poor sealing

Causes of a bad door gasket can include normal wear and tear from frequent use, exposure to harsh cleaning chemicals that degrade the rubber, or accidental damage from closing the door on obstructions.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The End Cap is an OEM replacement part for GE refrigerators. It is a small but essential component that serves to cover and protect the ends of various refrigerator parts, such as shelves or door bins.

Causes of a need to replace the end cap can include physical damage, such as cracks, chips, or breaks, as well as discoloration or fading over time due to exposure to moisture or cleaning products.

Symptoms of a faulty end cap:

• Cracks or breaks in the end cap material
• End cap becoming loose or detached from the shelf or bin
• Discoloration or fading, affecting the overall aesthetic appeal of the refrigerator

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

Color: white. Measures about 1/2 an inch wide by 2/3 of an inch high.

The Shelf is an OEM part for GE refrigerators. It provides a stable and durable surface for storing food and other items within the refrigerator. The shelf is designed to fit seamlessly into the refrigerator's interior, maximizing space and organization. It measures approximately 25 inches wide by 14 inches deep.

Over time, the shelf can become damaged due to heavy loads, accidental impacts, or regular wear and tear. If you notice cracks, chips, or instability in the shelf, it is important to replace it to ensure safe and effective storage.

Symptoms of a bad shelf include:

• Cracks or visible damage
• Difficulty in keeping items stable
• Reduced storage capacity due to instability

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The GE access cover is an OEM replacement part responsible for covering the compressor area on a refrigerator. This panel is located on the rear or bottom of the refrigerator and provides easy access to the compressor and condenser coils and prevents dirt and debris from entering the compressor area. When this part becomes damaged, it can lead to issues such as poor cooling performance, excessive noise from the compressor area, or even compressor overheating.

Symptoms of a bad access cover include:

• Visible cracks, breaks, or deformation in the cover
• Difficulty in securing the cover properly in place
• Increased dust or debris buildup inside the refrigerator
• Exposed internal components

Causes of a bad access cover can include accidental impacts, wear and tear from frequent removal and reinstallation, and environmental factors like temperature fluctuations or moisture exposure.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Screw is an OEM replacement part for GE refrigerators. Countless screws are used throughout the refrigerator to securely hold parts in place.

Symptoms of a bad or missing screw can include:

• Rattling or vibration noises coming from inside the appliance
• Doors or other parts that are no longer properly aligned
• Increased frost or cold air leaks due to compromised seals

Causes may include normal wear and tear over time, accidental damage or loss of a screw during repairs, or improper assembly leaving crucial screws omitted.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerators.

The Evaporator Fan Motor Kit is an OEM part compatible with GE refrigerators. It is a critical component responsible for circulating air and maintaining proper airflow within the refrigerator's evaporator system, ensuring efficient cooling and temperature regulation. It features a shaft that measures 3/8 of an inch and two right-side terminals. Notably, the motor no longer comes with harness wires, which must be obtained separately for installation.

Symptoms of a faulty evaporator fan motor include:

• Inconsistent or inadequate cooling in the refrigerator or freezer compartments
• Warm spots or temperature fluctuations within the refrigerator
• Excessive frost buildup or ice accumulation in the freezer

Causes of a bad evaporator fan motor can include wear and tear over time, electrical issues or short circuits, or physical damage from foreign objects or improper maintenance.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

The Condenser Fan Motor is an OEM part for GE refrigerators. It is designed to circulate air through the condenser coils, helping to dissipate heat and keep the refrigerator's internal components cool. This ensures efficient operation and prevents the compressor from overheating, which is essential for maintaining the refrigerator's performance and longevity.

You should replace the condenser fan motor if it becomes faulty. Causes of a bad fan motor can include electrical failures, wear and tear from regular use, or blockages that cause the motor to overheat or burn out. A malfunctioning fan motor can lead to inadequate cooling, increased energy consumption, and potential damage to other refrigerator components.

Symptoms of a bad condenser fan motor include:

• The refrigerator not cooling properly
• Unusual noises coming from the back of the refrigerator
• The compressor running hot or cycling on and off frequently
• The condenser coils feeling excessively hot

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a replacement screw used to secure appliance components and panels so parts stay properly attached for safe operation. It's a direct-fit fastener matching OEM form and function. What it does

• Secures panels, trim, or internal components to prevent rattling or gaps
• Restores factory attachment where a screw is missing or stripped
• Helps maintain proper alignment of housing and service access
• Suitable when repair requires original-fit fasteners

• Disconnect power or unplug the appliance before servicing to avoid shock
• Use the matching screwdriver or bit to avoid stripping the head
• Thread carefully and avoid overtightening to prevent damage to threads or plastic parts
• Keep removed screws organized; replace only the screws that match the original locations

This plug button is a small snap-in cap used on refrigerators to cover exposed holes on door handles, liners, or trim. It restores a clean, finished look while helping keep dust and moisture out of the cabinet.

• Snaps into a screw or access hole on a handle, liner, or trim panel
• Covers fasteners and gaps for a clean, finished appearance
• Helps block dirt and moisture from open holes
• Typical symptoms: missing cap, broken or loose plug, visible screw hole or cosmetic gap

• Unplug the appliance before servicing and use caution around sharp edges
• Align the plug with the hole and press straight in by hand until fully seated and flush
• For handle screw holes, tighten fasteners first, then install the cap
• Avoid using metal tools on finished surfaces to prevent scratches
