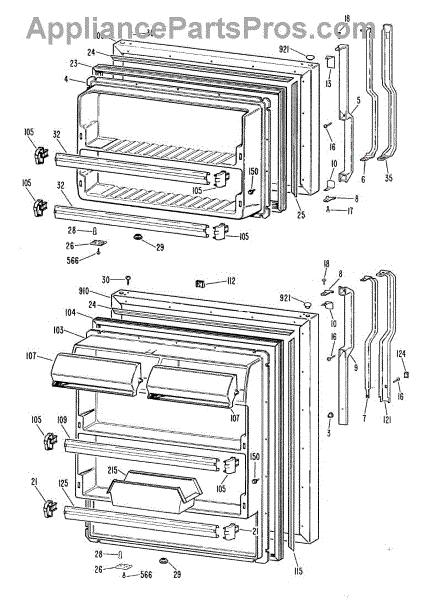

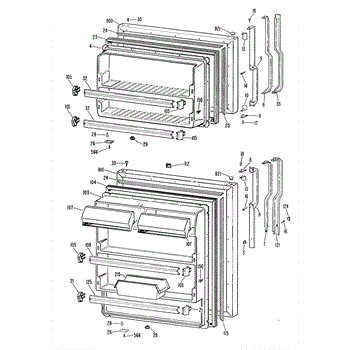

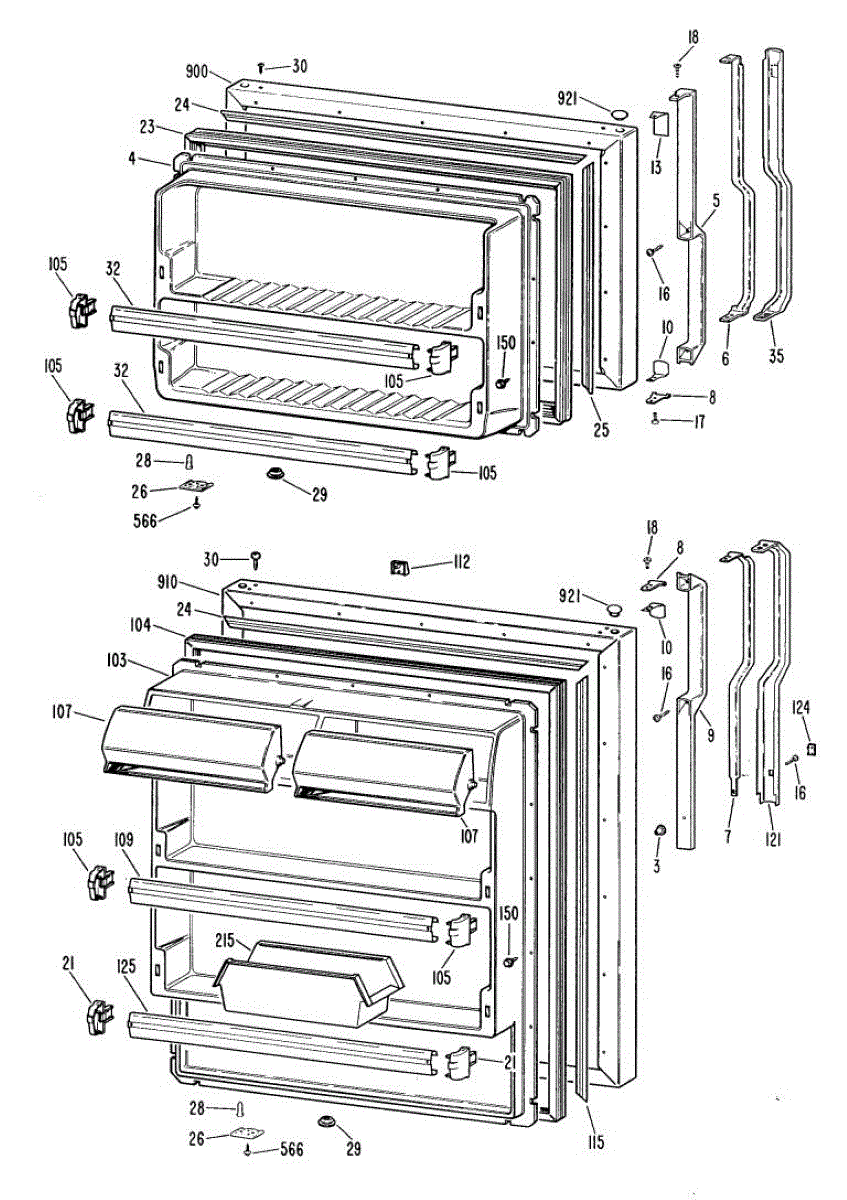

Parts for Ge TBX18ALGRWH: 01 - Section1 Parts

This is the installation instruction sheet and reference documentation for a refrigerator. It provides step-by-step guidance on proper setup, leveling, water line connections, and safety warnings. Replace this document if your original was lost or damaged and you need accurate installation details for your refrigerator.

Hardware fasteners for securing refrigerator door panels and components. Includes screws, nuts, and washers for assembly. Replace missing or stripped pieces.

Assembly screw kit for refrigerators. Secures handles, shelf tracks, door hinges, and interior panels. Replace missing, stripped, or lost screws.

White plastic end cap for refrigerator door shelf bars. Snaps onto bar ends to hold shelves securely in place. Replace cracked, broken, or missing caps.

This push-button plug insulates and seals a control panel push-button, helping keep the button stable and protecting the switch from moisture and debris. Fits where a small plastic button bushing or insulator is needed on the control panel. What it does:

• Provides an insulating bushing for a control panel push-button or switch
• Helps hold the button aligned and reduces wobble or uneven operation
• Shields the switch contacts from moisture and dirt that can cause intermittent operation
• Commonly replaced when the button is loose, damaged, cracked, or missing

• Disconnect power to the appliance before removing the control panel or working near electrical components
• Remove the control panel or trim; use appropriate tools to avoid cracking surrounding plastic
• Install the plug gently; do not force or use excessive heat

Hardware kit with 12 mounting screws for refrigerator assembly and component installation. Replace missing, stripped, or corroded screws during repairs.

Includes 12 screws. Size: 8-18 ab.

Covers and secures the ends of refrigerator door shelves and bins. Replace if cracked, broken, or missing to restore a finished look and prevent items from sliding off.

This small decorative cap covers screws that secure the refrigerator door handle, maintaining a clean appearance. Located over handle mounting points, replacement is needed when caps are missing, cracked, or discolored.

May have to be cut to fit shorter applications.

Interior light not working when door opens? This light switch controls refrigerator illumination. DIY-friendly install takes 30-45 minutes with video.

Ice building up on freezer coils? Warm fridge but cold freezer? This defrost heater kit melts frost during the defrost cycle. DIY repair takes 30 minutes.

Panel mounting screw for refrigerators. Secures access panels, trim pieces, and internal brackets. Replace lost, stripped, or corroded fasteners.

Secures refrigerator wiring to prevent chafing and vibration noise. Replace when damaged or missing to keep harnesses organized. Confirm fit by model.

Secures water tubing or wiring to your refrigerator cabinet. Replace if missing or damaged to prevent vibration, rubbing, or leaks. Confirm fit.

Reversible door plug fills unused mounting holes when switching refrigerator door swing direction. Replaces broken or missing plugs for a finished look.
