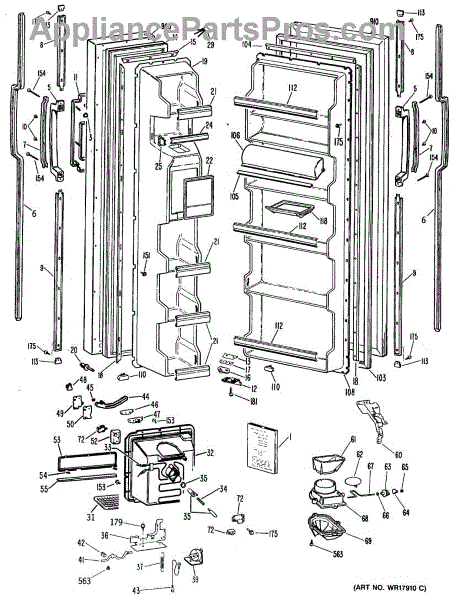

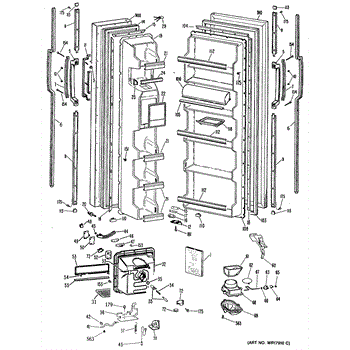

Parts for Ge TFCW20RRAWH: 01 - Section1 Parts

This replacement part is a door hinge, and it is intended for use in different types of appliances. This is a genuine replacement part made by General Electric. This door hinge is typically found in refrigerators or freezers. The hinge is stationed so that the door and the main parts of the appliance are connected and in working order. The door hinge allows the doors to be opened and closed easily and smoothly. There is typically more than one hinge on each door so be sure to purchase the correct amount. A new door hinge might be needed if the current appliance doors are not properly opening and closing. Another way to tell if the hinges are damaged is if the doors are drooping and require a slight lift to be shut. This usually means the hinges are becoming loose and either need to be tightened or replaced altogether. Note that the doors will have to be completely removed to replace this part so the food inside the fridge may go bad during the repair if it takes too long. This is a genuine OEM replacement part and is sold individually.

The Cam Riser is an OEM part for GE refrigerators. It plays a crucial role in the door mechanism, helping to lift and align the door as it opens and closes. This ensures the door operates smoothly and maintains a proper seal, which is essential for the efficient functioning of the refrigerator.

Over time, the cam riser can wear out or become damaged. Causes of a bad cam riser can include frequent use, physical damage from heavy door loads, or general wear and tear of the plastic components.

Symptoms of a bad Cam Riser include:

• Difficulty in opening or closing the refrigerator door
• The door not staying aligned or sealing properly
• Unusual noises when operating the door

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: White.

Spring for recess duct. For spring sleeve use WR2X4822.

This part has been discontinued by the manufacturer and is no longer available.

This dispenser sleeve comes with plunger, sleeve, and screw.

Lanyard for dispenser door.

Lever for dispenser selector switch.

This dispenser cradle is the molded housing that supports and guides the refrigerator dispenser components, helping keep the dispenser chute and actuator aligned for smooth water or ice dispensing. Replacement restores proper fit and function. What it does:

• Holds the dispenser chute and actuator assembly in the door for stable dispensing
• Guides water or ice flow to the dispense area and helps prevent spills
• Replaces cracked, warped, or broken housing that can cause misalignment or leaks
• Restores a solid mounting surface for switches, nozzles, and trim

• One dispenser cradle housing

• Disconnect power and shut off water supply before beginning any work
• Removal typically requires opening the freezer/refrigerator door and removing inner door trim and screws to access the cradle
• Handle plastic parts gently to avoid cracking; use a trim tool to disengage clips where needed

Color: White. For black use WR2X7951.

This part has been discontinued and is no longer available.

Ice maker dispenser door.

Time delay display arm.

Includes 12 screws.

Includes 12 washers.

Ice chute door lever.

This is the right side duct gasket. For left side use WR14X247.

This is the left side duct gasket. For right side use WR14X246.

Includes 12 screws. Size: 8-18 ab.

This is a replacement 8-18 x 9/16 machine screw used to secure internal and external appliance components. It restores proper fastening and helps stop rattling or loose panels caused by worn or missing fasteners. What it does

• Secures panels, brackets, or small assemblies to prevent movement and vibration
• Replaces stripped, corroded, or missing screws that can cause rattling or misalignment
• Helps maintain electrical and mechanical connections by holding parts in proper position
• Appropriate where an 8-18 thread size and 9/16" length are required

• Replacement screw

• Disconnect power to the appliance before accessing internal components
• Use the correct driver to avoid stripping the screw head and ensure proper torque
• Do not overtighten; snug until secure to avoid damaging threads or parts

Includes 12 screws.

Includes 12 screws.

Includes 12 screws.

2 wire insulator.

Size: 10-16 ab.

This replacement screw is used in refrigerators to fasten specific components. Replace a lost or damaged fastener to restore a secure, factory hold so brackets, panels, or covers stay properly mounted and rattle-free.

• Secures the designated component per your model's parts diagram
• Replaces missing, stripped, or corroded hardware
• Helps eliminate looseness, vibration, or rattling from unsecured parts
• Supports proper alignment and fit after service

• Disconnect power to the refrigerator before servicing
• Match this screw to the original location using your model's parts diagram
• Hand-start threads to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver for the screw head style

Size: 8-32 t. Includes 12 screws.

Replacement screw that secures panels, trim and internal brackets to keep appliance components stable and rattle-free. Use when originals are missing, stripped, or broken to restore proper fit and safe operation. What it does:

• Secures panels, control housings, trim and small brackets so parts stay aligned and stable.
• Replaces missing or damaged fasteners that cause rattling, vibration, or loose assemblies.
• Keeps electrical and mechanical components properly positioned for reliable operation.
• Intended as a direct replacement where the OEM screw specified for the application is required.

• Disconnect power and unplug the appliance before starting any repair.
• Use the correct screwdriver or bit and seat the screw squarely to avoid stripping the head or threads.
• Do not overtighten—stop when snug to prevent damage to panels or plastic components.
• Keep removed screws organized; replace only with the identical OEM screw for proper fit.

Package of 12
