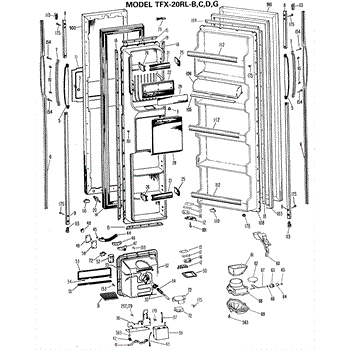

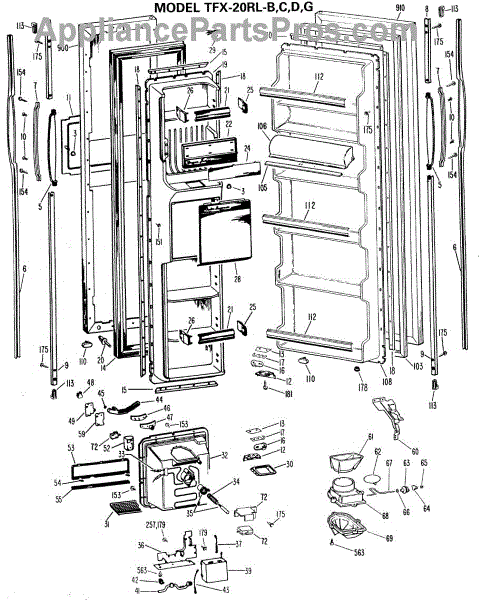

Parts for Ge TFX20RLC: 01 - Section1 Parts

The Cam Riser is an OEM part for GE refrigerators. It plays a crucial role in the door mechanism, helping to lift and align the door as it opens and closes. This ensures the door operates smoothly and maintains a proper seal, which is essential for the efficient functioning of the refrigerator.

Over time, the cam riser can wear out or become damaged. Causes of a bad cam riser can include frequent use, physical damage from heavy door loads, or general wear and tear of the plastic components.

Symptoms of a bad Cam Riser include:

• Difficulty in opening or closing the refrigerator door
• The door not staying aligned or sealing properly
• Unusual noises when operating the door

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Spring for recess duct. For spring sleeve use WR2X4822.

Lever for dispenser selector switch.

This dispenser cradle is the molded housing that supports and guides the refrigerator dispenser components, helping keep the dispenser chute and actuator aligned for smooth water or ice dispensing. Replacement restores proper fit and function. What it does:

• Holds the dispenser chute and actuator assembly in the door for stable dispensing
• Guides water or ice flow to the dispense area and helps prevent spills
• Replaces cracked, warped, or broken housing that can cause misalignment or leaks
• Restores a solid mounting surface for switches, nozzles, and trim

• One dispenser cradle housing

• Disconnect power and shut off water supply before beginning any work
• Removal typically requires opening the freezer/refrigerator door and removing inner door trim and screws to access the cradle
• Handle plastic parts gently to avoid cracking; use a trim tool to disengage clips where needed

This part has been discontinued and is no longer available.

Ice maker dispenser door.

Time delay display arm.

Includes 12 washers.

Ice chute door lever.

This is the right side duct gasket. For left side use WR14X247.

This is the left side duct gasket. For right side use WR14X246.

Includes 12 screws. Size: 8-18 ab.

This is a replacement 8-18 x 9/16 machine screw used to secure internal and external appliance components. It restores proper fastening and helps stop rattling or loose panels caused by worn or missing fasteners. What it does

• Secures panels, brackets, or small assemblies to prevent movement and vibration
• Replaces stripped, corroded, or missing screws that can cause rattling or misalignment
• Helps maintain electrical and mechanical connections by holding parts in proper position
• Appropriate where an 8-18 thread size and 9/16" length are required

• Replacement screw

• Disconnect power to the appliance before accessing internal components
• Use the correct driver to avoid stripping the screw head and ensure proper torque
• Do not overtighten; snug until secure to avoid damaging threads or parts

Includes 12 screws.

Includes 12 screws.

Includes 12 screws.

The Defrost Timer is an OEM part for GE refrigerators. This part manages the defrost cycle of the fridge and freezer compartments, ensuring that the evaporator coils do not build up excessive frost.

This cycling is crucial for maintaining optimal temperatures for food preservation and energy efficiency. Over time, the defrost timer can malfunction due to wear, electrical issues, or a buildup of dust and debris, leading to poor performance or failure.

Symptoms of a bad Defrost Timer include:

• Frost buildup in the freezer compartment
• The refrigerator or freezer is not maintaining the set temperature
• The fridge or freezer sections are too warm
• The defrost cycle does not activate, leading to reduced cooling efficiency

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Includes 12 screws. Size: 8-18 ab.

The Water Inlet Valve is an OEM part for GE refrigerators. It is responsible for controlling the flow of water into the refrigerator’s ice maker and water dispenser. The valve opens and closes to allow the right amount of water to fill the ice maker tray or to dispense water from the refrigerator door.

Over time, the water inlet valve can wear out or become damaged due to mineral deposits, corrosion, or electrical issues. A faulty valve can lead to problems with the water supply, affecting the refrigerator’s ability to produce ice or dispense water properly.

Symptoms of a bad water inlet valve include:

• No water or ice production
• Water dispenser not working
• Leaks or drips around the valve or inside the refrigeratorStrange noises coming from the valve area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This cable clamp secures refrigerator wiring to the cabinet, keeping harnesses organized and protected. Replacing a missing or damaged clamp helps prevent chafing and vibration noise while maintaining proper clearance from fans and other moving components.

• Anchors wire harnesses in their designed routing
• Helps prevent insulation wear from rubbing or vibration
• Keeps wires clear of sharp edges and moving parts
• Common signs it's needed: missing/broken clamp, loose or dangling wires, or new rattling/buzzing noises

• Disconnect power before servicing
• Access the clamp location and note original wire routing
• Position the clamp and secure with the existing fastener; do not overtighten
• Ensure wires aren't pinched and have clearance from the fan/compressor before restoring power

This refrigerator water line is the plastic tubing that routes pressurized water through the appliance's water system. Replacing a cracked, brittle, or kinked line helps restore proper water flow and prevents leaks inside or around the unit.

• Carries water between the inlet valve and the refrigerator's water system components
• Helps maintain a sealed path for reliable flow to the dispenser and/or ice maker
• Replace if tubing is cracked, kinked, brittle, or leaking
• Common symptoms include puddling, dripping, reduced/No water at the dispenser, or ice maker not filling

• Disconnect power and shut off the water supply before servicing
• Note the original routing and clip locations; avoid sharp bends and kinks during installation
• Fully seat tubing into existing connectors/fittings on your model
• Turn water back on, check all connections for leaks, and purge air by dispensing water

The Electromechanical Icemaker Kit is an OEM replacement part for GE refrigerators. It includes the ice maker assembly components responsible for harvesting, ejecting, and monitoring the ice-making process.

Symptoms of a faulty electromechanical kit include:

• Ice not being produced or dispensing properly
• The ice maker failing to turn on or stop automatically
• Strange noises emanating from the ice maker

Causes can be worn parts like the ejector assembly or drive motor, as well as electrical malfunctions. Continued use puts wear on components that regulate ice production.

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models. Replace yours today for reliable ice on demand.
