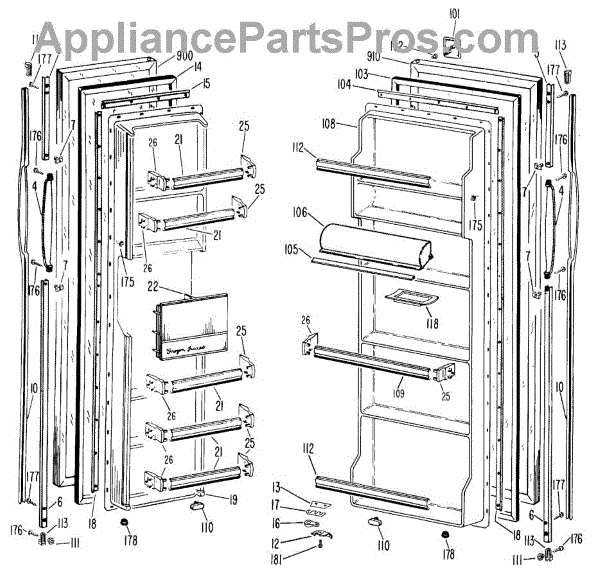

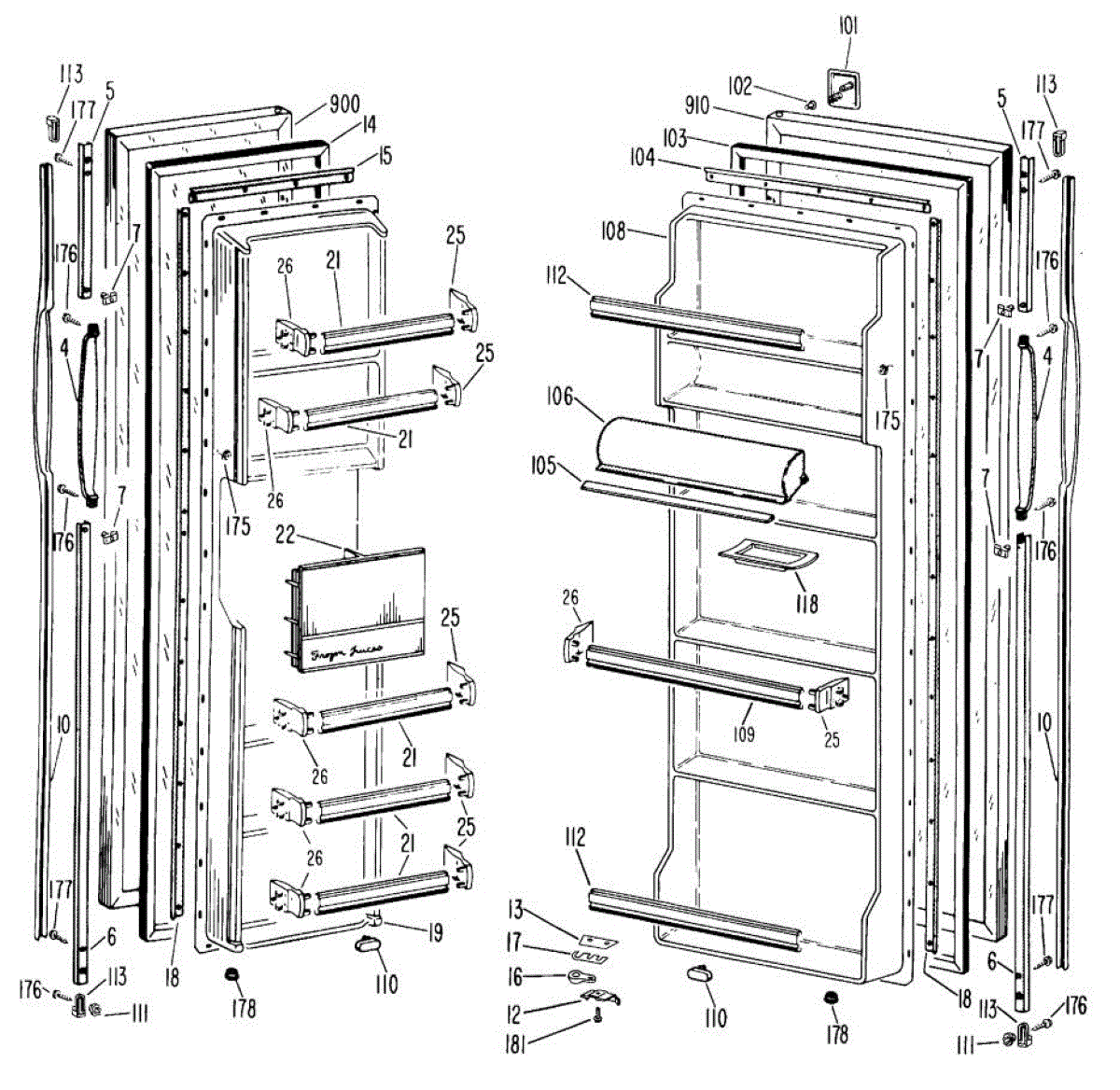

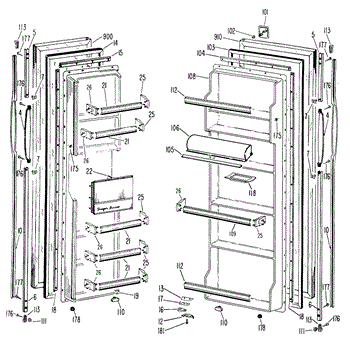

Parts for Ge TFX22DHE: 01 - Section1 Parts

The Cam Riser is an OEM part for GE refrigerators. It plays a crucial role in the door mechanism, helping to lift and align the door as it opens and closes. This ensures the door operates smoothly and maintains a proper seal, which is essential for the efficient functioning of the refrigerator.

Over time, the cam riser can wear out or become damaged. Causes of a bad cam riser can include frequent use, physical damage from heavy door loads, or general wear and tear of the plastic components.

Symptoms of a bad Cam Riser include:

• Difficulty in opening or closing the refrigerator door
• The door not staying aligned or sealing properly
• Unusual noises when operating the door

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Includes 12 screws. Size: 8-18 ab.

Includes 12 screws.

Includes 12 screws.

The Light Socket is an OEM part for GE refrigerators. It is responsible for holding the refrigerator's light bulb and ensuring it receives power to illuminate the interior when the door is opened.

You should replace the light socket if it becomes faulty. Causes of a bad light socket can include wear and tear from regular use, electrical issues such as short circuits or power surges, and corrosion from moisture exposure.

Symptoms of a bad light socket include:

• The refrigerator light not turning on when the door is opened
• Flickering or intermittent light operation
• Visible damage or corrosion on the socket
• The light bulb not fitting securely or falling out

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

This plug button is a small push-in cap that covers unused holes and secures trim or panels for a finished appearance. It helps keep debris and moisture out while providing a simple, low-profile finish on appliance surfaces. What it does:

• Covers exposed screw holes and openings to improve appearance and prevent dirt entry
• Helps secure lightweight trim pieces and panels by snapping into place
• Reduces chance of small-object ingress around mounting points
• Common replacement when original plug is cracked, missing, or worn

• Disconnect power to the appliance before working near electrical components.
• Install by aligning and pressing the plug squarely into the hole until it snaps in; remove with a flat tool if necessary.
• Do not force into undersized holes; replace with correct size if fit is tight or loose.
• If the plug secures a component, verify the component is properly seated before finalizing installation.

This cable clamp secures refrigerator wiring to the cabinet, keeping harnesses organized and protected. Replacing a missing or damaged clamp helps prevent chafing and vibration noise while maintaining proper clearance from fans and other moving components.

• Anchors wire harnesses in their designed routing
• Helps prevent insulation wear from rubbing or vibration
• Keeps wires clear of sharp edges and moving parts
• Common signs it's needed: missing/broken clamp, loose or dangling wires, or new rattling/buzzing noises

• Disconnect power before servicing
• Access the clamp location and note original wire routing
• Position the clamp and secure with the existing fastener; do not overtighten
• Ensure wires aren't pinched and have clearance from the fan/compressor before restoring power

Size: 10-16 ab.

This screw secures panels and components on compatible GE appliances to restore proper fit and reduce vibration. Use it to replace a lost or stripped fastener and keep covers and brackets held firmly in place. What it does:

• Fastens access panels, trim pieces, or internal brackets to maintain proper alignment
• Stops rattling or vibration caused by missing or loose screws
• Restores secure mounting after repair or parts replacement
• Works where the appliance requires a short sheet-metal or machine screw for fastening

• Disconnect power to the appliance before removing panels or performing repairs.
• Use the correct screwdriver or bit to avoid stripping the head.
• Hand-start the screw to ensure proper threading; tighten until snug but avoid over-torquing.
