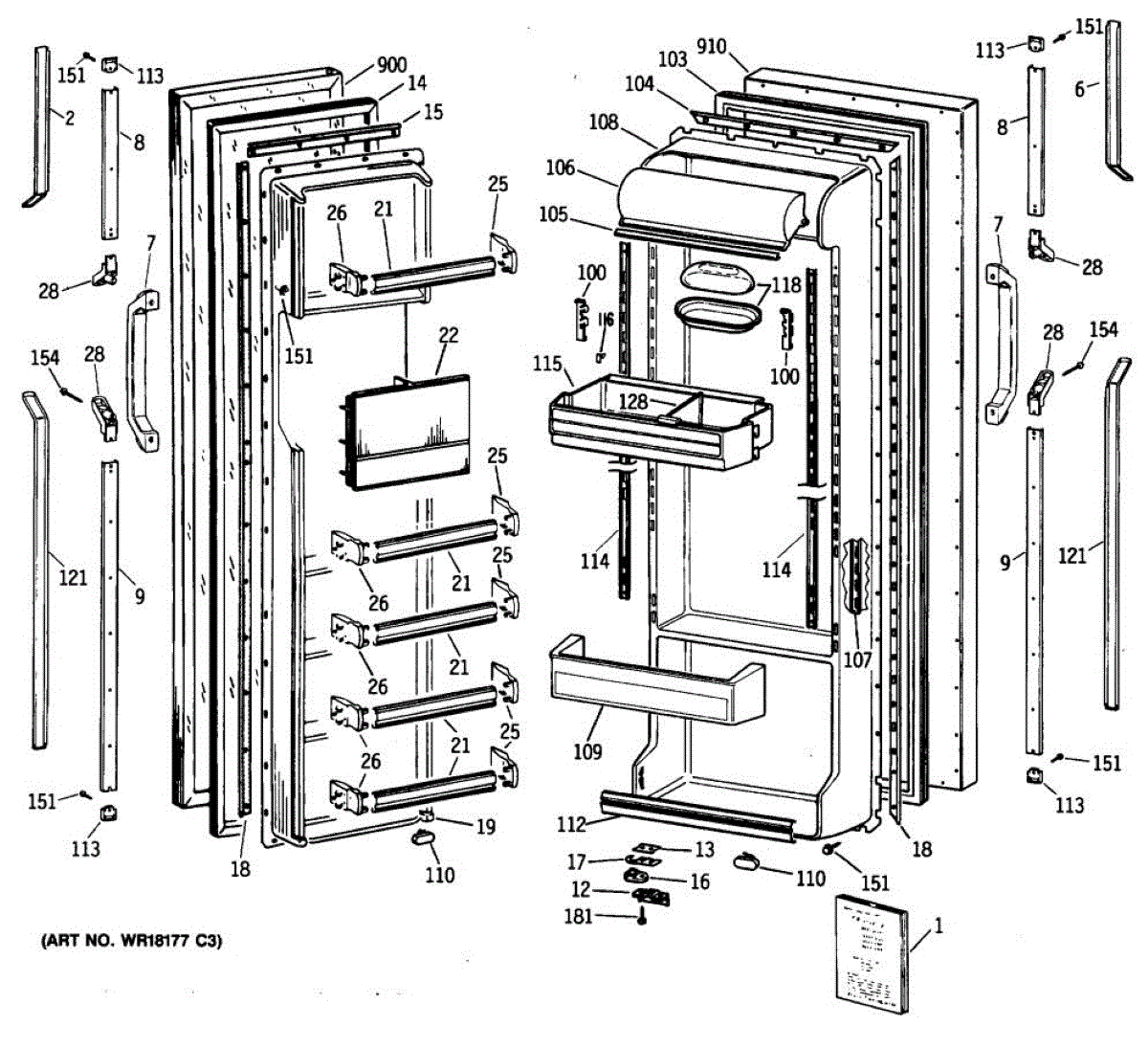

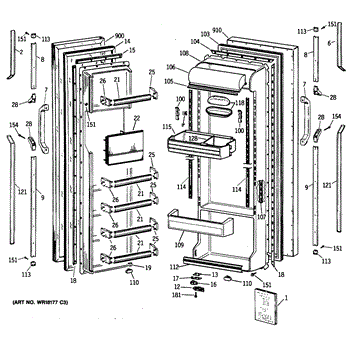

Parts for Ge TFX24PAXAAA: 01 - Section1 Parts

This replacement part is a handle bar, and it is intended for use in different types of appliances. This is a genuine replacement part made by General Electric. Each refrigerator typically has two handle bars which allow the user to open and closed the doors effectively and efficiently. A new handle bar might be needed if the current one is unable to stay connected to the door of the appliance. It is possible that the screws in this part can become stripped and therefore not hold the handle bar in place. It is best to replace this part immediately as the user might not be able to open the appliance at all if the handle becomes completely detached. This repair is simple and should only take a few minutes. Using a screwdriver, remove the old handles and replace the new ones securely on the door. This handle bar cover is sourced directly from the manufacturer. This is a genuine OEM replacement part and is sold individually.

The Cam Riser is an OEM part for GE refrigerators. It plays a crucial role in the door mechanism, helping to lift and align the door as it opens and closes. This ensures the door operates smoothly and maintains a proper seal, which is essential for the efficient functioning of the refrigerator.

Over time, the cam riser can wear out or become damaged. Causes of a bad cam riser can include frequent use, physical damage from heavy door loads, or general wear and tear of the plastic components.

Symptoms of a bad Cam Riser include:

• Difficulty in opening or closing the refrigerator door
• The door not staying aligned or sealing properly
• Unusual noises when operating the door

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Riser Cam Shim is an OEM part for GE refrigerators. This part helps in aligning and leveling the refrigerator door, ensuring it opens and closes smoothly.

Causes of a bad riser cam shim can include regular wear and tear, damage from repeated door openings and closings, or deformation from improper installation.

Symptoms of a bad riser cam shim include:

• The refrigerator door not closing properly
• Difficulty in opening or closing the door
• The door appearing misaligned
• Reduced cooling efficiency due to an improper seal

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Size: 8-32 TT FL 1/2 S.

Includes 12 screws. Size: 8-18 ab.

This replacement screw secures appliance components and panels where an 8-36 threaded fastener is required. Durable and ready for repair, it restores proper fit and reduces rattles or loose parts. What it does:

• Fastens panels, brackets, or components that use an 8-36 threaded screw
• Replaces stripped, lost, or damaged screws that cause vibration or loose parts
• Restores secure mechanical connections to help maintain normal operation

• One screw

• Disconnect power and follow appliance safety procedures before starting repairs
• Use the correct driver and match thread engagement; do not force or cross-thread
• Tighten to snug; avoid overtightening which can strip threads or damage parts

Color: clear. Measures about 16 inches wide by 7 inches high.

A stainless-steel #6-20 screw (1/2" length) used to fasten appliance panels and components securely. Durable corrosion-resistant finish helps maintain a tight fit and long-lasting hold in wet or humid areas. What it does:

• Fastens trim, brackets, panels, and internal components where a #6-20 x 1/2" screw is specified
• Provides a corrosion-resistant connection for areas exposed to moisture
• Restores loose or missing fasteners that cause rattling or misalignment
• Matches OEM thread and length for proper fit and function

• One stainless steel #6-20 x 1/2" screw

• Turn power off and unplug appliance before servicing
• Use the correct screwdriver or driver bit to avoid stripping the head
• Do not overtighten; stop when the component is snug and aligned
• Replace any additional damaged fasteners with matching OEM screws

This is a replacement 8-18 x 9/16 machine screw used to secure internal and external appliance components. It restores proper fastening and helps stop rattling or loose panels caused by worn or missing fasteners. What it does

• Secures panels, brackets, or small assemblies to prevent movement and vibration
• Replaces stripped, corroded, or missing screws that can cause rattling or misalignment
• Helps maintain electrical and mechanical connections by holding parts in proper position
• Appropriate where an 8-18 thread size and 9/16" length are required

• Replacement screw

• Disconnect power to the appliance before accessing internal components
• Use the correct driver to avoid stripping the screw head and ensure proper torque
• Do not overtighten; snug until secure to avoid damaging threads or parts

Includes 12 screws.

Right hand side

2 wire insulator.

Harness to corset & shifter

Size: 10-16 ab.

Size: 8-32 t. Includes 12 screws.

Black. 8-18 AB HXW 3/8

This outer freezer door panel replaces a damaged, dented, or cracked freezer door to restore the freezer's exterior appearance and support proper door fit. Designed as a direct replacement to maintain original form and function. What it does:

• Replaces a damaged or dented outer freezer door panel
• Restores proper door fit and alignment for secure closing
• Helps maintain insulation integrity by supporting the door shell
• Improves exterior appearance when the original panel is scratched or cracked

• Disconnect power to the appliance before beginning any work.
• This is a large part; have a second person or use proper supports to avoid dropping or damaging the door.
• Handles, hinges, gasket, and other trim are commonly transferred from the old door.
• Use appropriate tools and protective gloves; follow OEM diagram for hinge and fastener locations.
