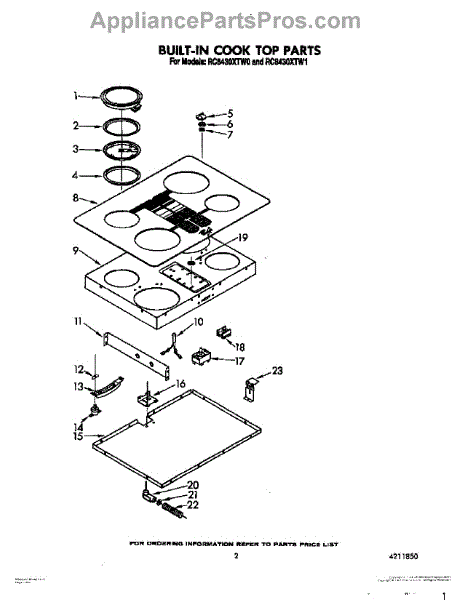

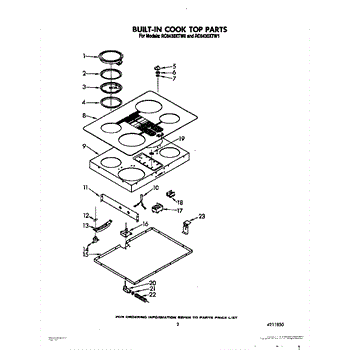

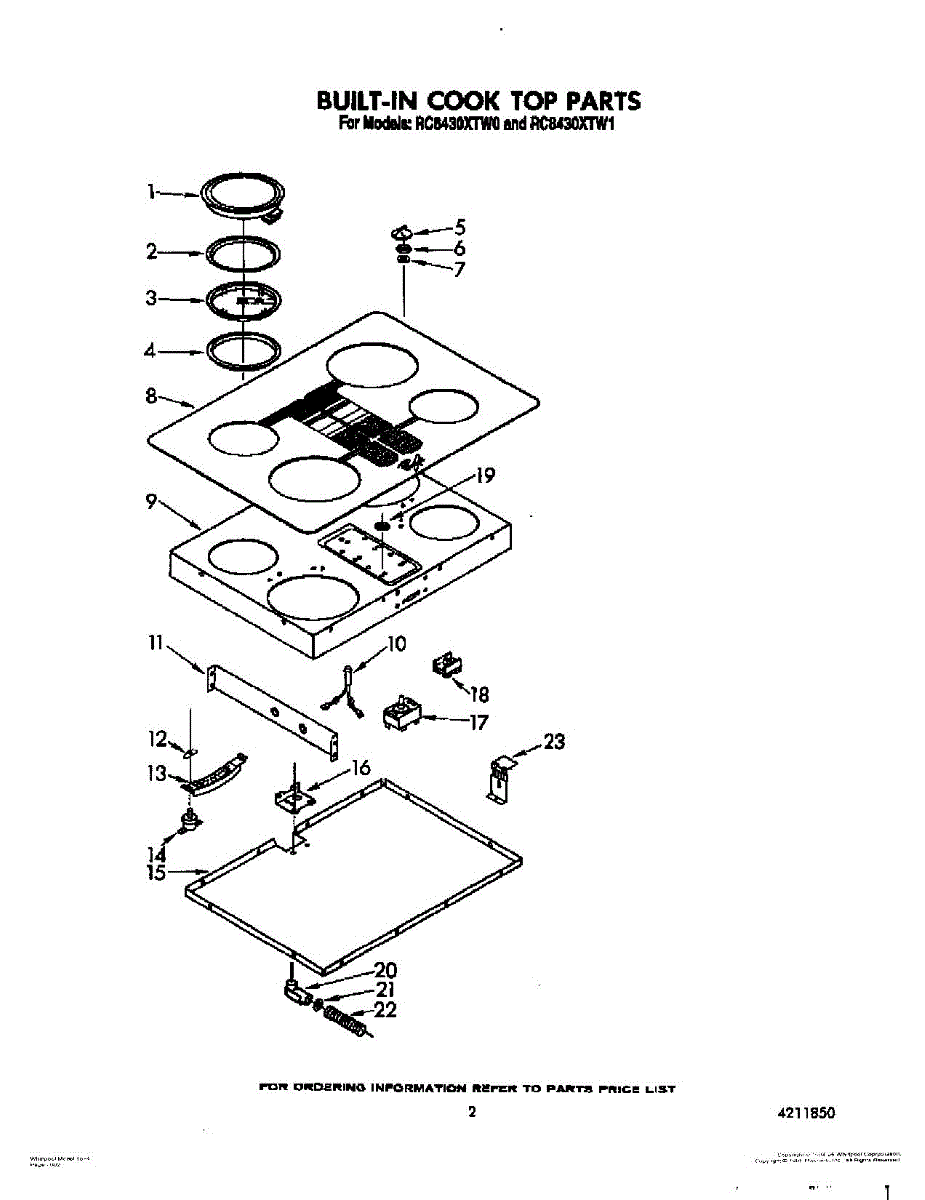

Parts for Whirlpool RC8430XTB0: 02 - Section Parts

This surface element supplies heat to an electric range or cooktop burner. When it fails, the burner may not heat or may heat inconsistently. Replacing the element restores steady, reliable cooking performance.

• Converts electrical energy into heat for the cooking zone
• Works with the surface control (infinite switch) to regulate temperature
• Common symptoms: burner won't heat, intermittent or uneven heating, visible breaks/blistering, burnt/melted terminals
• A failed element will not glow or reach set temperature when energized

• Disconnect power at the breaker before servicing and allow the cooktop to cool completely
• If your model uses a plug-in coil style: remove the drip pan, pull the element straight out of the receptacle, and inspect/replace a heat-damaged receptacle as needed
• If your model uses an under-glass radiant style: lift the cooktop, transfer any clips/limiters from the old element, and route wires exactly as original
• After reassembly, test the burner at a low setting to ensure proper operation

This 8-inch surface element restores reliable heating on an electric range or cooktop. Replace a failed burner to bring the cooking zone back to proper operation and consistent cooking performance. What it does:

• Provides heat for the 8-inch burner position on an electric range/cooktop
• Replaces an open or damaged element that no longer heats properly
• Can help resolve no-heat, slow/uneven heating, or intermittent heating issues
• Supports accurate temperature cycling when the element is functioning correctly

• 1 8-inch surface element

• Disconnect power to the appliance before servicing
• Allow the cooktop/range to cool completely before access
• Note wire locations and mounting/retaining hardware to transfer and reconnect exactly as found
• Handle the element carefully; avoid stressing the coil and ensure all electrical connections are secure before reassembly

This part has been discontinued and is no longer available.

Color: black. Measures about 1-1/2 inches in diameter.

Size: 10 x 3/8 inch.

Size: 10 x 3/8 inch.

The Gas Valve Cooktop is an OEM part for Bosch cooktops. This valve is responsible for controlling the flow of gas to the burners on the cooktop. It opens and closes to allow gas to pass through when a burner is turned on and stops the flow of gas when the burner is turned off.

Causes of a bad gas valve can include wear and tear over time, issues with the valve mechanism such as stuck or blocked components, or damage from exposure to moisture or impact.

Symptoms of a bad gas valve include:

• Burners not lighting or sparking repeatedly without igniting
• Uneven or unpredictable burner flame heights
• Burners not getting hot enough for cooking
• Burners that cannot be turned on or off
• Gas leaks around the valve area

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore cooktop models.


Specs: 25ft, 14 Ga. 150 c Black

Specs: 25ft, 14 Ga. 150 c Blue

Specs: 25ft, 14 Ga. 150 c Brown

Specs: 25 ft, 14 Ga., 150 c Green

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Red 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Yellow 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Red 14 Ga. 200~c)

Specs: 25ft,14 Ga., 200 c Brown

Size: 10 fl. oz. Used on glass, ceramic and porcelain cooktops.
