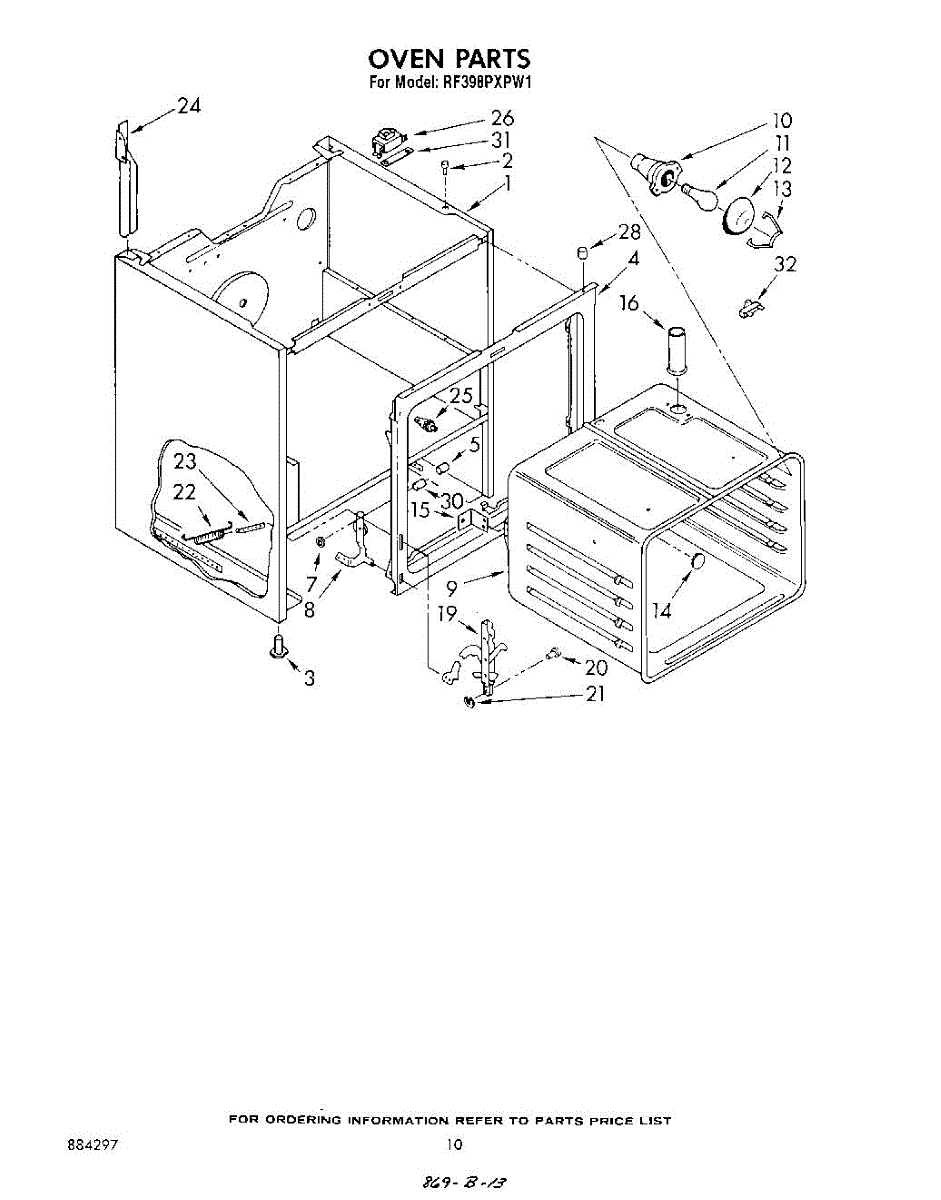

Parts for Whirlpool RF398PXPW1: 06 - Section Parts

Specs: 10-16 x 1/2 inch.

Rubber bumper. Color: Grey.

The Leveling Leg is an OEM part for Whirlpool ranges. It's designed to ensure your range is perfectly balanced and stable on uneven floors. By adjusting the height of the leveling legs, you can prevent wobbling and ensure that your cooking surface is perfectly horizontal, which is critical for even cooking and baking.

Causes of a malfunctioning Leveling Leg can stem from physical impact damage, corrosion in humid conditions affecting integrity and adjustability, and wear over time, particularly if frequently adjusted or cleaned aggressively.

Symptoms of a bad Leveling Leg include:

• The range tilts or wobbles, making cooking uneven.
• Difficulty sliding pots and pans across the cooking surface due to the appliance not being level.
• Increased strain on other components of the range, which could lead to premature wear or failure.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

A replacement mounting screw to secure appliance panels and components so parts stay properly fastened during normal use. Small but essential hardware for stable, rattle-free operation and reliable repairs. What it does:

• Fastens panels, brackets or components to the appliance chassis
• Prevents loose panels, vibration noise, or parts shifting during operation
• Used when original screw is lost, damaged, or stripped
• Restores proper fit and alignment after disassembly for service

• Disconnect power and water before starting any repair
• Use the correct screw type and length; do not force or substitute oversized fasteners
• Tighten until snug—avoid overtightening to prevent stripped threads or cracked parts
• Keep small parts away from children and pets

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

This part has been discontinued by the manufacturer and is no longer available.

This hinge pin is the pivot that connects a door hinge to the appliance cabinet or door. Replacing a worn pin restores smooth, aligned door movement and reliable closing.

• Provides the hinge's pivot point the door swings on
• Helps maintain door alignment for smooth opening and closing
• Common symptoms: loose or sagging door, binding, difficulty latching, excessive play at the hinge
• Visual clues: worn/flattened pin surfaces or a missing pin at the hinge location

• Disconnect power (and gas if applicable) and allow the appliance to cool completely before service
• Support the door to prevent strain on the remaining hinge while you work
• Note hinge orientation, remove any retaining clip/screw, slide out the old pin, and seat the new pin fully
• Inspect related hinge bushings or washers while open and replace if worn

This retaining ring secures a component in its groove on a shaft or housing, keeping parts aligned and in place during operation. Replace a bent, stretched, or missing ring to restore a tight hold and reduce movement or noise.

• Secures a component by seating in a groove on a shaft or inside a bore
• Maintains correct axial position so parts don't slide off during use
• Helps reduce wobble, vibration, or rattling caused by loose assemblies
• Typical symptoms: part won't stay seated, excess play or movement, scraping/rattling noises, or a visibly deformed ring

• Disconnect power; shut off water or gas if applicable. Wear eye protection and gloves
• Note ring orientation; use appropriate snap-ring/circlip pliers or picks—avoid overstretching
• Clean the groove and seat the ring fully; secure fit
• Replace any damaged spacers, washers, or seals found during service

The Spring is an OEM part for Whirlpool ranges. This part provides the necessary tension to open and close the oven door smoothly. The spring ensures that the door stays securely shut during cooking and opens effortlessly when needed, contributing to the overall functionality and safety of the range.

Causes of a bad range door spring can include wear and tear over time, exposure to high temperatures, or damage from accidental impacts.

Symptoms of a bad range door spring include:

• The oven door not staying closed
• Difficulty in opening or closing the door
• Uneven or incomplete sealing of the door
• A door that feels loose or unstable

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This anchor spring maintains tension on the parts it secures, keeping the associated component aligned and stable during use. Replacing a fatigued or broken spring restores a snug fit and reliable, rattle-free operation.

• Provides spring tension to anchor a bracket, lever, or panel in place
• Helps prevent looseness, vibration, and rattling from lost spring force
• Failure signs can include a loose/shifting component, misalignment, difficulty holding position, or abnormal noise
• Replace if the spring is broken, stretched, corroded, or missing

• Disconnect appliance power; if gas is present, also shut off the gas supply
• Access the spring per your model and note its routing/attachment points before removal (a quick photo helps)
• Use needle-nose pliers or a spring hook; wear gloves and eye protection—springs are under tension
• Ensure both ends are fully seated and the connected mechanism moves/tensions correctly before reassembly

Light switch for door.

Specs: 6 x 3/8B

The Thermal Fuse is an OEM replacement part for Whirlpool ovens. This safety device is designed to prevent the oven from overheating by cutting off electrical power if the internal temperature exceeds a safe level.

The thermal fuse can fail due to normal wear and tear, prolonged exposure to high temperatures, or electrical surges. Accumulation of grease and debris around the fuse can also cause it to malfunction.

Symptoms of a bad thermal fuse include:

• The oven not heating up
• The oven shutting off during use
• No power to the oven
• Error codes related to temperature control

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

A replacement mounting screw to secure appliance panels and components so parts stay properly fastened during normal use. Small but essential hardware for stable, rattle-free operation and reliable repairs. What it does:

• Fastens panels, brackets or components to the appliance chassis
• Prevents loose panels, vibration noise, or parts shifting during operation
• Used when original screw is lost, damaged, or stripped
• Restores proper fit and alignment after disassembly for service

• Disconnect power and water before starting any repair
• Use the correct screw type and length; do not force or substitute oversized fasteners
• Tighten until snug—avoid overtightening to prevent stripped threads or cracked parts
• Keep small parts away from children and pets

Specs: 10-16 x 1/2 inch.
