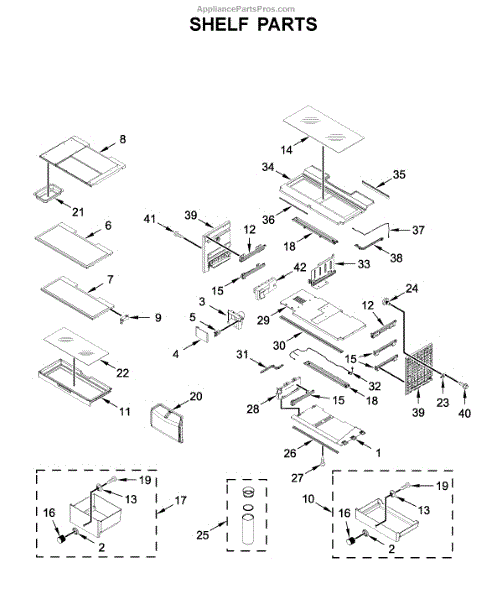

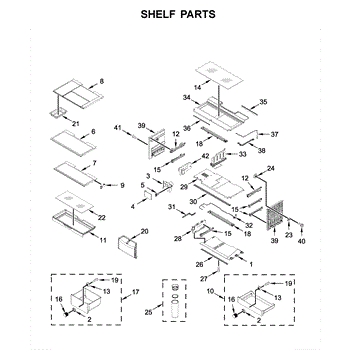

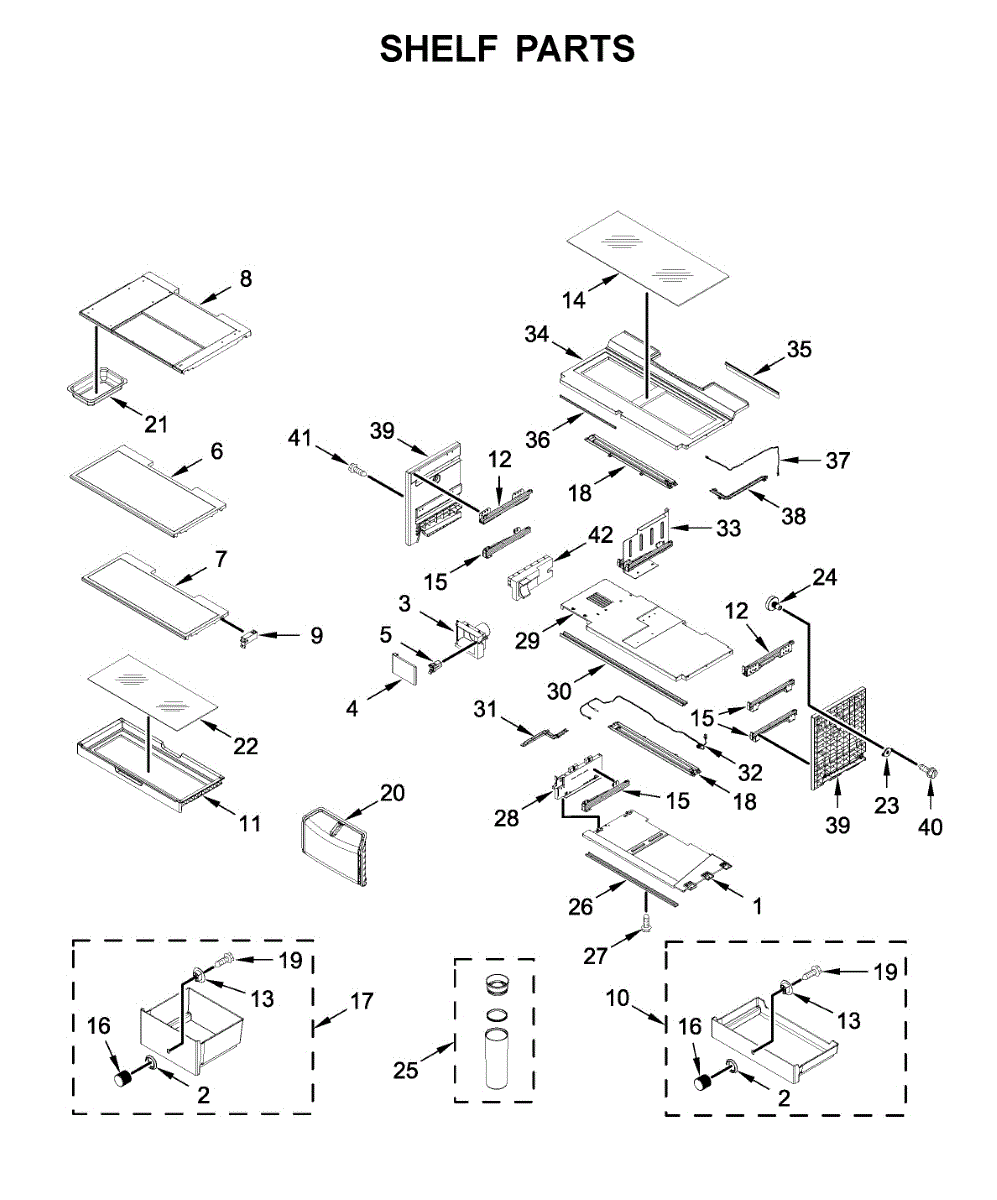

Parts for Kitchenaid KRFC704FSS01: Shelf Parts

The Whirlpool EveryDrop Ice and Water Refrigerator Filter 2 is an OEM replacement part for Whirlpool refrigerators. This advanced water filter is designed to provide superior filtration for both the ice maker and water dispenser. This water filter effectively reduces numerous contaminants, including lead, pesticides, and pharmaceuticals, ensuring that your drinking water and ice are not only clean but also taste great.

Regular replacement of the EveryDrop Filter is recommended to maintain optimal performance and water quality. Over time, filters can become clogged with particles and contaminants, leading to reduced water flow and a decline in the effectiveness of filtration.

Symptoms of a filter that needs to be replaced include:

• Noticeable decrease in water flow rate from the dispenser
• Unpleasant taste or odor in the water and ice
• The filter indicator light on the refrigerator turns on

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The FreshFlow Refrigerator Air Filter is an OEM component for Whirlpool and Maytag refrigerators. Located inside the ventilation system, this filter purifies circulated air. This air filter is 3" wide by 2" high and white in color. It should be replaced every 6 months to ensure the best performance.

Causes of failure relate to clogging from trapped dust, dander and other allergens despite regular replacement intervals. Performance decreases as filter media becomes saturated over months of use.

Symptoms of a dirty or blocked refrigerator air filter include:

• Reduced airflow causes higher compressor runtime hours
• Odors being pulled into the fridge from unfiltered vents
• Shortening of food storage life due to unpurified air exposure
• Reduced fan speeds or strange noises originating from the vents

This genuine Whirlpool filter is also compatible with Maytag, Jenn-Air, and Amana models as well.

This replacement housing is the cabinet component that protects internal appliance parts and provides mounting for controls and panels. It restores structural support and helps keep components aligned for reliable operation. What it does:

• Replaces a cracked, dented, or broken cabinet housing to restore structural integrity
• Provides mounting points for control panels, switches, and internal assemblies
• Helps reduce rattling or vibration caused by damaged housing
• Protects internal parts from debris and accidental contact

• Disconnect power and water before starting any repair
• Basic tools required; panel removal and partial disassembly often needed
• Handle with care to avoid sharp edges; wear gloves and eye protection

This filter cover secures and protects the appliance's filter housing, keeping the filter seated and helping contain lint, debris and moisture. A correct cover helps maintain proper airflow and keeps the filter working as intended. What it does

• Secures the filter in its housing so the filter stays in place during use
• Helps contain lint and debris to prevent bypass or escape into the appliance
• Protects the filter from damage and helps maintain consistent airflow
• Common symptoms of a bad or missing cover: rattling, filter falling out, visible debris escape, or reduced airflow

• One filter cover

• Disconnect power (or unplug) before accessing the filter housing
• Remove the old cover by releasing any clips or tabs; align new cover and snap into place
• Inspect surrounding sealing surfaces and the filter for damage; replace if necessary
• Use only the correct replacement cover designed for your appliance model

This small, spring-action push latch mounts in trim or liner to secure a flip-down compartment door or cover. Replacing a worn latch restores a positive close and smooth push-to-open operation to the affected door or panel.

• Provides the push-to-latch/push-to-release catch for a small door or cover
• Helps prevent nuisance pop-opens and rattling
• Common symptoms: door/cover won't stay shut, latch feels loose, cracked or missing latch
• Restores proper engagement and closing feel

• Disconnect power to the appliance before starting
• Open the compartment; depress retaining tabs or gently pry the old latch straight out
• Match orientation and snap the new latch fully into the opening
• Test operation: close to latch, press to release

The Glass Shelf is an OEM part for Whirlpool refrigerators that provides storage space and organization within the refrigerator.

A bad glass shelf assembly can occur due to accidental damage, wear and tear, or improper handling. If you notice symptoms such as cracked or broken glass, instability, or difficulty in placing items on the shelf, it may indicate a faulty or damaged glass shelf assembly.

Symptoms of a bad glass shelf assembly include:

• Cracked or broken glass
• Instability or sagging of the shelf
• Difficulty in placing items evenly on the shelf

Restore your refrigerator by replacing the faulty glass shelf assembly with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


The Shelf-Glas is an OEM component specifically designed for Whirlpool refrigerators. It is the shelving surface located inside the refrigerator and freezer doors. The shelf provides a flush, durable surface for conveniently storing and organizing items.

Causes of a bad shelf-glass are typically physical damage from overloading or dropping heavy items on the shelf. Exposure to moisture or temperature changes may also cause cracks or breaks.

Symptoms of a bad shelf-glas include:

• Broken, cracked, or unstable shelf surfaces
• Scratches or wear patterns that collect dirt
• Inability to safely hold weighted items

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This shelf stud secures a refrigerator shelf to the cabinet liner so the shelf stays level and stable. Replaces a cracked or missing stud to restore proper shelf seating and prevent sudden shelf drops. What it does

• Locks a refrigerator shelf into the cabinet liner and holds the shelf edge in place.
• Prevents shelf sagging, shifting, or sudden falls when loading items.
• Stops rattling or loose shelf movement caused by a broken or worn stud.
• Simple replacement fix when a plastic stud is cracked, stripped, or missing.

• Unplug the appliance or shut off power before service to avoid electrical hazard.
• Remove the shelf or glass first to access the mounting point; handle glass with care and wear gloves.
• Press or snap the stud into the liner hole until fully seated; avoid forcing or over-stressing the liner.

This shelf stud is a small support piece that secures a refrigerator shelf in place, keeping glass or wire shelves stable and aligned for safe storage. It restores proper shelf seating and helps prevent slipping or tilting. What it does:

• Provides a mounting point that holds the shelf edge or bracket in position
• Keeps shelves level to prevent stored items from sliding or tipping
• Common replacement when a stud is cracked, broken, missing, or worn
• Helps restore safe shelf operation after damage or impact

• Disconnect power or unplug the appliance before servicing to reduce risk of electrical shock.
• Remove the shelf and any items from the area before replacing the stud.
• Press or snap the stud into the shelf frame location; if fasteners are present, secure per manufacturer instructions.

The Storage Drawer is an OEM replacement part for Whirlpool bottom-mount and side-by-side refrigerators. It provides additional organization within the interior for items like snacks, drinks, and condiments.

Causes of a bad storage drawer can involve load limit overloading, physical damage like dents hindering movement, or wear on extending sliding components after repeat use.

Symptoms include:

• Issues fully extending or retracting from fridge interior
• Ability to secure properly compromised due to protrusions
• Broken sliding rollers inhibiting smooth motion

This OEM Whirlpool replacement is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This FRAME  is an OEM part specifically designed for Whirlpool refrigerators. It serves as an essential structural component, providing support and stability to the refrigerator's internal framework. Crafted with precision and durability in mind, this frame ensures the proper alignment and secure placement of various components within the fridge.

A damaged or worn frame can significantly impact the refrigerator's structural integrity and overall functionality. Common causes of a faulty frame include physical damage, prolonged use, or exposure to excessive weight or stress, which can result in instability or misalignment issues.

Symptoms of a bad FRAME may include:

• Unusual noises or vibrations during the refrigerator's operation
• Visible misalignment or sagging of internal refrigerator components
• Difficulty in securely installing or maintaining other parts within the appliance

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models.

A replacement mounting spacer that helps position and secure components for proper alignment and stable operation. Restores correct spacing to reduce vibration and rubbing that can cause noise or premature wear. What it does:

• Maintains correct distance between mounting points and adjoining parts to ensure smooth operation
• Helps prevent rubbing, scraping, or misalignment-related noise during operation
• Supports stable mounting to reduce vibration and movement of nearby components
• Useful when worn, cracked, or missing spacers are causing fit or clearance problems

• Disconnect power to the appliance before beginning any repair
• Remove any panels or components needed to access the spacer
• Inspect adjacent mounts, fasteners, and seals; replace any damaged hardware for a secure fit

This tempered glass refrigerator shelf provides a stable, easy-to-clean surface for storing food and containers. It replaces a cracked, chipped or missing shelf to restore full usable storage and organization inside the fridge. What it does:

• Supports refrigerated items and containers while allowing light to pass between compartments
• Provides a flat, spill-resistant surface that's simple to wipe clean
• Replaces damaged, cracked or missing glass that can cause instability or safety concerns
• Fits into existing shelf rails or trim to restore proper shelf alignment and function

• One glass shelf

• Handle with care; glass can break if dropped or struck
• Remove food and sliding shelf supports before installing; set shelf into rails level and secure
• Clean mounting rails and shelf trim before installation for proper fit
• If shelf mounting hardware or trim is damaged, replace before use.

This Crisper Pan replaces a worn, cracked or missing refrigerator crisper drawer pan, restoring a stable surface to hold fruits and vegetables and contain spills. It fits into the crisper compartment to help organize fresh produce. What it does:

• Provides a stable, removable tray for produce storage
• Helps contain leaks and spills in the crisper area
• Replaces cracked, warped or damaged pans that can catch food debris
• Restores proper fit for the crisper drawer to slide smoothly

• Remove any food from the crisper area and slide out the drawer to access the pan
• Lift the old pan out straight to avoid damaging the drawer guides
• Install the new pan by aligning it in the crisper compartment and sliding the drawer back in
• Clean with mild detergent; avoid abrasive cleaners and extreme temperature shocks

The Snack Drawer is an OEM component for Whirlpool refrigerators. As a specialized storage solution, it provides convenient access to frequently used small items and snacks directly within the refrigerator door.

The snack drawer utilizes precision slides and runners to allow for smooth opening and closing even after years of use. Its integrated shelves keep items neatly organized without obstructing airflow for cooling.

Causes for a faulty snack drawer can include stripped slide channels from overloading or failure of the mounting brackets releasing proper tension over time.

Symptoms of a problem with the snack drawer include:

• Items left inside falling out when the door opens
• Difficulty fully extending or retracting the drawer
• Noisy operation or binding during movement
• Flimsy fit that causes inadvertent opening

Compatible with many Kenmore, Maytag, Jenn-Air, and other co-branded models as well.

This tempered glass shelf provides a sturdy, easy-to-clean surface for organizing food and containers inside your refrigerator. It restores lost or damaged shelving while maintaining a stable storage area and a clean interior appearance. What it does:

• Supports food, containers and produce on a durable, flat surface
• Tempered glass resists chips and breaks into safer, blunt pieces if damaged
• Helps maintain organized refrigerator storage and consistent airflow around items
• Commonly replaces cracked, scratched or missing interior shelving

• Handle carefully; wear work gloves to protect hands from sharp edges
• Slide into existing shelf tracks or support ledges; do not force into place
• Verify correct shelf orientation and seating before loading with items
• If glass is damaged on arrival, stop installation and contact customer service for replacement

This OEM wire assembly routes power and signals to the refrigerator pantry compartment so lights, sensors, and controls receive reliable connections. Replaces a damaged or worn pantry harness to restore proper electrical continuity and component operation. What it does:

• Connects pantry compartment components (lights, sensors, controls) to the main wiring harness
• Restores electrical continuity when a broken wire or connector causes intermittent or no power
• Helps eliminate pantry light failures, sensor/thermostat communication issues, and related symptoms
• Provides factory-style connectors and routing for a clean, secure fit

• Disconnect power to the appliance before beginning any work to avoid shock or injury
• Inspect connectors and routing; match original connector orientation and secure with existing clips or ties
• Do not splice or modify wiring; use the exact replacement harness for proper fit and function

This is the plastic cover frame that sits over the crisper drawers and supports the glass insert and humidity drawers below. Replacing a cracked or bowed frame restores proper support for the glass and helps drawers glide and seal correctly.

• Supports the crisper cover glass and provides the track for produce drawers
• Damage can lead to sagging glass, sticking drawers, or food items falling through
• A warped or broken frame may cause drawers to misalign or jam
• Restores a level surface for safe food storage and smooth drawer operation

• Unplug the refrigerator before service
• Remove food and lift out the cover glass carefully to avoid breakage
• Transfer any gaskets or trim if applicable and seat the new frame fully
• Reinstall the glass and drawers, ensuring smooth drawer travel
