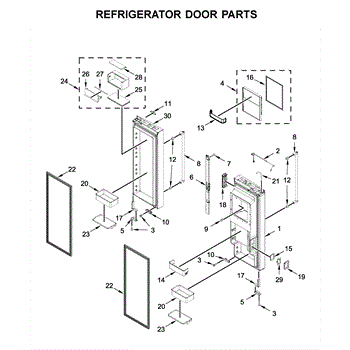

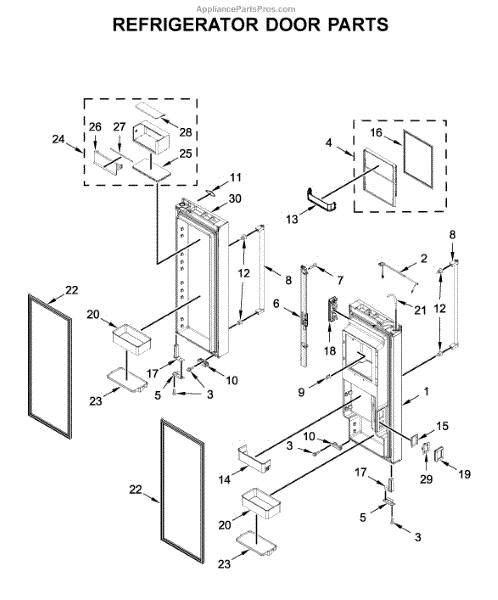

Parts for Kitchenaid KRFC704FSS01: Refrigerator Door Parts

The Whirlpool EveryDrop Ice and Water Refrigerator Filter 2 is an OEM replacement part for Whirlpool refrigerators. This advanced water filter is designed to provide superior filtration for both the ice maker and water dispenser. This water filter effectively reduces numerous contaminants, including lead, pesticides, and pharmaceuticals, ensuring that your drinking water and ice are not only clean but also taste great.

Regular replacement of the EveryDrop Filter is recommended to maintain optimal performance and water quality. Over time, filters can become clogged with particles and contaminants, leading to reduced water flow and a decline in the effectiveness of filtration.

Symptoms of a filter that needs to be replaced include:

• Noticeable decrease in water flow rate from the dispenser
• Unpleasant taste or odor in the water and ice
• The filter indicator light on the refrigerator turns on

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The FreshFlow Refrigerator Air Filter is an OEM component for Whirlpool and Maytag refrigerators. Located inside the ventilation system, this filter purifies circulated air. This air filter is 3" wide by 2" high and white in color. It should be replaced every 6 months to ensure the best performance.

Causes of failure relate to clogging from trapped dust, dander and other allergens despite regular replacement intervals. Performance decreases as filter media becomes saturated over months of use.

Symptoms of a dirty or blocked refrigerator air filter include:

• Reduced airflow causes higher compressor runtime hours
• Odors being pulled into the fridge from unfiltered vents
• Shortening of food storage life due to unpurified air exposure
• Reduced fan speeds or strange noises originating from the vents

This genuine Whirlpool filter is also compatible with Maytag, Jenn-Air, and Amana models as well.

The Fill Tube Assembly is an OEM part for Whirlpool refrigerators. It is responsible for transporting water from the water supply to the ice maker. The fill tube allows the ice maker to receive a constant supply of water needed to produce fresh ice.

Causes of a bad fill tube assembly can include cracks, holes or kinks developing over time, which impair proper water flow to the ice maker. Mineral buildup or sediment clogs can also restrict water flow through the tube.

Symptoms of a bad fill tube assembly include:

• Ice maker not producing ice or producing less ice than normal
• Ice cubes appearing partially formed or mushy
• Water leaks from the ice maker area
• Ice maker is making unusual noises during operation

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This factory screw fastens appliance components securely. Replacing a missing, stripped, or rusty screw helps stop rattles, keep panels and brackets aligned, and restore a solid, as-designed fit.

• Secures panels, brackets, and trim to the appliance cabinet or frame
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces damaged, corroded, or missing hardware
• Can resolve loose or shifting components

• Disconnect power and shut off gas/water to the appliance before service.
• Use the correct driver; start threads by hand to avoid cross-threading and do not overtighten.
• Install in the original location and match the OEM fastener type specified in your model's parts diagram.

This ice door foam assembly replaces the insulation inside the refrigerator ice door to help maintain cold temperatures and reduce frost and condensation around the ice area. Proper insulation helps the ice system run more reliably and stay drier. What it does:

• Provides thermal insulation inside the ice door to reduce heat transfer
• Helps minimize frost buildup and moisture around the ice dispenser/bin
• Supports stable ice storage temperature for better ice quality
• Restores the door's insulated seal when the original foam has deteriorated

• One ice door foam assembly

• Disconnect power to the appliance before starting any repair
• Remove ice bin/door trim per manufacturer instructions to access the foam
• Handle carefully and align foam into the door cavity; some models use adhesive or clips

This stop door is a replacement door stop that helps the appliance door close securely and stay in position. Restores proper door movement and reduces rubbing or misalignment that can cause noise or poor sealing. What it does:

• Replaces a worn or broken door stop to restore normal door closing and positioning
• Helps prevent the door from bouncing, rubbing, or hanging open
• Can reduce door-related noise and improper sealing during use
• Supports reliable door alignment for safer operation

• Disconnect power to the appliance before starting any repair
• Remove the door or access panel as needed to reach the mounting area
• Typical installation uses basic hand tools (screwdriver, nut driver); retain existing fasteners unless replacement hardware is provided
• Inspect surrounding hinges and catches and replace if damaged

This rail-mulln (mullion rail) replaces the vertical trim piece that runs between appliance door sections to restore proper fit and appearance. It helps keep the door edges aligned and maintains a finished look. What it does:

• Provides the vertical trim between door panels or appliance sections for a finished appearance
• Helps maintain door alignment and consistent spacing between panels
• Covers and protects the seam where two door sections meet
• Reduces light and air leakage at the door seam

• Disconnect power to the appliance before starting any repair
• Remove adjacent trim or door panels to access the mullion rail
• Handle trim pieces carefully to avoid scratching or bending; use proper fasteners

This replacement screw fastens appliance components securely in place. Use it to replace missing, stripped, or corroded hardware so panels, brackets, and covers stay aligned and rattle-free.

• Secures parts such as panels, brackets, covers, or internal assemblies
• Restores alignment and helps eliminate vibration or rattling from loose hardware
• Replaces lost, rusted, or damaged screws during service
• Maintains safe, stable operation by keeping components tight

• Disconnect power before service; if applicable, also shut off water and/or gas
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing
• Use the correct driver bit to prevent stripping the head

The Handle is an OEM part for Whirlpool refrigerators. Located on the outside front center of the refrigerator cabinet, this handle provides an ergonomic grip point for easily opening and closing the refrigerator door. This handle measures 30 3/4 inches.

Causes of a bad handle can include wear and tear over time allowing door seals to leak, or damage such as cracks, breaks, or loose mounting from falls or repeated forceful closing of the door.

Symptoms of a bad handle include:

• Difficulty opening/closing the refrigerator door
• Leaks developing around the door seals
• Cracked, loose, or broken handle mounting

This replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, and some Kenmore refrigerator models.

This door bumper cushions and stabilizes the appliance door to reduce noise and wear from slamming. It helps the door close smoothly and maintain proper alignment for reliable operation. What it does:

• Absorbs impact to prevent metal-on-metal contact and reduce slamming noise
• Helps the door sit evenly to improve latch engagement and sealing
• Reduces vibration and rattling during operation
• Simple replacement that restores proper door feel and alignment

• Disconnect power to the appliance before starting any repair
• Access the bumper by opening the door; some models may require removing the door or inner panel
• Press or snap the bumper into the locating hole or slot until secure; replace any retaining clips if present

This name plate is the appliance's model and serial identification label—an easy way to restore clear product ID for service, parts ordering, and warranty records. Keeps your appliance information visible and readable. What it does:

• Displays manufacturer model and serial numbers and other factory ID details
• Restores a missing or damaged ID label so technicians can identify the correct parts and specs
• Helps when registering the appliance or filing warranty and service requests
• Prevents delays caused by unreadable or absent identification information

• Clean and dry the mounting surface before applying; remove old adhesive residue
• Align carefully and press firmly; some name plates use adhesive backing or mounting tabs
• Do not cover vents, controls, or safety labels when installing

The Door Handle Mounting Screw is an OEM part for Whirlpool refrigerators. It secures the door handle to the refrigerator door.

Causes of a bad door handle mounting screw can include wear and tear over time, improper installation, or excessive force applied to the handle. These factors can result in a loose or wobbly handle, compromising the functionality and aesthetics of your refrigerator.

Symptoms of a bad door handle mounting screw may include:

• A loose or unstable handle
• Difficulty in opening or closing the refrigerator door
• The handle becoming detached

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Refrigerator Door Shelf Bin is an OEM part for Whirlpool refrigerators. It provides storage for eggs, condiments, and other small items directly in the refrigerator door.

Causes of a bad shelf bin can include cracked or broken plastic.

Symptoms of a bad shelf bin include:

• Items falling out of alignment or between cracks
• Difficulty deploying or stowing the shelf tray
• Leaks or odors from cracked surfaces

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is the cantilever-style door shelf bin that locks into the refrigerator door rails to hold bottles, jars, and condiments. Replacing a cracked or missing bin restores secure storage and full door capacity. What it does:

• Provides adjustable storage on the inner door using cantilever slots
• Helps keep items stable when opening and closing the door
• Common replacement signs: cracks, broken locking tabs, won't stay seated, falls off the rail
• Restores usable space and keeps contents organized

• 1 door shelf bin

• Remove the old bin by lifting up to release it from the cantilever slots, then pull out
• Align the new bin's hooks with the desired slots and press down until it clicks securely
• Verify the door closes freely and avoid overloading the bin
• Wear gloves to protect hands from sharp edges on broken plastic

This gasket seals the refrigerator's ice compartment. Replacing a worn or damaged seal restores a tight barrier that keeps cold air in and moisture out, helping reduce frost, condensation, and ice clumping around the ice bin and chute.

• Creates an airtight seal around the ice compartment door/housing to limit warm air infiltration
• Helps maintain proper temperature and airflow in the ice area for consistent ice quality
• Reduces frost and condensation at the ice chute and inside the bin
• Common signs of failure: tears, warping, or compression; persistent frost/moisture; ice clumping or melting in the bin

• Disconnect power to the refrigerator before servicing
• Remove the ice bin and any covers to access the gasket channel
• Pull out the old gasket; clean mating surfaces; press the new gasket in evenly without stretching
• Verify full, even contact around the perimeter before restoring power

A genuine replacement door closer that helps the appliance door open and close smoothly while holding proper alignment. Restores intended door motion to reduce slamming and misalignment for safer, more reliable operation. What it does

• Controls the door's opening and closing movement to prevent sudden drops or slams
• Helps the door stay properly aligned and seated when closing
• Reduces stress on hinges and latches caused by uncontrolled door movement
• Commonly used when door feels loose, won't stay open, or closes unevenly

• One door closer assembly

• Disconnect power and water (if applicable) before starting any repair
• Basic hand tools are typically required;
• Handle springs and tension components carefully; wear eye protection when working with tensioned parts

This closer is the door hinge/closing component that controls how the appliance door moves and latches. It cushions and steadies the door for smoother closing and helps prevent slamming or doors that won't stay shut. What it does:

• Controls and cushions door travel so the door closes smoothly and reduces slamming.
• Helps the door engage the latch and stay closed; can address doors that drop or don't shut fully.
• Replaces worn or broken closers that cause uneven or noisy door movement.
• Works as a mechanical hinge/closing aid—not an electronic part.

• Disconnect power to the appliance (unplug or turn off breaker) before starting any work.
• Basic hand tools typically required (screwdriver, nut driver); remove any trim or panels per your service manual.
• Handle springs and hinge hardware carefully to avoid pinching; wear gloves and eye protection.

This door gasket seals the refrigerator/freezer door to keep cold air in and humidity out, helping the appliance run efficiently and protecting stored food. It replaces a torn, warped, or leaking seal. What it does:

• Forms an airtight seal around the door to reduce frost buildup and prevent warm air leaks
• Helps maintain consistent internal temperatures for food safety
• Can reduce excessive run time and cycling caused by a failing seal
• Stops drafts, moisture, and odors from entering the compartment

• One door gasket

• Remove old gasket and clean mating surfaces before installing the new gasket
• Align gasket into the door channel and press firmly; some models require softening with warm air for a snug fit
• Check seal by closing the door and inspecting for gaps; adjust as needed

This cantilever door bin mounts on the inner door to provide secure, convenient storage. Replacing a cracked or missing bin restores organized space for bottles and condiments and helps prevent items from tipping or falling when the door opens.

• Mounts to the door liner rails as a cantilever shelf to hold containers
• Keeps frequently used items organized and within easy reach
• Replace if the bin is cracked, broken, or warped
• Replace if tabs are worn, the bin falls off, won't stay seated, or is missing

• Disconnect power to the refrigerator before servicing
• Remove contents; lift the old bin up and out of the door ladder/slots
• Align the new bin with the slots and press down until fully seated and secure
• Verify the door closes freely and avoid overloading the bin

This water tube routes potable water between the water valve and the refrigerator's dispenser or ice maker. Replace a damaged or kinked tube to restore proper water delivery and prevent leaks at the junction points. What it does

• Carries water from the inlet valve to the ice maker or dispenser assemblies
• Prevents kinks and directs flow along the refrigerator cabinet path
• Stops leaks and drips when the original tube is cracked, split, or pinched
• Helps restore normal water dispense and ice production when the tube is the source of the fault

• Disconnect power and shut off the water supply before starting work.
• Inspect and reuse or replace any clamps, ferrules, or fittings only if they show wear.
• Route the tube following the original path to avoid pinches and contact with sharp edges or moving parts.
• After installation, turn on water and power, then check all connections carefully for leaks.

The Door Gasket is an OEM replacement part for Whirlpool refrigerators. It is designed to create a tight seal between the fresh food door and the refrigerator cabinet, preventing cold air from escaping and maintaining a reliable barrier against cold air leaks.

A bad fresh food door gasket can occur due to wear and tear, cracks, or damage to its structure. If you notice symptoms such as condensation or frost buildup inside the refrigerator, difficulty in maintaining temperature, or the door not closing properly, it may be time to replace the door gasket.

Symptoms of a bad fresh food door gasket include:

• Condensation or frost buildup inside the refrigerator
• Difficulty in maintaining temperature
• Door not closing properly

Restore your refrigerator by replacing the faulty or damaged fresh food door gasket with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


The door gasket is an OEM part for Whirlpool refrigerators. It forms a seal between the refrigerator door and body, working to ensure peak cooling and energy efficiency. This rubber gasket acts as insulation, preventing warm air from entering the refrigerator compartment each time the door is opened.

Causes of a bad door gasket can include cracks, tears, or compression from repeatedly opening and closing the refrigerator door over an extended period of time.

Symptoms of a bad door gasket include:

• Inefficient cooling and higher energy costs
• Warm air leaking into the refrigerator
• Moisture buildup or frost inside the body
• Difficulty properly sealing the door shut

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This cover is an access panel that protects internal components and keeps the appliance enclosure finished and secure. It restores a clean exterior and helps prevent dirt, lint, and accidental contact with parts behind the panel. What it does:

• Shields internal wiring and components from debris and accidental contact
• Maintains the appliance's finished appearance by replacing a damaged or missing panel
• Helps reduce airflow of lint and dust into service areas
• Useful when troubleshooting or servicing — provides a removable access point

• Disconnect power (and gas/water if applicable) before starting any service
• Basic hand tools (screwdriver, nut driver) are typically required for removal/installation
• Handle part carefully to avoid scratching the finished surface

This front inner door panel restores the dishwasher's sealed front assembly and provides a finished interior surface. It helps protect internal components and gives a clean, repair-grade replacement for damaged or dented doors. What it does:

• Replaces a damaged, bent, or corroded front inner door panel
• Protects internal components from moisture and debris
• Restores proper door fit and helps prevent leaks when combined with intact gaskets
• Improves appearance of the dishwasher interior and front assembly

• One front inner door panel

• Basic disassembly of the door is required; follow your model's service manual for panel removal/replacement
• Keep power disconnected and water supply off before starting any repair
• Handle edges carefully to avoid cuts and protect painted surfaces from scratches
