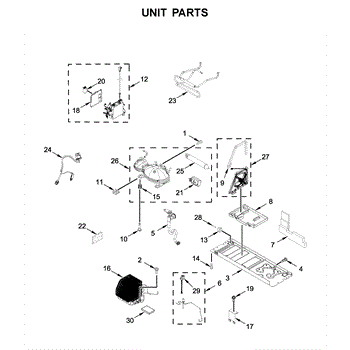

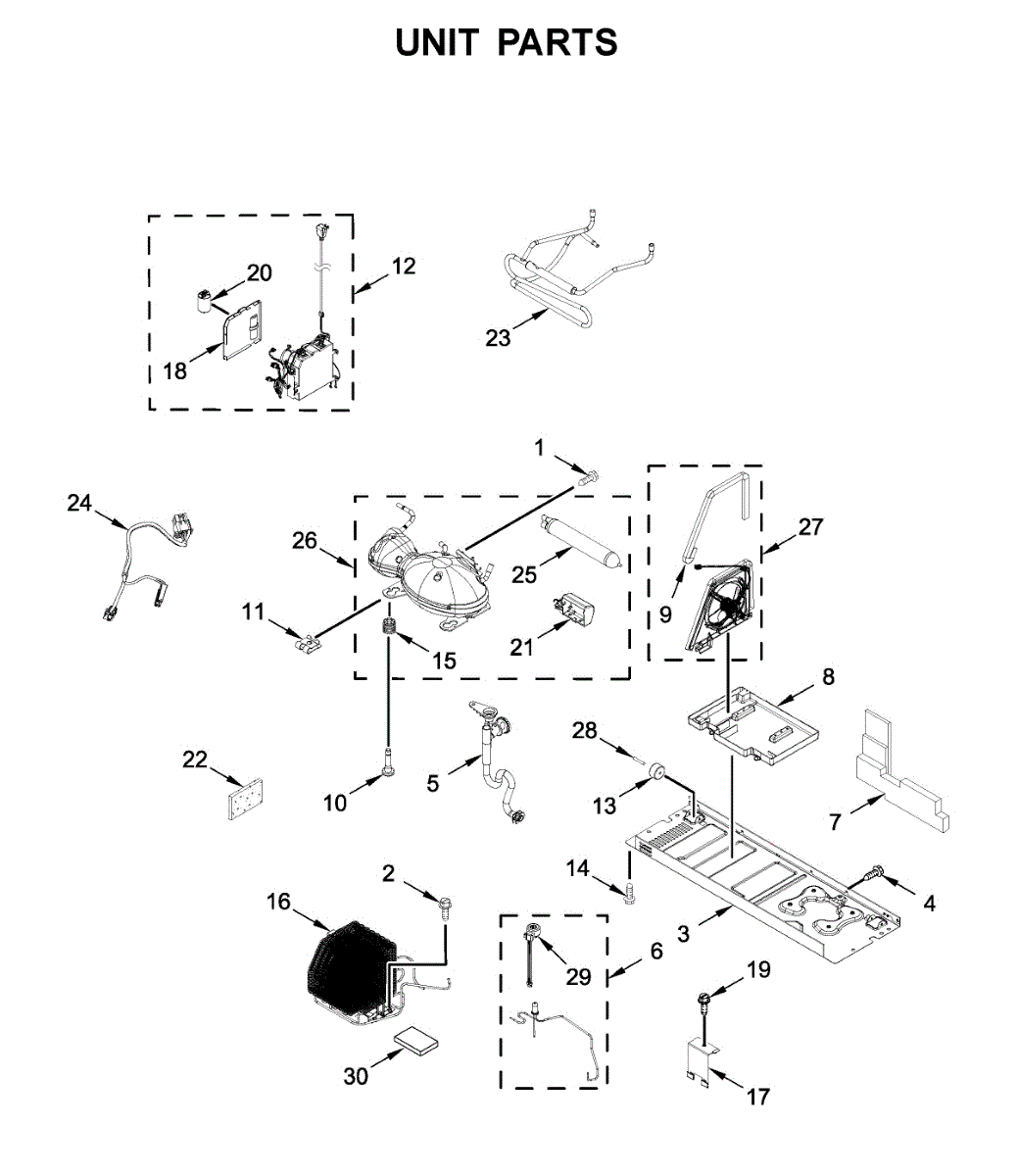

Parts for Kitchenaid KRFC704FSS01: Unit Parts

The Whirlpool EveryDrop Ice and Water Refrigerator Filter 2 is an OEM replacement part for Whirlpool refrigerators. This advanced water filter is designed to provide superior filtration for both the ice maker and water dispenser. This water filter effectively reduces numerous contaminants, including lead, pesticides, and pharmaceuticals, ensuring that your drinking water and ice are not only clean but also taste great.

Regular replacement of the EveryDrop Filter is recommended to maintain optimal performance and water quality. Over time, filters can become clogged with particles and contaminants, leading to reduced water flow and a decline in the effectiveness of filtration.

Symptoms of a filter that needs to be replaced include:

• Noticeable decrease in water flow rate from the dispenser
• Unpleasant taste or odor in the water and ice
• The filter indicator light on the refrigerator turns on

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The FreshFlow Refrigerator Air Filter is an OEM component for Whirlpool and Maytag refrigerators. Located inside the ventilation system, this filter purifies circulated air. This air filter is 3" wide by 2" high and white in color. It should be replaced every 6 months to ensure the best performance.

Causes of failure relate to clogging from trapped dust, dander and other allergens despite regular replacement intervals. Performance decreases as filter media becomes saturated over months of use.

Symptoms of a dirty or blocked refrigerator air filter include:

• Reduced airflow causes higher compressor runtime hours
• Odors being pulled into the fridge from unfiltered vents
• Shortening of food storage life due to unpurified air exposure
• Reduced fan speeds or strange noises originating from the vents

This genuine Whirlpool filter is also compatible with Maytag, Jenn-Air, and Amana models as well.

A replacement machine screw with 8-32 threads used to secure panels and components on compatible Whirlpool appliances. Installs quickly to restore proper fit and stop rattling or loose parts. What it does:

• Secures panels, trim, brackets or components that use 8-32 machine-thread fasteners
• Restores proper alignment and prevents vibration-related noise
• Replaces missing, stripped, or damaged screws that allow parts to come loose
• Works where a standard 8-32 machine screw is specified by the manufacturer

• Disconnect power and/or gas before servicing the appliance to reduce shock or injury risk
• Use the proper screwdriver or nut driver for the screw head to avoid stripping
• Thread gently and stop when snug; do not overtighten to prevent stripping or damage
• If threads are damaged, replace with the correct-size screw rather than forcing it

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

This replacement extension secures and supports a factory component to restore proper fit and reduce movement. Use it to replace a worn or damaged extension that causes misalignment or loose panels. What it does

• Provides a mounting/extension point to hold adjacent panels or components in place
• Restores proper alignment to reduce gaps, rattles, or loose-feeling parts
• Replaces worn, cracked, or broken extensions that no longer secure components
• Helps maintain original fit and function after impact or wear

• One extension assembly

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Installation typically requires basic hand tools; access steps
• Handle plastic parts carefully to avoid cracking; do not force parts into place

The Valve is an OEM component specifically designed for Whirlpool refrigerators. It regulates refrigerant flow to optimize cooling performance.

Causes of a faulty valve include deterioration of seals from continuous exposure to refrigerants. Mineral buildup over many years may cause obstruction.

Symptoms of a bad valve include:

• Inconsistent temperatures as refrigerant delivery fluctuates
• Frost or ice accumulating in freezing compartments
• Appliance unable to maintain safe chilled storage zones

This OEM Whirlpool part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

This genuine replacement clip secures small appliance components in place to prevent rattling and part separation. It restores proper alignment so panels, trim, or internal assemblies stay firmly fastened during normal use. What it does:

• Fastens and retains panels, trim, or small assemblies to the appliance frame
• Prevents parts from shifting, vibrating, or causing operational noise
• Helps maintain proper alignment of connected components
• Commonly replaced when clip is cracked, missing, or no longer holds

• One replacement clip

• Disconnect power (and gas if applicable) before servicing the appliance
• Use needle-nose pliers or a flat tool to remove and install the clip; avoid excessive force
• The clip seats fully in its mounting slots and secures the mating part

The Control Board is an OEM component specifically designed for Whirlpool refrigerators. This board houses the electronic components that control temperature functions, sensors, lighting operations, and diagnostic readouts for the refrigerator compartment.

Symptoms of a bad control board can include the inability to maintain set temperatures, error codes appearing frequently, and lack of responsiveness from interior lighting or temperature controls.

Causes of failure in the control board may involve component degradation over extended use, exposure to moisture or dust inside the refrigeration system, or damage from power surges.

 Causes of a bad control board include:

• Interior lights not illuminating properly
• Faulty temperature or sensor readings
• Refrigerator failing to cool or maintain temperatures
• Error codes appearing continuously on displays

It is also suitable for replacing boards on KitchenAid, Jenn-Air, Amana, Magic Chef and select Kenmore brand refrigerators.

The Grommet is an OEM part for Whirlpool side-by-side refrigerator models. It is a sealing component located where accessory lines like the water line and defrost heater enter the refrigerator cabinet.

Causes of a bad grommet include cracking, tears or splits that interfere with an airtight connection. Regular wear and repeated expansion/contraction can deteriorate grommet integrity over time.

Symptoms of a bad grommet are:

• Excessive interior fogging or moisture issues
• Unexplained fridges or warm spots inside compartments
• Higher energy bills from compromised insulation levels
• Dust or dirt tracked into the food storage areas

This OEM grommet fits Whirlpool models as well as those by Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore.

Replacement screw that secures panels, brackets, and other components inside your appliance, keeping assemblies tight and aligned. Replace missing or stripped hardware to eliminate looseness, reduce vibration, and restore a solid, factory-fit hold.

• Fastens panels, brackets, trim, or internal components
• Helps maintain alignment and reduce rattling/vibration
• Replaces missing, loose, rusted, or stripped hardware
• Common signs: stripped head/threads, loose panel, buzzing/rattling noises

• Disconnect power before service; shut off gas/water if applicable
• Match to the original screw; start threading by hand to avoid cross-threading
• Use the correct driver size to prevent stripping
• Tighten snugly; do not overtighten. If it won't hold, inspect the receiving hole/clip

This EMI filter reduces electrical interference on the appliance power line to help prevent noise and spurious signals that can affect operation and nearby electronics. It restores proper line filtering for safer, quieter performance. What it does:

• Filters high-frequency electromagnetic interference (EMI/RFI) from the incoming AC line
• Helps prevent stray electrical noise that can cause electronic control glitches or erratic behavior
• Supports stable operation of control boards by improving incoming power quality

• One EMI filter (single unit)

• Disconnect power at the breaker or unplug the appliance before accessing electrical components
• Mount and wire using existing chassis locations and connectors; match original wiring and polarity
• Inspect wiring and grounds for damage; replace damaged wiring

This terminal block cover protects the appliance's power connection area and helps prevent accidental contact with live terminals. It keeps wiring organized and shielded for safer operation. What it does

• Shields the appliance's power terminal block from accidental contact and debris
• Helps keep terminal connections secure and wiring routed neatly
• Reduces risk of shorting at the power connection area
• Commonly replaced when the original cover is cracked, broken, or missing

• Disconnect power to the appliance before attempting any service
• Remove access panels as needed to reach the terminal block, then snap or screw the cover into place per the appliance's wiring layout
• If terminals or wires are damaged, replace or repair connectors before installing the cover

This insul-sound deadening pad reduces vibration and noise by dampening panels and components in laundry and kitchen appliances. It's a small adhesive-backed sound/isolation pad used where noise or rattles transfer through metal surfaces. What it does

• Dampens rattles and reduces structure-borne noise from panels, cabinets and housings.
• Helps isolate vibrating components from appliance chassis to lower perceived sound.
• Commonly applied behind control panels, cabinet walls or on motor mounts to cut vibration transmission.
• Useful when worn, detached or hardened factory pads allow increased noise.

• One insul-sound deadening pad

• Disconnect power before servicing an appliance to avoid shock or injury.
• Clean and dry mounting surface; press pad firmly to ensure adhesive contact.
• Replace only in the original location; do not cover vents or moving parts.
• If adhesive is weak, use OEM-approved adhesive; avoid solvents that may damage finishes.

This Drier Tube is an OEM part for Whirlpool Refrigerators. It plays a role in filtering and drying the refrigerant. Wear, leaks, or clogs can cause issues with this part.

What Causes a Bad Refrigerator Drier Tube:
Wear, leaks, or clogs within the tube can affect the refrigeration process or cause leaks.

Symptoms of a Bad Refrigerator Drier Tube:

• Insufficient cooling or freezing
• Refrigerant leaks or hissing sounds
• Excessive moisture around the tube area

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This sealed refrigeration compressor restores the refrigerant compression stage that circulates coolant and enables proper cooling in compatible refrigerators. Replace a failed compressor to address loss of cooling and related compressor symptoms. What it does:

• Compresses refrigerant to maintain the refrigeration cycle and cold temperatures
• Commonly needed when the refrigerator runs but fails to cool or cools poorly
• Replace a compressor that hums loudly, overheats, or causes frequent tripping of breakers
• Works as the sealed motor/pump assembly within the fridge refrigerant system

• Replacement typically requires recovery of refrigerant and recharging
• Disconnect power and unplug the appliance before starting any work
• Use manufacturer torque and mounting procedures during installation
• Follow all local codes and safety practices for handling refrigerants and sealed-system repairs

The Fan Motor is an OEM replacement part for Whirlpool refrigerators. It is designed to provide cooling and ventilation to the condenser coils near the compressor, helping to dissipate heat and maintain the set temperature inside the refrigerator.

A bad condenser fan motor assembly can occur due to wear and tear, electrical issues, or damage to the motor or fan blades. If you notice symptoms such as the refrigerator not cooling properly, excessive heat near the compressor, or unusual noises coming from the back of the refrigerator, it may indicate a faulty condenser fan motor assembly.

Symptoms of a bad condenser fan motor assembly include:

• Refrigerator not cooling properly
• Excessive heat near the compressor
• Unusual noises coming from the back of the refrigerator

Restore your refrigerator by replacing the faulty or damaged condenser fan motor assembly with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This axle roller is the replacement support shaft that lets the appliance's rotating assembly turn smoothly and quietly. Installing a new axle roller corrects wobble and reduces grinding or squealing caused by a worn shaft. What it does:

• Supports the rotating drum or rack so it spins freely and stays aligned
• Helps prevent metal-to-metal contact that causes loud noise or scraping
• Stops uneven rotation and vibration that can lead to further wear
• Restores smooth operation when an original axle is bent, worn, or broken

• Disconnect power (and gas, if applicable) before starting any repair
• Access location and removal steps vary by model; follow the OEM service manual or diagram
• Inspect related parts (pulleys, idler, glides, bearings) and replace if they show wear
• Use basic hand tools; keep fingers and loose clothing clear of moving parts during testing

This solenoid is the electromechanical actuator that opens and closes a valve or latch to control flow or movement inside compatible appliances. Replacing a worn solenoid restores reliable on/off operation and responsive dispensing or cycling. What it does:

• Converts electrical signals into mechanical motion to open or close a valve or latch
• Controls water or ice fill cycles, dispenser flow, or other timed movements in the appliance
• Commonly linked to symptoms like no water/ice dispensing, intermittent operation, or a clicking/no-response during a cycle
• Works with the appliance control to ensure precise on/off control where used

• Disconnect power to the appliance before starting any repair
• If the solenoid controls water, turn off the water supply and relieve pressure before disconnecting lines
• Handle electrical connectors carefully; avoid pulling on wires—disconnect at the plug
• Verify correct part fit and function after installation; manufacturer instructions for detailed service procedures

Size: 5/8 inch.

Size: 3/4 inch.

Size: 3/16 inch.

Size: 5/16 inch.

Size: 3/8 inch.

Size: 1/4 inch.
