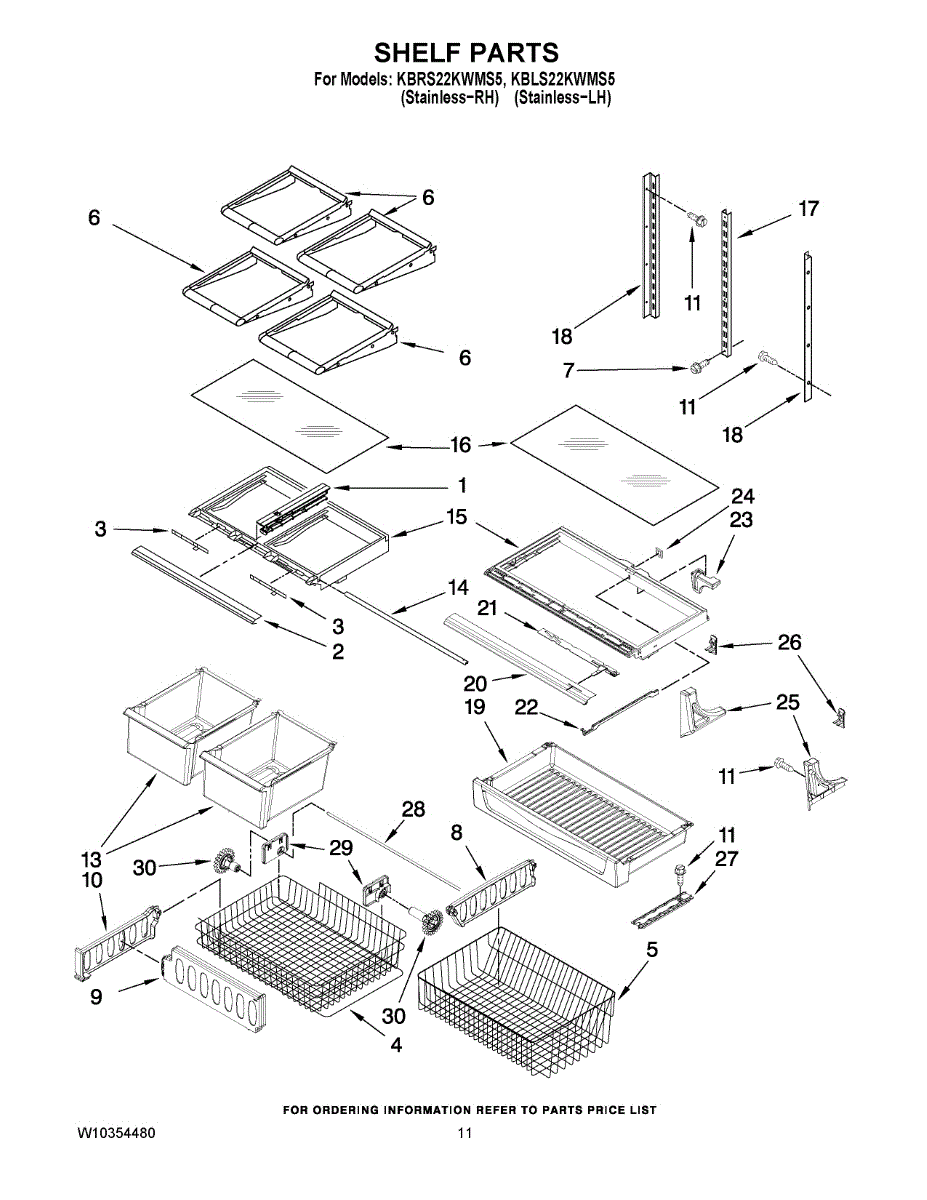

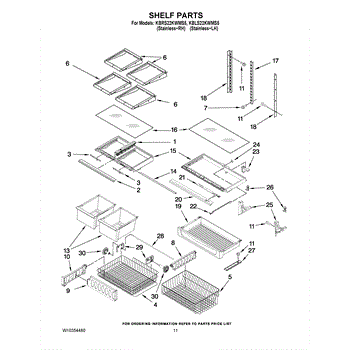

Parts for Kitchenaid KBLS22KWMS5: 07 - Shelf Parts

The Center Crisper Rail is an OEM part for Whirlpool refrigerators. It serves as a support for the crisper drawer, helping to guide and stabilize the drawer as it slides in and out.

Symptoms of a bad Center Crisper Rail include:

• Difficulty in sliding the crisper drawer in or out.
• The drawer sagging or not aligning properly when closed.
• Unusual noises or resistance when moving the drawer.

Causes of a bad center crisper rail can include physical damage from overloading the drawer, wear and tear from regular use, or breakage due to brittle plastic and aging components.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This shelf trim is the front-facing trim piece that secures and finishes a refrigerator shelf, restoring a clean, supported edge and helping keep items from sliding forward. It's a direct-fit replacement for a worn or broken trim. What it does:

• Replaces damaged, cracked, or missing front shelf trim to restore shelf appearance and edge support
• Helps keep food and containers from sliding off the front of the shelf
• Provides a finished edge that aligns with the existing shelf frame for a secure fit
• Matches OEM fit and mounting points for straightforward replacement on compatible refrigerators

• One shelf trim piece

• High-level swap: remove the shelf, detach the damaged trim, and snap or screw the new trim into the existing shelf frame
• Use gentle pressure to avoid cracking adjacent plastic; do not force parts into misaligned slots
• If hardware (screws/clips) is damaged, replace with OEM-specified hardware for secure attachment
• Always unplug the appliance or disconnect power before removing shelves near electrical components; follow OEM safety guidance

The Humidity Control Slide is an OEM part for Whirlpool refrigerators.This part regulates the humidity levels in the crisper drawers, ensuring optimal conditions for the storage of fruits and vegetables. The slide measures approximately 9 inches wide by 1-1/2 inches deep.

Causes of a bad Humidity Control Slide can include wear and tear over time, physical damage due to mishandling, or buildup of debris that hinders its movement.

Symptoms of a bad Humidity Control Slide include:

• Inability to adjust humidity settings
• Visible damage or cracks on the slide
• Excessive moisture or dryness in the crisper drawers

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This lower freezer basket is a direct-fit replacement designed to organize and contain frozen foods in the freezer compartment for easier access and better storage. It restores a damaged or missing basket so items stay contained and accessible. What it does:

• Holds and organizes frozen foods to maximize usable freezer space
• Keeps loose items from shifting or falling into lower compartments
• Slides into freezer rails for quick access to contents
• Helps maintain visible, accessible storage inside the lower freezer area

• Remove all food and empty the freezer section before replacing the basket
• Slide the basket into the factory rails until it seats; no special tools typically required
• If basket is cracked or warped, replace to prevent food spillage and ensure proper sliding

This glass shelf replaces a damaged or missing refrigerator shelf to restore usable storage and a stable surface for food and containers. The easy-to-clean surface helps keep items visible and organized inside the fridge. What it does

• Provides a flat, stable surface for storing food, beverages and containers; replaces cracked, chipped or missing shelves.
• Restores organized storage and prevents items from shifting or falling onto lower shelves or drawers.
• Easy-to-clean glass simplifies maintenance — swap out any shelf with visible damage or instability.

• Remove all contents from the shelf area before installing; handle glass carefully and wear cut-resistant gloves.
• Slide the shelf into the existing support rails or brackets until fully seated; do not force or pry the glass.
• Reuse original clips or supports unless the manufacturer specifies replacements; verify correct orientation before seating.
• If the glass arrives chipped or cracked, do not install — stop and replace to avoid breakage or injury.

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

The Pan, Crisper is an OEM part for Whirlpool refrigerators. It is designed to store fruits and vegetables, providing an optimal environment to keep produce fresh for a longer period. The crisper pan helps maintain the right humidity levels, ensuring your produce stays crisp and tasty. Its dimensions approximately measure 6.9" High x 14.05" Wide x 14.9" Long.

You should replace this crisper pan if it becomes damaged or broken. Causes of a bad crisper pan can include regular wear and tear, exposure to heavy items, or accidental drops. A damaged pan can lead to decreased storage efficiency and potential spoilage of produce.

Symptoms of a bad Pan, Crisper include:

• Cracks or breaks in the pan
• Difficulty in sliding the pan in and out of its compartment
• Reduced ability to maintain humidity levels
• Produce not staying fresh as long as expected

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This crisper brace supports the crisper cover/frame in the fresh food compartment, keeping the drawers aligned and level. Replace a cracked or missing brace to restore proper support and smooth, reliable crisper drawer operation.

• Provides structural support for the crisper cover/frame
• Helps keep crisper drawers level and aligned for smooth sliding
• Replaces a broken, warped, or missing brace
• Common symptoms include a sagging cover, drawers binding or dropping, and visible damage to the brace

• Unplug the refrigerator before servicing
• Remove crisper drawers and the cover/frame to access the brace
• Release or remove any retaining tabs/fasteners, swap the brace, and ensure it seats fully
• Handle glass components carefully and avoid overtightening fasteners

The Crisper Shelf Frame is an OEM part for Whirlpool side-by-side refrigerators. It provides sturdy tracked support for organizing vegetables and other produce items in the crisper drawers. The glass and center support are NOT included and must be ordered separately.

Causes of a bad crisper shelf frame can include heavy loads causing cracks or breaks, exposure to moisture leading to warping, or accidental impacts during loading and unloading of groceries.

Symptoms of a bad crisper shelf frame include:

• Cracks or breaks in the frame
• Difficulty sliding crisper drawers in and out
• Items stored on the shelf are unstable or fall through
• The frame not fitting securely in its designated space

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Crisper Drawer Glass is an OEM replacement part for Whirlpool refrigerators.

Causes involve repeated opening/closing of drawers developing stress cracks. Exposure to impacts additionally risks breakage over extended use.

Symptoms of problematic glass include:

• Cracks or chips visible on exterior surface
• Areas of discoloration present
• Warping observed distorting view into drawer

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This replacement ladder is the OEM-style ladder used to support and stabilize the shelf/rail assembly inside the appliance, restoring proper alignment and preventing sagging or items from shifting during use. What it does:

• Provides sturdy support for the appliance shelf or rail assembly
• Keeps shelves aligned so items sit level and don't slide or tip
• Prevents noise and movement caused by a loose or broken support
• Helps maintain proper interior spacing for storage

• Disconnect power to the appliance before starting any repair
• Remove nearby shelves or trim to access the ladder; keep track of fasteners
• Inspect surrounding clips and rails; replace damaged hardware as needed

A replacement ladder shelf support that holds and stabilizes a refrigerator shelf or bin track so stored items stay level and secure. Restores proper shelf alignment and prevents shifting or sagging. What it does:

• Supports and aligns a refrigerator shelf or bin track to keep items stable
• Replaces broken, bent or cracked ladder pieces that cause shelves to tilt
• Helps stop shelves or bins from slipping forward or coming loose
• Compatible with common Whirlpool refrigerator shelf mounting points

• Disconnect power or unplug the appliance before starting any repair.
• Remove shelves or bins as needed to access the ladder; handle glass shelves carefully.
• Use basic hand tools; avoid forcing parts—inspect for damaged mounting clips or guides.

This trim is the finished control-panel surround that restores the appliance's exterior appearance and helps protect internal controls from spills and debris. It fits into the front console area to provide a clean, factory look. What it does:

• Replaces a cracked, scratched, or missing control-panel trim to improve appearance
• Helps shield buttons and display edges from moisture and dirt
• Restores proper alignment and fit of the front console components
• Useful when trim gaps or cosmetic damage expose internal parts

• Disconnect power to the appliance before starting any work to avoid shock or injury.
• Remove adjacent trim or bezels as needed to access mounting screws; keep fasteners for reassembly.
• Handle trim carefully to avoid scratching the finish; align clips/tabs before securing.
• Replace any damaged or missing clips or screws to ensure a secure fit.

This pantry slide assembly restores smooth, secure sliding for a refrigerator pantry shelf so you can access stored items easily and prevent tipping. Direct-replacement part designed to match original fit and function. What it does:

• Replaces a worn or broken pantry slide so the pantry shelf opens and closes smoothly.
• Prevents pantry shelves from binding, sticking, or falling out when pulled.
• Restores proper alignment and stopping action for safer loading and unloading.
• Helps eliminate rattling or uneven movement caused by damaged slide components.

• Disconnect power to the appliance or unplug before beginning any work.
• Installation generally requires removing pantry shelf and snapping or sliding assembly into the existing mounting points; keep original fasteners if present.
• Avoid forcing components; inspect mounting brackets and catches for damage and replace if needed.

Replacement pantry tunnel that restores the pantry drawer's alignment and helps maintain proper airflow and sealing in the pantry compartment. Restores smooth sliding and proper compartment performance for affected refrigerators. What it does:

• Guides and supports the pantry/deli drawer to help ensure smooth opening and closing.
• Helps maintain the intended airflow path and compartment sealing; a cracked or missing tunnel can contribute to temperature inconsistencies.
• Prevents items from rubbing against the cabinet opening and reduces wear on the drawer edges.
• Matches the original mounting direction and fit to restore the part's function when damaged.

• Unplug the refrigerator or disconnect power before beginning service.
• Remove the pantry/deli drawer per the owner's manual to access the tunnel area.
• Align the tunnel with the original mounting points and secure it without forcing; use basic hand tools as needed.

This right-side crisper cover support mounts to the refrigerator's inner wall and holds up the crisper cover and glass. Replacing a broken support restores a level shelf and smooth crisper drawer operation.

• Supports the right side of the crisper cover/frame and glass
• Keeps the shelf level to prevent sagging and gaps
• Maintains alignment so crisper drawers open and close smoothly
• Replace if the original support is cracked, warped, or missing tabs

• Disconnect power and clear the shelf area before service
• Remove crisper drawers and the glass/cover; right-hand is as you face the fresh-food compartment
• Release the old support from the liner (tabs/fastener), position the new support, and fully seat it
• Reinstall the glass and drawers; verify the cover sits level and drawers slide properly

This left-hand crisper support mounts inside the fresh food section to hold the crisper shelf and guide the drawer. Replacing a cracked support restores a stable shelf and smooth, reliable drawer movement.

• Supports the crisper glass/shelf on the left side
• Provides the slide track/guide for the crisper drawer
• Helps keep the drawer level and aligned
• Common symptoms: shelf wobble, drawer hard to open/close, drawer drops/falls, visible cracks or missing tabs

• Unplug the refrigerator and clear the crisper area
• Remove the crisper drawers and carefully lift out the glass shelf
• Remove the fasteners securing the old support; transfer any reusable hardware
• Install on the left side as you face the compartment and verify a secure fit before reinstalling glass and drawers

The Ladder Hook is an OEM part for Whirlpool refrigerators. It is located on the side or back wall of the refrigerator and is responsible for holding and securing the crisper drawer covers in place. It provides stability and support to ensure that the covers remain properly aligned and securely attached to the refrigerator.

Causes of a faulty ladder hook can include wear and tear over time, damage due to excessive force or impact, or misalignment due to improper installation.

Symptoms of a bad ladder hook may include:

• Crisper drawer covers not staying securely in place
• Visible damage or deformation of the hook
• Difficulty in removing or reattaching the covers

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Deli Drawer Track supports and guides the pantry/meat drawer in the refrigerator's fresh food section. Replacing a worn or broken track restores smooth, level drawer movement and helps prevent sticking, sagging, or the drawer coming off its rails.

• Provides a smooth sliding surface and alignment for the deli/pantry drawer
• Supports the drawer weight under the shelf to prevent drooping
• Replaces cracked, warped, or missing rail to correct binding or uneven travel
• Common symptoms: drawer hard to open/close, drops on one side, misaligned, or falls out

• Disconnect power. Remove the deli drawer and shelf/cover as needed to access the track.
• Retain and reuse existing screws; transfer any stops or trim from the old track if your model uses them.
• Position the new track, secure with screws, and verify smooth operation before reloading the drawer.
• Many models use separate left and right tracks—match the side shown on your model's parts diagram.

This replacement agitator shaft restores the connection between the washer transmission and agitator so laundry moves properly during the cycle. Replaces a worn or damaged shaft to help eliminate agitation failure and restore normal washing action. What it does:

• Transfers rotational force from the transmission to the agitator so clothes are moved and cleaned
• Commonly replaced when the agitator refuses to move, spins freely, or washing action is inconsistent
• Can address grinding or knocking noises coming from the transmission/agitator area
• Works as a direct-fit service part when matched to the correct washer model

• Disconnect power and water before beginning any repair
• Follow the washer's service manual or OEM exploded diagram for removal and installation steps
• Inspect surrounding components (agitator, transmission seals, fasteners) and replace if worn

Left side mount

Right side mount

The Drawer Glide Gear is an OEM part for Whirlpool refrigerators. This part ensures the smooth operation of refrigerator drawers, allowing them to slide in and out with ease. This gear mechanism is vital for the user-friendly access to stored food items, contributing to the efficient organization and optimization of space within the refrigerator.

Causes for replacement include physical damage such as cracks or breakage, wear that impedes smooth operation, or a malfunction that prevents drawers from opening or closing properly.

Symptoms of a bad Drawer Glide Gear include:

• Difficulty in sliding the refrigerator drawers
• Uneven movement or jamming of the drawer
• Noise when opening or closing the drawer

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This spur gear is part of the appliance's drive assembly, transferring motor power to mating components. Replacing a worn or stripped gear restores smooth, consistent motion and helps eliminate grinding, slipping, or no-drive issues. What it does

• Transfers rotational power within the drive mechanism
• Maintains proper engagement with mating gear(s) for smooth operation
• Common failure symptoms: grinding/clicking noises, slipping or stalled movement, irregular motion
• Visual clues: rounded, chipped, or missing teeth

• One spur gear

• Disconnect power; turn off water supply before service
• Access the drive assembly and note gear orientation and any shims/washers during disassembly
• Inspect mating gears, bushings, and bearings; replace any worn components to prevent rapid re-failure
• Apply manufacturer-specified grease if required and tighten fasteners per service information
