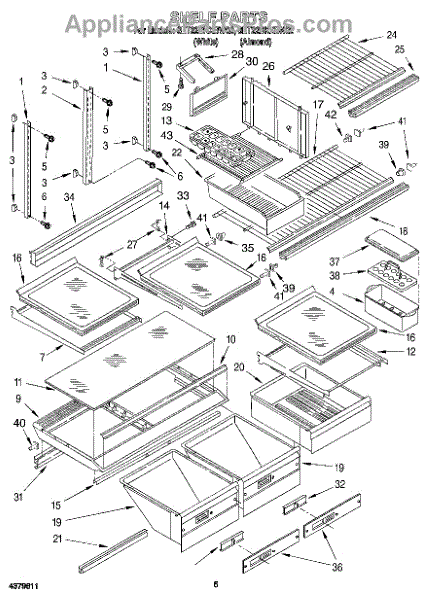

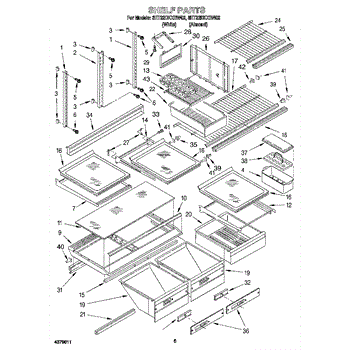

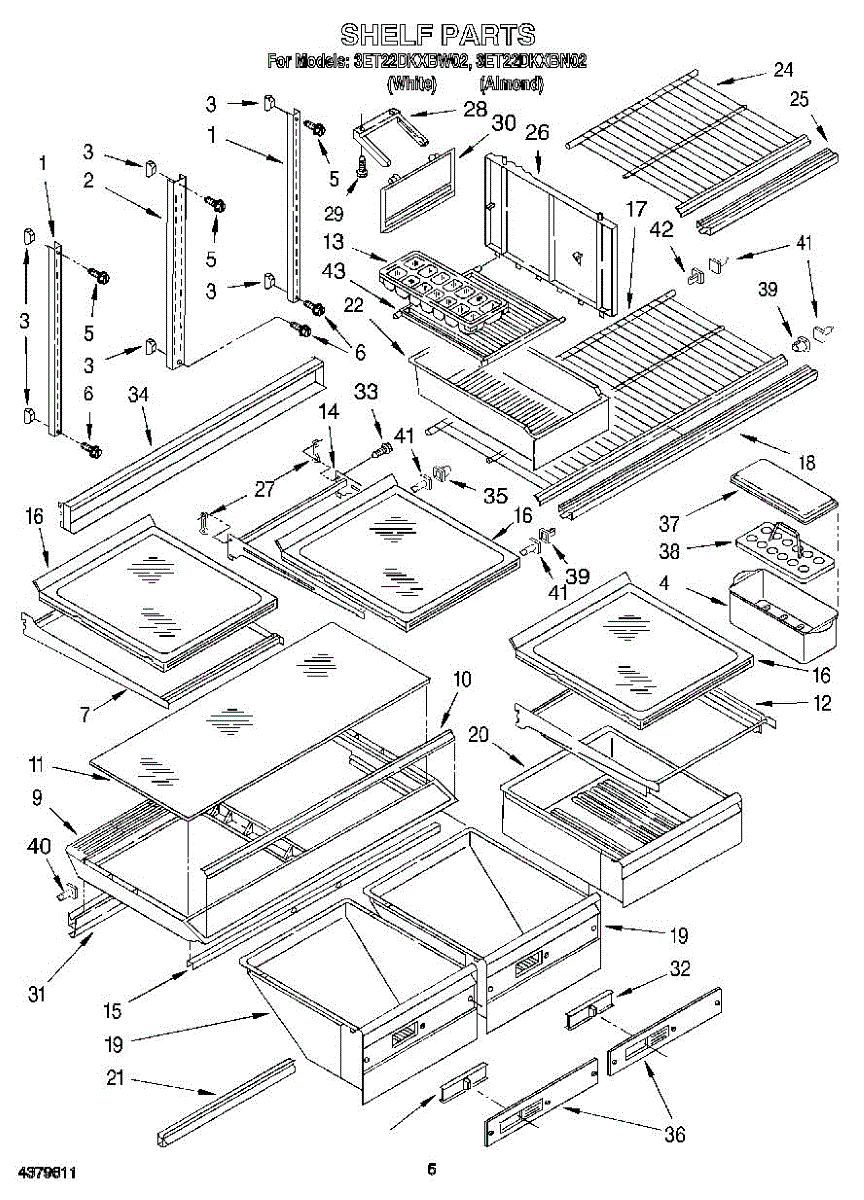

Parts for Whirlpool 3ET22DKXBW02: 04 - Shelf, Lit / Optional Parts

This screw support secures the dryer drum ladder assembly, helping maintain proper alignment and stable rotation for reliable drying performance. It replaces a worn or broken support to reduce noise and rattling during operation. What it does:

• Holds the ladder/support bracket in place so the drum rotates smoothly.
• Prevents excessive movement that can cause scraping, knocking, or rubbing noises.
• Restores correct positioning to reduce wear on adjacent components.
• Suitable when the original support is cracked, bent, or missing fastener points.

• One screw support (ladder) as shown.

• Intended for experienced DIYers; confirm compatibility with your model before installing.
• Disconnect power (unplug electric or shut off gas and unplug) before beginning work.
• Handle small parts carefully and keep track of fasteners; use appropriate hand tools.

Color: clear. It measures about 6 inches wide by 3-1/2 inches high by 15 inches deep.

This replacement screw secures appliance panels, brackets, and components to the cabinet or chassis. The #8-15 x 1/2 in. size restores a snug, reliable hold when original hardware is missing, stripped, or corroded.

• Fastens panels, brackets, and trim to the appliance cabinet or chassis
• Helps reduce rattling, vibration, or looseness caused by missing/stripped hardware
• Restores proper alignment of parts that have shifted due to loose fasteners
• Size/spec: #8-15 thread, 1/2-inch length; use where this size is specified

• Disconnect power and shut off gas/water supplies before servicing
• Replace one screw at a time to maintain alignment of parts
• Start threads by hand to prevent cross-threading; do not overtighten
• Use a matching driver/bit type for the screw head used in your appliance

This part has been discontinued by the manufacturer and is no longer available.

Color: white. Measures about 30 inches wide by 20 inches deep.

This replacement ice cube tray is a direct-fit plastic tray designed to hold and release ice cubes in compatible top- or bottom-freezer refrigerators. Restores convenient ice storage and simple manual ice removal. What it does:

• Holds water in separate cavities so ice cubes form evenly.
• Flexes slightly for easier ice release to reduce twisting or chipping.
• Replaces cracked, warped, or missing trays that cause leaking or uneven freezing.
• Helps prevent contamination from freezer debris when used as intended.

• Remove old tray and wipe area clean before installing the new tray.
• Fill tray with water on a level surface and place flat in the freezer to freeze.
• Handle carefully when removing ice to avoid spills; do not force with sharp tools.
• Clean tray before first use and as needed; follow refrigerator manufacturer's care guidance.

This crisper cover support mounts to the refrigerator liner and holds the crisper cover frame/glass level. Replacing a broken or missing support restores a stable shelf surface and helps the crisper drawers slide and close properly.

• Supports the crisper cover frame/glass along the cabinet wall
• Maintains a level surface to help prevent sagging or glass shifting
• Keeps crisper drawers aligned and moving smoothly
• Common symptoms: cracked or missing support, shelf tilts, glass slips, drawers scrape or won't close fully

• Disconnect power and clear the shelf area
• Remove crisper drawers and lift out the cover/glass
• Release and remove the damaged support; snap or screw the new support into the same position
• Reinstall the cover and drawers; verify level fit

This replacement ice cube pan holds and organizes ice in your refrigerator's freezer. Replacing a cracked or warped pan restores clean, contained ice storage and smoother access or dispensing, depending on your model's design. What it does:

• Collects and stores ice produced by the icemaker or manual trays
• Keeps cubes contained and easy to access; fits designated guides in the freezer
• Helps ensure proper ice access or dispensing on applicable models
• Typical symptoms: cracked bin, broken tabs, bin won't seat, ice spilling or clumping

• 1 ice cube pan/bin

• Disconnect power to the refrigerator and turn off the icemaker before starting
• Remove the old pan and empty any remaining ice
• If your model reuses a drive/crusher or other hardware, transfer those parts from the original pan as directed for your unit
• Seat the new pan fully in its tracks/coupler, restore power, and allow normal ice production

This part has been discontinued by the manufacturer and is no longer available.

This replacement screw secures appliance panels, brackets, and components to the cabinet or chassis. The #8-15 x 1/2 in. size restores a snug, reliable hold when original hardware is missing, stripped, or corroded.

• Fastens panels, brackets, and trim to the appliance cabinet or chassis
• Helps reduce rattling, vibration, or looseness caused by missing/stripped hardware
• Restores proper alignment of parts that have shifted due to loose fasteners
• Size/spec: #8-15 thread, 1/2-inch length; use where this size is specified

• Disconnect power and shut off gas/water supplies before servicing
• Replace one screw at a time to maintain alignment of parts
• Start threads by hand to prevent cross-threading; do not overtighten
• Use a matching driver/bit type for the screw head used in your appliance

This kit includes four rack studs for select dishwashers. The studs fasten compatible rack components and accessories to the wire dishrack, helping keep rows and attachments secure during loading and wash cycles. What it does:

• Secures rack components and accessories to the dishwasher's wire rack
• Replaces broken, worn, or missing studs that no longer hold firmly
• Helps prevent rack items from detaching, shifting, or rattling during operation
• Common symptoms: loose/missing studs, falling rack attachments, unstable tine rows or holders

• Four rack studs

• Disconnect power; pull the rack out (remove it if needed) to access the work area
• Match the orientation of the new studs to the originals
• Insert and fully seat each stud through the rack wire and mating component
• Check that the rack components are secure and the rack slides smoothly before running a cycle

This egg carrier is a molded tray that holds and secures eggs inside the refrigerator so they stay organized and protected from rolling or breaking. It restores safe, tidy egg storage and fits the factory shelf location. What it does

• Holds and stabilizes eggs on the refrigerator shelf to reduce rolling and breakage.
• Replaces cracked, warped, or missing egg trays that allow eggs to shift or rattle.
• Restores the original storage configuration for proper fit and clearance.
• Simple, low-profile design keeps eggs accessible while maximizing shelf space.

• Disconnect power or open fridge and work in a well-lit, dry area; handle eggs and shelves carefully.
• Remove existing tray by lifting or sliding per shelf design; align new carrier with shelf supports and seat fully.
• No special tools required for most installations; inspect shelf area for damage before installing.

The Shelf Stud Kit is an OEM part for Whirlpool refrigerators. This kit includes the necessary studs to secure the shelves within the refrigerator, ensuring they remain stable and properly aligned for optimal storage.

Common causes of a bad shelf stud include repeated loading and unloading of shelves, which can lead to wear and tear, or accidental damage from impacts.

Symptoms of a bad shelf stud include:

• Shelves tilting or falling out of place
• Difficulty in securing shelves
• Visible cracks or damage to the studs

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This shelf stud secures a refrigerator shelf or shelf trim to the cabinet, restoring stable shelf positioning and preventing slipping or tilting. A simple hardware replacement that helps keep shelves level and items secure. What it does:

• Provides the mounting point that holds a shelf or shelf trim in place.
• Common replacement when the stud is cracked, broken, stripped, or missing.
• Stops shelves from tilting, sliding, or dropping when loaded.
• Works with the shelf edge/support to maintain proper alignment.

• Disconnect power to the appliance before starting any work, and remove all items from the shelf area.
• Remove the shelf or trim and handle any glass carefully; wear gloves and eye protection.
• The stud typically snaps or presses into the shelf support—refer to the model's diagram for exact orientation and fasteners.
• Support the glass while installing to avoid chipping or dropping.

The Shelf Stud Kit is an OEM part for Whirlpool refrigerators. This kit includes the necessary studs to secure the shelves within the refrigerator, ensuring they remain stable and properly aligned for optimal storage.

Common causes of a bad shelf stud include repeated loading and unloading of shelves, which can lead to wear and tear, or accidental damage from impacts.

Symptoms of a bad shelf stud include:

• Shelves tilting or falling out of place
• Difficulty in securing shelves
• Visible cracks or damage to the studs

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This kit includes four rack studs for select dishwashers. The studs fasten compatible rack components and accessories to the wire dishrack, helping keep rows and attachments secure during loading and wash cycles. What it does:

• Secures rack components and accessories to the dishwasher's wire rack
• Replaces broken, worn, or missing studs that no longer hold firmly
• Helps prevent rack items from detaching, shifting, or rattling during operation
• Common symptoms: loose/missing studs, falling rack attachments, unstable tine rows or holders

• Four rack studs

• Disconnect power; pull the rack out (remove it if needed) to access the work area
• Match the orientation of the new studs to the originals
• Insert and fully seat each stud through the rack wire and mating component
• Check that the rack components are secure and the rack slides smoothly before running a cycle

Touch-up paint. Color: Almond. Size: 1 qt. can. (Uncut)

Epoxy repair kit - aluminum tubing.

Size: 1/4 lb.

Size: 63-1/2 x 35-1/2 x 2-5/8 inch.

Color: White. Size: 1 qt. can. Acrylic appliance paint.

Sealer for refrigerant line insulation.

This OEM grease is a purpose-made appliance lubricant that reduces friction and protects moving parts for smoother operation and longer component life. Use where specified by the manufacturer for bearings, slides, or motor shafts. What it does:

• Lubricates gears, bearings, rollers and shafts to reduce wear and noise
• Helps prevent binding, seizing, and grinding on moving components
• Protects metal parts from corrosion where grease is specified
• Keeps parts moving smoothly under normal operating temperatures

• Disconnect power before servicing any appliance; follow manufacturer service instructions
• Apply sparingly to clean, dry surfaces; avoid over-greasing which can attract debris
• Wear gloves and wipe excess grease from surrounding areas to prevent staining

Color: White. Size: 13 oz. Spray paint primer. can.

This clip kit secures small panels, wiring harnesses, or trim on compatible Whirlpool appliances to prevent rattling and keep components in their intended position. It restores proper fit and helps reduce noise from loose parts. What it does:

• Holds wiring harnesses and cables in place to prevent chafing or contact with moving parts
• Secures panels, trim, or hoses so assemblies stay aligned and quiet
• Reduces rattling, buzzing, or vibration caused by loose components
• Keeps parts positioned during normal use and transport

• Disconnect power (unplug or shut off breaker) before starting any repair
• Use basic hand tools; avoid forcing clips into place to prevent breakage
• Replace any damaged clips with the exact kit to ensure proper fit
• Re-check that fastened parts are secure and that there are no pinched wires before restoring power

Color: Black. Size: 12 oz. Acrylic appliance aerosol can spray paint.

Color: White. Size: 2 oz. can. Porcelain touch-up paint.

Color: Almond

Almond. Size: 13 oz. can. Acrylic appliance paint.

Bottle with brush. Color: Black. Size: 0.6 fl.oz.

The Alumilastic Cement is an OEM part for Whirlpool appliances, typically used in refrigerators and freezers. It serves as a thermal mastic compound, designed to provide a secure and heat-conductive bond between various components, such as evaporator coils and the interior walls of the appliance.

Causes of a bad alumilastic cement can include drying out, cracking, or losing its adhesive properties over time. This can occur due to age, exposure to temperature fluctuations, or improper application. When the cement fails, it can lead to poor thermal conductivity and decreased cooling efficiency.

Symptoms of a bad alumilastic cement include:

• Reduced cooling performance
• Unusual noises from the cooling system
• Components becoming loose or detaching
• Increased energy consumption

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Appliance Touchup Paint is an OEM product for Whirlpool appliances. This touchup paint is used to cover scratches, chips, and minor blemishes on the surface of various appliances, helping to maintain their appearance and protect them from rust and other damage. It is specifically formulated to match the original color and finish of Whirlpool appliances, ensuring a seamless repair.

Causes of needing touchup paint include everyday wear and tear, accidental impacts that cause chipping or scratching, and exposure to harsh cleaning chemicals that can damage the finish. Regular use of touchup paint can help keep appliances looking new and extend their lifespan.

Symptoms indicating the need for Appliance Touchup Paint include:

• Visible scratches or chips on the appliance surface
• Areas of exposed metal prone to rust
• Blemishes that affect the overall aesthetic of the appliance

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
