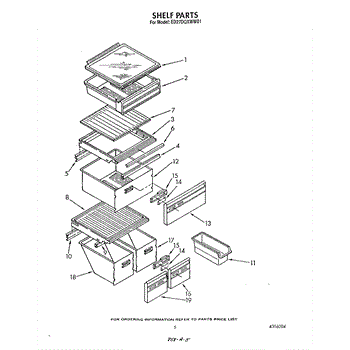

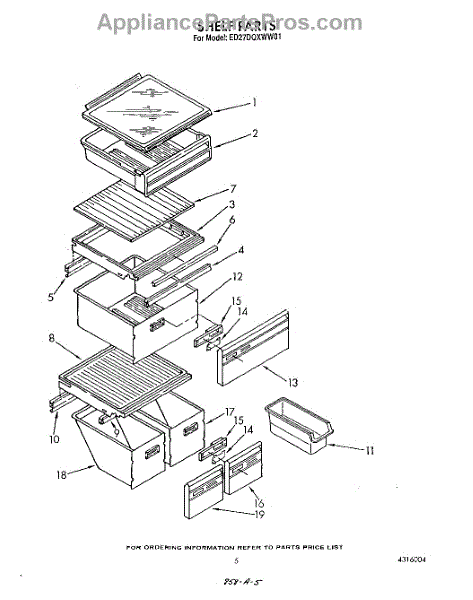

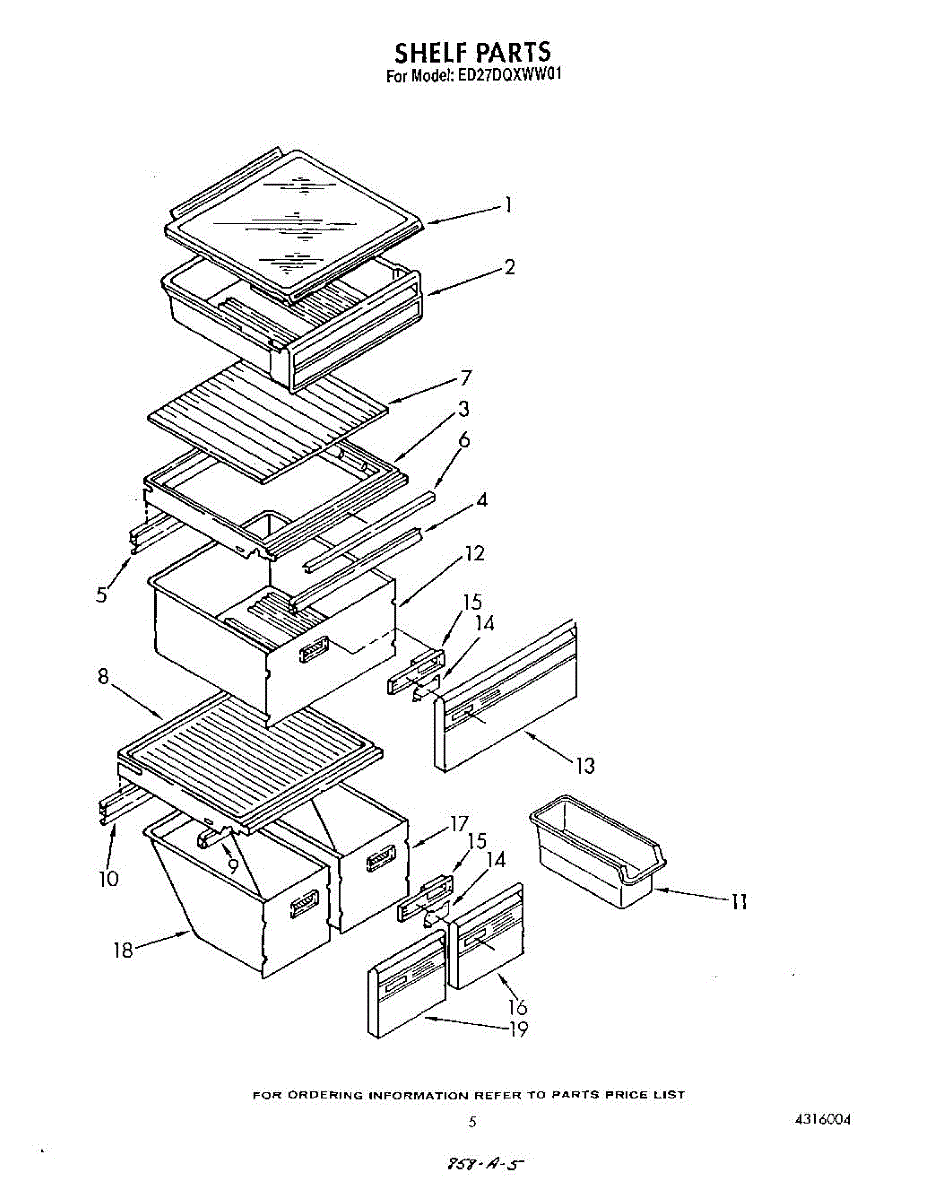

Parts for Whirlpool ED27DQXWW01: 04 - Shelf Parts

The Shelf Frame is an OEM replacement part for Whirlpool refrigerators. It is an internal frame component that provides structure and support for refrigerator shelves. Measures about 17 inches wide by 17 inches deep.

Causes of a bad shelf frame can include damage like dents, bends or cracks that compromise strength. Repeated impact over the lifespan may weaken metal mounting rails.

Symptoms of a bad shelf frame include:

• Shelves that sag, bow or dislodge from their tracks
• Inability to optimally organize refrigerator interiors
• Potential spills if shelves are overloaded
• Restricted access until replacement restores functionality

This OEM Whirlpool part is also compatible with KitchenAid, Jenn-Air, Amana, Magic Chef, and some Kenmore models.

Please note: Does not include glass. For the glass order WP1114687.

Color: clear. Measures about 16-3/4 X 14-1/2 inches.

This part has been discontinued and is no longer available.

Ice container cracked or broken? This refrigerator ice cube bin stores ice from your automatic ice maker. Simple snap-in installation takes minutes.

Plastic crisper pan bin for refrigerator produce storage. Replaces cracked, broken, or missing pans to restore proper vegetable drawer function.

This part has been discontinued and cannot be reordered.

230 - 115 volt

Epoxy repair kit - aluminum tubing.

Touch-up paint. Color: Almond. Size: 1 qt. can. (Uncut)

This insulation bag fits inside the refrigerator or freezer door panel to help maintain consistent internal temperatures. It acts as a thermal barrier that prevents warm outside air from affecting the sealed compartment. Replace it if you notice condensation forming on the door interior, inconsistent temperatures, or if the existing insulation is torn, compressed, or missing.

Sealer for refrigerant line insulation.

Foam insulation panel that fits inside refrigerator doors to maintain temperature efficiency. Replace if cracked, compressed, or missing.

Putty sealer adhesive for refrigerators and freezers. Seals joints, gaps, and connections. Replace when old sealant is cracked, dried out, or missing.

Color: White. Size: 1 qt. can. Acrylic appliance paint.

This specialized Torx wrench is designed to remove and install screws with star-shaped heads commonly found in refrigerator components. It provides the proper grip and torque needed for secure fastening of internal parts. Use this tool when replacing refrigerator components that require Torx screws for assembly.

Size: 1/4 lb.

Fix loose wiring or rattling sounds in your refrigerator with this terminal block clip kit. Secures harnesses and panels to restore proper fit.

Fix squeaking or grinding ice makers with appliance-grade grease. Lubricates moving parts in refrigerators and freezers. Simple DIY application.

White porcelain touch-up paint for repairing chipped, scratched, or worn surfaces on ranges, ovens, and refrigerators. Restores appearance on exterior panels and trim. 2 oz. can.

Color: Black. Size: 12 oz. Acrylic appliance aerosol can spray paint.

The Alumilastic Cement is an OEM part for Whirlpool appliances, typically used in refrigerators and freezers. It serves as a thermal mastic compound, designed to provide a secure and heat-conductive bond between various components, such as evaporator coils and the interior walls of the appliance.

Causes of a bad alumilastic cement can include drying out, cracking, or losing its adhesive properties over time. This can occur due to age, exposure to temperature fluctuations, or improper application. When the cement fails, it can lead to poor thermal conductivity and decreased cooling efficiency.

Symptoms of a bad alumilastic cement include:

• Reduced cooling performance
• Unusual noises from the cooling system
• Components becoming loose or detaching
• Increased energy consumption

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
