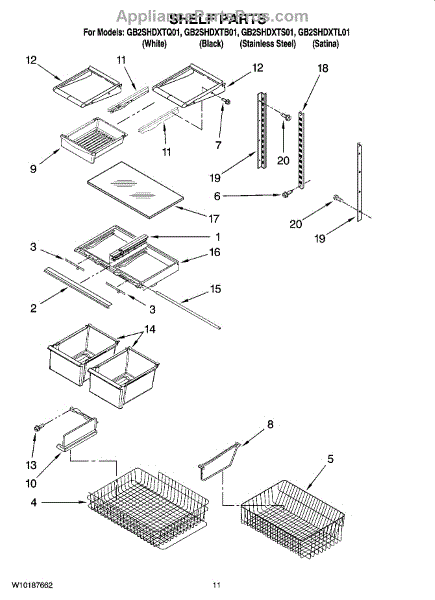

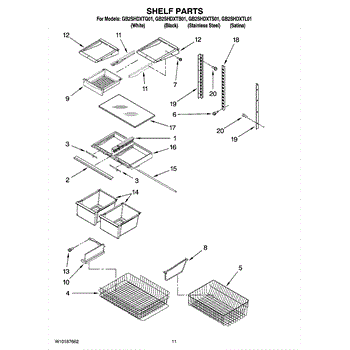

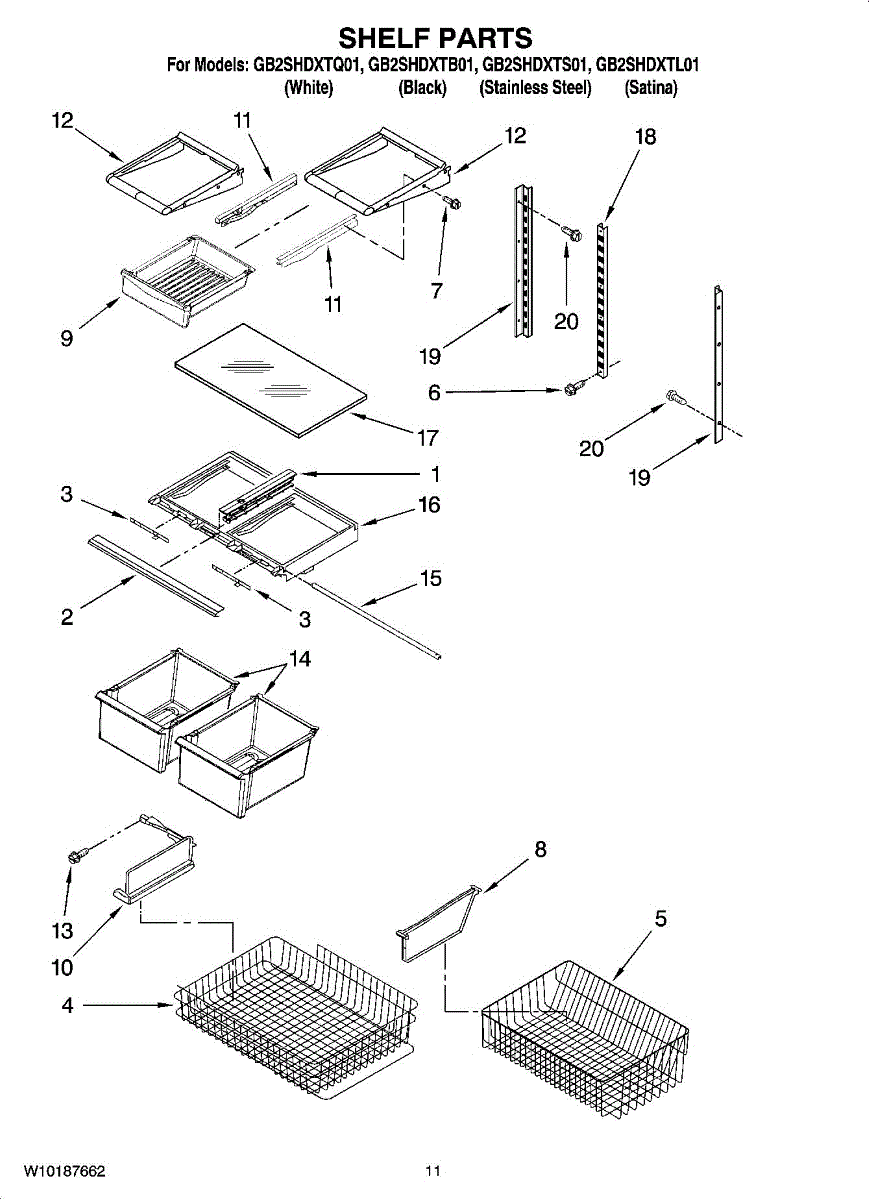

Parts for Whirlpool GB2SHDXTS01: 07 - Shelf Parts

The Center Crisper Rail is an OEM part for Whirlpool refrigerators. It serves as a support for the crisper drawer, helping to guide and stabilize the drawer as it slides in and out.

Symptoms of a bad Center Crisper Rail include:

• Difficulty in sliding the crisper drawer in or out.
• The drawer sagging or not aligning properly when closed.
• Unusual noises or resistance when moving the drawer.

Causes of a bad center crisper rail can include physical damage from overloading the drawer, wear and tear from regular use, or breakage due to brittle plastic and aging components.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This pan trim replaces a damaged or missing edge piece on a refrigerator storage drawer. It restores a clean look and proper fit so the bin seats correctly and operates as designed.

• Attaches to the rim of a refrigerator drawer/pan to finish the edge
• Helps the bin interface and align correctly with its cover/frame
• Replaces cracked, warped, loose, or missing trim to restore proper fit
• Common symptoms: broken or jagged edge, gaps, rattling, or the bin not seating flush

• Unplug the refrigerator and remove the drawer/pan from the compartment
• Release the old trim by disengaging its locking tabs; lift away carefully
• Clean the mating surfaces; align the new trim and press evenly until tabs snap in
• Avoid prying against glass and do not force tabs to prevent damage

The Humidity Control Slide is an OEM part for Whirlpool refrigerators.This part regulates the humidity levels in the crisper drawers, ensuring optimal conditions for the storage of fruits and vegetables. The slide measures approximately 9 inches wide by 1-1/2 inches deep.

Causes of a bad Humidity Control Slide can include wear and tear over time, physical damage due to mishandling, or buildup of debris that hinders its movement.

Symptoms of a bad Humidity Control Slide include:

• Inability to adjust humidity settings
• Visible damage or cracks on the slide
• Excessive moisture or dryness in the crisper drawers

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This upper basket is the dishwasher rack insert that holds plates, glasses and small items in the top rack so they stay organized and get a proper wash. It replaces damaged or warped upper baskets to restore secure loading and water flow. What it does:

• Provides stable support for glasses, bowls and lightweight dishes in the upper rack
• Keeps items separated to improve cleaning and reduce chipping
• Restores proper alignment and routing of water to top-rack items
• Replaces cracked, bent or missing upper basket sections that allow items to tip or fall

• Disconnect power to the dishwasher before servicing and turn off the water supply if needed
• Remove the upper rack to access and swap the basket; no special tools are normally required
• Inspect rack rollers and tracks while re-installing the rack to ensure smooth operation
• If clips or fasteners are present, reinstall them as shown in the manufacturer's instructions

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This refrigerator deli pan is the slide-out bin in the fresh food section for meats and cheeses. Replace a cracked, broken, or missing pan to restore organized storage and smooth, reliable drawer movement.

• Provides a dedicated bin for deli items in the refrigerator
• Slides on existing shelf rails for easy access
• Keeps items contained to reduce spills and clutter
• Symptoms addressed: cracked or broken bin, damaged front edge, drawer won't slide or stay on track, missing drawer

• Open the door and clear the surrounding shelf area.
• Pull the old pan straight out; lift slightly to clear the stops if needed.
• Align the new pan with the side rails/ledges and slide in until fully seated.
• Handle plastic carefully; do not force into place.

The Drawer Glide is an OEM part for Whirlpool refrigerators. It ensures the smooth operation of refrigerator drawers, allowing them to slide in and out effortlessly. The glide measures approximately 15 inches in length.

Causes of a bad drawer glide can include wear and tear from regular use, accumulation of debris or dirt, or physical damage due to impact or overloading the drawers. When the glide becomes damaged, it can hinder the functionality of the refrigerator drawers, making it difficult to access stored items.

Symptoms of a bad drawer glide include:

• Difficulty opening or closing refrigerator drawers
• Drawers getting stuck or not sliding smoothly
• Unusual noises when operating the drawers
• Drawers misaligning or falling off their tracks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: For the right side drawer glide, use part number WP67001053

The Drawer Glide is an OEM part for Whirlpool refrigerators. This component facilitates the smooth sliding motion of refrigerator drawers, ensuring easy access to stored items.

Over time, drawer glides can become worn out or damaged due to constant use, heavy loads, or accidental impacts. A faulty drawer glide can hinder the smooth operation of the refrigerator drawers, making them difficult to open or close.

Symptoms of a bad Drawer Glide include:

• Difficulty in sliding the drawer in and out
• The drawer getting stuck or not aligning properly
• Unusual noises when operating the drawer
• The drawer not staying in place or sagging

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: Right hand side. For left side use WP67001054

This refrigerator glass shelf restores a flat, easy-to-clean storage surface and helps contain small spills. Replace a cracked or missing shelf to regain usable space and keep items level and organized.

• Provides a sturdy, level platform for food storage inside the fresh-food compartment
• Helps contain minor spills to reduce drips onto lower shelves and drawers
• Replace when glass is cracked, chipped, shattered, or missing
• Common symptoms: items tipping, shelf won't sit level, reduced storage space, broken glass

• Remove food/items and the existing shelf before installation
• Handle glass with two hands; wear cut-resistant gloves and eye protection
• Slide the shelf into the correct rails/slots until fully seated and level
• If your model uses separate trim or a frame, transfer it from the original shelf as needed

The Pan, Crisper is an OEM part for Whirlpool refrigerators. It is designed to store fruits and vegetables, providing an optimal environment to keep produce fresh for a longer period. The crisper pan helps maintain the right humidity levels, ensuring your produce stays crisp and tasty. Its dimensions approximately measure 6.9" High x 14.05" Wide x 14.9" Long.

You should replace this crisper pan if it becomes damaged or broken. Causes of a bad crisper pan can include regular wear and tear, exposure to heavy items, or accidental drops. A damaged pan can lead to decreased storage efficiency and potential spoilage of produce.

Symptoms of a bad Pan, Crisper include:

• Cracks or breaks in the pan
• Difficulty in sliding the pan in and out of its compartment
• Reduced ability to maintain humidity levels
• Produce not staying fresh as long as expected

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This crisper brace supports the crisper cover/frame in the fresh food compartment, keeping the drawers aligned and level. Replace a cracked or missing brace to restore proper support and smooth, reliable crisper drawer operation.

• Provides structural support for the crisper cover/frame
• Helps keep crisper drawers level and aligned for smooth sliding
• Replaces a broken, warped, or missing brace
• Common symptoms include a sagging cover, drawers binding or dropping, and visible damage to the brace

• Unplug the refrigerator before servicing
• Remove crisper drawers and the cover/frame to access the brace
• Release or remove any retaining tabs/fasteners, swap the brace, and ensure it seats fully
• Handle glass components carefully and avoid overtightening fasteners

The Crisper Shelf Frame is an OEM part for Whirlpool side-by-side refrigerators. It provides sturdy tracked support for organizing vegetables and other produce items in the crisper drawers. The glass and center support are NOT included and must be ordered separately.

Causes of a bad crisper shelf frame can include heavy loads causing cracks or breaks, exposure to moisture leading to warping, or accidental impacts during loading and unloading of groceries.

Symptoms of a bad crisper shelf frame include:

• Cracks or breaks in the frame
• Difficulty sliding crisper drawers in and out
• Items stored on the shelf are unstable or fall through
• The frame not fitting securely in its designated space

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Crisper Drawer Glass is an OEM replacement part for Whirlpool refrigerators.

Causes involve repeated opening/closing of drawers developing stress cracks. Exposure to impacts additionally risks breakage over extended use.

Symptoms of problematic glass include:

• Cracks or chips visible on exterior surface
• Areas of discoloration present
• Warping observed distorting view into drawer

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This center ladder is a replacement interior support piece that helps secure and align related shelving components for proper fit and function. Replacing a worn or broken center ladder restores stable shelf support and alignment. What it does

• Provides centered structural support for the associated shelving/ladder assembly
• Restores proper alignment so shelves and components sit securely
• Stops movement, sagging or misalignment caused by a cracked or damaged ladder
• Fits into the factory ladder location to maintain original spacing and support

• One center ladder

• Install with the appliance power off and remove any stored items from the area before starting
• Verify orientation and engagement points match the existing ladder prior to final fastening
• Use only the specified fasteners and torque per manufacturer guidance; do not overtighten plastic mounting points

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles
