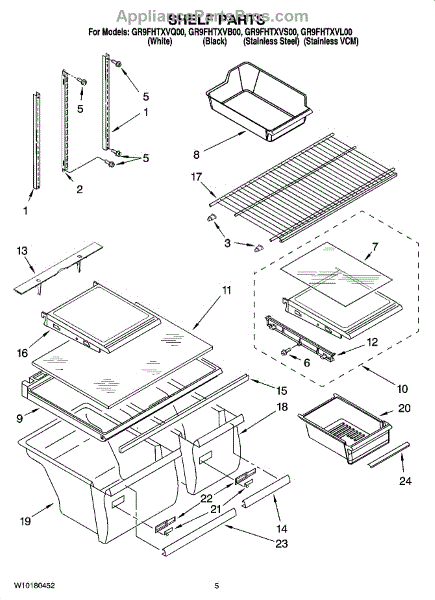

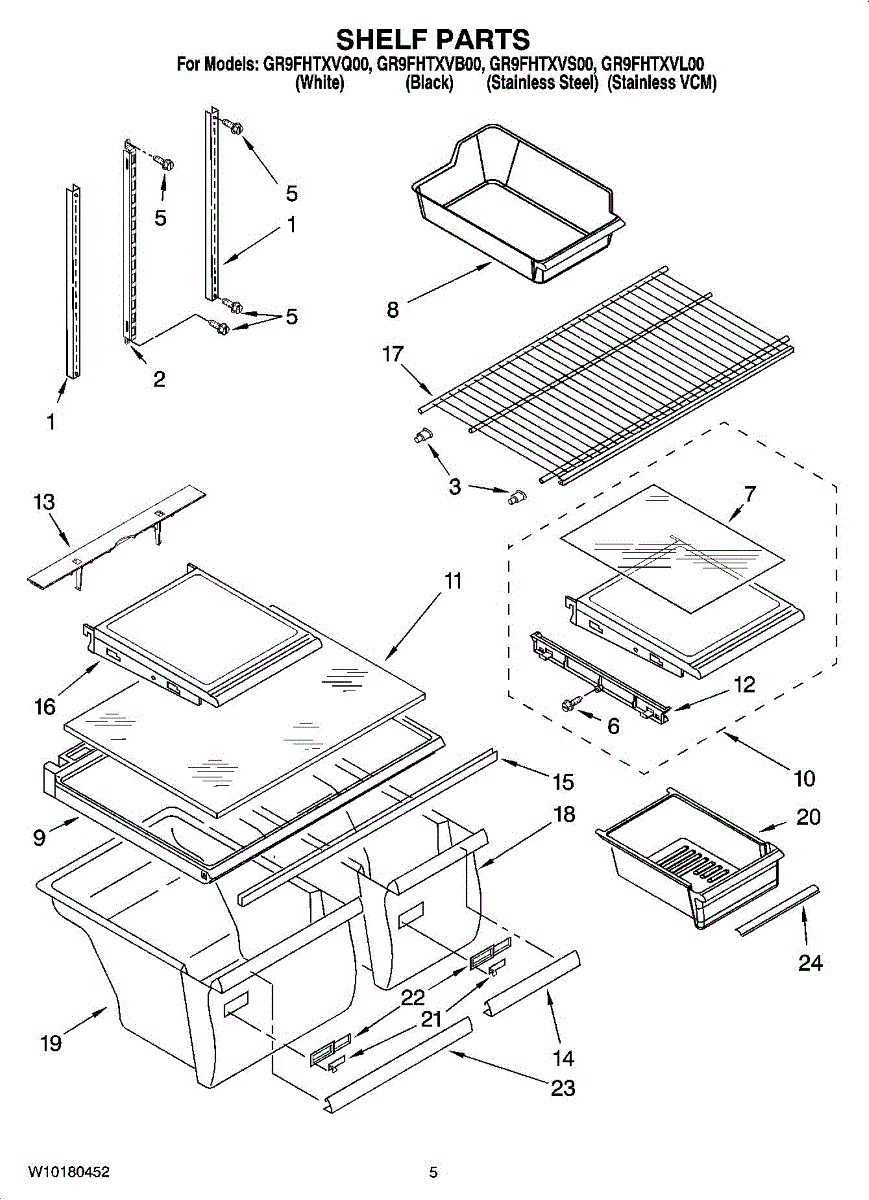

Parts for Whirlpool GR9FHTXVQ00: 03 - Shelf Parts

Reduces contaminants like chlorine and lead for clean drinking water and ice. Replace every 6 months for optimal performance. Confirm fit with model.

This mounting cup installs in the freezer liner to create a secure attachment point for the ice maker or its bracket. It helps keep the assembly stable and properly aligned so the ice maker mounts firmly and operates reliably. What it does:

• Provides the receiving anchor for the ice maker/bracket mounting screw
• Helps hold the ice maker level and reduces movement or vibration
• A worn, stripped, or missing cup can prevent the screw from tightening
• Common signs include a loose or sagging ice maker, rattling, or difficulty keeping the ice maker aligned

• 1 mounting cup

• Disconnect power and shut off the water supply before servicing
• Remove the ice maker to access the cup location
• Seat the cup fully into the liner opening, then reinstall the bracket/ice maker and mounting screw
• Do not overtighten; verify the ice maker sits level and clears the fill tube

Replacement fastener screw for appliances. Secures panels, trim, clips, and components. Needed when original screws are stripped, missing, or damaged.

This replacement cabinet screw secures panels, brackets, and ducts in Whirlpool-built appliances so components stay aligned and secure. Replacing missing or stripped hardware helps reduce vibration, rattling, and gaps that can affect performance.

• Fastens panels, brackets, and internal components in the appliance cabinet
• Helps maintain proper alignment and reduce vibration or rattling noises
• Restores a tight fit where original hardware is missing, damaged, or stripped
• Typical symptoms: loose paneling, buzzing/rattling sounds, or parts that won't stay fastened

• Disconnect power; for gas models, also shut off the gas supply
• Replace one fastener at a time to preserve alignment and match to the original hardware
• Use the correct driver; start threads by hand to avoid cross-threading
• Do not overtighten into sheet metal

Ice scattered in freezer or missing ice storage? This refrigerator ice bin collects and stores ice from your icemaker. Easy slide-in installation.

This is the frame that covers the top of the crisper drawers in a refrigerator, serving as a support shelf and helping to separate the crisper compartment from the rest of the fresh food section. It maintains proper airflow and humidity levels around the crisper drawers for better produce storage. Replace this cover frame if it is cracked, broken, or warped, which can cause items to fall through or reduce the effectiveness of the crisper drawers.

Clear glass shelf that sits above the crisper drawers in your refrigerator. Replace if cracked, shattered, or broken during cleaning or use.

Metal support bar that mounts to the refrigerator liner to hold the crisper cover frame and glass level. Replace if broken, missing, or bent.

Replace a cracked, broken, or missing refrigerator cabinet shelf. This assembly restores stable storage space and fits securely into original mounting points.

Replacement crisper pan for refrigerator produce storage. Installs in lower compartment. Needed when original is cracked, broken, or missing.

Replace your cracked, broken, or missing refrigerator crisper drawer. Slides into the bottom compartment to store fruits and vegetables. Easy DIY fix.

Clear plastic meat pan for your refrigerator. Replace your cracked, broken, or missing meat drawer. Installs in the fresh food compartment.

Crisper drawer won't adjust humidity? This slide moves the vent door to regulate moisture in your produce bin. Snap-in replacement restores humidity control.

Replacement trim for refrigerator crisper drawer edges. Restores finished appearance and keeps drawer properly seated. Replaces cracked, broken, or missing trim.
