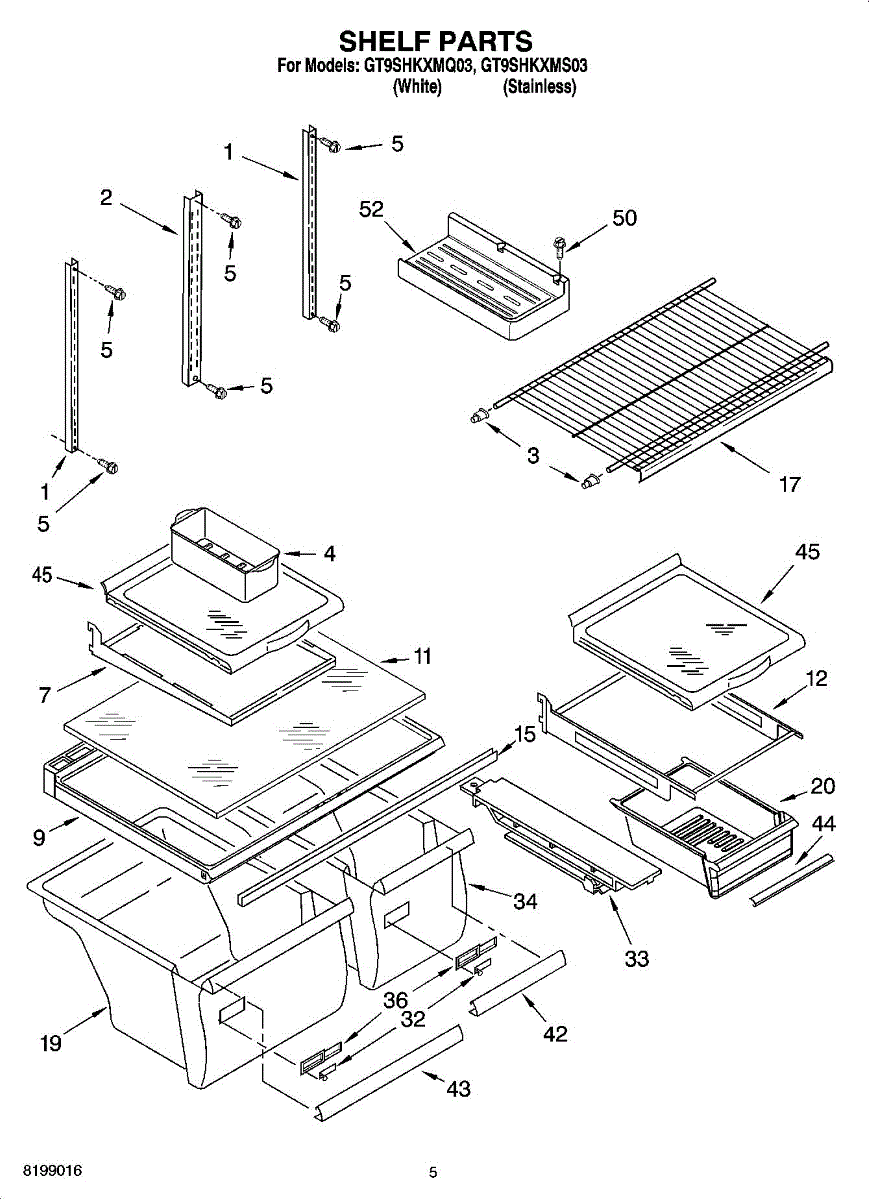

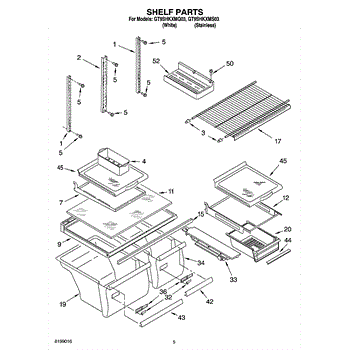

Parts for Whirlpool GT9SHKXMS03: 03 - Shelf Parts

This mounting cup installs in the freezer liner to create a secure attachment point for the ice maker or its bracket. It helps keep the assembly stable and properly aligned so the ice maker mounts firmly and operates reliably. What it does:

• Provides the receiving anchor for the ice maker/bracket mounting screw
• Helps hold the ice maker level and reduces movement or vibration
• A worn, stripped, or missing cup can prevent the screw from tightening
• Common signs include a loose or sagging ice maker, rattling, or difficulty keeping the ice maker aligned

• 1 mounting cup

• Disconnect power and shut off the water supply before servicing
• Remove the ice maker to access the cup location
• Seat the cup fully into the liner opening, then reinstall the bracket/ice maker and mounting screw
• Do not overtighten; verify the ice maker sits level and clears the fill tube

Color: clear. It measures about 6 inches wide by 3-1/2 inches high by 15 inches deep.

Size: 8 x 1/2 ab.

Color: white. Measures about 26 inches wide by 20 inches deep. Cover includes center rail.

The Crisper Glass Shelf is an OEM replacement part for Whirlpool refrigerators. It is specifically designed to fit securely within the crisper drawer, providing a clear surface to organize and view fruits and vegetables. The glass measures approximately 3/8" in width by 25" in length.

Causes of a bad glass shelf can include accidental impacts that crack or shatter the glass, overloading the shelf with heavy items leading to stress fractures, or prolonged use causing wear and minor damages.

Symptoms of a bad crisper glass shelf include:

• Cracks or chips in the glass material
• Broken or unstable shelf that sags or cannot hold weight
• Difficulty seeing contents due to opacity or clouding of the glass

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This crisper cover support mounts to the refrigerator liner and holds the crisper cover frame/glass level. Replacing a broken or missing support restores a stable shelf surface and helps the crisper drawers slide and close properly.

• Supports the crisper cover frame/glass along the cabinet wall
• Maintains a level surface to help prevent sagging or glass shifting
• Keeps crisper drawers aligned and moving smoothly
• Common symptoms: cracked or missing support, shelf tilts, glass slips, drawers scrape or won't close fully

• Disconnect power and clear the shelf area
• Remove crisper drawers and lift out the cover/glass
• Release and remove the damaged support; snap or screw the new support into the same position
• Reinstall the cover and drawers; verify level fit

This genuine shelf assembly replaces a damaged or cracked refrigerator cabinet shelf to restore stable storage and keep items organized. It fits original mounting points for a secure, flush installation. What it does:

• Provides a stable, flat surface for storing food and containers inside the refrigerator
• Replaces shelves that are cracked, warped, or no longer supporting weight safely
• Helps maintain proper airflow and organization when positioned as originally designed
• Restores the refrigerator's intended storage layout without modifying the cabinet

• Install on existing shelf supports or brackets; confirm orientation before seating
• Disconnect power and remove food items from the area for safer handling and access
• Handle glass or acrylic components carefully—use two hands and avoid impact
• If clips or supports are damaged, replace them to ensure a secure fit

The Crisper Drawer is an OEM part for Whirlpool refrigerators. This drawer provides the best storage environment for fruits and vegetables, helping to maintain their freshness for longer periods. It works by controlling the humidity levels within the drawer, reducing the chances of premature spoiling.

The crisper drawer can deteriorate over time from overloading, impacts, or aging, affecting humidity control and leading to food spoilage.

Symptoms of a bad Crisper Drawer include:

• Cracks or breaks in the drawer that compromise its structural integrity
• Difficulty in sliding the drawer in and out due to damage or warping
• Excessive moisture accumulation inside the drawer, indicating a failure in humidity control
• Visible signs of wear that affect the drawer's appearance and functionality

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: clear. Measures about 14 inches wide by 7 inches high by 19 inches deep.

This humidity control slide mounts on the crisper cover and moves the vent door that regulates moisture in the produce bin. Replacing a broken slider restores smooth adjustment so you can fine-tune humidity for better food freshness.

• Moves the crisper vent door between high and low humidity settings to control airflow
• Restores smooth, positive slider action and clear setting selection
• Common symptoms: slider cracked, missing, or stuck; humidity setting won't hold; crisper too wet or too dry; condensation in the drawer
• Direct-fit replacement for the original crisper humidity vent slider

• Unplug the refrigerator and remove the crisper drawer(s) for access
• Lift out or access the crisper cover where the slider seats
• Align the new slide with the vent/damper lever and snap or slide it into place
• Confirm smooth travel through the full range before reinstalling the drawer(s)

The Crisper Drawer Track is an OEM component for Whirlpool side-by-side refrigerators. It provides smooth gliding motion for organizing crisper drawers.

Causes primarily relate to ordinary fatigue from repetitive stresses concentrated along the drawer's travel path.

Symptoms involve:

• Crisper drawers difficult to fully extend or retract
• Noises or binding during operation
• Reduced organization from inconsistent track support

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Crisper Pan is an OEM part for Whirlpool refrigerators. This pan is essential for storing and organizing fruits and vegetables. The crisper pan provides a seamless surface that protects produce from damage while allowing optimal air circulation for extended freshness.

Causes of a bad crisper pan can include cracks or tears developing over time from repeated loading and unloading of produce. Spills or leaks inside the crisper could also degrade the pan material.

Symptoms of a bad crisper pan include:

• Discoloration, cracks or holes appearing on the pan surface
• Pan unable to properly fit or function within the crisper drawer
• Produce sitting directly on the drawer bottom without coverage
• Bacteria, mold or odors developing from unhygienic crisper conditions

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This humidity control body mounts on the crisper cover and forms the adjustable vent for the produce drawer. Replacing a cracked or missing housing restores smooth slider operation and helps manage moisture inside the crisper.

• Houses the humidity control slider and covers the vent opening on the crisper cover
• Regulates airflow into the drawer to help manage moisture for fruits and vegetables
• Restores proper fit when the original part is cracked, warped, or missing
• Common symptoms: loose or stuck slider, difficulty adjusting crisper humidity, excess condensation or wilting in the drawer

• Disconnect power; remove the crisper drawer and cover, handling any glass carefully
• Release retaining tabs or screws and remove the old humidity control body
• Transfer the existing slider/indicator as needed and seat the new body fully
• Verify smooth slider movement before reinstalling the cover and drawer

This crisper pan trim restores the finished edge around the refrigerator crisper drawer, keeping the drawer seated and maintaining a clean appearance. It replaces damaged or cracked trim to help the drawer operate smoothly. What it does:

• Secures the crisper/drawer edge and helps keep the drawer aligned
• Replaces chipped, cracked, or warped trim that can catch or impede the drawer
• Helps maintain a finished look inside the refrigerator
• Common symptom: visible damage to the drawer edge or trim that interferes with smooth drawer movement

• One crisper pan trim

• High-level, user-installable part; remove the drawer to access and snap or slide old trim off and new trim into place
• Use gentle pressure to avoid cracking adjacent components; do not force parts
• Disconnect power only if removing internal lights or working near electrical components; otherwise, power disconnection usually not required

Size: 8 x 1/2 ab.
