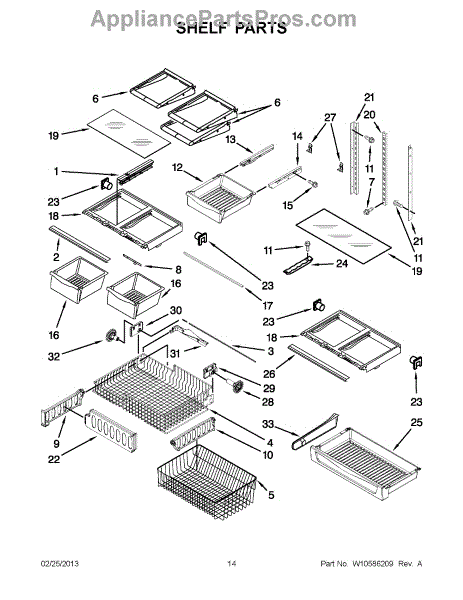

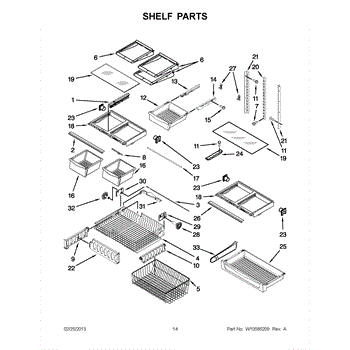

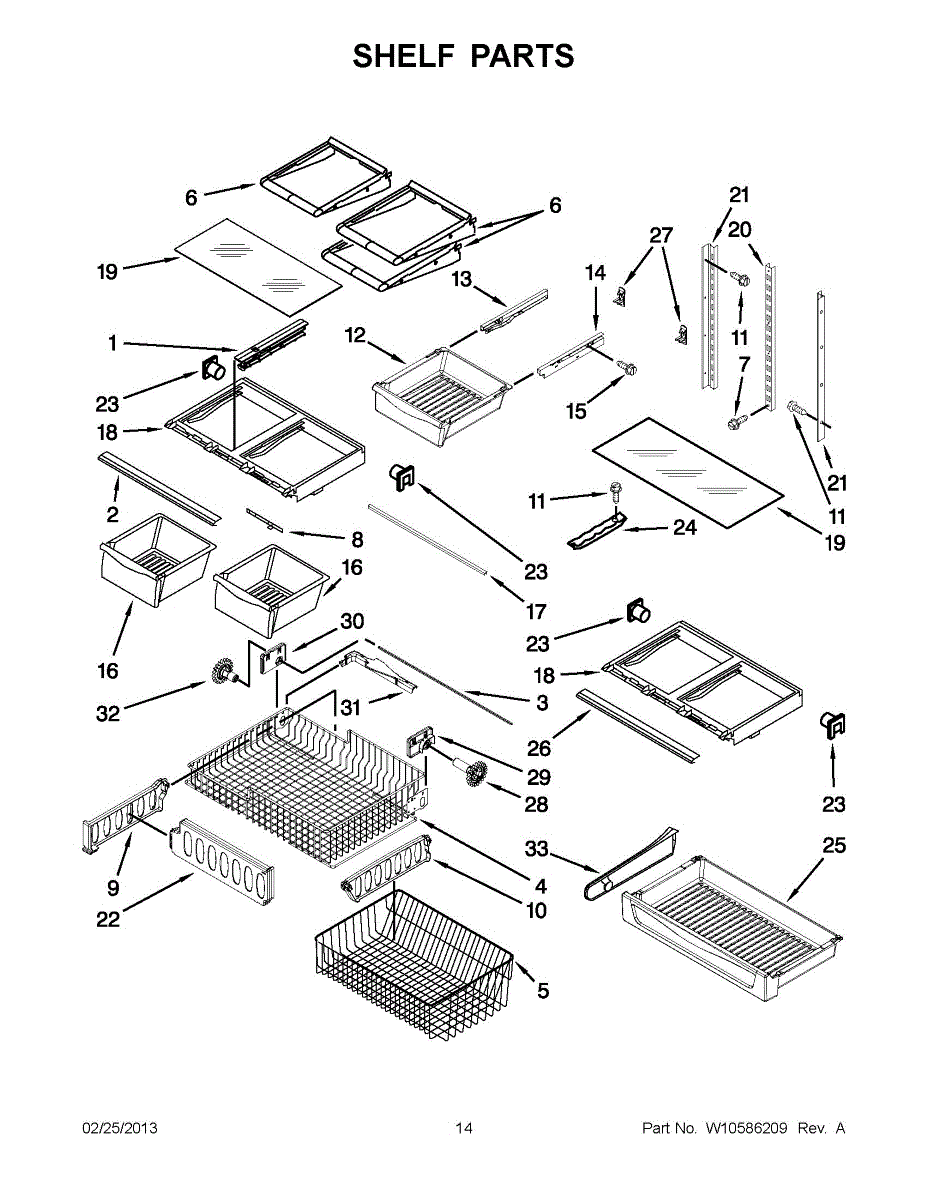

Parts for Whirlpool GX2FHDXVY09: 07 - Shelf Parts

Front trim piece for refrigerator glass shelves. Secures and finishes the shelf edge. Replace when cracked, broken, or missing to restore proper fit.

This replacement agitator shaft restores the connection between the washer transmission and agitator so laundry moves properly during the cycle. Replaces a worn or damaged shaft to help eliminate agitation failure and restore normal washing action. What it does:

• Transfers rotational force from the transmission to the agitator so clothes are moved and cleaned
• Commonly replaced when the agitator refuses to move, spins freely, or washing action is inconsistent
• Can address grinding or knocking noises coming from the transmission/agitator area
• Works as a direct-fit service part when matched to the correct washer model

• Disconnect power and water before beginning any repair
• Follow the washer's service manual or OEM exploded diagram for removal and installation steps
• Inspect surrounding components (agitator, transmission seals, fasteners) and replace if worn

Mounting screw for refrigerator interior components and panels. Replace if stripped, missing, or damaged during service to secure parts properly.

Humidity control slide for refrigerator crisper drawers. Replace this plastic slide if the lever tab has snapped off, cracked, or broken during use.

Plastic divider that organizes items in refrigerator storage baskets. Snaps into basket assembly. Replace if cracked, broken, or missing clips prevent secure attachment.

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

Drawer glide for refrigerator deli or crisper drawers. Replace if cracked, broken, or causing drawer to stick or fall out when opened. Mounts to shelf.

Replace your cracked or broken refrigerator drawer glide. Mounts to the interior wall to support smooth drawer sliding. Essential for worn or damaged glides.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Replacement crisper pan for bottom-mount refrigerators. Stores fruits and vegetables in the fresh food compartment. Replace if cracked, broken, or missing.

Support brace that stabilizes the crisper drawer shelf in your refrigerator's fresh food section. Replace if cracked, broken, or missing to keep drawers aligned.

Replacement crisper shelf frame for refrigerators. Supports glass and organizes crisper drawers. Replace if cracked, broken, or sagging. Glass not included.

Replace a cracked or broken shelf support ladder in your refrigerator. This ladder stabilizes shelf rails and prevents sagging. Easy DIY installation.

Replacement shelf support ladder that holds and stabilizes refrigerator shelves and bin tracks. Needed when original is cracked, broken, or missing.

Freezer compartment divider that separates storage sections in your refrigerator. Replace if cracked, broken, or missing to restore proper organization.

Right-side crisper cover support mounts to the inner wall and holds up the crisper cover and glass. Replace if cracked, broken, or missing to restore level.

Left-hand crisper support mounts inside your refrigerator to hold the crisper shelf and guide the drawer. Replace when cracked, broken, or worn for stability.

Supports and guides the deli drawer in your refrigerator's fresh food section. Replace if worn, broken, or causing drawer sticking, sagging, or derailment.

This hook supports and secures the rear of refrigerator shelves to the back wall of the compartment. Located on the refrigerator's back wall, replace it when shelves sag, won't stay level, or fall out of position.

Refrigerator freezer drawer glide gear that attaches to the rear shaft. Replace if broken, cracked, or missing tabs cause your basket to lean or fall off track.

Right-side gear mount bracket for refrigerators. Secures gear assembly in place. Replace if cracked, broken, or mounting tabs are damaged or missing.

Left-side gear mount bracket for bottom-mount refrigerators. Secures gear assembly in place. Replace if cracked, broken, or damaged to restore stability.

This spur gear is part of the appliance's drive assembly, transferring motor power to mating components. Replacing a worn or stripped gear restores smooth, consistent motion and helps eliminate grinding, slipping, or no-drive issues. What it does

• Transfers rotational power within the drive mechanism
• Maintains proper engagement with mating gear(s) for smooth operation
• Common failure symptoms: grinding/clicking noises, slipping or stalled movement, irregular motion
• Visual clues: rounded, chipped, or missing teeth

• One spur gear

• Disconnect power; turn off water supply before service
• Access the drive assembly and note gear orientation and any shims/washers during disassembly
• Inspect mating gears, bushings, and bearings; replace any worn components to prevent rapid re-failure
• Apply manufacturer-specified grease if required and tighten fasteners per service information
