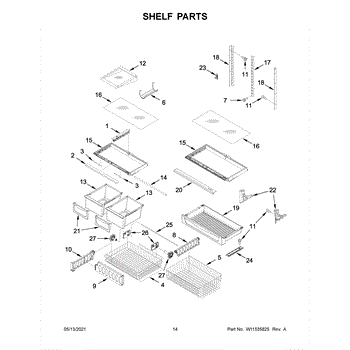

Parts for Kitchenaid KRBL102ESS03: Shelf Parts

The Center Crisper Rail is an OEM part for Whirlpool refrigerators. It serves as a support for the crisper drawer, helping to guide and stabilize the drawer as it slides in and out.

Symptoms of a bad Center Crisper Rail include:

• Difficulty in sliding the crisper drawer in or out.
• The drawer sagging or not aligning properly when closed.
• Unusual noises or resistance when moving the drawer.

Causes of a bad center crisper rail can include physical damage from overloading the drawer, wear and tear from regular use, or breakage due to brittle plastic and aging components.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Shelf Frame is an OEM part for Whirlpool refrigerators. It supports the refrigerator shelves, providing a sturdy and stable base for food storage. This frame ensures that the glass or wire shelves remain securely in place and can handle the weight of stored items. The frame measures about 28 by 15.5 inches.

Causes of a bad shelf frame can include heavy loading, physical impacts, or material fatigue over time.

Symptoms of a bad Shelf Frame include:

• Shelves not sitting level or securely
• Cracks or breaks in the frame
• Difficulty installing or removing shelves
• Items falling or tipping over due to instability

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Replacement utility pan that fits under the oven cavity to catch spills and crumbs, helping protect the oven floor and simplify cleanup. Fits into the oven's lower compartment for routine baking and roasting use. What it does:

• Catches drips, grease and food debris to keep the oven bottom cleaner and reduce smoke from burnt spills.
• Helps prevent spills from reaching internal oven components and the kitchen floor.
• Restores proper fit and function when the original pan is missing, bent, or corroded.
• Works with standard oven racks and slides into the lower oven cavity.

• Disconnect power to the appliance before inspecting or servicing the oven to reduce shock risk.
• Allow the oven to cool completely before removing or installing the pan.
• Slide the pan into the lower oven cavity on the support rails; ensure it sits flat and does not interfere with rack movement.
• Clean with mild detergent and a nonabrasive cloth; avoid harsh cleaners that may damage the finish.

This replacement agitator shaft restores the connection between the washer transmission and agitator so laundry moves properly during the cycle. Replaces a worn or damaged shaft to help eliminate agitation failure and restore normal washing action. What it does:

• Transfers rotational force from the transmission to the agitator so clothes are moved and cleaned
• Commonly replaced when the agitator refuses to move, spins freely, or washing action is inconsistent
• Can address grinding or knocking noises coming from the transmission/agitator area
• Works as a direct-fit service part when matched to the correct washer model

• Disconnect power and water before beginning any repair
• Follow the washer's service manual or OEM exploded diagram for removal and installation steps
• Inspect surrounding components (agitator, transmission seals, fasteners) and replace if worn

Left side mount

Right side mount

The Drawer Glide Gear is an OEM part for Whirlpool refrigerators. This part ensures the smooth operation of refrigerator drawers, allowing them to slide in and out with ease. This gear mechanism is vital for the user-friendly access to stored food items, contributing to the efficient organization and optimization of space within the refrigerator.

Causes for replacement include physical damage such as cracks or breakage, wear that impedes smooth operation, or a malfunction that prevents drawers from opening or closing properly.

Symptoms of a bad Drawer Glide Gear include:

• Difficulty in sliding the refrigerator drawers
• Uneven movement or jamming of the drawer
• Noise when opening or closing the drawer

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This spur gear is part of the appliance's drive assembly, transferring motor power to mating components. Replacing a worn or stripped gear restores smooth, consistent motion and helps eliminate grinding, slipping, or no-drive issues. What it does

• Transfers rotational power within the drive mechanism
• Maintains proper engagement with mating gear(s) for smooth operation
• Common failure symptoms: grinding/clicking noises, slipping or stalled movement, irregular motion
• Visual clues: rounded, chipped, or missing teeth

• One spur gear

• Disconnect power; turn off water supply before service
• Access the drive assembly and note gear orientation and any shims/washers during disassembly
• Inspect mating gears, bushings, and bearings; replace any worn components to prevent rapid re-failure
• Apply manufacturer-specified grease if required and tighten fasteners per service information
