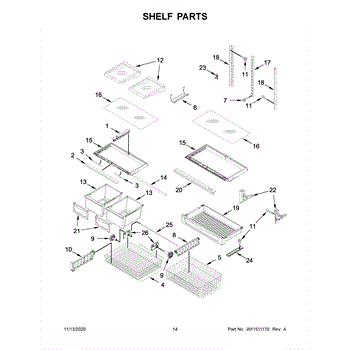

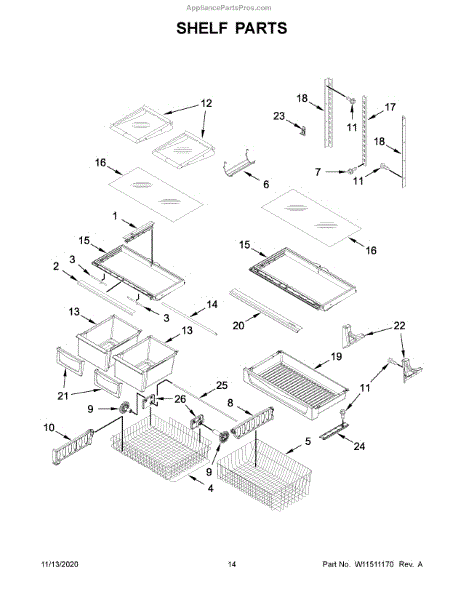

Parts for Kitchenaid KRBL109ESS02: Shelf Parts

The Center Crisper Rail is an OEM part for Whirlpool refrigerators. It serves as a support for the crisper drawer, helping to guide and stabilize the drawer as it slides in and out.

Symptoms of a bad Center Crisper Rail include:

• Difficulty in sliding the crisper drawer in or out.
• The drawer sagging or not aligning properly when closed.
• Unusual noises or resistance when moving the drawer.

Causes of a bad center crisper rail can include physical damage from overloading the drawer, wear and tear from regular use, or breakage due to brittle plastic and aging components.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Drawer Glide Gear is an OEM part for Whirlpool refrigerators. This part ensures the smooth operation of refrigerator drawers, allowing them to slide in and out with ease. This gear mechanism is vital for the user-friendly access to stored food items, contributing to the efficient organization and optimization of space within the refrigerator.

Causes for replacement include physical damage such as cracks or breakage, wear that impedes smooth operation, or a malfunction that prevents drawers from opening or closing properly.

Symptoms of a bad Drawer Glide Gear include:

• Difficulty in sliding the refrigerator drawers
• Uneven movement or jamming of the drawer
• Noise when opening or closing the drawer

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This spur gear is part of the appliance's drive assembly, transferring motor power to mating components. Replacing a worn or stripped gear restores smooth, consistent motion and helps eliminate grinding, slipping, or no-drive issues. What it does

• Transfers rotational power within the drive mechanism
• Maintains proper engagement with mating gear(s) for smooth operation
• Common failure symptoms: grinding/clicking noises, slipping or stalled movement, irregular motion
• Visual clues: rounded, chipped, or missing teeth

• One spur gear

• Disconnect power; turn off water supply before service
• Access the drive assembly and note gear orientation and any shims/washers during disassembly
• Inspect mating gears, bushings, and bearings; replace any worn components to prevent rapid re-failure
• Apply manufacturer-specified grease if required and tighten fasteners per service information

This replacement frame is the structural support piece that holds and aligns an interior component, helping keep items level and parts seated correctly. Replacing a damaged frame restores proper support, fit, and smooth operation. What it does:

• Provides rigid support for the component it houses
• Maintains alignment so parts fit and move as intended
• Helps prevent sagging, wobble, or poor seating of inserts
• Common symptoms include visible cracks, broken tabs/corners, or difficulty sliding/positioning related parts

• 1 frame

• Disconnect power (and water supply if applicable) before servicing
• Remove contents and any glass/insert from the old frame
• Transfer reusable inserts or hardware from the old frame to the new one
• Ensure all tabs and rails are fully engaged before reloading

This refrigerator crisper cover glass sits above the produce drawers to create a solid shelf and help the bins seal properly. Replace cracked or missing glass to restore safe storage space and consistent crisper performance.

• Forms the shelf/cover above the crisper drawers and supports stored items
• Helps the drawers seal to maintain proper humidity for produce
• Replaces damaged, cracked, or missing glass that creates an unstable surface
• Common symptoms: broken/shattered pane, sagging shelf, items tipping, drawers not closing or sealing flush

• Unplug the refrigerator and clear the shelf area before starting
• Remove the crisper drawers; lift the cover if needed and slide the old glass out
• Handle glass with two hands; wear gloves if the old panel is broken
• Ensure the new glass seats fully in the cover/frame before reinstalling drawers and food

The Utility Pan is an OEM part for Whirlpool refrigerators. It is responsible for providing additional storage space in the refrigerator through a sliding drawer.

The utility pan is designed with smooth roller glides to allow for easy and quiet opening and closing of the drawer. It provides a flexible storage solution for taller or bulkier items that may not fit elsewhere in the refrigerator.

Causes of a bad utility pan can include worn glides or rollers resulting in difficult opening/closing, or damage to the assembly components themselves through heavy use over time.

Symptoms of a bad utility pan include:

• The drawer failing to fully close or open
• Items inside tipping over due to uneven motion
• Noise or scraping sounds when operating the drawer
• Physical damage or deformation of the assembly

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Left side mount

Right side mount
