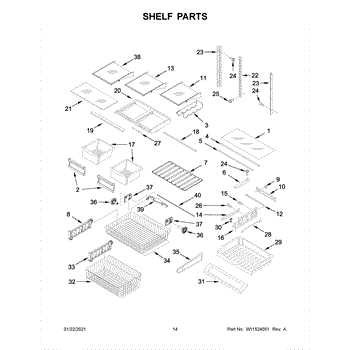

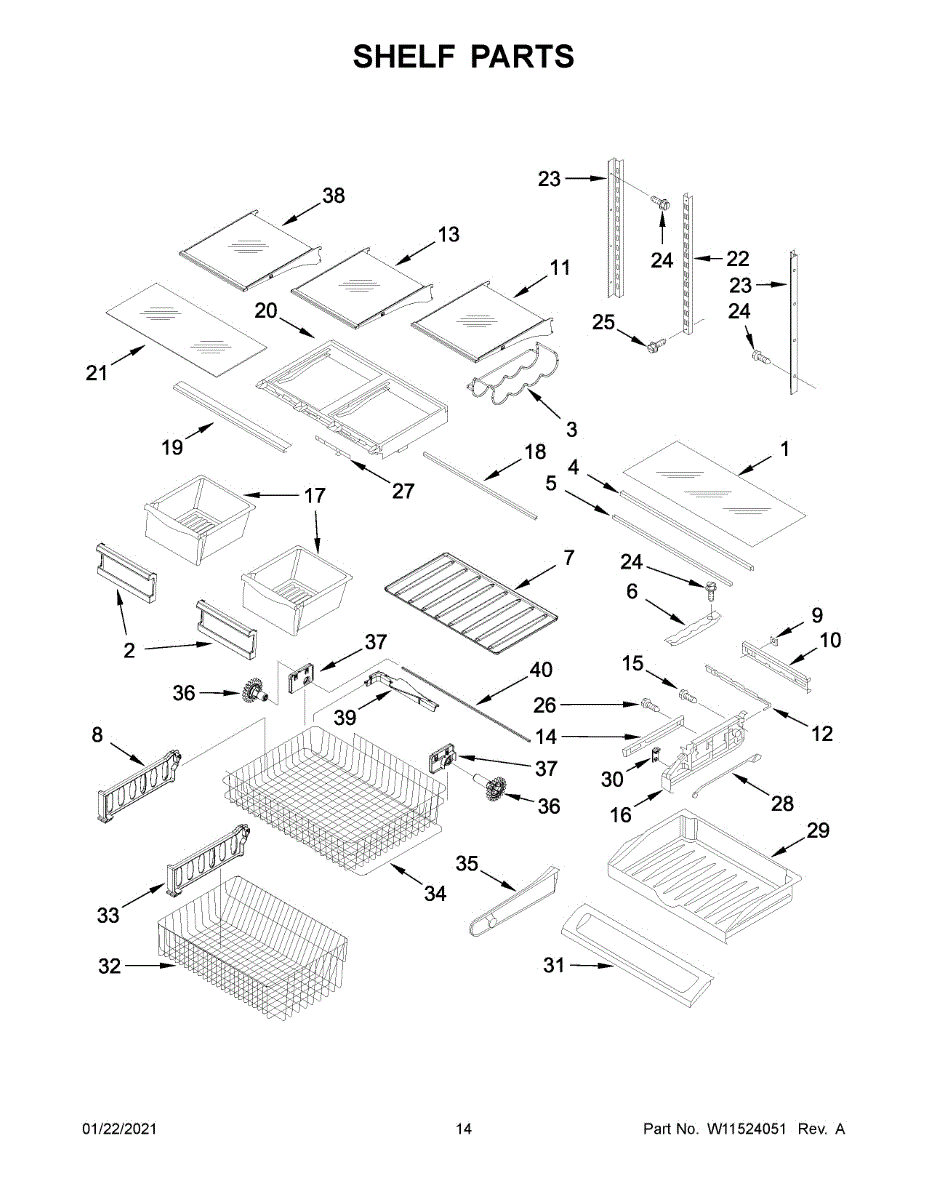

Parts for Kitchenaid KRFC300EBS02: Shelf Parts

Glass shelf that provides a sturdy, flat surface for organizing refrigerator items and maximizing usable storage. Replaces damaged or missing shelves to restore stable support and proper spacing inside the fridge. What it does:

• Provides a stable surface for food containers, beverages and produce.
• Restores correct shelf height and spacing for efficient storage and door/drawer operation.
• Replaces cracked, chipped or broken glass to prevent items from falling or shifting.
• Installs into existing shelf rails to re-establish usable storage area.

• Remove all items from the shelf area and support the glass at both ends during removal and installation.
• Align the shelf with the existing rails and slide evenly until fully seated; do not force.
• Handle broken glass with heavy gloves and dispose of the old shelf safely.

This crisper drawer front replaces the damaged face of your refrigerator's produce bin, restoring a solid handhold and proper drawer fit. Install it to keep contents contained and help the drawer open, close, and align smoothly. What it does:

• Attaches to the front of the crisper pan and serves as the handhold for opening and closing
• Retains items inside the bin to prevent spills into the compartment
• Helps the drawer sit squarely and slide correctly in its tracks
• Common symptoms: cracked or missing front, loose/broken tabs, drawer hard to open/close, or popping off rails

• 1 crisper drawer front

• Disconnect power to the refrigerator before servicing
• Remove the crisper drawer and place it on a padded, flat surface
• Release the locking tabs/clips to remove the old front; avoid over-flexing the drawer box
• Align the new front and press until all tabs fully engage, then reinstall the drawer

This replacement shelf trim restores the finished front edge of a refrigerator shelf, helping keep small items from sliding off and improving the shelf's appearance. It's the correct cosmetic/edge piece for a damaged, cracked, or missing shelf front. What it does:

• Attaches to the front edge of a refrigerator shelf to provide a finished trim and edge protection
• Helps prevent small items from sliding off the shelf front
• Replaces cracked, chipped, or broken shelf edging that affects appearance or function
• Matches the original shelf front location and mounting style

• One shelf trim

• Remove the shelf and place on a soft, stable surface before installing the trim
• Trim typically snaps onto the shelf front; press evenly until clips engage
• Handle glass shelves with care to avoid breakage; wear gloves and eye protection as needed
• If clips are damaged or installation feels forced, review the shelf and clip condition.

This pantry brace secures the pantry assembly on 36-inch refrigerator pantry units, restoring proper alignment and stability for smooth door operation. It replaces a bent or broken brace to help maintain correct pantry support and fit. What it does:

• Provides structural support for the pantry/pull-out assembly to prevent sagging or misalignment
• Helps restore smooth opening and closing when the pantry feels loose or uneven
• Replaces damaged or cracked braces that can cause rattling or binding
• Works as a direct-fit replacement for the 36-inch pantry brace used in compatible Whirlpool pantry assemblies

• One pantry brace

• Remove power to the appliance and empty the pantry/pull-out before replacing the brace
• Use appropriate hand tools and avoid overtightening fasteners to prevent damage
• Inspect surrounding hardware and tracks for wear while replacing the brace

This lower basket tray replaces the damaged or missing drip pan beneath the dishwasher's lower rack to help contain spills and protect the tub. It restores proper water containment and supports lower-rack stability for everyday cycles. What it does:

• Sits under the lower dishwasher rack to catch drips and small debris
• Helps direct water flow away from components and into the drain area
• Prevents direct contact between dishes and the tub floor where applicable
• Useful when the original tray is cracked, warped, or missing

• One lower basket tray

• Designed for straightforward drop-in replacement; no special tools typically required
• Disconnect power and shut off water to the appliance before working on it
• Inspect surrounding rack supports and clips; replace any damaged hardware for proper fit
• Dispose of the old tray according to local regulations

The Shelf-Glass is an OEM part specifically designed for Whirlpool refrigerator shelves. These tempered glass shelves provide a durable, transparent surface for neatly organizing and storing items within the refrigerator compartment.

Causes of bad shelf-glass can include chips or cracks developing from repeated impact or overloading of the shelves with heavy items over many years of use.

Symptoms of a bad shelf glass include:

• Noticeable cracks or chips in the glass
• Warpage or sagging of the glass shelf surface
• Leaks or moisture issues within the refrigerator from broken shelving

This Whirlpool part is compatible with Kenmore, Maytag, Amana, Magic Chef, and select models from Electrolux, Gibson, and Norge featuring equivalent refrigerator shelving designs.

The Pantry Drawer Rail is an OEM part for Whirlpool refrigerators. This part allows it to slide in and out smoothly for easy access to stored food items.

Causes of a bad pantry drawer rail can include repeated heavy loads, general wear and tear, or accidental damage.

Symptoms of a bad pantry drawer rail include:

• Difficulty sliding the pantry drawer in and out
• Pantry drawer not staying in place
• Uneven or wobbly drawer movement
• Visible damage or bending of the rail

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Note: Left Pantry End Cap

The Pantry End Cap is an OEM part for Whirlpool refrigerators. It provides structural support to the pantry drawer, ensuring smooth operation and proper alignment within the refrigerator.

Causes of a bad Pantry End Cap can include regular wear and tear, overloading the drawer, or accidental impact that causes the support to break or become misaligned. A damaged support can hinder the drawer's functionality and lead to difficulty in accessing stored items.

Symptoms of a bad Pantry Pantry End Cap include:

• Difficulty in opening or closing the pantry drawer
• The drawer not staying aligned or falling out of its track
• Cracks or breaks in the support structure
• Unusual noises when using the drawer

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: Right Pantry End Cap

The Pantry END CAP is an OEM part for Whirlpool refrigerators. It functions as a structural component that helps to stabilize and support the pantry drawer, ensuring it slides smoothly and remains level within the refrigerator.

Symptoms of a bad Pantry END CAP include:

• The pantry drawer becoming difficult to open or close.
• Noticeable sagging or misalignment of the drawer, affecting its function.
• Unusual noises or resistance when moving the drawer, indicating improper support.

Causes of a bad pantry drawer support can include excessive weight in the drawer that exceeds design limits, physical impacts from loading or unloading items, or general wear and tear from frequent use.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: For the left-hand side Pantry Drawer Support, order part number WP12656105.

This shelf trim attaches to the edge of your refrigerator's glass shelf to create a finished lip and help contain minor spills. Replacing a cracked or missing trim restores shelf stability and keeps stored items from shifting. What it does:

• Snaps onto the glass shelf edge to provide a finished, protective lip
• Helps support and stabilize the glass shelf panel
• Aids in containing small spills on the shelf
• Common symptoms: trim is cracked, warped, missing, or won't stay attached

• 1 shelf trim

• Disconnect power and remove the shelf; work on a clean, padded surface
• Allow cold glass to reach room temperature before handling
• Align the trim with the shelf edge and press evenly until fully seated
• Wear cut-resistant gloves; avoid excessive force on glass edges

This replacement ladder secures and guides oven or range racks, restoring stable shelf positioning and smooth rack movement. It helps stop racks from tipping, sliding unevenly, or shifting during use. What it does:

• Provides a stable guide for oven/range racks so they slide in and out smoothly
• Prevents racks from tilting or falling when loading or removing cookware
• Reduces rattling or uneven movement caused by worn or damaged ladder guides
• Restores proper rack alignment and positioning

• Disconnect power to the appliance before beginning any work
• Remove racks and any obstructions to access the ladder mounting area
• Typically secures with clips or screws; retain hardware and install per OEM instructions

This one-piece divider fits into a refrigerator shelf track to separate and stabilize items, helping keep food organized and upright. It restores the shelf layout and prevents items from sliding or shifting during normal use. What it does

• Separates and organizes food on a refrigerator shelf or compartment
• Helps keep bottles, containers, and small items upright and prevent tipping
• Restores proper shelf layout when the original divider is cracked or missing
• Provides a simple, low-profile partition without altering shelf surface

• One shelf divider

• Remove food and any loose shelving before installing to avoid spills
• Slide or snap the divider into the shelf track or designated slots; no special tools typically required
• Inspect mating shelf track for damage; replace track or shelf if divider will not seat securely
• Clean with mild detergent; avoid abrasive cleaners or high heat that could warp the plastic

The Drawer Glide Gear is an OEM part for Whirlpool refrigerators. This part ensures the smooth operation of refrigerator drawers, allowing them to slide in and out with ease. This gear mechanism is vital for the user-friendly access to stored food items, contributing to the efficient organization and optimization of space within the refrigerator.

Causes for replacement include physical damage such as cracks or breakage, wear that impedes smooth operation, or a malfunction that prevents drawers from opening or closing properly.

Symptoms of a bad Drawer Glide Gear include:

• Difficulty in sliding the refrigerator drawers
• Uneven movement or jamming of the drawer
• Noise when opening or closing the drawer

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This spur gear is part of the appliance's drive assembly, transferring motor power to mating components. Replacing a worn or stripped gear restores smooth, consistent motion and helps eliminate grinding, slipping, or no-drive issues. What it does

• Transfers rotational power within the drive mechanism
• Maintains proper engagement with mating gear(s) for smooth operation
• Common failure symptoms: grinding/clicking noises, slipping or stalled movement, irregular motion
• Visual clues: rounded, chipped, or missing teeth

• One spur gear

• Disconnect power; turn off water supply before service
• Access the drive assembly and note gear orientation and any shims/washers during disassembly
• Inspect mating gears, bushings, and bearings; replace any worn components to prevent rapid re-failure
• Apply manufacturer-specified grease if required and tighten fasteners per service information

Left side mount

Right side mount

Glass Shelf provides a stable, easy-to-clean surface for storing foods in the refrigerator. Replace a cracked, chipped, or missing shelf to restore usable storage space, help prevent spills, and keep items organized and visible. What it does:

• Supports food and containers on a flat shelf surface for everyday fridge storage.
• Keeps items level and visible to reduce tipping and help prevent spills.
• Replaces a damaged or missing shelf to restore full interior storage capacity.
• Sits in the refrigerator shelving supports to stay secure during normal use.

• Slide shelf into the refrigerator's dedicated shelf supports; ensure supports are intact and properly seated.
• Handle with care—wear gloves and protective eyewear to avoid cuts if glass is damaged.
• Clean with mild detergent and a soft, non-abrasive cloth; avoid sudden temperature changes that can stress glass.

This replacement oven door handle restores a secure grip for opening and closing the oven door. It replaces a damaged, loose, or missing handle to make door use safer and more convenient. What it does:

• Provides a sturdy grip for opening and closing the oven door
• Replaces handles that are cracked, bent, loose, or missing
• Helps prevent slippage and improves user control when handling hot appliances
• Matches the original mounting style for a straightforward replacement

• Use basic hand tools; support the door while removing and installing the handle to avoid injury or damage
• Disconnect power to the appliance or ensure it is cool before attempting replacement
• Tighten mounting fasteners securely but do not overtighten to avoid stripping

This replacement shaft is the mechanical link that transmits rotation and keeps aligned parts moving together inside your appliance. Replacing a worn or stripped shaft restores smooth, reliable operation of the connected mechanism. What it does:

• Transfers motor or gear torque to the mated component
• Maintains alignment and support within the assembly
• Helps ensure smooth engagement of gears, levers, or augers
• Common symptoms of a failed shaft: connected part won't turn or slips, intermittent operation, grinding/clicking noises, or visible wobble/play at the interface

• 1 shaft

• Disconnect power before servicing; shut off water supply if applicable
• Note the original orientation and take photos to aid reassembly
• Inspect mating gears/bushings for wear and replace if needed to prevent rapid re-failure
• Align any flats/splines and seat the shaft without forcing; tighten fasteners to manufacturer guidance
