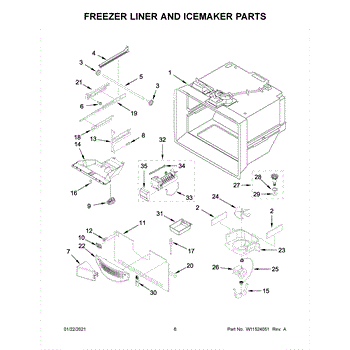

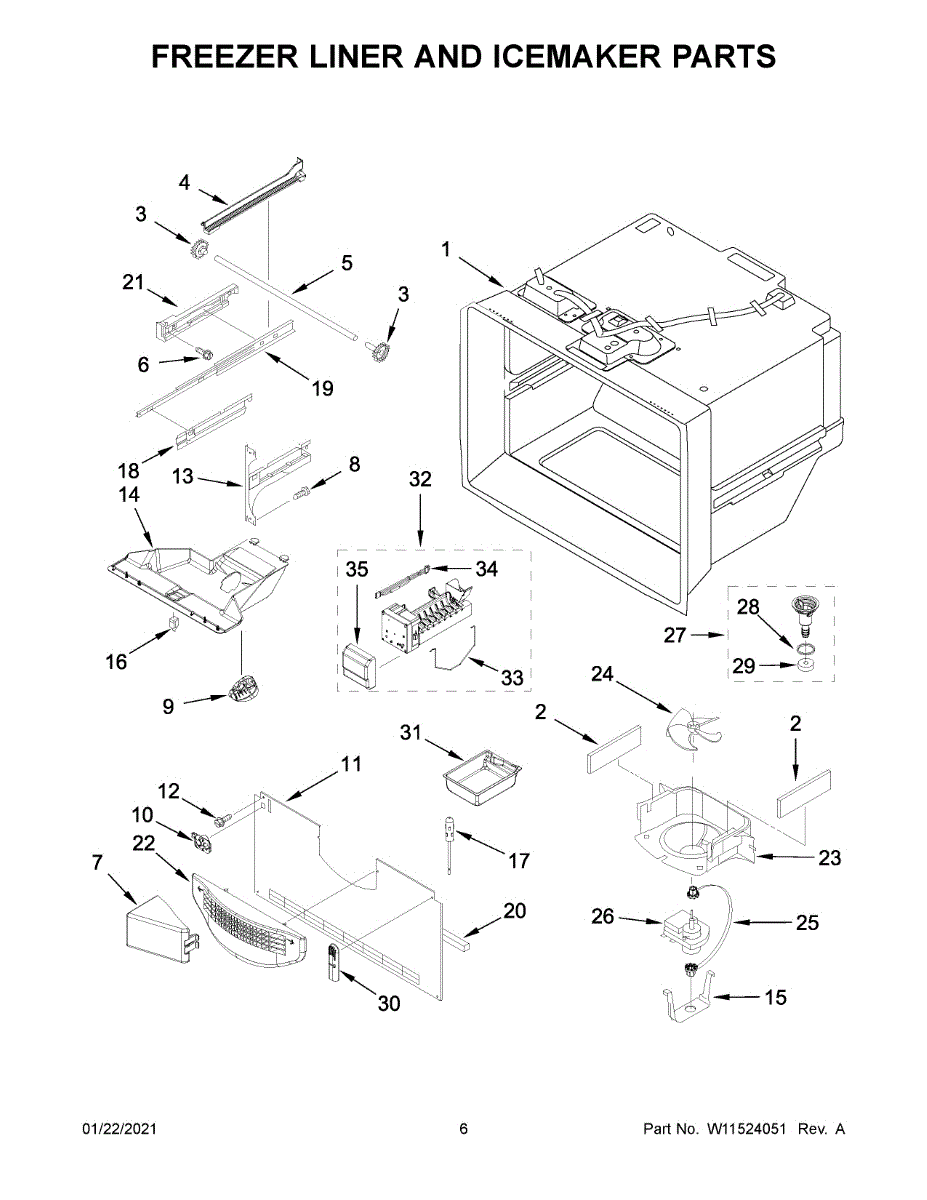

Parts for Kitchenaid KRFC300EBS02: Freezer Liner And Icemaker Parts

The Shaft is an OEM part for Whirlpool refrigerators. This component serves as the axle for the refrigerator's wheels, allowing for smooth movement when repositioning or cleaning the appliance. It is designed to fit securely and ensure stability during use. The shaft's approximate length is 26 inches.

Common causes of a bad wheel shaft include excessive weight, rough handling during relocation, or wear and tear over time.

Symptoms of a bad wheel shaft include:

• Difficulty moving the refrigerator
• Unstable or wobbly positioning
• Visible bending or damage to the shaft
• Unusual noises when moving the appliance

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The LED Light Module is an OEM replacement part for Whirlpool refrigerators. This lighting module is responsible for providing illumination inside the refrigerator and freezer compartments. It contains energy-efficient LEDs that produce a bright, consistent light.

Causes of a bad LED Light Module can include failing or damaged LEDs due to age or accidental impact. Sensor or electrical issues within the module itself could also cause lighting problems.

Symptoms of a bad LED Light Module include:

• Dim, flickering, or non-functioning lights
• Parts of the lighting not working properly
• Premature burning out of LEDs
• Electrical humming or buzzing from the lighting area

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Switch is an OEM part for Whirlpool refrigerators. This switch is crucial for controlling the interior lights and the activation of certain refrigerator functions when the door is opened or closed.

Symptoms of a failing Door Switch include:

• Interior lights staying on when the refrigerator door is closed
• Interior lights not turning on when the door is opened
• The refrigerator unexpectedly starting or stopping
• Alarms or indicators malfunctioning, signaling an open door when it is closed

Causes of a bad door switch can involve mechanical failure due to wear and tear from frequent use, damage from impacts (such as slamming the door), or electrical issues like a short circuit or faulty wiring.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Refrigerator Temperature Sensor is an OEM replacement part for Whirlpool refrigerators. It is a crucial component responsible for accurately monitoring and regulating the temperature inside the refrigerator and freezer compartments.

Symptoms of a faulty temperature sensor include:

• Inconsistent or fluctuating temperatures in the refrigerator or freezer
• The refrigerator running continuously or not cooling properly
• Error codes or indicators related to temperature control issues

Causes of a bad temperature sensor can include normal wear and tear over time, electrical malfunctions, sensor failure, or damage from moisture or condensation.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

This replacement cradle secures the freezer basket inside the freezer compartment, restoring proper support and alignment so the basket slides and seats correctly. Designed to replace a damaged or broken bracket. What it does:

• Supports and holds the freezer basket in place to prevent sagging or tipping
• Keeps the basket aligned for smooth sliding and proper door closure
• Helps stop rattling or excess movement from a loose or broken bracket
• Fits and mates with the freezer interior where the basket rests

• One cradle

• Disconnect power before accessing the freezer interior and working near electrical components
• Remove the freezer basket first to access and replace the cradle more easily
• Retain any screws or clips from the original part and reuse if undamaged; replace damaged fasteners
• If clips or mounting tabs are broken, inspect surrounding plastic for damage that may need repair

This cradle secures the freezer basket inside the freezer compartment so the basket stays supported and properly aligned for smooth use. It restores stable basket positioning and helps prevent sagging or unexpected drops. What it does:

• Provides a sturdy mounting point that holds the freezer basket in place
• Keeps the basket properly aligned for smooth sliding and removal
• Prevents the basket from tilting, sagging, or falling during use
• Helps reduce noise caused by a loose or misaligned basket

• Disconnect power to the appliance or unplug before beginning repairs
• Remove the freezer basket and any contents before installing the cradle
• Typical installation uses basic hand tools; handle parts carefully to avoid damage

*** Note: Sold individually ***

Left-hand side adapter bracket that secures and aligns the appliance's left panel or component. Replaces a damaged or missing bracket to restore proper fit and reduce vibration or panel misalignment. What it does:

• Provides a mounting point and alignment for the appliance's left-side panel or related component.
• Keeps panels flush and prevents gaps that can cause rattling or rubbing.
• Commonly replaced when a panel is loose, misaligned, or the original bracket is broken.
• Helps maintain proper door/panel operation and overall appliance stability.

• Disconnect power (and gas if applicable) before beginning any repair.
• Basic hand tools are typically required; follow the appliance's service manual for exact fastener types.
• Inspect surrounding clips and fasteners during replacement and replace if worn or damaged.

This right-side adapter bracket mounts to the appliance cabinet and supports the mating shelf, bin, or panel on that side. Replace it to restore a secure fit and alignment when the original is cracked, loose, or missing.

• Secures and supports the component on the right side of the assembly
• Maintains alignment to prevent wobble, sagging, or pop-out
• Helps drawers/shelves operate smoothly when properly fastened
• Common replacement reasons: broken tabs, stripped holes, visible cracks, or missing bracket

• Disconnect power to the appliance before servicing
• Remove the related shelf/bin/drawer to access the bracket
• Reuse original mounting screws and any transferable clips/spacers
• Tighten screws evenly without overtightening

A molded defrost drain funnel that routes condensation and melted frost into the refrigerator's drain to help prevent pooling and interior leaks. Replaces cracked or clogged funnels to restore proper water flow in the drain path. What it does

• Guides defrost and condensation water from the evaporator area into the fridge drain system.
• Helps prevent water pooling inside the fresh-food or freezer compartments.
• Worn, cracked or clogged funnels can cause dripping, pooling or frost build-up near the evaporator.
• Restores a secure, directed path for meltwater to reach the drain tube and pan.

• Disconnect power to the appliance before accessing internal components to reduce shock risk.
• Remove food and any removable shelving to access the evaporator/drain area; handle plastic trim carefully to avoid breakage.
• Inspect surrounding drain area for ice, debris or clogs and clear before reinstalling the funnel.
• If clips or screws secure the funnel, retain hardware and reinstall securely; test a small amount of water to ensure proper drainage.

This ice container stores the ice your refrigerator makes and interfaces with the dispenser drive so cubes reach the door. Replacing a cracked or worn bin restores smooth, sanitary ice storage and dependable dispensing.

• Holds and organizes ice beneath the icemaker
• Guides cubes to the dispenser drive for cube or crushed delivery on models with a dispenser
• Helps prevent spills and stray ice in the freezer
• Common failure signs: cracked bin, ice not dispensing, clumping/jamming, or frost/shavings around the bucket area

• Unplug the refrigerator or switch off power before servicing; empty the old bin
• Slide the bin straight out and clear frost/debris from rails or the mounting area
• Align the drive connection (if present) and fully seat the new container so it sits flush or latches
• Restore power and test the ice dispense function

The Ice Maker is an OEM part compatible with Whirlpool refrigerators. It is a crucial component responsible for producing and dispensing ice cubes for your convenience and enjoyment.

Note: This replacement icemaker has a plastic tray on the bottom. If you are replacing this part the original icemaker you have to remove the plastic tray from this icemaker so the bracket will connect to hold the icemaker in place

Symptoms of needing to replace the ice maker include:

• Reduced or no ice production
• Ice cubes sticking together or clumping
• Unusual noises or grinding sounds from the ice maker
• Water leaks or condensation buildup around the ice maker area

Causes of needing a new ice maker can include normal wear and tear over time, issues with the water supply or filtration system, or physical damage due to impact or mishandling.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

The shut-off arm is the lever that tells the ice maker when to stop and start making ice. Replace a bent, missing, or jammed arm to restore proper ice production control and prevent bin overfilling. What it does:

• Lowers to allow ice production; raises to stop cycles when the bin is full (down = on, up = off)
• Helps prevent overfilling, spills, and auger jams
• Common symptoms: ice maker won't stop making ice, no ice when the arm is stuck up, inconsistent ice production from misalignment
• Restores proper ice level sensing when the original lever is damaged or missing

• One shut-off arm

• Disconnect power and shut off water before servicing
• Remove the ice bin to access the ice maker
• Seat the arm's pivot ends fully in the ice maker head; avoid bending the lever
• The arm moves freely up/down and clears the bin before restoring power

This wire harness supplies the factory wiring connections between appliance components to restore reliable electrical communication and control. It replaces a damaged or faulty harness to help eliminate intermittent power or control problems. What it does:

• Carries electrical signals and power between switches, sensors, motors and control boards
• Restores lost or intermittent connections that can cause controls, lights or components to stop working
• Prevents arcing and unreliable operation caused by frayed, burned or loose wires
• Ensures correct connector fit and factory routing for safe operation

• Disconnect power (unplug or shut off breaker) before starting any repair
• Match connector shapes and routing to the original harness; do not force connectors
• Inspect mating terminals and grounding points; replace or repair damaged terminals per OEM guidance

This ice maker cover shields the front of the ice maker assembly, protecting the module and moving parts from dust and accidental contact. Replacing a cracked or missing cover restores a clean, finished appearance and keeps components protected.

• Shields the ice maker's front components and control module
• Helps keep dust, splashes, and debris out of the mechanism
• Prevents accidental contact with moving ejector parts
• Replace if the cover is cracked, warped, missing, or will not stay attached

• Unplug the refrigerator before servicing
• Access the ice maker in the freezer compartment
• Carefully release the retaining tabs and remove the old cover; note orientation
• Align the new cover and press until it snaps securely into place—do not force the tabs
