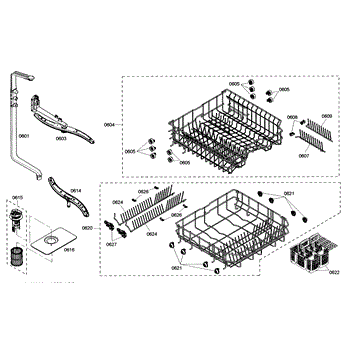

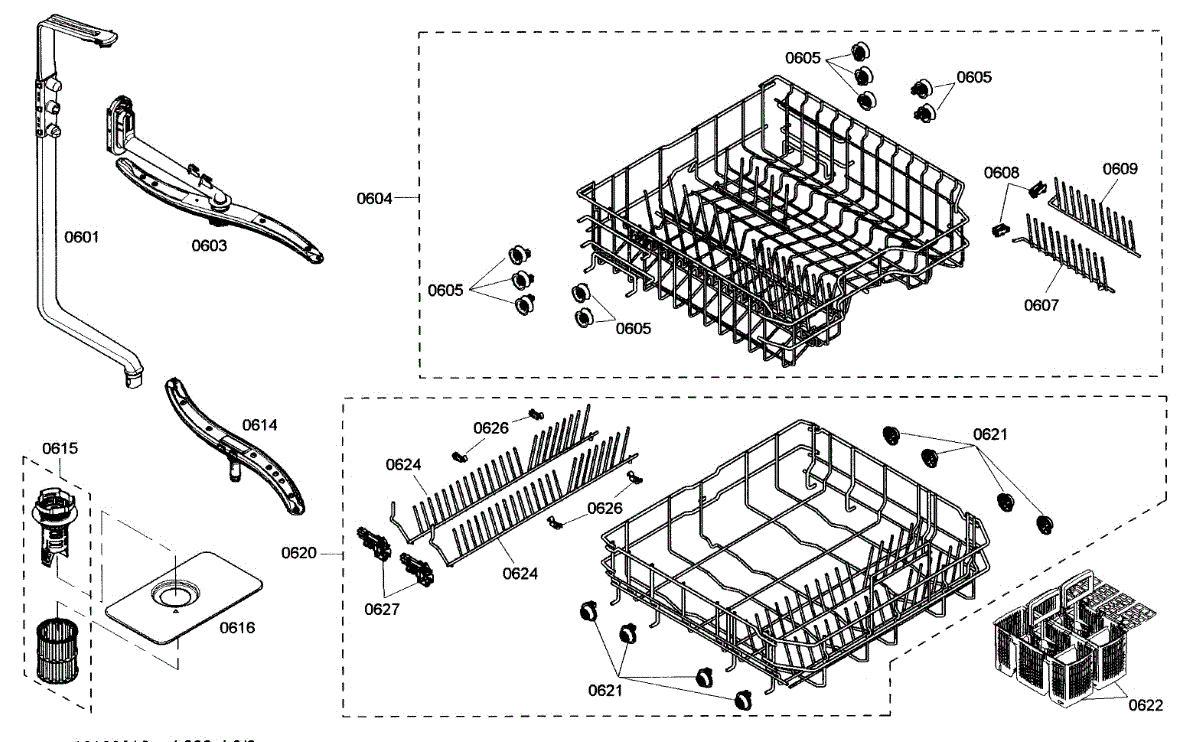

Parts for Bosch SHE5AM02UC/01: Shelfs Assembly Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Middle Spray Arm is an OEM replacement part for Bosch dishwashers. It is a rotating component located in the lower dishwasher rack that assists in evenly distributing water across dishes during the wash cycle.

Symptoms of a bad spray arm include:

• Incomplete cleaning of dishes, even after multiple cycles
• Soap scum or food soils remaining in hard-to-reach areas
• Dishes coming out either spotty or dry in areas not rinsed properly

Causes of spray arm failure can be worn out or damaged arm brackets preventing proper rotation, cracks in the arm itself inhibiting water coverage, or mineral buildup inhibiting 360-degree rotation.

This OEM Bosch replacement part is also compatible with some Thermador, Gaggenau, and Kenmore dishwashers.

The Reel is the rotating spool that winds or guides a cord, cable, or belt inside the appliance. It maintains smooth motion and proper tension so the connected mechanism operates reliably without binding, slippage, or jams.

• Guides or winds a cord, cable, or belt on a central hub
• Maintains alignment and tension for smooth, consistent operation
• Helps prevent snagging, overwind, or uneven take-up
• Wear or damage can cause noise, binding, loss of tension, or failure to retract/advance

• Disconnect power and any utilities before servicing the appliance
• Access the assembly per your service manual; note routing and orientation with photos
• If spring-loaded, release and set tension carefully to avoid injury
• Transfer any clips, fasteners, or connections from the original part and verify smooth operation before reassembly

The Bearing is an OEM component specifically designed for select Bosch dishwashers requiring stabilized rotational movement. As a friction-reducing fixture, it facilitates the smooth operation of assorted mechanisms.

Precision-ground steel and reinforced polymer composite withstand harsh chemicals and high spinning velocities without excess heat or noise. Independent shielding maintains lubrication without contaminating surrounding compartments.

Causes requiring bearing replacement usually involve coolant deterioration building friction. Physical impacts may dislodge protective seals exposing components to intrusions no longer offering intended cushioning.

Symptoms signaling the need for a new bearing incorporate:

• Grinding or scraping noises emitting from moving joints
• Reduced cycle speeds from binding components
• Excessive rotational resistance detected by diagnostics sensors

This OEM Bosch replacement bearing is also compatible with Thermador, Gaggenau, and some Kenmore dishwashers relying on long-lasting suspension elements. Proper installation restores noise-dampening characteristics throughout operational stresses.

The Lower Spray Arm is an OEM part for Bosch dishwashers. It is responsible for cleaning dishes located on the lower rack through its rotating spray of water.

The lower spray arm effectively washes dishes by directly targeting them with pressurized water, helping to break up and rinse away food particles and debris. It plays an integral role in the dishwasher's cleaning performance.

Causes of a bad lower spray arm include clogging, blockages, or damage to the arm itself that prevents proper rotation.

Symptoms of a bad lower spray arm are:

• Dirty dishes on the lower rack even after a full cycle
• Dishes on the lower rack not receiving adequate water coverage
• Noticeable buildup of food residue in the lower rack and spray arm area

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Micro Pump Filter is an OEM part for Bosch dishwashers, designed to capture and prevent debris from entering the pump and circulating system of the dishwasher. This crucial component ensures that water remains clean throughout the wash cycle, protecting the dishwasher's internal components from damage due to particles and food residue.

Causes of damage to the micro pump filter often involve the accumulation of debris and food particles over time, which can lead to clogging or physical damage.

Symptoms of a bad Micro Pump Filter include:

• Poor cleaning performance, with particles left on dishes after a wash cycle
• Unusual noises coming from the dishwasher
• Water not draining properly

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

Fine filter designed to trap food and debris in the dishwasher's wash system, helping prevent pump clogs and reduce redeposited soils on dishes. Direct replacement for the dishwasher's original fine-mesh filter. What it does:

• Captures food particles and fines from wash water to keep the pump and circulation system clear.
• Helps reduce food redeposit and maintain wash performance when functioning properly.
• Can prevent coarse debris from reaching the wash pump and drain components.
• Common signs a filter needs cleaning or replacement include visible food on dishes, recurring clogs, or poor wash results.

• Always disconnect power to the appliance and turn off the water supply before servicing.
• Remove the lower dish rack to access the filter area; handle the filter gently to avoid damage.
• Clean the filter seat and surrounding area before installing; ensure the filter is seated and secured per the owner's manual.

This crockery basket is a replacement dishwasher rack insert that holds dishes and small items securely during wash cycles, restoring organized loading and reducing movement that can cause chips or breakage. What it does:

• Provides dedicated slots to keep cups, mugs, and small bowls separated and stable
• Replaces cracked, broken, or missing basket that lets items shift during cycles
• Helps maintain proper water flow and cleaning by keeping items upright and spaced
• Compatible with dishwashing racks that accept a detachable crockery basket insert

• Remove the old basket from the rack and snap or slide the new basket into the same position
• No special tools typically required; handle rack components carefully to avoid bending
• Inspect rack clips and rails for damage; replace any broken hardware before installing
• Disconnect power and ensure the dishwasher is off before doing repairs in the tub area

The Dish Rack Wheel with Clip is an OEM part for Bosch dishwashers. It is essential for the smooth gliding of the dishwasher rack in and out of the unit, facilitating easy loading and unloading of dishes.

Causes of a bad Dish Rack Wheel with Clip can include physical damage from impact, wear from frequent use, or degradation of the wheel material, leading to a less smooth operation.

Symptoms of a bad Dish Rack Wheel with Clip include:

• Difficulty in sliding the rack in and out
• Unusual noises during rack movement
• The rack becoming detached or misaligned during use

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This insert is a small trim and mounting component designed to secure and finish appliance openings for a factory appearance. It restores proper fit and alignment where the original insert is cracked, missing, or worn. What it does:

• Covers and finishes openings or seams for a clean, factory look
• Helps align and secure adjacent trim or panels to reduce rattling
• Commonly used when the original insert is cracked, damaged, or lost
• Matches OEM fit and attachment points for straightforward replacement

• One insert

• Disconnect power and/or gas to the appliance before attempting service
• Remove any surrounding trim or fasteners to access the damaged insert; reinstall in reverse order
• Use basic hand tools; avoid forcing the part to prevent panel damage

The Tine Row Holder is an OEM component specifically designed for select Bosch dishwashers. Located inside the tub basin, it secures the tine row assembly in place to direct spray patterns.

Symptoms of a bad tine row holder include:

• Improper spray distribution inside the tub
• Loosening of the tine rows from their intended position
• Visible cracks or damage to the holder's mounting points

Causes of failure may be normal wear over time or accidental impacts that compromise integrity. Mineral buildup could also affect its securing function.

This replacement holder is also compatible with Gaggenau and Thermador dishwashers.

The Tine Row Holder is an OEM replacement part for Bosch dishwashers. Located inside the upper basket, it securely holds a row of retractable spray arm tines in place.

Causes of a faulty tine row holder can include cracks or breaks in the plastic from repeated folding and unfolding of the tines over time.

Symptoms of a bad tine row holder include:

• Tines detaching from the spray arm assembly and getting loose inside the tub
• Inability to properly angle or position spray coverage where needed
• Reduced washing power on certain sections of loaded dishes

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore dishwashers.
