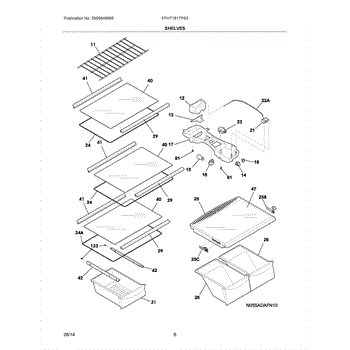

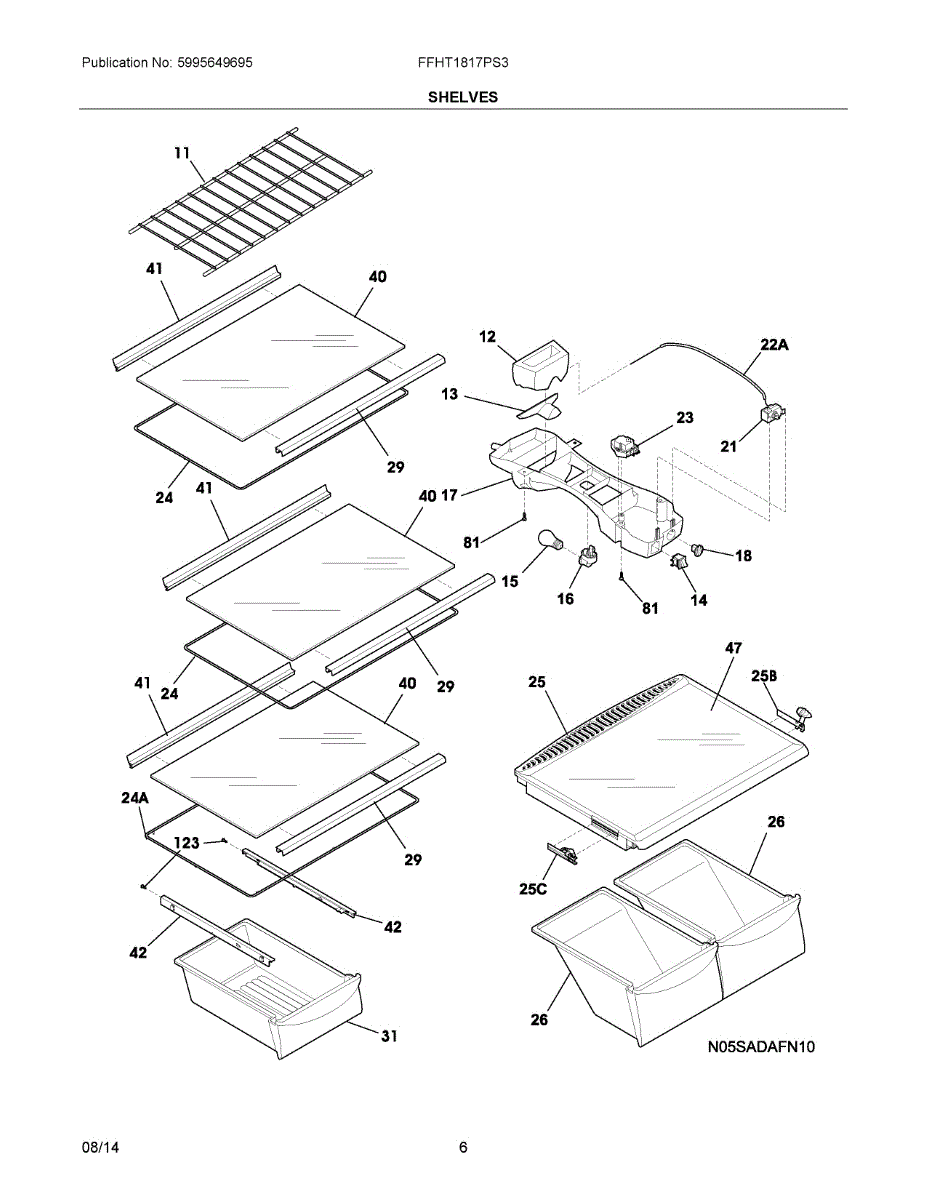

Parts for Frigidaire FFHT1817PS3: 04 - Shelves Parts

The Freezer Shelf is an OEM replacement part for  Frigidaire freezers. It is a sturdy and durable wire or glass shelf designed to provide ample storage space within the freezer compartment, allowing you to organize and easily access frozen items. Measuring approximately 24-1/2" W x 12-1/2" D x 5/32" H, the shelf requires no hardware or tools for installation.

Causes of needing to replace a freezer shelf can include physical damage from impact or excessive force, warping or deformation due to temperature fluctuations or moisture over time, or general wear and tear from repeated use.

Symptoms of a bad freezer shelf include:

• Visible cracks or bends in the shelf material
• The shelf becoming loose or unstable, causing items to slide off
• Difficulty sliding the shelf in and out of its designated position

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This refrigerator deflector is a molded guide that mounts inside the unit to direct internal airflow where it's needed. Replacing a cracked, warped, or missing deflector helps restore proper circulation for more consistent temperatures and performance.

• Channels airflow within the freezer/dispenser path to maintain even cooling
• Helps reduce frost or ice buildup caused by misdirected air
• Can address symptoms like warm spots, frost around vents, or rattling from loose parts
• Replace if broken, deformed, or missing

• Disconnect power before servicing
• Remove shelves/panels as needed to access the mounting location; keep track of screws/clips
• Install the new deflector in the same orientation; reuse existing hardware
• Reassemble and verify that vents/air passages are unobstructed

Bottom air diffuser directs cold air into the refrigerator's lower cabinet to help maintain even temperatures and reduce warm spots. Replacing a damaged diffuser restores proper airflow and helps the fresh-food section cool more consistently. What it does:

• Redirects cold air from the cooling channel into the refrigerator's lower cabinet for balanced cooling.
• Helps reduce warm spots and uneven temperatures in the fresh-food area.
• A cracked, broken, or missing diffuser can lead to restricted airflow and inconsistent cabinet temperatures.
• Seats into the lower air channel and secures with factory tabs or fasteners; inspect mounting tabs for damage.

• Disconnect power to the appliance before performing any service.
• Remove shelves and drawers as needed for access; work carefully around evaporator/air channels.
• Gently release and re-seat plastic tabs or remove fasteners; avoid forcing parts to prevent breakage.
• If tabs are damaged, replace them or consider replacing adjacent vent components to ensure a secure fit.

The Light Switch is an OEM replacement part for Frigidaire refrigerators. This switch controls the interior light of the refrigerator, turning it on when the door is opened and off when the door is closed. It ensures that the refrigerator is properly illuminated, making it easier to find items inside.

Causes of a bad light switch can include electrical malfunctions, physical damage from repeated use, or wear and tear over time.

Symptoms of a bad Light Switch include:

• Interior light not turning on when the door is opened
• Light flickering or intermittently turning on and off
• The refrigerator light staying on even when the door is closed

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Light Bulb (40W) is an OEM part for Frigidaire appliances. Specifically designed to fit and function with Frigidaire models, this 40-watt bulb illuminates the interior of your oven, making it easier to check on the progress of your baking or roasting without opening the oven door.

Over time, oven light bulbs can burn out or be damaged from high temperatures or accidental bumps during cleaning or cooking. A functioning light bulb is crucial for the optimal operation of your oven, enhancing visibility and improving your cooking experience.

Symptoms of a bad Light Bulb include:

• The oven interior remains dark when the light switch is engaged.
• Flickering light, indicating a loose connection or nearing the end of the bulb's lifespan.
• Completely non-functional light, which can hinder your ability to monitor cooking progress.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This refrigerator light socket holds and powers the interior bulb so you can clearly see inside. Replace a cracked, heat-damaged, or loose socket to restore reliable illumination when the interior light won't work or flickers.

• Provides the electrical connection and mounting point for the compartment light bulb
• Fixes symptoms such as no interior light with a known-good bulb
• Addresses intermittent flickering when the door is opened or closed
• Helps resolve visible charring, melting, or broken contacts on the socket
• Corrects a loose bulb that won't stay seated or lit

• Disconnect power to the refrigerator before servicing; remove the light lens/cover and bulb
• Note wire positions; release the old socket from its mount
• Transfer wires to the new socket one lead at a time and seat the socket fully
• Reinstall the bulb and cover; restore power and test
• Use only the bulb type and wattage specified for your model

This temperature control knob replaces a worn or broken fridge temperature dial so you can set the refrigerator temperature accurately. It restores a solid grip and clear pointer for reliable, easy adjustments. What it does:

• Fits onto the temperature control shaft to select colder or warmer settings
• Provides a clear pointer for precise temperature selection
• Replaces cracked, stripped, or missing knobs that make adjustments difficult
• Helps eliminate loose or slipping knob operation

• One temperature control knob

• Push-fit installation onto the control shaft; no special tools typically required
• Ensure power is off and remove food before working in the appliance for safety
• Inspect the control shaft for damage; replace the control if the shaft is stripped

The Cold Control is an OEM part for Frigidaire refrigerators. It regulates the temperature inside the fridge and freezer compartments by controlling the compressor, evaporator fan, and cooling vents. Proper cooling depends on the cold control operating reliably.

Symptoms of a bad cold control include:

• Fluctuating temperatures that don't stay consistent
• The refrigerator or freezer running excessively hot or cold
• The compressor not turning on at all

Causes of failure can be worn over many years of use or damage to electronic components. Without an accurately functioning control, cooling performance diminishes significantly.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This replacement water tube routes water within the refrigerator's internal water system. Installing a fresh, intact tube helps stop leaks and restores reliable water flow to the dispenser and ice maker. What it does:

• Carries water between components such as the inlet valve, reservoir, dispenser, and ice maker
• Maintains a sealed, kink-free path for proper flow and pressure
• Common signs of failure: leaks or puddling, weak or no dispenser flow, ice maker not filling, brittle or discolored tubing

• One tube

• Unplug the refrigerator and shut off the water supply before servicing
• Note the original routing; take photos to match length and path
• If trimming, cut ends square and fully seat into the existing push-to-connect or compression fittings
• Restore water and check all connections for leaks before powering the unit back on

The Defrost Timer is an OEM replacement part for Frigidaire refrigerators. It is a crucial component that controls the defrost cycle, ensuring proper and efficient defrosting of the freezer compartment.

Symptoms of a bad defrost timer:

• Excessive ice buildup in the freezer compartment
• Freezer not maintaining the desired temperature
• Water leaks or moisture accumulation due to improper defrosting
• Refrigerator running constantly or cycling too frequently

Causes of a defective defrost timer can include mechanical wear and tear, electrical malfunctions, or simply reaching the end of its lifespan due to regular use.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerator models.

This is a sliding shelf frame that is used on the interior of many models of refrigerators. The shelf frame supports the shelves used to hold food and beverages inside the appliance. Regular use can cause wear and tear to the sliding shelf frame.No specific tools are needed to replace this part. Open the fridge to access the damaged shelf. Pull the entire shelf out of the appliance and gently remove the glass shelf from the plastic frame. Insert the glass into the new frame and place it in the refrigerator. Make sure it is secure before use.This sliding shelf frame is designed for use with refrigerators manufactured by Kelvinator, Frigidaire, Crosley, Kenmore, and Westinghouse. It is sold as an individual product. This is an authentic OEM replacement part that is directly sourced from the manufacturer.

The Deli Drawer Cover Frame is an OEM part for Frigidaire refrigerators. It serves as the frame that holds and supports the deli drawer cover, ensuring a secure fit and smooth operation. The cover frame is designed to maintain the proper positioning of the deli drawer cover, allowing for easy access to stored items while preserving the overall organization and appearance of the refrigerator interior.

Symptoms of a bad Deli Drawer Cover Frame include:
• Difficulty opening or closing the deli drawer
• Loose or misaligned deli drawer cover
• Cracks, breaks, or visible damage to the cover frame
• Interference with other refrigerator components due to improper fitment

Causes of a damaged or malfunctioning cover frame can include accidental impact, excessive force applied during use, or general wear and tear over time.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Humidity Control Slide is an OEM part for Frigidaire refrigerators. This part regulates the humidity levels within the crisper drawers, helping to keep fruits and vegetables fresh for longer periods. The slide allows users to adjust the ventilation in the crisper, providing optimal storage conditions for different types of produce.

Causes of a bad humidity control slide can include regular wear and tear, accidental breakage, or misalignment that prevents it from moving smoothly.

Symptoms of a bad humidity control slide include:

• Difficulty adjusting the humidity settings
• The slide feeling loose or falling off
• Produce not staying fresh as long as expected
• Visible damage or cracks on the slide mechanism

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Frigidaire humidity control slide is an OEM replacement part responsible for regulating and adjusting the humidity levels within the crisper drawers of a refrigerator. This slide is found on the fresh food drawer to allow adjustment of the amount of moisture retained in the crisper drawers, which is essential for preserving the freshness and crispness of fruits and vegetables.

By adjusting the humidity control slide, users can create an ideal environment for different types of produce, ensuring that they stay fresh for longer periods and preventing food waste from wilting or drying out prematurely.

This part fixes the following symptoms

• Inability to adjust or control the humidity levels within the crisper drawers.
• Produce items wilting or drying out quickly due to improper humidity regulation.
• The control slide becoming loose, stuck, or difficult to move.

This Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Refrigerator Crisper Drawer Cover is an OEM part for Frigidaire refrigerators, designed to offer a stable platform for the crisper drawers, providing organization and storage capacity. This part supports the crisper drawers and helps to maintain the ideal humidity level to keep fruits and vegetables fresh longer.

Causes of a bad Refrigerator Crisper Drawer Cover can include cracks or breaks from heavy items being placed on top, warping due to temperature variations, or normal wear and tear over time.

Symptoms of a bad Refrigerator Crisper Drawer Cover include:

• Difficulty sliding the crisper drawers in and out.
• Visible cracks or damage leading to items falling through.
• A decrease in fruit and vegetable storage options.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Crisper Pan is an OEM replacement part for Frigidaire refrigerators. This high-quality crisper pan measures approximately 18 inches in length, 12 inches in width, and 8 inches in height. It is made of durable plastic material that is designed to withstand the rigors of everyday use. This crisper pan features a clear design that makes it easy to see the contents inside. It also has a humidity control feature that helps keep fruits and vegetables fresh for longer periods of time.

Symptoms of a failing Crisper Pan include:

• Cracks or breaks in the pan
• Warping or damage that prevents the pan from sliding in and out
• Scratches or cloudiness on the surface that impairs visibility

Causes of a bad Crisper Pan can range from overloading it with too much weight, which can lead to cracks or warping, to normal wear and tear from sliding the pan in and out of the refrigerator. Accidental impacts, such as dropping the pan while cleaning, can also cause damage.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Front Shelf Trim is an OEM part for Frigidaire refrigerators. This part enhances the appearance and functionality of refrigerator shelves by providing a finished look and preventing items from sliding off. The trim snaps onto the front edge of refrigerator shelves, adding stability and a sleek, polished appearance to the shelving unit.

Over time, the front shelf trim can become cracked, discolored, or even break due to frequent cleaning, exposure to cold temperatures, or accidental damage. This can lead to a less secure shelf edge, which might not effectively prevent items from sliding off as intended.

Symptoms of a bad Front Shelf Trim include:

• Visible cracks or breaks in the trim
• Difficulty in fitting or staying attached to the shelf
• Aesthetic issues such as discoloration or warping
• Reduced effectiveness in preventing items from sliding off the shelf

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Meat Pan is an OEM part for Frigidaire refrigerators. This drawer is specifically designed to store meats and other perishables at an optimal temperature within your refrigerator. Its placement often allows for slightly different temperature conditions than the rest of the refrigerator, helping to keep meats fresher for longer. This bin measures approximately 18 inches long and 13 inches wide,

Symptoms of a failing meat pan include:

• Cracks or breaks in the pan that compromise its structural integrity
• Difficulty sliding the pan in and out due to damage or warping
• The pan not sealing properly, which can affect temperature regulation within the compartment

Causes of meat pan damage usually stem from overloading the drawer beyond its capacity, frequent and forceful use, or accidental damage from items being dropped on or in it.

This OEM part is compatible with Kenmore, Frigidaire, Crosley, Westinghouse, Electrolux, Kelvinator, and Gibson brands.

The Glass Shelf Insert is an OEM part for Frigidaire refrigerators. This insert provides a sturdy and transparent surface for storing food items, allowing for easy organization and visibility within the refrigerator compartment. The glass measures approximately 23-3/4" wide and 16-5/16" deep.

Over time, the glass shelf insert can become damaged due to heavy loads, accidental impacts, or thermal stress from hot items. Causes of a bad glass shelf insert include cracks, chips, or complete breakage, which can compromise the safety and functionality of the shelf.

Symptoms of a bad glass shelf insert include:

• Visible cracks or chips in the glass
• Difficulty in maintaining a stable surface for food storage
• The shelf insert not fitting properly within the refrigerator due to damage
• Potential safety hazards from broken glass

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Rear Shelf Trim is an OEM part for Frigidaire refrigerators. It is designed to fit along the back edge of refrigerator shelves, providing a clean, finished look and helping to prevent items from sliding off the back of the shelf.

Symptoms of a bad Rear Shelf Trim include:

• The trim becoming loose or detaching from the shelf, which can cause items to fall off more easily.
• Cracking or breaking of the trim, which may compromise the structural integrity of the shelf.
• Wear and discoloration that diminishes the aesthetic appearance of the refrigerator interior.

Causes of a bad rear shelf trim can include frequent removal or adjustment of shelves during cleaning or reorganization, physical impacts from storing or removing items, or the natural aging process that can make plastic components brittle over time.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Meat Pan Hanger is an OEM replacement part for  Frigidaire ovens and ranges. It is a handy accessory designed to support and securely hold meat pans or other oven-safe cookware during the cooking process. The hanger measures approximately 16.65 inches in length by 1 inch in width.

Symptoms of needing to replace the meat pan hanger include:

• Visible signs of wear, warping, or damage on the existing hanger
• The hanger becoming unstable or unable to securely hold cookware
• Difficulty in inserting or removing the hanger from the oven racks

Causes of needing a new meat pan hanger can include normal wear and tear over time, exposure to high temperatures, or physical damage due to accidental dropping or mishandling.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore ovens and ranges. For the right-hand side order 240530701.

The Meat Pan Hanger is an OEM replacement part for Frigidaire refrigerators. Measuring approximately 16 inches long by 1 inch high, it is a component designed to securely hold and support the meat pan or drawer inside the refrigerator compartment.

Symptoms of a faulty or damaged Meat Pan Hanger include:

• The meat pan becoming loose or unstable within the refrigerator
• Difficulty in sliding or removing the meat pan from its designated location
• Visible cracks, breaks, or damage to the hanger itself

Causes of needing to replace the meat pan hanger can include wear and tear over time, physical impact or mishandling, or the desire to upgrade or replace an outdated or damaged component.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerator models.

Note: This part is sold separately from the left side drawer support rail. For the left-hand side, you should order part number 240530601.

The Glass Shelf Insert is an OEM replacement part for Frigidaire refrigerators. It provides versatile storage space by allowing items to be viewed clearly and easily rearranged. This insert measures approximately  23.82 x 15.50 inches

Causes of a bad shelf insert may include cracks, chips or other damage due to repeated handling or excessive weight loads not suitable for glass. Normal wear over time can also affect the shelf surface.

Symptoms of issues include:

• Visible damage detracting from shelf appearance and function
• Increased risk of items stored atop the shelf getting damaged
• Difficulty cleaning due to cracks or irregular surfaces

This OEM replacement part is compatible with models by Electrolux, Kelvinator and Kenmore as well.

This factory fastener secures appliance panels and components. Replace a missing, stripped, or corroded screw to restore a tight, rattle-free fit and keep brackets and covers properly aligned.

• Fastens panels, brackets, and internal parts as specified by the manufacturer
• Helps maintain alignment and reduces vibration/rattling
• Replace if the head is stripped, threads are damaged, or corrosion is present
• Symptoms include loose/missing hardware, gaps, or rattling during operation

• Disconnect power; shut off gas/water if applicable before servicing
• Use the correct driver/bit size to avoid stripping the head
• Start threads by hand to prevent cross-threading; do not overtighten
• Match screw length/thread to the location; replace in sets when required

This replacement screw secures panels, brackets, and other components in your appliance. Replace missing or stripped hardware to restore a tight, rattle-free fit and keep assemblies aligned the way the manufacturer intended.

• Fastens the designated component to the appliance cabinet or assembly
• Helps reduce looseness, vibration, and rattling
• Replaces missing, corroded, or stripped screws
• Supports proper alignment of panels, trim, and brackets

• Disconnect power and, if applicable, shut off gas/water before servicing
• Match the screw to the original location; retain any reusable clips or washers
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten into plastic or thin metal

This is a replacement mounting screw used to secure the defrost timer assembly to the refrigerator control housing, restoring proper fastening and preventing the timer from shifting or vibrating during operation. What it does:

• Secures the defrost timer to the control housing so the timer stays in position.
• Prevents vibration or movement that can cause intermittent contact or noisy operation.
• Helps maintain reliable defrost cycle timing by keeping the timer properly aligned.
• Addresses symptoms such as a loose or missing fastener, rattling behind the control panel, or a timer that shifts when the door is opened.

• Unplug the appliance before starting work to prevent electrical shock.
• Access the control housing or timer bracket per your model's service instructions.
• Use the correct screwdriver or driver bit; do not overtighten—stop when snug to avoid stripping.
• Retain removed hardware for reference and compare screw length/threads before installing.

A molded gasket that seals the evaporator coil cover to reduce air bypass and help direct cold air over the coils for more consistent cooling. Replaces a worn or damaged seal to help restore proper airflow and reduce frost buildup. What it does:

• Seals the evaporator coil cover to prevent warm air from bypassing the coil
• Helps maintain proper airflow for consistent cooling performance
• Reduces frost or ice buildup caused by air leaks around the coil cover
• Prevents condensation and dripping by keeping air where it belongs

• Disconnect power to the appliance before servicing to avoid electrical shock
• Thaw any frost/ice accumulation and remove the evaporator access cover per manufacturer instructions
• Clean mating surfaces, then press the seal into place ensuring a full, even fit around the cover

This control box wiring harness routes power and signals between the appliance control board and other components to restore reliable control operation and electrical connectivity. It helps resolve intermittent controls and lost function caused by damaged wiring. What it does:

• Connects the control board to switches, sensors and motors to enable normal control functions.
• Replaces damaged or frayed wiring that can cause intermittent operation or unresponsive controls.
• Addresses symptoms such as control panel not responding, random shutdowns, or error codes tied to wiring faults.
• Restores proper signal and power routing when connector damage or wire breaks interrupt circuits.

• Disconnect all power to the appliance before beginning any service.
• Compare the new harness to the original and follow factory connector positions and routing to avoid pin miswiring or chafing.
• Handle connectors gently and ensure all terminals fully seat; inspect mating connectors for damage before reconnecting.

This refrigerator shelf spacer positions and supports a shelf so it sits secure and level. Replacing a worn or missing spacer helps eliminate wobble or shifting and restores proper fit and alignment inside the compartment. What it does

• Maintains correct spacing and alignment for the shelf
• Helps keep the shelf level and secure in its track or frame
• Replaces cracked, deformed, or missing spacers
• Symptoms can include a loose, tilted, or rattling shelf, or visible gaps where the shelf should seat

• One shelf spacer

• Disconnect power to the refrigerator before servicing
• Remove the shelf to access the spacer location
• Gently pry out the old spacer; avoid stressing plastic or glass components
• Press the new spacer firmly into place and reinstall the shelf, ensuring proper orientation
