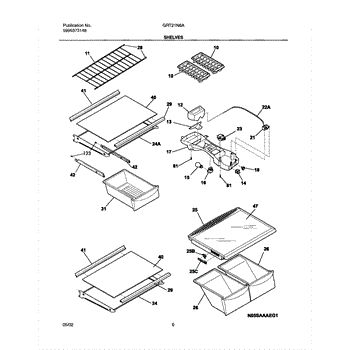

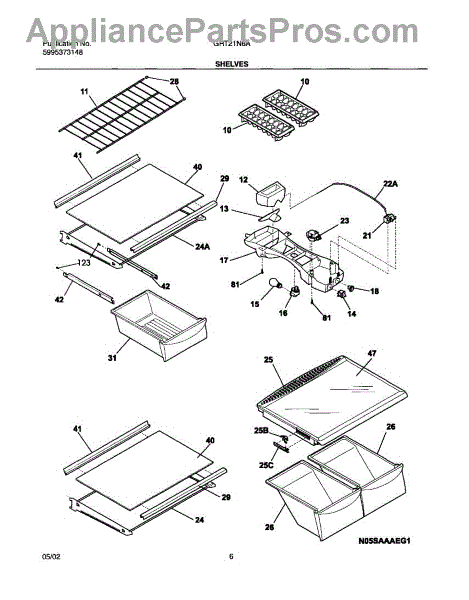

Parts for Gibson GRT21N6AW4: 07 - Shelves Parts

Optional flexible ice tray for those that dont have an icemaker

Wire freezer shelf

This top air diffuser directs cold airflow inside the refrigerator compartment to help maintain even temperature distribution and reduce hot spots. It replaces a cracked or damaged diffuser to restore proper airflow direction. What it does:

• Channels and disperses cold air from the evaporator into the fresh food cavity
• Helps prevent uneven cooling and localized warm spots
• Replaces broken, cracked, or warped diffusers that cause poor airflow
• Reduces gusty or misdirected airflow noises when damaged

• One top air diffuser

• Disconnect power to the appliance before beginning any repair
• Remove shelves and any interior trim blocking access to the diffuser
• Typically snaps or screws into place; handle gently to avoid cracking

Bottom air diffuser directs cold air into the refrigerator's lower cabinet to help maintain even temperatures and reduce warm spots. Replacing a damaged diffuser restores proper airflow and helps the fresh-food section cool more consistently. What it does:

• Redirects cold air from the cooling channel into the refrigerator's lower cabinet for balanced cooling.
• Helps reduce warm spots and uneven temperatures in the fresh-food area.
• A cracked, broken, or missing diffuser can lead to restricted airflow and inconsistent cabinet temperatures.
• Seats into the lower air channel and secures with factory tabs or fasteners; inspect mounting tabs for damage.

• Disconnect power to the appliance before performing any service.
• Remove shelves and drawers as needed for access; work carefully around evaporator/air channels.
• Gently release and re-seat plastic tabs or remove fasteners; avoid forcing parts to prevent breakage.
• If tabs are damaged, replace them or consider replacing adjacent vent components to ensure a secure fit.

The Light Switch is an OEM part for Frigidaire refrigerators. It is designed to control the interior lighting of the refrigerator; the switch activates when the door is opened and deactivates when closed.

Causes of a bad Light Switch can include mechanical wear from frequent use, which may cause the switch to fail to engage or disengage properly. Electrical issues such as short circuits or loose connections can also prevent the switch from functioning correctly.

Symptoms of a bad Light Switch include:

• The refrigerator light staying on when the door is closed
• The light not turning on when the door is opened
• Flickering or intermittent lighting when the door position changes

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Light Bulb (40W) is an OEM part for Frigidaire appliances. Specifically designed to fit and function with Frigidaire models, this 40-watt bulb illuminates the interior of your oven, making it easier to check on the progress of your baking or roasting without opening the oven door.

Over time, oven light bulbs can burn out or be damaged from high temperatures or accidental bumps during cleaning or cooking. A functioning light bulb is crucial for the optimal operation of your oven, enhancing visibility and improving your cooking experience.

Symptoms of a bad Light Bulb include:

• The oven interior remains dark when the light switch is engaged.
• Flickering light, indicating a loose connection or nearing the end of the bulb's lifespan.
• Completely non-functional light, which can hinder your ability to monitor cooking progress.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This refrigerator light socket holds and powers the interior bulb so you can clearly see inside. Replace a cracked, heat-damaged, or loose socket to restore reliable illumination when the interior light won't work or flickers.

• Provides the electrical connection and mounting point for the compartment light bulb
• Fixes symptoms such as no interior light with a known-good bulb
• Addresses intermittent flickering when the door is opened or closed
• Helps resolve visible charring, melting, or broken contacts on the socket
• Corrects a loose bulb that won't stay seated or lit

• Disconnect power to the refrigerator before servicing; remove the light lens/cover and bulb
• Note wire positions; release the old socket from its mount
• Transfer wires to the new socket one lead at a time and seat the socket fully
• Reinstall the bulb and cover; restore power and test
• Use only the bulb type and wattage specified for your model

This control box houses and protects the appliance's electronic controls and wiring, restoring a secure mounting point for the console and control modules. Replacing a damaged control box helps resolve loose or exposed electronics and supports reliable button and display operation. What it does:

• Provides a secure enclosure for the control board and wiring harness
• Protects electronics from damage, debris, and shorting
• Restores proper mounting and alignment of the control console
• Can stop symptoms like loose or intermittently working buttons, exposed wiring, or a rattling console

• Disconnect power to the appliance before starting any work
• Replacement typically requires removing the control console or outer panel to access mounting screws and harness connections
• Handle electronics and connectors carefully; avoid forcing or bending housing tabs

This temperature control knob replaces a worn or broken fridge temperature dial so you can set the refrigerator temperature accurately. It restores a solid grip and clear pointer for reliable, easy adjustments. What it does:

• Fits onto the temperature control shaft to select colder or warmer settings
• Provides a clear pointer for precise temperature selection
• Replaces cracked, stripped, or missing knobs that make adjustments difficult
• Helps eliminate loose or slipping knob operation

• One temperature control knob

• Push-fit installation onto the control shaft; no special tools typically required
• Ensure power is off and remove food before working in the appliance for safety
• Inspect the control shaft for damage; replace the control if the shaft is stripped

The Cold Control is an OEM part for Frigidaire refrigerators. It regulates the temperature inside the fridge and freezer compartments by controlling the compressor, evaporator fan, and cooling vents. Proper cooling depends on the cold control operating reliably.

Symptoms of a bad cold control include:

• Fluctuating temperatures that don't stay consistent
• The refrigerator or freezer running excessively hot or cold
• The compressor not turning on at all

Causes of failure can be worn over many years of use or damage to electronic components. Without an accurately functioning control, cooling performance diminishes significantly.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This replacement tube routes water from the refrigerator's defrost area to the drain pan to help prevent leaks and pooling. A simple, direct-fit part for restoring proper drain flow and reducing water buildup. What it does

• Channels defrost and condensation water to the drain pan to prevent interior pooling.
• Helps maintain normal drainage to avoid ice buildup or water leaks.
• Restores a damaged, cracked or clogged original tube where flow is restricted.
• Works as a service part when inspecting drain path during defrost/drain issues.

• One replacement tube.

• Disconnect power to the appliance before starting any repair.
• Remove access panels as needed and route tube along the factory path; avoid sharp bends or kinks.
• Inspect drain openings and heater components while replacing the tube.

The Defrost Timer is an OEM part for Frigidaire refrigerators. It is an essential electronic component that controls the automated defrost cycle of the refrigerator. The defrost timer monitors run times and temperatures to determine when to initiate the defrost process. It allows the refrigerator to operate efficiently by preventing excessive ice buildup. This defrost timer is designed to run for 30 minutes every 8 hours.

Symptoms of a bad defrost timer include:

• Inability to initiate or maintain the defrost cycle
• Excessive ice buildup in the freezer compartment
• Erratic temperature fluctuations
• The refrigerator running excessively or displaying other performance issues

Causes of a bad defrost timer can be normal wear and tear over time. Environmental factors like power surges or fluctuations may also impact the electronic timer functionality.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This humidity damper kit replaces the adjustable vent in your refrigerator's crisper cover. It restores proper airflow control so you can set high or low humidity for produce and reduce excess moisture or wilting. What it does:

• Regulates airflow at the crisper vent to raise or lower humidity levels
• Restores smooth slider/lever operation for accurate open/close of the damper
• Helps reduce condensation or pooling water in the crisper area
• Replaces broken, warped, or missing humidity vent parts

• One humidity damper kit (manufacturer-supplied damper/control components)

• Unplug the refrigerator; remove crisper drawers and lift out the glass cover/shelf
• Release tabs or screws to remove the old humidity control; note orientation of parts
• Install the new damper components and confirm the slider moves freely from Low to High
• Reinstall the cover and drawers; restore power and verify proper operation

The Crisper Pan is an OEM part for Frigidaire refrigerators. The crisper pan measures approximately 19" x 7 1/2" x 11 1/2" It is responsible for lining the bottom of the refrigerator's vegetable and fruit crisper drawers, where perishable items like produce are stored. The crisper pan helps extend the shelf life of fruits and vegetables.

Causes of a bad crisper pan can include heavy impact from dropping, regular wear and tear, or exposure to harsh cleaning chemicals.

Symptoms of a bad crisper pan include:

• Cracks or splits in the plastic
• Difficulty sliding the pan in and out of its compartment
• Food not staying as fresh due to improper humidity levels
• Accumulation of dirt and stains that are hard to clean

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Protector Cap is an OEM part for Frigidaire refrigerators. It is designed to shield and protect specific components within the refrigerator, such as the temperature sensor or wiring connections. This cap helps to ensure that these critical parts remain intact and functional, contributing to the overall efficiency and performance of the appliance.

 A compromised protector cap can expose sensitive components to potential damage, leading to malfunctions and decreased refrigerator efficiency.

Symptoms of a bad protector cap include:

• Visible cracks or damage to the cap
• Loose or missing cap
• Exposed or damaged wiring or sensors

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Meat Pan Hanger is an OEM replacement part for  Frigidaire ovens and ranges. It is a handy accessory designed to support and securely hold meat pans or other oven-safe cookware during the cooking process. The hanger measures approximately 16.65 inches in length by 1 inch in width.

Symptoms of needing to replace the meat pan hanger include:

• Visible signs of wear, warping, or damage on the existing hanger
• The hanger becoming unstable or unable to securely hold cookware
• Difficulty in inserting or removing the hanger from the oven racks

Causes of needing a new meat pan hanger can include normal wear and tear over time, exposure to high temperatures, or physical damage due to accidental dropping or mishandling.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore ovens and ranges. For the right-hand side order 240530701.

The Meat Pan Hanger is an OEM replacement part for Frigidaire refrigerators. Measuring approximately 16 inches long by 1 inch high, it is a component designed to securely hold and support the meat pan or drawer inside the refrigerator compartment.

Symptoms of a faulty or damaged Meat Pan Hanger include:

• The meat pan becoming loose or unstable within the refrigerator
• Difficulty in sliding or removing the meat pan from its designated location
• Visible cracks, breaks, or damage to the hanger itself

Causes of needing to replace the meat pan hanger can include wear and tear over time, physical impact or mishandling, or the desire to upgrade or replace an outdated or damaged component.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerator models.

Note: This part is sold separately from the left side drawer support rail. For the left-hand side, you should order part number 240530601.

The Pan Cover Glass Insert is an OEM part for Frigidaire refrigerators. It acts as the shelf above the crisper drawers, providing a stable and transparent surface for storing fruits, vegetables, and other perishables. This glass insert is crucial for maintaining the organization within the fridge, allowing for easy visibility and access to items stored in the crisper drawers beneath it.

Causes of damage to the Pan Cover Glass Insert can include overloading it with too heavy items, accidental impacts during the loading or unloading of groceries, or sudden temperature changes that can cause glass to weaken or crack.

Symptoms indicating the need for a replacement include:

• Visible cracks or chips in the glass
• Scratches that impair visibility
• Shattering of the glass insert

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This factory fastener secures appliance panels and components. Replace a missing, stripped, or corroded screw to restore a tight, rattle-free fit and keep brackets and covers properly aligned.

• Fastens panels, brackets, and internal parts as specified by the manufacturer
• Helps maintain alignment and reduces vibration/rattling
• Replace if the head is stripped, threads are damaged, or corrosion is present
• Symptoms include loose/missing hardware, gaps, or rattling during operation

• Disconnect power; shut off gas/water if applicable before servicing
• Use the correct driver/bit size to avoid stripping the head
• Start threads by hand to prevent cross-threading; do not overtighten
• Match screw length/thread to the location; replace in sets when required

This replacement screw secures panels, brackets, and other components in your appliance. Replace missing or stripped hardware to restore a tight, rattle-free fit and keep assemblies aligned the way the manufacturer intended.

• Fastens the designated component to the appliance cabinet or assembly
• Helps reduce looseness, vibration, and rattling
• Replaces missing, corroded, or stripped screws
• Supports proper alignment of panels, trim, and brackets

• Disconnect power and, if applicable, shut off gas/water before servicing
• Match the screw to the original location; retain any reusable clips or washers
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten into plastic or thin metal

This is a replacement mounting screw used to secure the defrost timer assembly to the refrigerator control housing, restoring proper fastening and preventing the timer from shifting or vibrating during operation. What it does:

• Secures the defrost timer to the control housing so the timer stays in position.
• Prevents vibration or movement that can cause intermittent contact or noisy operation.
• Helps maintain reliable defrost cycle timing by keeping the timer properly aligned.
• Addresses symptoms such as a loose or missing fastener, rattling behind the control panel, or a timer that shifts when the door is opened.

• Unplug the appliance before starting work to prevent electrical shock.
• Access the control housing or timer bracket per your model's service instructions.
• Use the correct screwdriver or driver bit; do not overtighten—stop when snug to avoid stripping.
• Retain removed hardware for reference and compare screw length/threads before installing.

This shelf spacer is a genuine OEM replacement part sourced directly from the manufacturer, and it is used in refrigerators and freezers. This shelf spacer attaches to wire shelves in the refrigerator and freezer to hold them in place. If the shelf spacer is lost or damaged, the shelf will not stay in place. The spacer should be replaced.Refrigerator shelves must be sturdy to hold the weight of the food stored inside. If the shelf spacer is missing, the stability of the shelf is compromised. This part snaps onto the wire shelf and prevents it from moving around. This keeps the food inside the refrigerator from causing the shelf to fall. No tools are needed to install this part. If the shelf spacer is missing, do not store food on the shelf until it is installed.This shelf spacer is a white plastic part that is sold individually. It is designed for use in refrigerators manufactured by Kenmore, Frigidaire, Westinghouse, and Gibson.

This control box wiring harness routes power and signals between the appliance control board and other components to restore reliable control operation and electrical connectivity. It helps resolve intermittent controls and lost function caused by damaged wiring. What it does:

• Connects the control board to switches, sensors and motors to enable normal control functions.
• Replaces damaged or frayed wiring that can cause intermittent operation or unresponsive controls.
• Addresses symptoms such as control panel not responding, random shutdowns, or error codes tied to wiring faults.
• Restores proper signal and power routing when connector damage or wire breaks interrupt circuits.

• Disconnect all power to the appliance before beginning any service.
• Compare the new harness to the original and follow factory connector positions and routing to avoid pin miswiring or chafing.
• Handle connectors gently and ensure all terminals fully seat; inspect mating connectors for damage before reconnecting.
