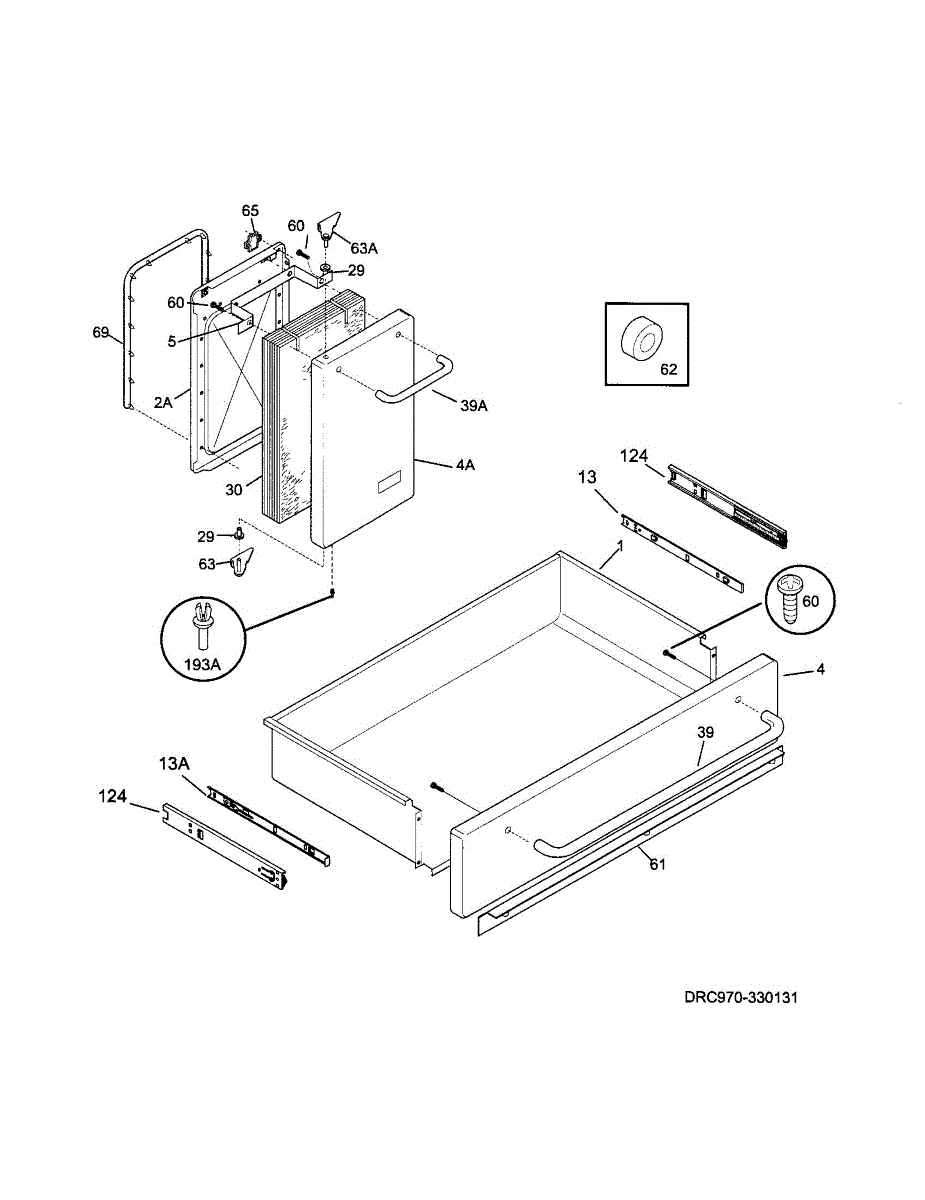

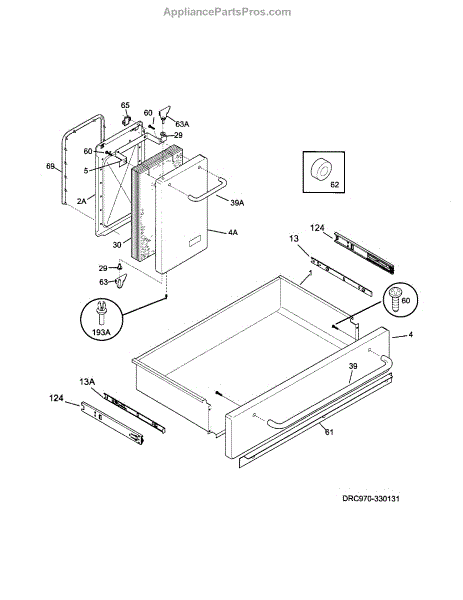

Parts for Kenmore 790.75603702 (79075603702, 790 75603702): Small Door / Drawer Parts

This repair parts list is a reference diagram that helps identify replacement components and part numbers for service and repair. It speeds diagnosis by showing component locations and itemized part callouts in plain diagram form. What it does:

• Shows exploded parts diagrams and item callouts to identify correct replacement components
• Lists OEM part numbers used in the assembly for accurate ordering
• Helps troubleshoot symptoms by identifying which parts relate to specific areas
• Useful for service techs and DIYers planning repairs or parts purchases

• This is a reference document; no physical installation is required
• Keep the list with your service records for future repairs

10-24 x 1/2 inch machine screw that secures temperature probe and thermistor brackets to cooktop, oven, and range chassis. Replace if missing or stripped.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

Low-friction slide piece that supports moving components in your range or wall oven. Replace worn or cracked glides to restore smooth operation.

Low-friction glide that supports and guides range drawer movement. Replace if cracked, broken, or worn to restore smooth sliding without sticking or scraping.

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment

This 15-ounce grate cleaner removes grease, food residue, and burnt-on stains from your range's cooking grates. The four-pack provides enough cleaner for multiple thorough cleanings to restore your grates to like-new condition.

This stainless steel cleaner restores and protects stainless surfaces, removing fingerprints, smudges and light soils to improve appearance and make routine cleaning easier. Safe for finished stainless when used as directed. What it does:

• Cleans away fingerprints, grease, and light residue from stainless surfaces
• Restores a streak-free shine and improves overall appearance
• Helps reduce visible smudges for easier routine maintenance
• Leaves a light protective finish that helps resist fingerprints between applications

• Read and follow the product label before use; test on an inconspicuous area first
• Apply to a soft cloth and wipe with the grain of the stainless; avoid abrasive pads
• Do not use on hot surfaces, painted finishes, or unsealed metals unless manufacturer approves
• Keep out of reach of children and avoid contact with eyes; if contact occurs, rinse thoroughly

Replacement screw for securing panels, brackets, and covers on appliances. Replaces missing, stripped, or damaged screws to restore alignment.

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation

Replacement mounting screw for refrigerators, ovens, ranges, and cooktops. Secures interior panels, components, and trim. Needed when original is stripped, missing, or damaged during repair.

This hinge pin spacer helps position the refrigerator door hinge pin for proper door alignment and smooth operation. It replaces a worn or missing spacer to restore correct hinge spacing and reduce door binding. What it does:

• Holds the hinge pin at the correct height and offset for the upper or lower door hinge
• Helps prevent door sag, misalignment, and uneven sealing
• Reduces metal-on-metal contact and rubbing that can cause noise or wear
• Works at either the upper or lower hinge location as specified for your model

• One hinge pin spacer

• Disconnect power to the appliance or unplug the refrigerator before starting any repair
• Support the door while removing hinge hardware to prevent the door from falling
• Reuse existing hinge pin and hardware unless damaged; replace any worn fasteners

Replacement machine screw used to secure appliance panels and internal components, restoring a stable fit and reducing rattling. Matches a 10-32 thread with a 17/32-inch length for original fastener locations. What it does:

• Fastens panels, trim pieces, and internal brackets; a missing or damaged screw can cause loose panels or rattling noises.
• Secures knobs, control housings and small assemblies to prevent wobble or misalignment.
• Restores proper fit for components so doors and access panels sit evenly and function reliably.

• Disconnect power (unplug or shut off circuit) before accessing components.
• Use the correct driver and tighten by hand; avoid overtightening to prevent stripped threads or cracked plastic.
• Keep any original washers or clips and reinstall them with the screw.

Decorative trim panel that covers the base of your range. Replace this toe plate if it's cracked, scratched, or missing to restore a finished look.

Replace a damaged or worn oven door hinge on your range. This hinge secures the lower oven door and allows smooth opening and closing action.

Range drawer glide with integrated ball bearings ensures smooth drawer operation. Replace when drawer sticks, won't close, or bearings are bent or damaged.
