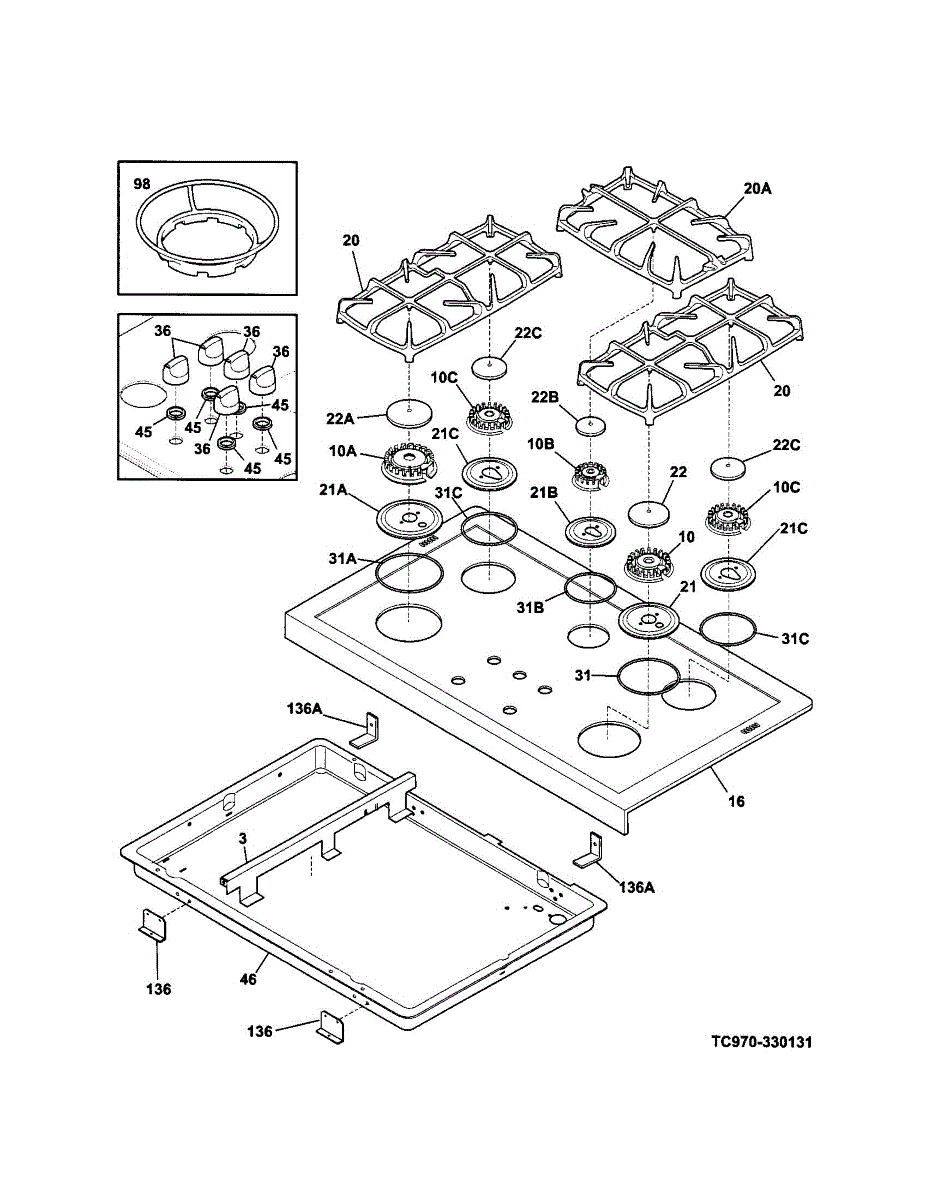

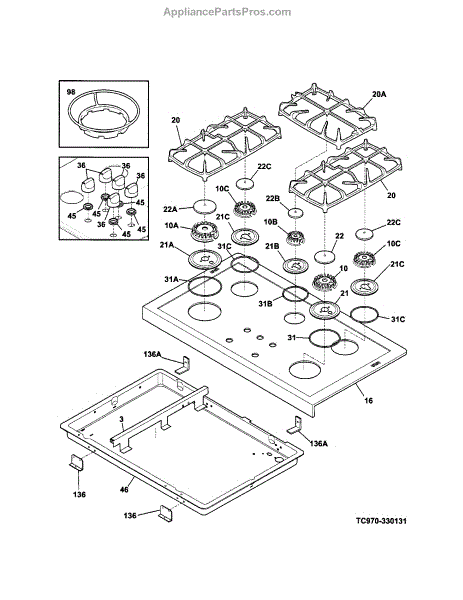

Parts for Kenmore 790.75603702 (79075603702, 790 75603702): Main Top Parts

This repair parts list is a reference diagram that helps identify replacement components and part numbers for service and repair. It speeds diagnosis by showing component locations and itemized part callouts in plain diagram form. What it does:

• Shows exploded parts diagrams and item callouts to identify correct replacement components
• Lists OEM part numbers used in the assembly for accurate ordering
• Helps troubleshoot symptoms by identifying which parts relate to specific areas
• Useful for service techs and DIYers planning repairs or parts purchases

• This is a reference document; no physical installation is required
• Keep the list with your service records for future repairs

10-24 x 1/2 inch machine screw that secures temperature probe and thermistor brackets to cooktop, oven, and range chassis. Replace if missing or stripped.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

Sealed gas burner head for range cooktops. Installs on the stovetop surface to distribute flame. Replace if cracked, corroded, or damaged.

The Stove Top Burner is an OEM part for Frigidaire cooktops and ranges. It is designed to provide consistent and reliable heat for cooking on the stovetop. This burner ensures even heat distribution, allowing for efficient cooking and precise temperature control.

Over time, stove top burners can become faulty due to various reasons. Causes of a bad stove top burner can include wear and tear from regular use, accumulation of food residue or grease, or damage from impact. These factors can lead to inconsistent heating or the burner failing to ignite.

Symptoms of a bad stove top burner include:

• The burner not heating up
• Uneven heating or hot spots
• Difficulty igniting the burner
• The burner producing unusual noises or smells

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This 15-ounce grate cleaner removes grease, food residue, and burnt-on stains from your range's cooking grates. The four-pack provides enough cleaner for multiple thorough cleanings to restore your grates to like-new condition.

This stainless steel cleaner restores and protects stainless surfaces, removing fingerprints, smudges and light soils to improve appearance and make routine cleaning easier. Safe for finished stainless when used as directed. What it does:

• Cleans away fingerprints, grease, and light residue from stainless surfaces
• Restores a streak-free shine and improves overall appearance
• Helps reduce visible smudges for easier routine maintenance
• Leaves a light protective finish that helps resist fingerprints between applications

• Read and follow the product label before use; test on an inconspicuous area first
• Apply to a soft cloth and wipe with the grain of the stainless; avoid abrasive pads
• Do not use on hot surfaces, painted finishes, or unsealed metals unless manufacturer approves
• Keep out of reach of children and avoid contact with eyes; if contact occurs, rinse thoroughly

Two per package.

Replacement screw for securing panels, brackets, and covers on appliances. Replaces missing, stripped, or damaged screws to restore alignment.

This black burner skirt fits around a 5K simmer burner ring to restore proper appearance and support the cooktop surface. Replaces cracked or damaged skirts to keep the burner area sealed and looking finished. What it does:

• Provides the decorative and protective trim around a 5K (5000 BTU) simmer burner
• Helps keep spills and debris from entering the burner cavity
• Restores even contact and alignment for the burner assembly
• Commonly replaced when the skirt is cracked, warped, or missing

• One black burner skirt (5K)

• Turn off and disconnect power and gas supply and allow all surfaces to cool before servicing
• Remove burner caps and grates per your model's service instructions to access the skirt
• Handle carefully to avoid bending or cracking; hand tools usually sufficient

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation

A surface burner skirt that covers and protects the heating element on your electric range cooktop. This metal component directs heat upward while shielding the element from spills and debris. Replace it when the skirt is warped, discolored from overheating, or has cracks that affect heat distribution.

Secures the ignitor assembly to your gas cooktop burner base. Replace if screw head is stripped, threads damaged, or screw is missing after disassembly.

Replacement mounting screw for refrigerators, ovens, ranges, and cooktops. Secures interior panels, components, and trim. Needed when original is stripped, missing, or damaged during repair.

Seals around cooktop burner to prevent spills from entering burner housing and centers burner for even heating. Replace when hardened or cracked.

Replacement gasket that seals around surface burners to prevent spills from entering the cooktop cavity. Replace when hardened, cracked, or torn. Confirm fit with your model number before ordering.

Seals the gap between burner and cooktop to prevent spills from leaking underneath. Replace when seal becomes discolored, cracked, or loses flexibility.

Seals between burner and cooktop to prevent spills and air leaks. Replace when cracked, hardened, or crumbling. Confirm fit with your model number.

Control knob for cooktop burner adjustment. Installs on the front control panel. Replace if cracked, broken, loose, or missing for proper appearance.

This is a mounting bracket that secures internal components to the appliance chassis, helping maintain proper alignment and stable operation. It replaces damaged or bent brackets to restore secure support. What it does:

• Provides a secure mounting point for internal parts to prevent movement and rattling
• Restores proper alignment when a bracket is bent, cracked, or broken
• Helps reduce vibration-related noise from loose components
• Supports safe, reliable operation by keeping components fixed in place

• One mounting bracket

• Disconnect power to the appliance before starting any repair
• Use basic hand tools; avoid over-tightening fasteners which can strip threads or warp the bracket
• Handle edges carefully; brackets can have sharp metal edges
