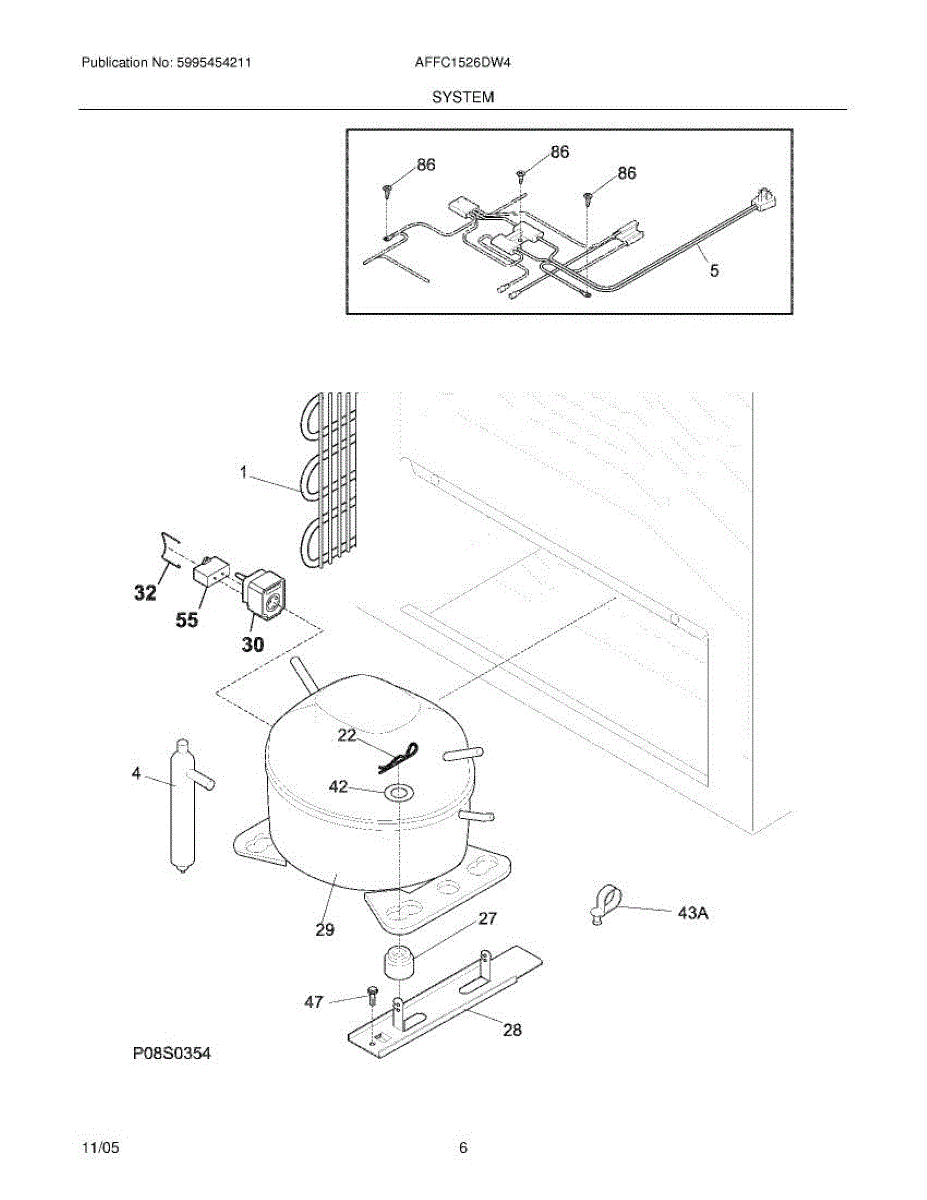

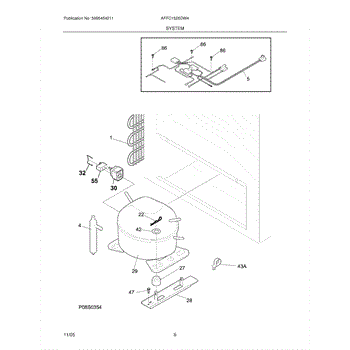

Parts for Frigidaire AFFC1526DW4: 07 - System Parts

Includes service line.

This compressor grommet is a rubber mounting isolator that cushions and secures the compressor to the appliance chassis, helping reduce vibration and noise while preventing metal-to-metal contact and premature wear. What it does:

• Cushions compressor movement to reduce vibration transmitted to the cabinet
• Dampens noise and rattling caused by compressor operation
• Prevents direct metal-to-metal contact that can wear mounting points
• Helps keep the compressor positioned and secured under load

• Disconnect power to the appliance before accessing the compressor or base pan
• Replace grommets while supporting the compressor to avoid strain on lines and connections
• Inspect remaining mounting grommets; replace all worn isolators for best performance

The product featured is a Frigidaire refrigerator compressor. The compressor is a vital component for the cooling and freezing process of a refrigerator. A compressor works together with the evaporator in providing the cold air needed to keep everything at the desired temperature. When a compressor fails, this could have an effect that calls for an emergency repair. Losing the compressor function means the refrigerator stops getting cold in both compartments. Prolonging the repair could mean the loss of all the food items stored inside. A faulty compressor may become very loud when it operates. Users may hear a slight clicking sound on a compressor that's entirely out of commission. This is the relay clicking in an attempt to power the compressor. If a compressor does go out, keep the doors of the freezer and refrigerator shut. There's a chance the food can be salvaged if repairs take place fast enough. This compressor is a genuine OEM product and is sourced directly from the manufacturer and is only available as an individual component. Frigidaire, Kenmore, and Maytag refrigerators can be repaired with this component.

This PTC compressor start relay briefly powers the compressor's start winding to get the motor turning, then drops out as it warms. Replacing a weak relay can restore consistent compressor starts and stabilize refrigerator and freezer temperatures.

• Momentarily energizes the compressor's start winding; disengages automatically as the PTC element heats
• Helps protect the compressor by removing the start winding after startup
• Symptoms of failure can include compressor clicking but not running
• Intermittent cooling or warming temperatures between cycles
• Heat discoloration or a burnt odor around the start device

• Disconnect power and remove the rear lower access panel
• Note wire locations; remove the start device cover/retainer and pull the old relay straight off the compressor pins
• Inspect compressor pins; firmly seat the new relay and reconnect wiring
• Reinstall covers/panels, restore power, and verify normal compressor start

This small mounting clip secures interior or cabinet components to keep panels and trim stable, helping reduce noise and maintain proper alignment. It's a simple replacement that restores a snug fit where the original clip has broken or worn. What it does:

• Holds panels, trim, or small components in place to prevent gaps or rattling
• Restores proper alignment of clipped parts after damage or wear
• Maintains a secure attachment point for adjacent parts during normal use
• Helps prevent moisture or debris from entering behind secured panels

• Disconnect power or unplug the appliance before accessing internal components
• Handle the clip and surrounding trim carefully to avoid cracking adjacent plastic
• Use basic hand tools as needed; do not force clips into place—align before snapping
• Replace any damaged mounting features for a secure fit

This genuine appliance screw secures panels and components to keep your refrigerator parts aligned and stable. A small but essential fastener, it restores proper fit and stops rattling or loose trim for reliable operation. What it does:

• Fastens panels, trim, or internal components to the appliance frame
• Restores secure fit when factory screws are missing or stripped
• Stops vibration- or temperature-related rattling caused by loose hardware
• Helps maintain proper spacing and alignment of serviceable parts

• Turn off and unplug the appliance before servicing electrical or internal areas
• Use the matching screw hole and thread engagement; start by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking surrounding material

The Compressor Run Capacitor is an OEM replacement part for Frigidaire refrigerators. This electrical component is essential for providing the necessary torque to start and maintain the operation of the compressor motor, which is responsible for cooling the refrigerator.

Symptoms of a failing compressor run capacitor include:

• The refrigerator not running or cooling properly
• The compressor failing to start or running intermittently
• Humming or buzzing noises coming from the compressor area

Causes of needing to replace the compressor run capacitor can include normal wear over time, exposure to high temperatures or electrical surges, or physical damage to the capacitor itself.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerator models.
