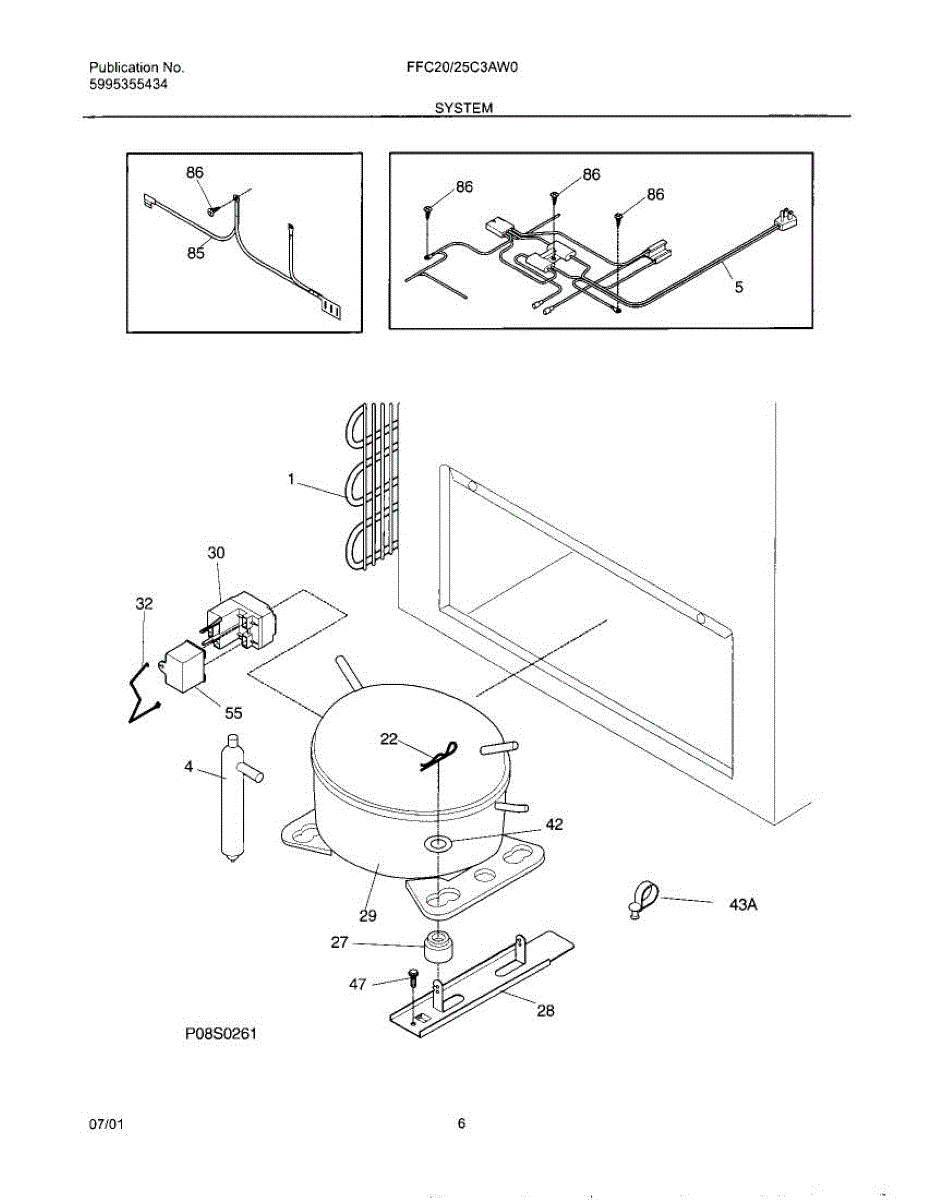

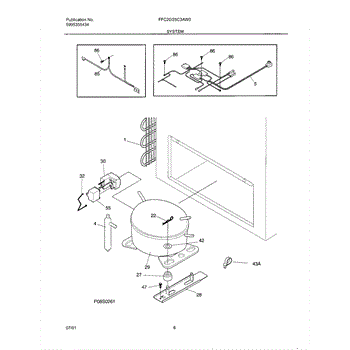

Parts for Frigidaire FFC20C3AW0: 07 - System Parts

Includes service line.

This electrical harness connects appliance control components and power circuits so switches, sensors and modules communicate reliably. Replacing a damaged harness restores consistent power and signal paths for normal operation. What it does:

• Routes and joins multiple wires into a single connector assembly for controls and accessories
• Delivers power and signal connections between control boards, switches, sensors and motors
• Failsafe symptoms: intermittent or no power to affected components, controls not responding, or visible melting/charring at connector points
• Helps prevent shorting and erratic operation when intact and correctly routed

• Always disconnect power at the breaker or unplug the appliance before servicing
• Inspect harness and connectors for visible damage, corrosion or melted insulation; do not reuse a compromised harness
• Route harness along original clips/channels and seat all connectors fully to ensure secure connections
• Basic hand tools required; refer to service manual or schematic for routing and connector locations

This compressor grommet is a rubber mounting isolator that cushions and secures the compressor to the appliance chassis, helping reduce vibration and noise while preventing metal-to-metal contact and premature wear. What it does:

• Cushions compressor movement to reduce vibration transmitted to the cabinet
• Dampens noise and rattling caused by compressor operation
• Prevents direct metal-to-metal contact that can wear mounting points
• Helps keep the compressor positioned and secured under load

• Disconnect power to the appliance before accessing the compressor or base pan
• Replace grommets while supporting the compressor to avoid strain on lines and connections
• Inspect remaining mounting grommets; replace all worn isolators for best performance

This compressor kit is made to be used with freezers and refrigerators by several manufacturers. It includes the compressor as well as all small parts associated with it. The compressor is a component that helps move the refrigerant throughout the appliance's system. Temperature sensors indicate when the compressor should run. If the compressor is damaged, it may make strange noises, no longer cool properly, or could begin to overheat.If any of these issues are present, the compressor should be replaced. First, make sure the refrigerator is not connected to a power source. Remove perishable items from the appliance and place them in an icebox, cooler with ice, or another refrigerator. Locate the compressor on the back of the appliance by removing the metal guard. Remove the wire between the compressor and the capacitor before taking off the compressor. Replace this part with the new one by connecting it to the wire and reassembling the appliance.This is a compressor kit for use with refrigerators and freezers made by Crosley, Electrolux, Westinghouse, Frigidaire, Kelvinator, Tappan, and Gibson. It is sourced directly from the manufacturer and sold as a single part. This is a genuine OEM replacement part.

This controller kit replaces the appliance's electronic control board, restoring proper power-up, keypad/display response, and reliable operation of controlled functions. Use it to address unresponsive controls or erratic behavior caused by a failed control board. What it does:

• Manages operation of key components based on sensor inputs and user settings
• Processes keypad/remote commands and powers display, mode, and timer circuits
• Coordinates temperature feedback to maintain selected settings
• Common failure symptoms include no display, unresponsive buttons, will not start, intermittent cycling, or error codes

• One controller kit

• Disconnect power before servicing; allow capacitors to discharge
• Use ESD precautions; handle the board by the edges only
• Access the control compartment; photograph wiring and move connectors one at a time to the new board
• Securely mount the board, restore power, and test all functions

This is a replacement retainer clip used to secure interior trim and small components on compatible refrigerators. It restores proper fit and prevents loose panels, rattles, or improperly seated trim. What it does:

• Secures trim, panels or small components in place to maintain proper alignment
• Prevents rattling, gaps, and shifting caused by broken or missing clips
• Replaces brittle or cracked clips that no longer hold parts securely
• Helps restore a clean, finished fit where the original clip has failed

• Disconnect power to the appliance before beginning any service
• Remove surrounding trim or panels carefully to access clip location; small fasteners may be present
• Press replacement clip into position until it snaps in; do not force or bend brittle plastic
• If other clips or fasteners are damaged, replace them to ensure a secure fit

This genuine appliance screw secures panels and components to keep your refrigerator parts aligned and stable. A small but essential fastener, it restores proper fit and stops rattling or loose trim for reliable operation. What it does:

• Fastens panels, trim, or internal components to the appliance frame
• Restores secure fit when factory screws are missing or stripped
• Stops vibration- or temperature-related rattling caused by loose hardware
• Helps maintain proper spacing and alignment of serviceable parts

• Turn off and unplug the appliance before servicing electrical or internal areas
• Use the matching screw hole and thread engagement; start by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking surrounding material

The Compressor Run Capacitor is an OEM replacement part for Frigidaire refrigerators. This electrical component is essential for providing the necessary torque to start and maintain the operation of the compressor motor, which is responsible for cooling the refrigerator.

Symptoms of a failing compressor run capacitor include:

• The refrigerator not running or cooling properly
• The compressor failing to start or running intermittently
• Humming or buzzing noises coming from the compressor area

Causes of needing to replace the compressor run capacitor can include normal wear over time, exposure to high temperatures or electrical surges, or physical damage to the capacitor itself.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerator models.
