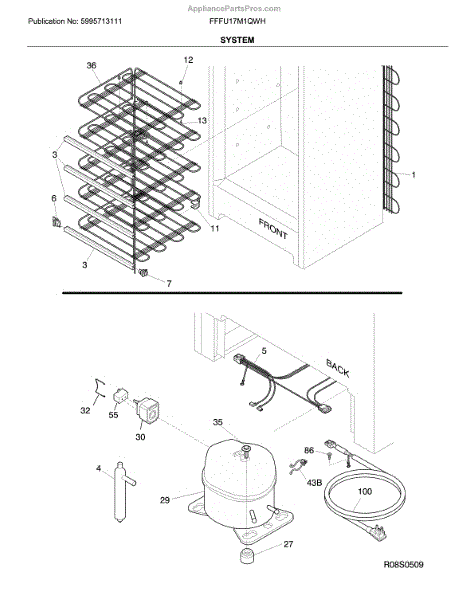

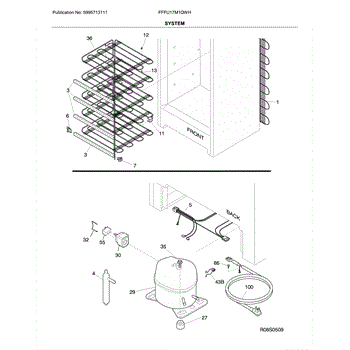

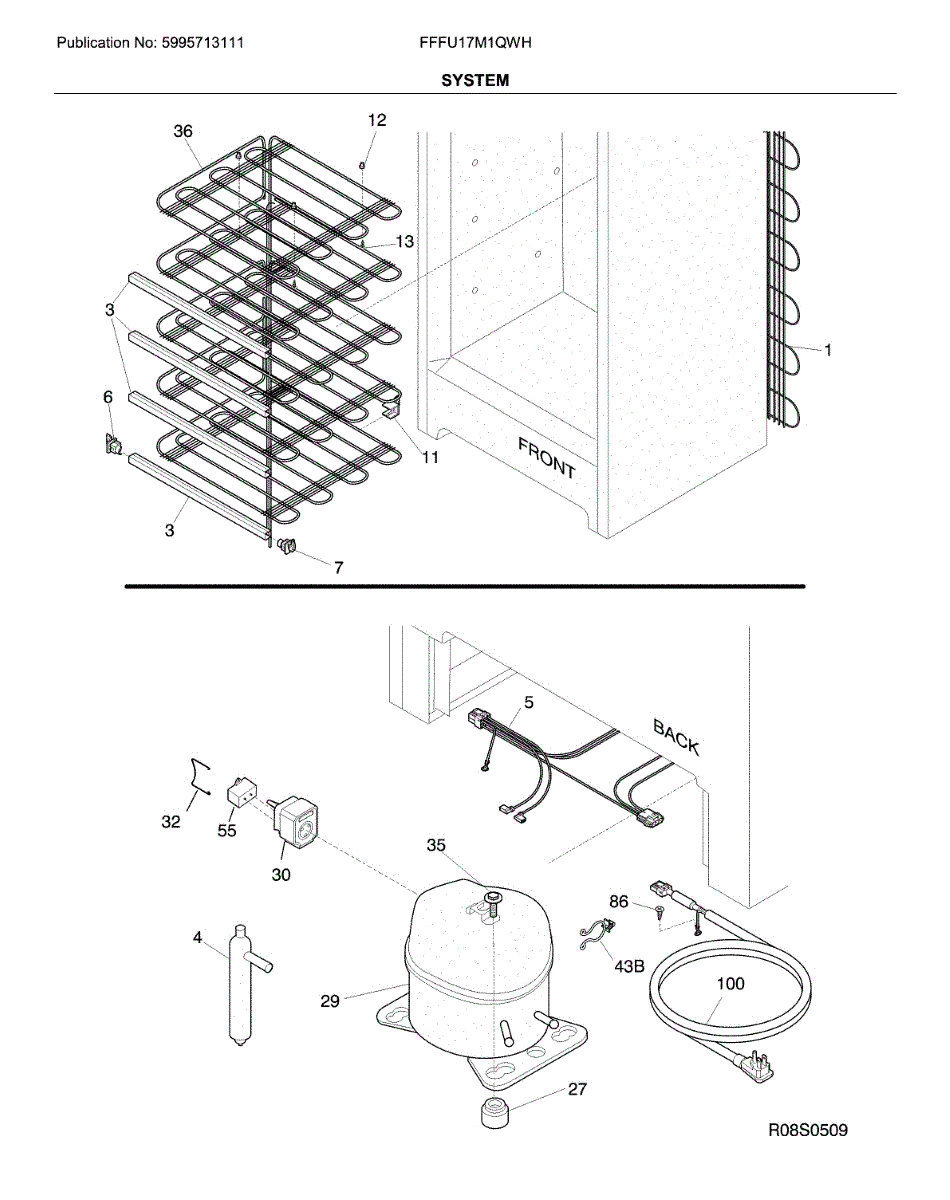

Parts for Frigidaire FFFU17M1QWH: System Parts

Includes service line.

Main wiring harness that routes power between your freezer's control board and components. Replace if wires are frayed, connectors damaged, or harness worn.

Replacement shelf support bracket for freezers. Secures and stabilizes freezer shelves. Replace if broken, cracked, or missing due to heavy loads or age.

The Support-Shelf is an OEM part for Frigidaire freezers, designed to provide sturdy and reliable support for the freezer shelves. This part ensures that the shelves remain level and secure under the weight of stored items.

Causes of a bad Support-Shelf can range from overloading shelves beyond their weight capacity, to normal wear and tear from years of use.

Symptoms of a bad Support-Shelf include:

• Shelves sagging or not sitting level, which can lead to inefficient storage and the risk of items falling.
• Cracks or breaks in the support, compromising the stability of the entire shelving system.
• Difficulty installing or removing shelves, indicating that the supports may be damaged or misshapen.

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Replacement spacer for the front of the top grid in your freezer. Needed when original spacer is cracked, broken, or missing to properly support shelf.

This compressor with mounting clip is the sealed refrigeration compressor assembly that circulates refrigerant to keep your refrigerator cold. Replacing a failed compressor restores the system's ability to cool when repairable. What it does:

• Compresses refrigerant vapor to maintain proper cooling cycle; primary sealed-system pump.
• Commonly linked to symptoms like no cooling, refrigerator runs but temperature rises, or compressor not cycling.
• Works as the sealed-system component; requires correct match to refrigerant and system specifications.

• One compressor assembly with mounting clip as shown.

• Replacement involves sealed-system work.
• Disconnect power before starting; follow all electrical safety practices.
• Use proper tools and gaskets/hoses; pressure-test and leak-check after repair.

Freezer won't cool or compressor won't start? The start device provides the electrical boost to start your compressor. Direct plug-in replacement.

Replacement mounting clip for freezers and refrigerators. Secures interior panels and trim to prevent rattling. Replaces broken or missing clips.

This drain pipe connects the defrost drain outlet to the drain pan area, channeling condensation and defrost water away from the freezer compartment. It is a rigid or semi-rigid tube that slides into the drain opening and directs water downward. Replace this part if you notice water pooling inside the freezer, ice buildup near the bottom of the compartment, or water leaking onto the floor beneath the appliance.

This small plastic clip secures the dishwasher drain hose to the pump assembly or discharge fitting, keeping the hose in place and helping prevent leaks or disconnection during operation. What it does:

• Holds the drain hose firmly to the pump or outlet fitting to maintain a watertight connection
• Prevents the hose from slipping free during drain cycles
• Helps stop water leaks and washing chamber flooding caused by a loose hose
• Useful when replacing a cracked or broken retaining clip

• One drain hose retaining clip

• Disconnect power and water supply before accessing the dishwasher lower access area
• Remove the access panel or kickplate to reach the drain hose and pump connection
• Use pliers or a flat tool to remove the old clip and snap the new clip over the hose/fitting until fully seated
• After installation, run a short drain cycle and inspect for leaks; re-secure if necessary

Freezer not cooling or frosting excessively? The evaporator coil absorbs heat to keep your freezer cold. Moderate DIY repair with proper defrosting.

Compressor clicks and won't start? Run capacitor helps start and run the compressor motor. Most DIYers replace in under 15 minutes with basic tools.

This replacement power cord delivers household electricity from the outlet to your appliance. Installing a new cord restores safe, reliable power when the original is damaged, worn, or causing intermittent operation.

• Supplies AC power from a household outlet to the unit
• Common fix for no power, flickering lights, or power loss when the cord is moved
• Replaces cords with cuts, cracks, burn marks, or melted areas
• Restores a secure electrical connection for safe, consistent operation

• Unplug the appliance and verify the wall outlet is working before replacing parts
• Access the cord routing and internal connections; note wire positions and routing before removal
• Transfer and secure any strain relief/clamp; keep wiring clear of sharp edges and hot surfaces
• After installation, ensure the cord isn't pinched and the plug seats fully in the outlet

This #8-32 x 3/8 screw secures appliance panels, brackets, and assemblies. Replace a missing or stripped fastener to keep parts tight and aligned, reduce vibration, and restore proper fit in compatible refrigerators and freezers.

• Machine-thread fastener sized #8-32, 3/8-inch length
• Secures control housings, trims, covers, and support brackets per model design
• Replaces missing, worn, or corroded screws that cause loose or rattling parts
• Helps maintain alignment and stability after service

• Unplug the appliance; shut off water if applicable
• Match thread size to the original and start by hand to avoid cross-threading
• Use the correct driver; do not overtighten, especially into plastic
• Verify component alignment and operation after fastening

• Thread size: #8-32
• Length: 3/8 inch

Hex head screw that secures panels, brackets, and internal components in refrigerators and appliances. Replace when missing, stripped, or damaged.
