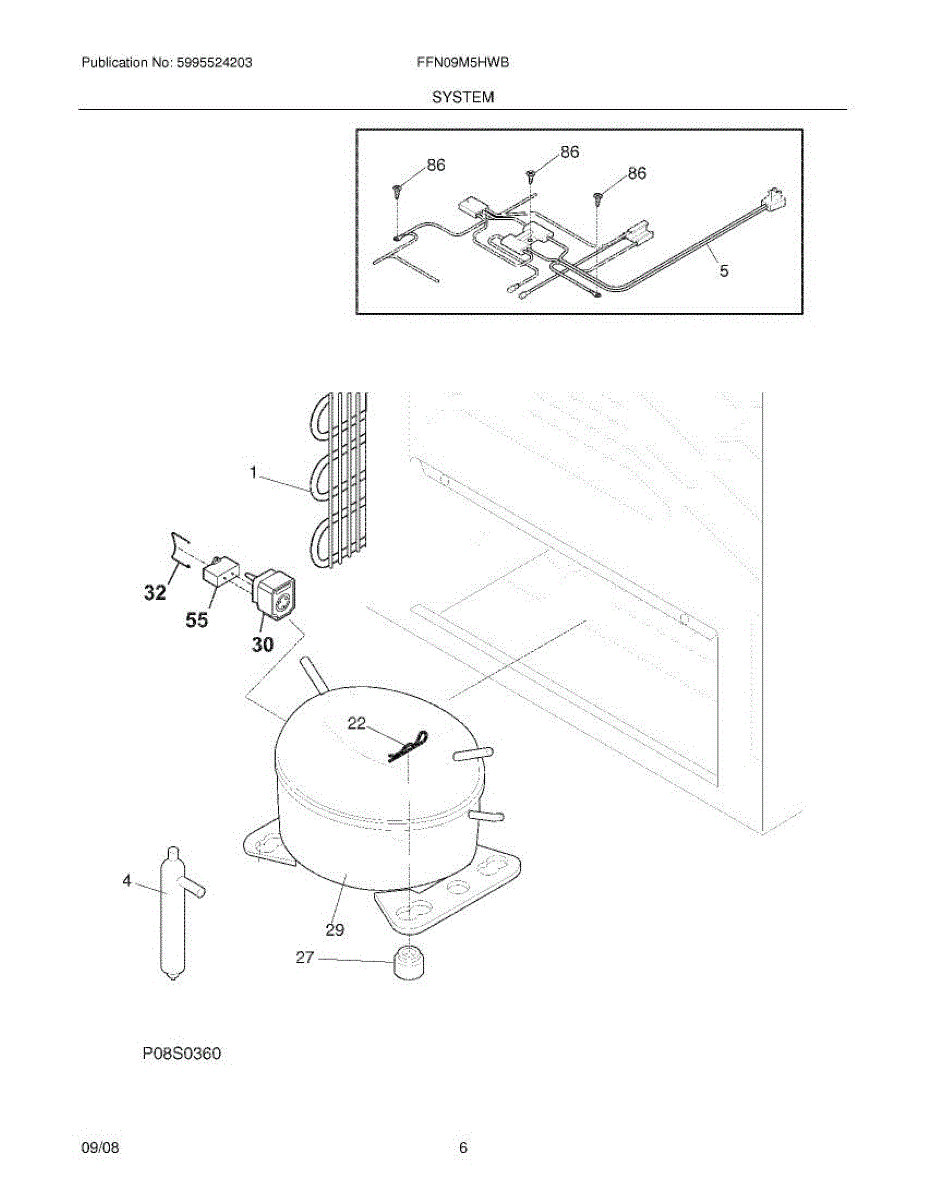

Parts for Frigidaire FFN09M5HWB: 07 - System Parts

Includes service line.

Secures the compressor to the chassis, reducing movement and noise. Replace if your compressor shifts or rattles during operation. Confirm fit with model.

Rubber mounting grommet that cushions and isolates the compressor from the chassis. Replace if cracked, worn, or missing to restore proper support.

Refrigerator not cooling or freezing? A failed compressor stops the cooling cycle. This sealed system repair requires a licensed technician to complete.

Freezer clicking but not cooling? The compressor start relay initiates the compressor motor. Common DIY repair when unit runs briefly then shuts off.

This capacitor stores and releases electrical energy to help the refrigerator's compressor start and run smoothly. Replacing a weak or failed capacitor can restore reliable compressor startup and more consistent cooling performance.

• Provides the electrical boost/phase shift needed for compressor motor startup and steady operation
• Works with the start device to deliver proper current to the compressor
• Failure symptoms can include clicking or humming near the compressor, poor cooling, or short cycling
• May cause the compressor not to start after power interruptions when weak or failed

• Disconnect power before servicing any electrical component
• Safely discharge the capacitor before handling; avoid touching terminals
• Note wire positions and terminal markings; transfer leads one at a time to the matching terminals
• Secure the capacitor in its mounting/bracket to prevent vibration damage
