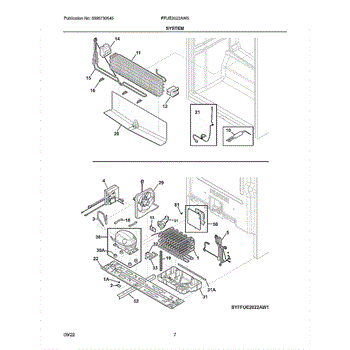

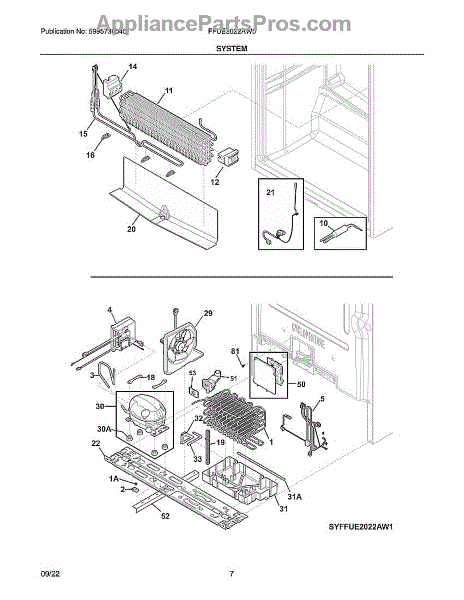

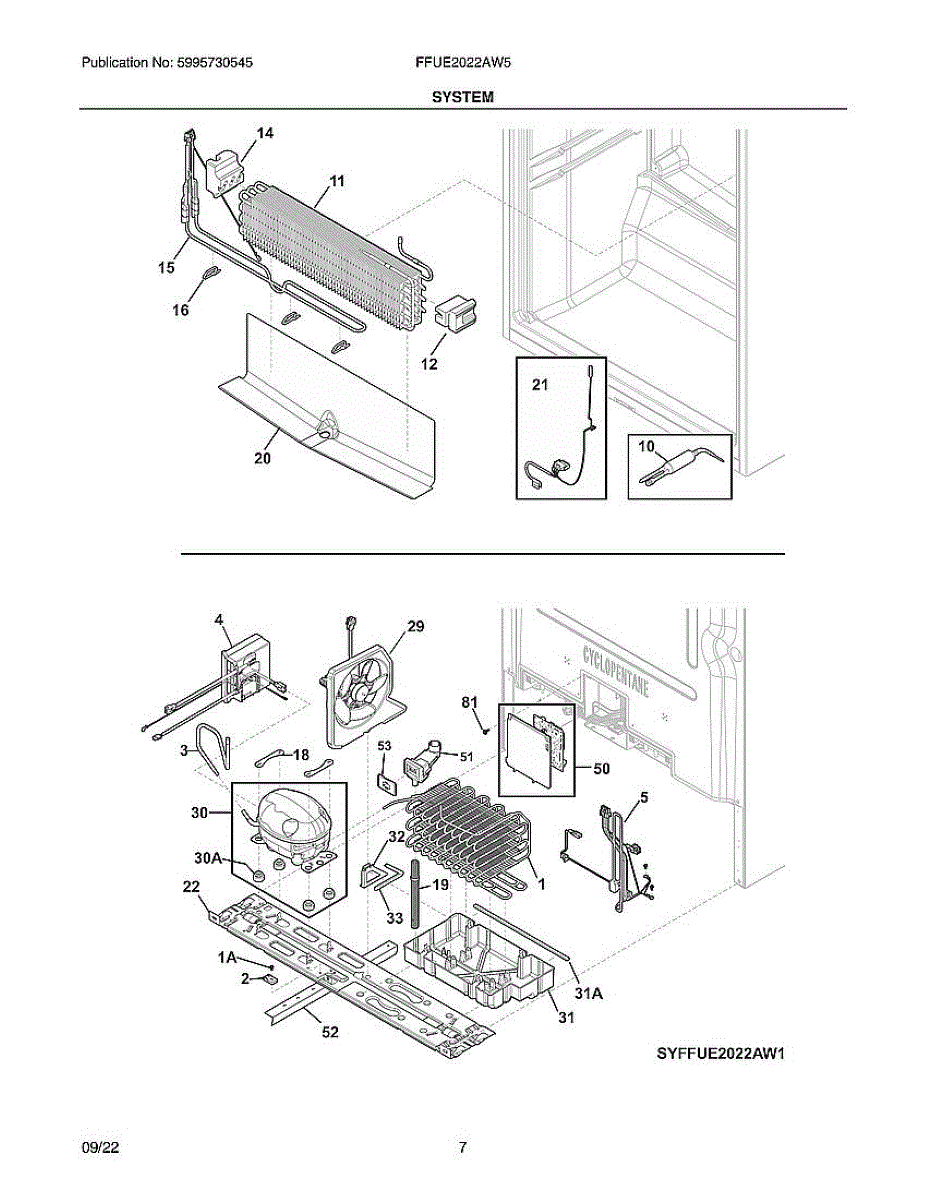

Parts for Frigidaire FFUE2022AW5: System Parts

This condenser coil assembly removes heat from the refrigerant so the refrigerator can cool properly. It's a direct-fit replacement that restores the cooling loop's ability to shed heat and run more efficiently. What it does

• Exchanges heat from the refrigerant to the surrounding air so the cooling cycle can continue
• Helps the compressor run within normal temperature range
• Commonly replaced when the refrigerator is warm inside or the unit runs continuously
• Needed if the condenser is bent, clogged with debris, or leaking

• One condenser

• Disconnect power to the appliance before starting any repair
• Handle with care — coil fins and tubing can be sharp and easily damaged
• Reinstalling may require removal of back or lower access panels; keep fasteners organized
• Sealed-system work (cutting or brazing refrigerant lines) requires certified HVAC service — do not attempt if refrigerant lines must be opened

This inverter is the compressor drive module that controls variable-speed operation to help your refrigerator cool efficiently and quietly. It replaces a failed drive unit so the compressor can respond to temperature controls. What it does

• Converts incoming power and controls compressor motor speed for proper cooling
• Restores variable-speed compressor operation when the drive has failed
• Resolves symptoms like reduced or no cooling, long run cycles, or inverter-related fault codes
• Works with the fridge's control system to regulate compressor performance

• One inverter (compressor drive) module

• Disconnect power to the appliance before starting; verify the unit is completely de-energized
• Handle the module carefully and avoid contact with exposed circuitry or connectors
• Match connector pins and mounting points; secure all electrical connections

This wiring harness routes power and signals between appliance components to restore reliable electrical connections and proper control operation. It replaces a worn or damaged connector assembly to help stop intermittent power or control failures. What it does

• Provides secure electrical connections between control, switches, and components
• Restores continuity when original wires or terminals are damaged or corroded
• Stops intermittent operation, control communication errors, or no-power symptoms
• Helps eliminate arcing or poor contact that can cause heat or burning smells

• One wiring harness assembly

• Always disconnect power (unplug or shut off breaker) before inspecting or replacing wiring
• Confirm wire routing and connector orientation before disconnecting; photograph for reference
• Avoid pinching or stressing wires; secure harness with existing clips or ties

This evaporator coil assembly circulates refrigerant inside the freezer compartment to absorb heat and enable proper cooling. Replacing a faulty coil restores cold temperatures and helps the system run efficiently. What it does:

• Evaporates refrigerant to remove heat from the freezer compartment
• Enables consistent cold airflow for proper food preservation
• Prevents excessive frost buildup when functioning correctly
• Helps reduce long run cycles caused by poor evaporator performance

• 1 evaporator coil assembly

• Disconnect power before starting work and follow basic electrical safety
• Inspect and replace damaged gaskets, insulation, or defrost components as needed for reliable operation
• Test system for leaks and proper cooling after installation

This factory heater restores controlled heat in the appliance's heating or defrost circuit so cycles complete correctly and performance returns to normal. Replacing a failed heater helps resolve temperature-related issues and reduces extended run times. What it does:

• Generates heat for the unit's designed function (wash/dry assist or defrost), depending on model
• A failed element can cause no heat, extended cycles, or temperature-related error codes
• Result in dishes staying wet or detergent not dissolving (dishwashers)
• Lead to frost/ice accumulation that doesn't melt during defrost (refrigeration)
• Often tests open (no continuity) when defective

• 1 heater

• Disconnect power before servicing; turn off water supply if applicable
• Access and mounting vary by model—refer to the product's service information
• Note wire positions; make firm, original-style connections and avoid stressing terminals
• After reassembly, run a test and check for leaks where the heater passes through the tub (if applicable)

This aluminum strap secures the defrost heater firmly against the evaporator coil to maintain proper contact during defrost. Correct contact improves heat transfer so frost melts evenly and helps prevent recurring ice buildup on the evaporator.

• Secures the defrost heater to the evaporator for proper contact and heat transfer
• Promotes complete, even defrosting across the evaporator coil
• Helps reduce repeat frost/ice accumulation caused by a shifted or loose heater
• Typical clues include a loose heater, uneven frost pattern, or rattling near the evaporator

• Disconnect power and allow ice to melt before accessing the evaporator
• Use care around sharp fins and fragile refrigerant tubing; do not puncture or deform the coil
• Position the heater per your model's parts diagram and tighten the strap for firm, even contact
• Verify wiring is routed clear of the fan and moving parts before reassembly

A short hex washer head screw used to fasten panels and components on compatible Frigidaire appliances. Replaces a lost, stripped, or damaged screw to restore secure assembly and reduce rattling or loose parts. What it does:

• Secures panels, brackets, and internal components where a short hex washer head screw is required
• Restores proper fit when original screws are missing, loose, or stripped
• Helps eliminate vibration noise caused by loose fasteners
• Provides the correct head profile for a stable, flush fastening point

• One hex washer head screw

• Disconnect power to the appliance before servicing to avoid electrical hazard
• Use the correct sized hex driver or socket to avoid rounding the head
• Tighten until snug; avoid over-tightening which can strip threads or crack plastic
• Keep removed hardware organized to ensure proper replacement

The Harness Assembly is an OEM part for Frigidaire freezers. It is a bundle of color-coded wires that connect electronic and mechanical components inside the freezer, allowing them to communicate and function as intended. The harness assembly reliably transmits signals from the control board to things like fans, temperature sensors, and door alarms.

Symptoms of a bad harness assembly include:

• Components not receiving power or control signals
• Intermittent operation of internal lights or fans
• Temperature control or cooling issues
• Buzzing or humming noises from loose wires
• Error codes related to communicating with modules

Causes of a bad dispenser can include damage over time from repeated bending and flexing of wires, rodent chewing, or corroded connections.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Fan Motor is an OEM component for Frigidaire refrigerators. Located inside the refrigerator compartment, this specialized motor powers airflow and circulation through ducts within the cabinet.

Causes of a malfunctioning fan motor can include normal wear from constant operation, collecting debris that causes imbalance or binding, and motor winding failure over extended use.

Symptoms requiring replacement are:

• Reduced/insufficient air circulation within the refrigerator
• Abnormally high temperatures or frost accumulation
• Loud buzzing or grinding noises emanating from the motor

This OEM part fits Electrolux, Gibson, Kelvinator and select Kenmore models as well for a direct fit. Replace promptly for dependable fan performance.

This evaporator fan assembly circulates cold air across the evaporator coil to maintain even refrigerator temperatures and proper cooling performance. Replaces a failed or noisy fan to restore airflow and reduce frost buildup. What it does:

• Spins to move cold air from the evaporator into the fridge and freezer compartments
• Helps maintain consistent internal temperatures for food preservation
• Worn bearings or a damaged blade can cause noise, rattling, or reduced airflow
• Restores airflow when a broken or seized fan prevents proper cooling

• One complete evaporator fan assembly (motor with blade and mounting as shown)

• Disconnect power before servicing to avoid electrical shock
• Access typically requires opening the evaporator cover—handle evaporator fins and wiring carefully
• Verify correct orientation and secure mounting to prevent noise and motor strain
• Allow the evaporator to thaw and dry before reinstalling

This sealed compressor kit replaces a failed refrigeration compressor to restore cooling performance in compatible refrigerators. Designed as a direct-replacement assembly, it provides the core refrigeration compression needed for the appliance to circulate refrigerant. What it does:

• Compresses refrigerant so the cooling cycle can operate and the refrigerator can maintain set temperatures
• Stops or reduces cooling when a compressor fails, hums, or does not start
• Addresses symptoms such as no cooling, warm compartments, or excessive compressor noise when confirmed faulty
• Works as the primary drive for refrigerant flow in the sealed refrigerant circuit

• Appliance must be disconnected from power before starting any repairs
• Proper evacuation, recovery and recharge of the refrigerant circuit is required per regulations and OEM instructions

This baffle directs cold air inside the refrigerator to help maintain even temperatures and proper airflow. Replacing a damaged or missing baffle restores intended air circulation and helps performance. What it does

• Channels and directs airflow between compartments for more consistent cooling.
• Helps prevent warm spots caused by blocked or misdirected air.
• Reduces stress on the cooling system by restoring designed airflow paths.
• Commonly replaced when cracked, broken, or missing, or when airflow is visibly obstructed.

• Unplug the appliance or disconnect power before starting any work.
• Remove food, shelves, and drawers as needed for access; handle components gently to avoid damage.
• Inspect mounting points and gaskets; replace any damaged fasteners or seals.
• Refer to OEM instructions for model-specific removal/replacement steps.

This cover drain jumper is a molded drain-channel cover that helps route defrost and condensate water into the refrigerator drain system, preventing water from pooling inside the cabinet and reducing ice buildup. What it does:

• Guides defrost and condensate water into the drain channel so it flows to the drain pan
• Helps prevent water from pooling at the back or bottom of the fresh-food compartment
• Reduces the chance of ice forming around the evaporator or in the drain path
• Fits into the drain housing to maintain proper condensate flow

• Disconnect power to the appliance before beginning any service.
• Remove shelves/panels that obstruct access to the drain area; handle plastic parts gently to avoid breakage.
• Make sure the drain channel is clear of debris and ice before installing the cover for best results.

This replacement mounting screw fastens panels and components in compatible Frigidaire appliances to restore secure assembly and reduce rattling or loose parts. Simple fastener sized for the original factory location. What it does:

• Secures panels, brackets, or trim to keep parts aligned and stable
• Prevents vibration and noise caused by loose fittings
• Restores proper attachment after repair or disassembly
• Matches the OEM thread and length for a correct fit when specified

• Use the correct screw hole and do not force; cross-threading can damage components
• Tighten to a snug fit—do not overtighten to avoid stripping threads or cracking plastic
• Power tools can be used with care; slow speed and proper bit help prevent slippage
• Turn off power and disconnect the appliance before accessing internal parts

This replacement screw fastens appliance components so panels, brackets, and covers stay securely in place. Replace a missing, stripped, or damaged screw to restore a tight fit and help prevent vibration or noise. What it does:

• Secures panels, brackets, trim, or covers as designed for your model
• Replaces missing, rusted, or stripped hardware
• Helps correct loose or misaligned components
• Reduces vibration and rattling from loose fasteners

• Includes: 1 screw

• Disconnect power before servicing
• Wear gloves and eye protection
• Use the correct driver to avoid stripping the screw head
• Tighten snugly without overtightening; refer to your model's parts diagram for exact location

This adhesive-backed plastic mounting clip secures wires, small hoses, or components inside appliances to reduce movement and rattling. Its low-profile design helps keep internal parts organized for quieter, safer operation. What it does:

• Holds wiring harnesses, sensor leads, or small tubing in place to prevent chafing and noise
• Reduces vibration-related contact that can cause intermittent electrical or sensor issues
• Provides a simple, non-invasive mounting point without drilling or fasteners
• Adhesive backing allows quick placement in tight or hard-to-reach areas

• Clean and dry mounting surface; remove backing and press clip firmly for full adhesion
• Allow adhesive to set per ambient temperature (avoid stress on clip during initial cure)
• Disconnect power before installing
• Replace any brittle or damaged surrounding insulation or wire loom as needed

This hex head screw secures panels, brackets, and small components on appliances, restoring proper fit and stability. It's a direct replacement fastener when an original mounting screw is missing, loose, or damaged. What it does:

• Secures panels, brackets, trim, and internal components to prevent rattling or movement
• Replaces stripped, missing, or damaged mounting screws that cause loose parts or misalignment
• Restores reliable mechanical fastening so doors and panels sit flush and operate correctly
• Works as a general-purpose appliance mounting screw when original fasteners are worn

• Always disconnect power to the appliance before starting any repair
• Match the screw to the original location and thread engagement; start by hand to avoid cross-threading
• Use the correct driver or socket for the hex head and tighten until snug—do not overtighten
• If the original hole or threads are damaged, repair or replace the mating hardware before installing the screw
