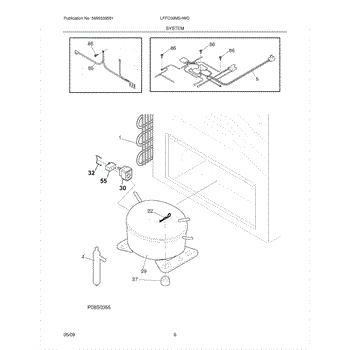

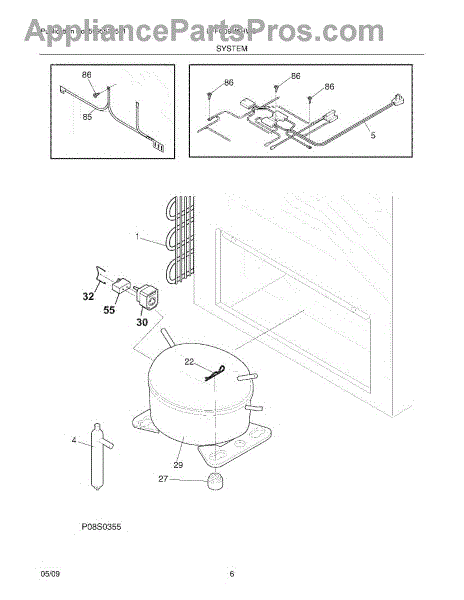

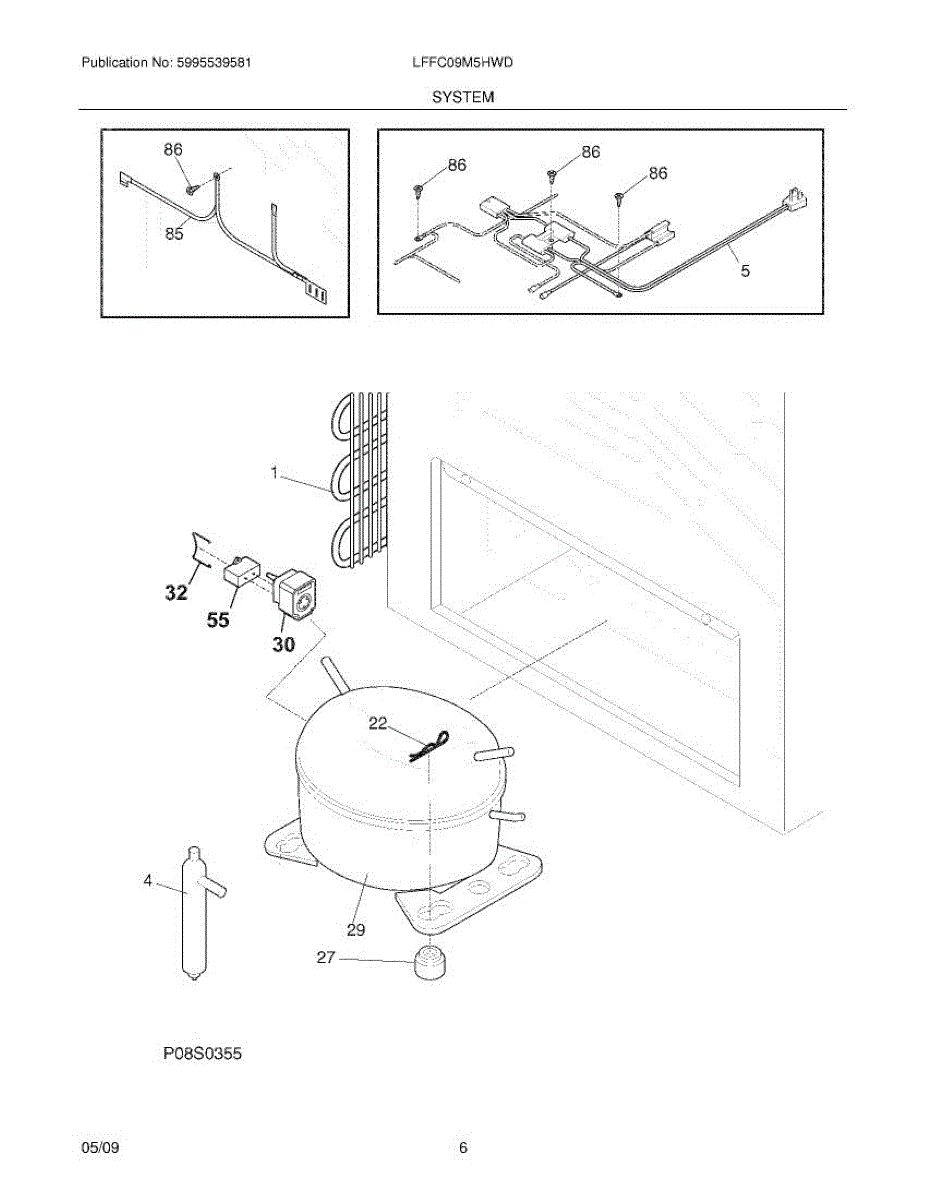

Parts for Frigidaire LFFC09M5HWD: 07 - System Parts

Includes service line.

Secures the compressor to the chassis, reducing movement and noise. Replace if your compressor shifts or rattles during operation. Confirm fit with model.

Rubber mounting grommet that cushions and isolates the compressor from the chassis. Replace if cracked, worn, or missing to restore proper support.

Refrigerator not cooling or freezer not freezing? This compressor kit circulates refrigerant to restore proper cooling. Advanced repair, requires HVAC expertise.

This Temperature Controller regulates cooling by switching power to the compressor and related circuits to hold the set temperature. Replacing a failing controller restores accurate temperature control and reliable operation. What it does:

• Cycles cooling components to maintain the temperature you set
• Helps keep cabinet temperatures consistent for proper food storage
• Coordinates on/off operation to prevent overcooling or warm conditions
• Common failure symptoms: too warm or too cold, runs constantly or won't start, control/dial unresponsive

• 1 temperature controller

• Disconnect power before servicing—this is a line-voltage control
• Access the control area, label or photograph wire positions, and move wires one at a time to the new controller
• Reuse existing mounting hardware and any knob/overlay as applicable
• After install, set to mid setting and allow up to 24 hours for temperatures to stabilize

Replacement mounting clip for freezers and refrigerators. Secures interior panels and trim to prevent rattling. Replaces broken or missing clips.

This capacitor stores and releases electrical energy to help the refrigerator's compressor start and run smoothly. Replacing a weak or failed capacitor can restore reliable compressor startup and more consistent cooling performance.

• Provides the electrical boost/phase shift needed for compressor motor startup and steady operation
• Works with the start device to deliver proper current to the compressor
• Failure symptoms can include clicking or humming near the compressor, poor cooling, or short cycling
• May cause the compressor not to start after power interruptions when weak or failed

• Disconnect power before servicing any electrical component
• Safely discharge the capacitor before handling; avoid touching terminals
• Note wire positions and terminal markings; transfer leads one at a time to the matching terminals
• Secure the capacitor in its mounting/bracket to prevent vibration damage
