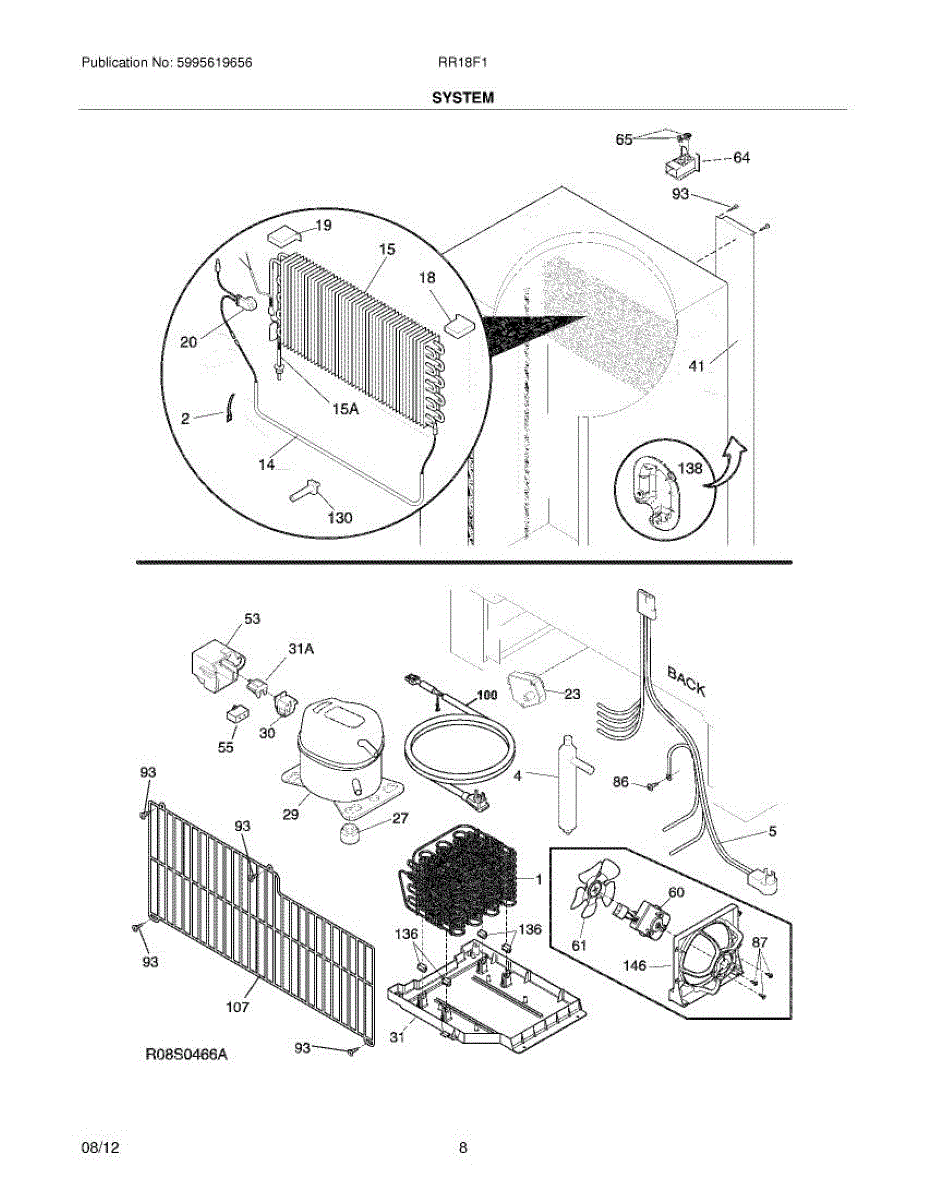

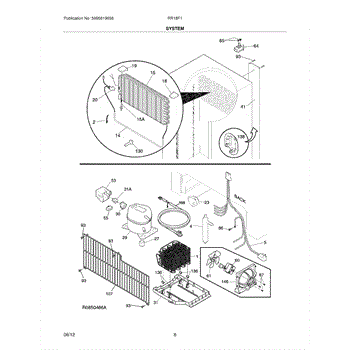

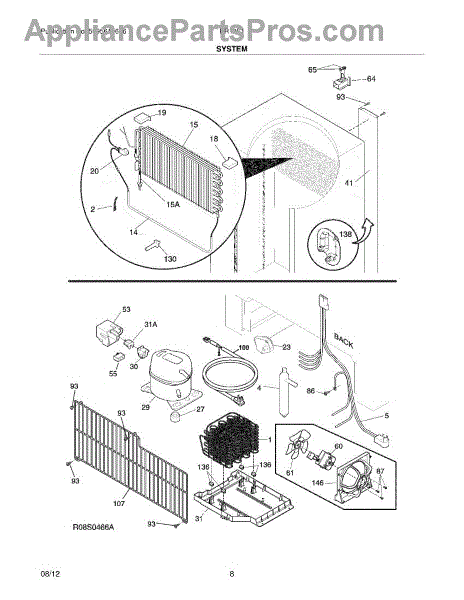

Parts for Frigidaire RR18F1: 07 - System Parts

Aluminum strap secures the defrost heater against the evaporator coil. Replace if broken, cracked, or missing to maintain proper heater contact.

Includes service line.

Fixes frost buildup on evaporator coils causing warming or ice accumulation. Test with multimeter for continuity. DIY-friendly repair component.

Freezer not cooling or won't stay cold? This evaporator coil assembly absorbs heat to maintain proper temperatures and keep food frozen.

The EVAPORATOR INSULATOR is an OEM part for Frigidaire refrigerators. It is a heat-resistant insulating pad or wrap that surrounds the evaporator coils. The insulator works to retain cool air and prevent warmer air from entering the refrigerated compartment.

Causes of a bad insulator can include deterioration or breakdown of insulating properties over time due to aging materials. Cracks, holes, or compressed sections of the insulator result in reduced insulation performance.

Symptoms of a bad evaporator insulator include:

• Inconsistently cool or warmer fridge temperatures
• Frost or ice buildup on evaporator coils or surrounding areas
• Higher than normal electric bills from inefficient cooling
• Warm or cold spots inside refrigerator shelves and compartments

This OEM Frigidaire replacement insulator is compatible with some Kitchenaid, Electrolux, Gibson, Kelvinator, and Kenmore side-by-side refrigerator models.

Freezer runs constantly or has frost buildup? The defrost thermostat regulates temperature to prevent ice on coils. DIY-friendly repair in 1-2 hours.

The Defrost Timer is an OEM replacement part for Frigidaire upright freezers. It serves as a crucial component responsible for regulating automatic defrost cycles.

Causes of a faulty defrost timer relate to 20,000+ hours of constant exposure to freezer temperatures as low as -10 degrees Fahrenheit. Such extremes can compromise electrical switching mechanisms over prolonged usage periods.

Symptoms of a failed defrost timer include:

• Inability to initiate automatic defrost modes
• Excessive ice and frost accumulation inside cabinet
• Warm areas detected due to impaired fan circulation
• Diagnostic codes indicating defrosting problems

This genuine Frigidaire replacement part is compatible with Kelvinator and some Kenmore units as well.

Freezer won't cool or makes clicking/humming sounds? This compressor start relay restores reliable motor startup. Simple DIY fix in under 30 minutes.

Refrigerator not cooling or running constantly? A failed condenser fan motor prevents heat dissipation. DIY repair typically takes 30-45 minutes.

Refrigerator not cooling properly? A damaged condenser fan blade prevents airflow over the condenser coils. Quick DIY fix—simply push into place.

Channels airflow from your freezer to improve ventilation. Replace if cracked, broken, or missing to restore proper air circulation and prevent issues.

Replacement screw that secures brackets, shelves, trim, panels, and covers inside your appliance. Install when the original is missing, stripped, or corroded.

This replacement power cord delivers household electricity from the outlet to your appliance. Installing a new cord restores safe, reliable power when the original is damaged, worn, or causing intermittent operation.

• Supplies AC power from a household outlet to the unit
• Common fix for no power, flickering lights, or power loss when the cord is moved
• Replaces cords with cuts, cracks, burn marks, or melted areas
• Restores a secure electrical connection for safe, consistent operation

• Unplug the appliance and verify the wall outlet is working before replacing parts
• Access the cord routing and internal connections; note wire positions and routing before removal
• Transfer and secure any strain relief/clamp; keep wiring clear of sharp edges and hot surfaces
• After installation, ensure the cord isn't pinched and the plug seats fully in the outlet

Small mounting bracket that holds shelves or baskets inside your freezer. Replace if cracked, broken, or missing to restore secure, level positioning.

Black rubber mounting grommet that secures tubes and wires in your refrigerator. Replace if cracked, worn, or missing to properly hold components in place.

Mounting screw for freezers and refrigerators. Secures internal components, panels, or shelving. Replace if stripped, missing, or damaged during repairs.

Secures the compressor to the mounting bracket in your refrigerator or freezer. Replace if missing, stripped, or corroded during compressor service.

Replacement spacer for the front of the top grid in your freezer. Needed when original spacer is cracked, broken, or missing to properly support shelf.

This cable clip secures a refrigerator's wire harness or control cables, keeping wiring routed and protected to prevent pinching or contact with moving parts. A small but important retainer for safe, tidy internal wiring. What it does:

• Holds and routes wire harnesses or cables to prevent interference with drawers, doors, or moving components
• Reduces wear and chafing on wires by keeping them away from sharp edges and heat sources
• Helps maintain reliable electrical connections by preventing strain on harnesses
• Commonly replaced when clips are broken, cracked, or missing and wires become loose or misrouted

• Turn off power to the appliance before accessing internal wiring
• Install by snapping clip onto designated frame or mounting boss and seating wire(s) into the clip
• Replace any damaged wiring or connectors discovered during installation

This #8-32 x 3/8 screw secures appliance panels, brackets, and assemblies. Replace a missing or stripped fastener to keep parts tight and aligned, reduce vibration, and restore proper fit in compatible refrigerators and freezers.

• Machine-thread fastener sized #8-32, 3/8-inch length
• Secures control housings, trims, covers, and support brackets per model design
• Replaces missing, worn, or corroded screws that cause loose or rattling parts
• Helps maintain alignment and stability after service

• Unplug the appliance; shut off water if applicable
• Match thread size to the original and start by hand to avoid cross-threading
• Use the correct driver; do not overtighten, especially into plastic
• Verify component alignment and operation after fastening

• Thread size: #8-32
• Length: 3/8 inch
