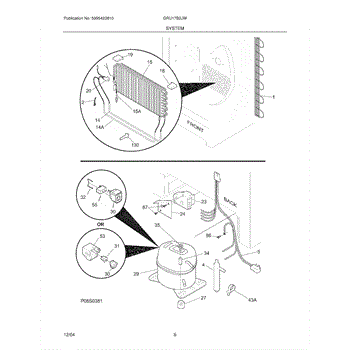

Parts for Gibson GRU17B2JW8: 07 - System Parts

This aluminum strap secures the defrost heater firmly against the evaporator coil to maintain proper contact during defrost. Correct contact improves heat transfer so frost melts evenly and helps prevent recurring ice buildup on the evaporator.

• Secures the defrost heater to the evaporator for proper contact and heat transfer
• Promotes complete, even defrosting across the evaporator coil
• Helps reduce repeat frost/ice accumulation caused by a shifted or loose heater
• Typical clues include a loose heater, uneven frost pattern, or rattling near the evaporator

• Disconnect power and allow ice to melt before accessing the evaporator
• Use care around sharp fins and fragile refrigerant tubing; do not puncture or deform the coil
• Position the heater per your model's parts diagram and tighten the strap for firm, even contact
• Verify wiring is routed clear of the fan and moving parts before reassembly

Includes service line.

The Defrost Heater is an OEM part for Frigidaire refrigerators, playing a critical role in the appliance's defrost system. This component is designed to melt away frost and ice that accumulate on the evaporator coils, ensuring that air can flow freely and the appliance maintains optimal cooling efficiency.

Causes of failure might include a burnt-out heating element, damage to the heater's electrical connections, or a malfunction in the control system that fails to activate the heater during the defrost cycle.

Symptoms of a bad Defrost Heater include:

• Frost build-up on the evaporator coils, leading to reduced cooling efficiency.
• The freezer or refrigerator compartment is too warm.
• The appliance is constantly running in an attempt to maintain the set temperature.
• Pools of water or ice on the floor of the freezer compartment due to incomplete defrosting.

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Defrost Thermostat is an OEM replacement part for Frigidaire refrigerators. This component plays a crucial role in the defrost system, monitoring and regulating the temperature to ensure proper defrosting of the evaporator coils.

Causes of a faulty defrost thermostat can include normal wear and tear over time, exposure to excessive temperature fluctuations or moisture, or electrical malfunctions.

Symptoms of needing to replace the defrost thermostat include:

• Improper defrosting or lack of defrosting
• Frost buildup on the evaporator coils
• The refrigerator running constantly or cycling frequently

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerator models.

The Defrost Timer is an OEM replacement part for Frigidaire upright freezers. It serves as a crucial component responsible for regulating automatic defrost cycles.

Causes of a faulty defrost timer relate to 20,000+ hours of constant exposure to freezer temperatures as low as -10 degrees Fahrenheit. Such extremes can compromise electrical switching mechanisms over prolonged usage periods.

Symptoms of a failed defrost timer include:

• Inability to initiate automatic defrost modes
• Excessive ice and frost accumulation inside cabinet
• Warm areas detected due to impaired fan circulation
• Diagnostic codes indicating defrosting problems

This genuine Frigidaire replacement part is compatible with Kelvinator and some Kenmore units as well.

This compressor grommet is a rubber mounting isolator that cushions and secures the compressor to the appliance chassis, helping reduce vibration and noise while preventing metal-to-metal contact and premature wear. What it does:

• Cushions compressor movement to reduce vibration transmitted to the cabinet
• Dampens noise and rattling caused by compressor operation
• Prevents direct metal-to-metal contact that can wear mounting points
• Helps keep the compressor positioned and secured under load

• Disconnect power to the appliance before accessing the compressor or base pan
• Replace grommets while supporting the compressor to avoid strain on lines and connections
• Inspect remaining mounting grommets; replace all worn isolators for best performance

The product featured is a Frigidaire refrigerator compressor. The compressor is a vital component for the cooling and freezing process of a refrigerator. A compressor works together with the evaporator in providing the cold air needed to keep everything at the desired temperature. When a compressor fails, this could have an effect that calls for an emergency repair. Losing the compressor function means the refrigerator stops getting cold in both compartments. Prolonging the repair could mean the loss of all the food items stored inside. A faulty compressor may become very loud when it operates. Users may hear a slight clicking sound on a compressor that's entirely out of commission. This is the relay clicking in an attempt to power the compressor. If a compressor does go out, keep the doors of the freezer and refrigerator shut. There's a chance the food can be salvaged if repairs take place fast enough. This compressor is a genuine OEM product and is sourced directly from the manufacturer and is only available as an individual component. Frigidaire, Kenmore, and Maytag refrigerators can be repaired with this component.

This relay assembly helps start the refrigerator compressor so the cooling system can run reliably. It replaces a worn or failed start relay to restore normal compressor startup and reduce hard-start symptoms. What it does:

• Provides the initial start pulse to the compressor motor so the refrigeration cycle can begin
• Stops excessive current draw during startup to protect the compressor
• Commonly used when the compressor hums, won't start, or cycles on and off rapidly
• Helps eliminate starter-related clicking or failure-to-start issues

• Disconnect power to the appliance before inspecting or replacing the relay
• Handle electrical connectors carefully; ensure secure, correct reattachment
• Verify match to the existing relay and mounting before installation

This electronic controller board manages key refrigeration functions and defrost routines so your appliance maintains proper temperatures. Replacing a failed board can restore automatic operation when cooling becomes erratic or frost buildup starts affecting performance.

• Governs programmed cooling and defrost cycles to help prevent frost accumulation and temperature swings
• Sends power to components per the control program, enabling fans, compressor, and heaters to run at the right time
• Typical failure signs: heavy frost on the evaporator, warm or no-cool conditions, nonstop running or short cycling, unresponsive controls
• May show visible damage such as burnt spots or a burnt odor on the board

• Disconnect power before servicing; use ESD protection and handle the board by the edges
• Access location varies by model; photograph wiring and move connectors one at a time to the new board
• Mount securely and ensure all harnesses are fully seated; avoid pinching wires during reassembly
• If frost was present, fully defrost the evaporator after installation and allow temperatures to stabilize after restoring power

This support is a small mounting bracket used inside the appliance to hold an interior component, such as a shelf or basket. Replacing a cracked or missing support restores a secure, level fit and helps prevent wobbling or dropping.

• Provides a stable mounting point for a shelf, basket, rail, or panel
• Keeps interior components aligned and level
• Common symptoms: shelf/basket tilts, won't seat, or falls; visible cracks or missing support
• Replace if broken, deformed, or worn to restore proper fit

• Disconnect power and clear the work area before starting
• Remove the affected shelf/basket/panel to access the mounting point
• Release the damaged support (snap tabs or remove screw), align, and install the new support
• Reinstall the component and verify it sits level and secure

This retainer lead wire secures appliance wiring to keep harnesses organized and away from heat or moving parts, reducing wear and accidental disconnection. It's a simple replacement to restore proper wire routing and protection. What it does:

• Clips or holds the wiring harness in place to prevent chafing and strain
• Helps keep wires away from hot surfaces, vents, or moving components
• Reduces risk of intermittent electrical connections caused by loose wiring
• Restores factory routing after service or component replacement

• Disconnect power to the appliance before installing to avoid shock or injury
• Remove any panels necessary to access the original retainer and wiring route
• Replace like-for-like, seating the retainer securely so the harness cannot shift
• If wires show damage or insulation wear, inspect further and replace damaged wiring before reassembly
